8-10 — WIRING HARNESS AND FUSE (#133755) — 116 parça

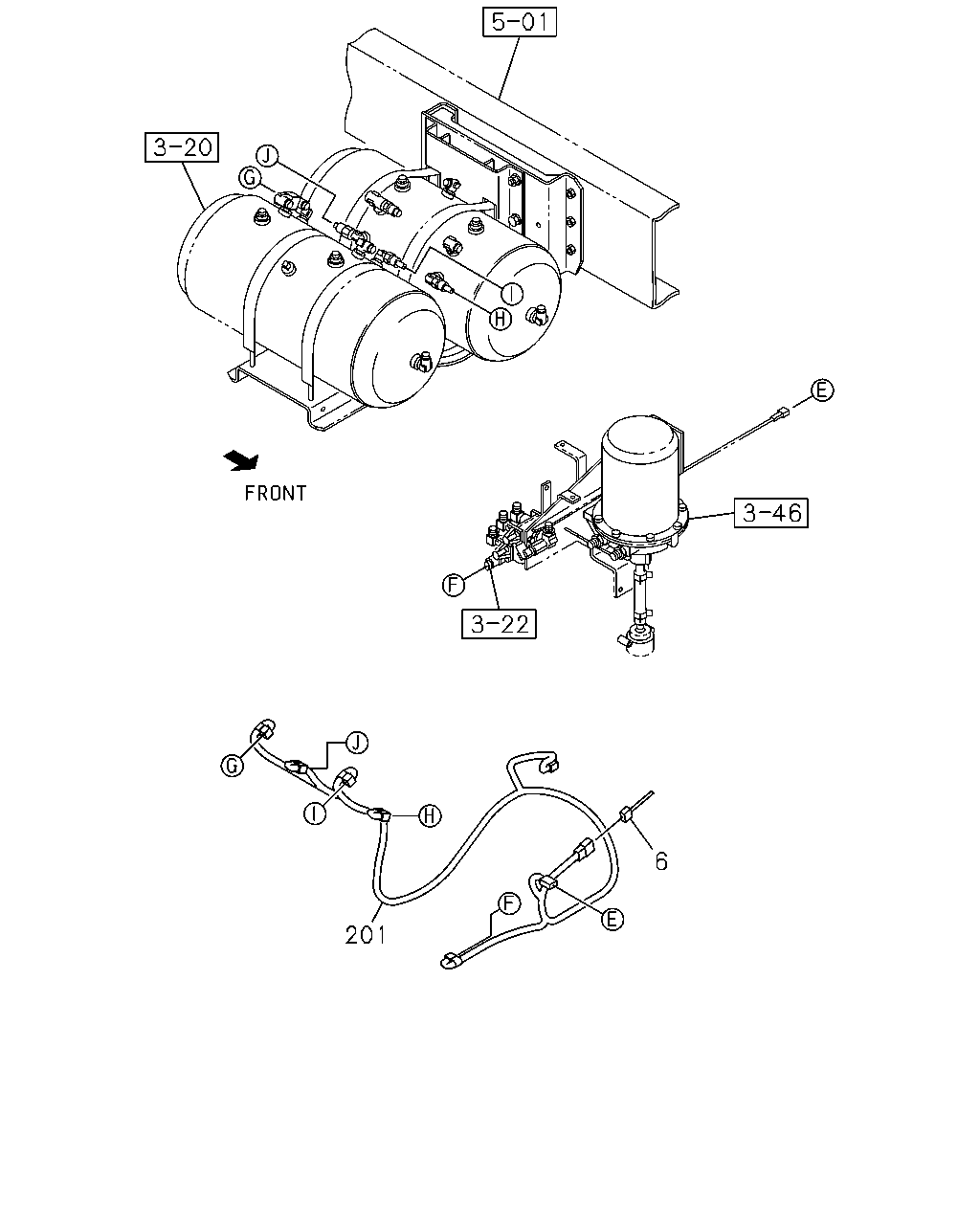

çizim 406696
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-98218-252-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98218-253-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-251-0 01 1 1402-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-254-0 01 1 1402-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98239-340-0 01 1 1402-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98175-322-0 01 1 1402-

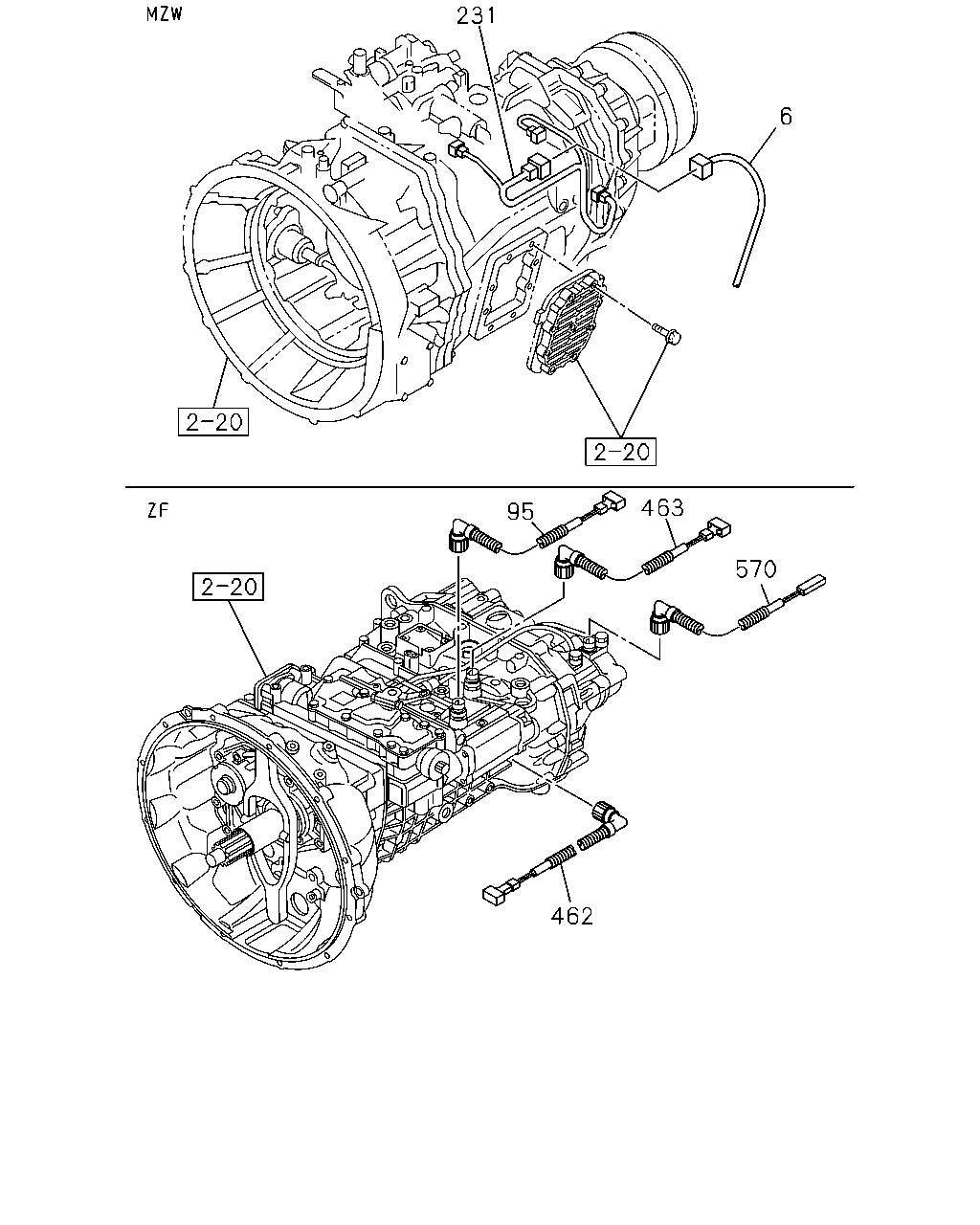

çizim 407123
570 463 95 462 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-98218-252-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98218-253-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-251-0 01 1 1402-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-254-0 01 1 1402-
95 HARNESS; NEUTRAL SW
ZF9S1110 M/T<Y5E> RED 		8-98145-855-0 01 1 1402-
231 HARNESS; TRANS
MZW6P M/T<RSZ> THA 		8-97924-273-0 01 1 1402-
462 HARNESS; SW,RANGE
ZF9S1110 M/T<Y5E> BLUE 		8-98145-857-0 01 1 1402-
463 HARNESS; SW,BACK UP
ZF9S1110 M/T<Y5E> BLACK 		8-98145-856-0 01 1 1402-
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T<Y5E> 		8-98148-602-0 01 1 1402-

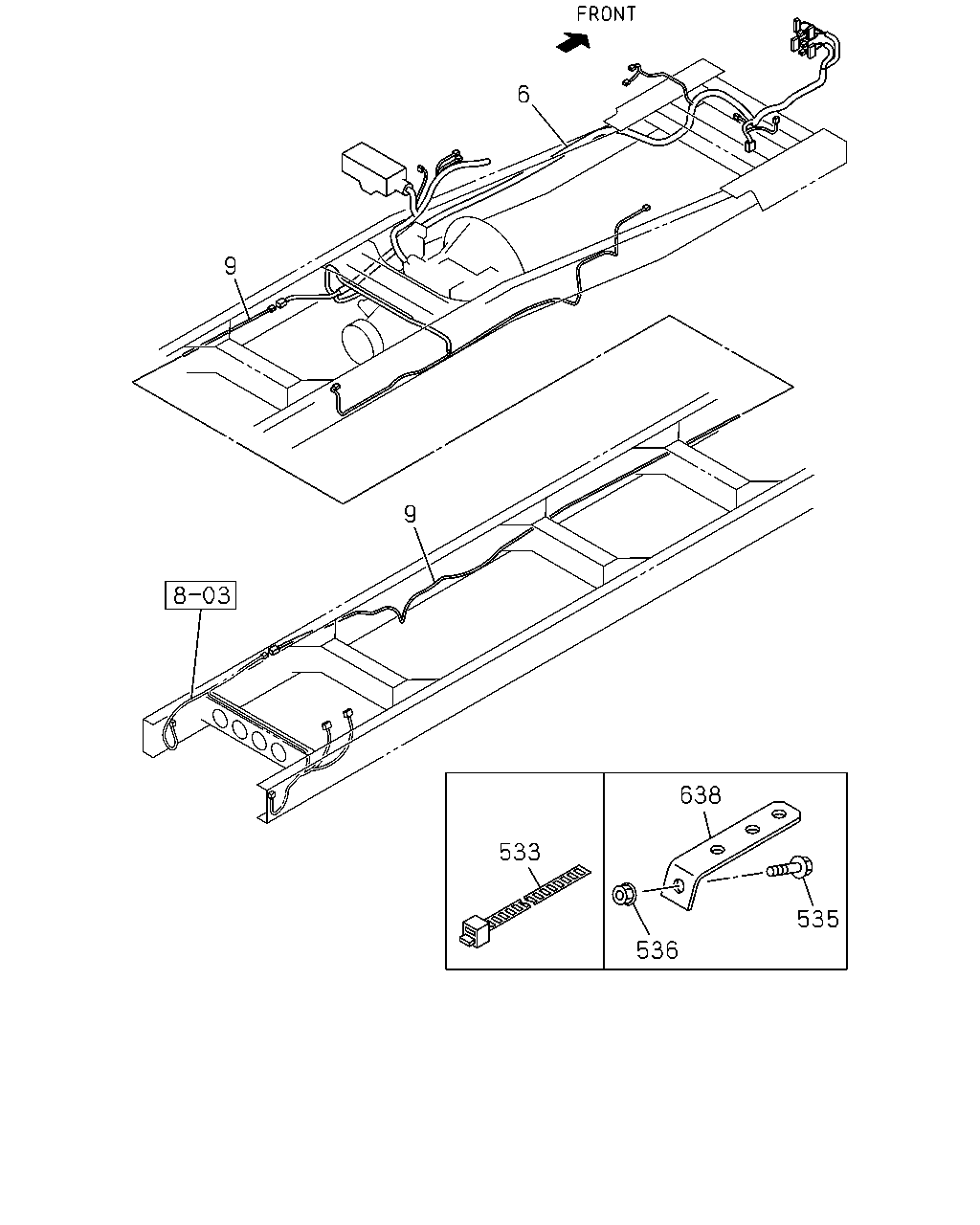

çizim 407374
6 9 9 638 533 535 536
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-98218-252-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98218-253-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-251-0 01 1 1402-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-254-0 01 1 1402-
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. POOR QUALITY DIESEL FUEL<KF0> THA 		8-97925-481-0 01 1 1402-
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> POOR QUALITY DIESEL FUEL<KF0> THA 		8-97926-485-0 01 1 1402-
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. ANTI LOCK BRAKE<JE5>,POOR QUALITY DIESEL FUEL<KF0> THA 		8-97925-542-0 01 1 1402-
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> POOR QUALITY DIESEL FUEL<KF0> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97926-475-0 01 1 1402-
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-97926-478-0 01 1 1402-
9 HARNESS; FRAME,RR
MZW6P M/T<RSZ> WHEEL BASE 5800MM<58W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-97926-479-0 01 1 1402-
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. POOR QUALITY DIESEL FUEL<KF0> THA 		8-97924-834-0 01 1 1402-
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> POOR QUALITY DIESEL FUEL<KF0> THA 		8-97926-486-0 01 1 1402-
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM<58W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. ANTI LOCK BRAKE<JE5>,POOR QUALITY DIESEL FUEL<KF0> THA 		8-97923-703-2 01 1 1402-
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM<58W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> POOR QUALITY DIESEL FUEL<KF0> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97926-476-0 01 1 1402-
9 HARNESS; FRAME,RR
WHEEL BASE 6300MM<63W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>, ANTILOCK BRAKE<JE5> THA 		8-97926-480-0 01 1 1402-
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM<71W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>, ANTILOCK BRAKE<JE5> THA 		8-97926-481-0 01 1 1402-
9 HARNESS; FRAME,RR
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5>,POOR QUALITY DIESEL FUEL<KF0> THA 		8-97923-702-2 01 1 1402-
9 HARNESS; FRAME,RR
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97926-482-0 01 1 1402-
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-97926-487-0 01 1 1402-
9 HARNESS; FRAME,RR
6HK1-TCN ENG<82L> WHEEL BASE 6300MM<63W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97926-477-0 01 1 1402-
9 HARNESS; FRAME,RR
6HK1-TCS ENG<80L> WHEEL BASE 6300MM<63W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> EXC. ANTI LOCK BRAKE<JE5>,POOR QUALITY DIESEL FUEL<KF0> THA 		8-97923-704-1 01 1 1402-
9 HARNESS; FRAME,RR
6HK1-TCS ENG<80L> WHEEL BASE 6300MM<63W> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> POOR QUALITY DIESEL FUEL<KF0> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97926-483-0 01 1 1402-
533 CLIP
L=180 		1-09707-162-1 01 1 1402-
533 CLIP
POOR QUALITY DIESEL FUEL<KF0> L=250 		5-09707-030-1 01 1 1402-
535 BOLT; BRKT FIX
ANTI LOCK BRAKE<JE5> M8X35 FLANGE THA 		0-28650-835-0 01 1 1402-
536 NUT; BRKT FIX
ANTI LOCK BRAKE<JE5> M8 FLANGE THA 		0-91180-108-0 01 1 1402-
638 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-82698-167-0 01 1 1402-

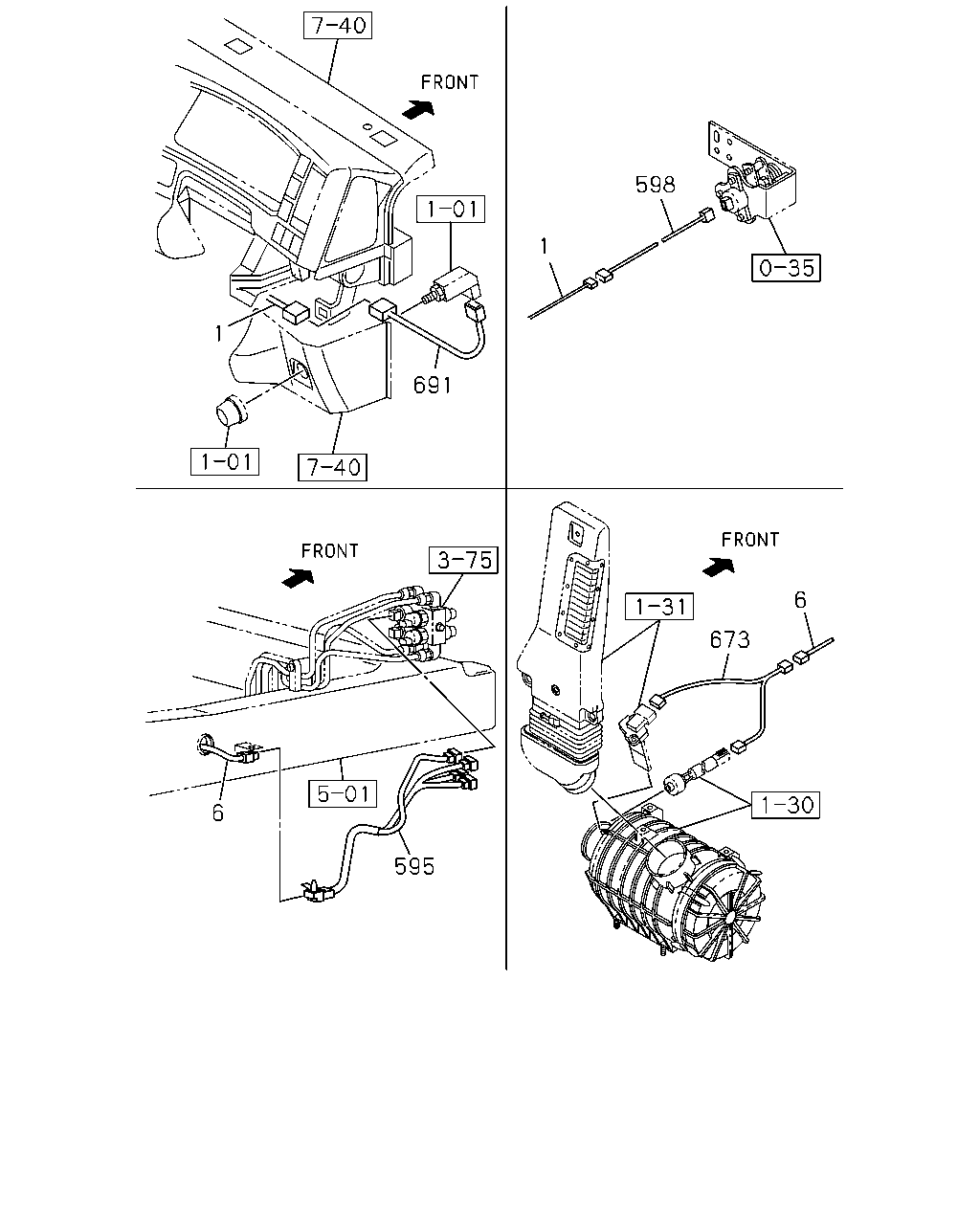

çizim 407918
1 691 1 598 6 595 673 6
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
MZW6P M/T<RSZ> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> HALOGEN HEADLAMPS<TT5> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97926-453-0 01 1 1402-
1 HARNESS; CAB
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> HALOGEN HEADLAMPS<TT5> THA 		8-97926-456-0 01 1 1402-
1 HARNESS; CAB
ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> HALOGEN HEADLAMPS<TT5> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97926-454-0 01 1 1402-1410
1 HARNESS; CAB
THA 		8-98298-048-0 01 1 1411-
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-98218-252-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98218-253-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-251-0 01 1 1402-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-254-0 01 1 1402-
595 HARNESS; WARNING,BRK
THA 		8-97924-875-0 01 1 1402-
598 HARNESS; EXT,PTO
PTO CONTROL<SV6> 		1-82675-898-0 01 1 1402-
673 HARNESS; EXT,SENSOR
THA 		8-97948-234-0 01 1 1402-
691 HARNESS; IDLE CONT
THA 		8-97948-238-0 01 1 1402-

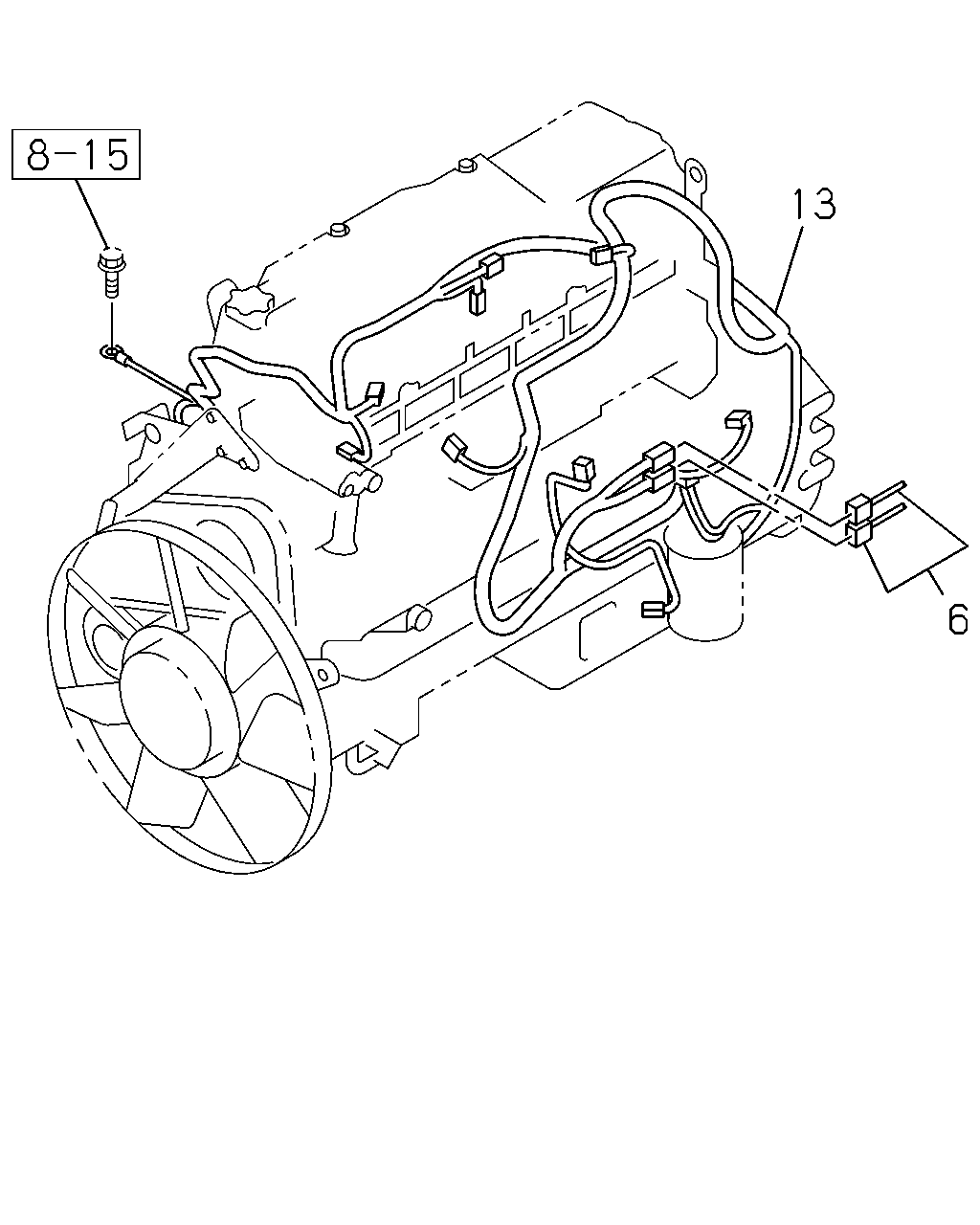

çizim 407920
13 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-98218-252-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98218-253-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-251-0 01 1 1402-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-254-0 01 1 1402-
13 HARNESS; ENG
GENERATOR 24V50A<K89> 		8-98171-593-0 01 1 1402-
13 HARNESS; ENG
GENERATOR 24V60A<KG2> 		8-98171-594-0 01 1 1402-

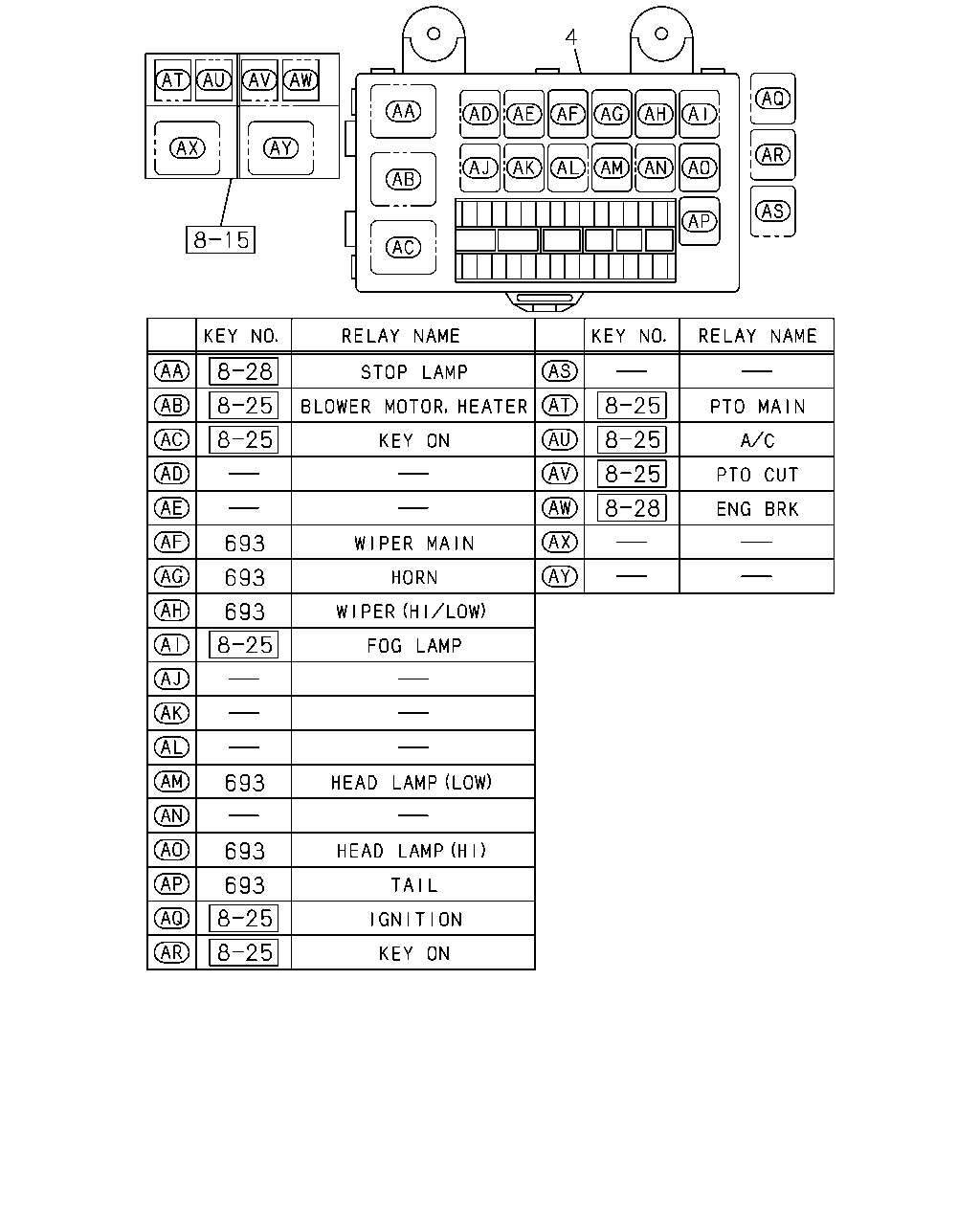

çizim 408008
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
THA 		8-98065-666-0 01 1 1402-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1402-

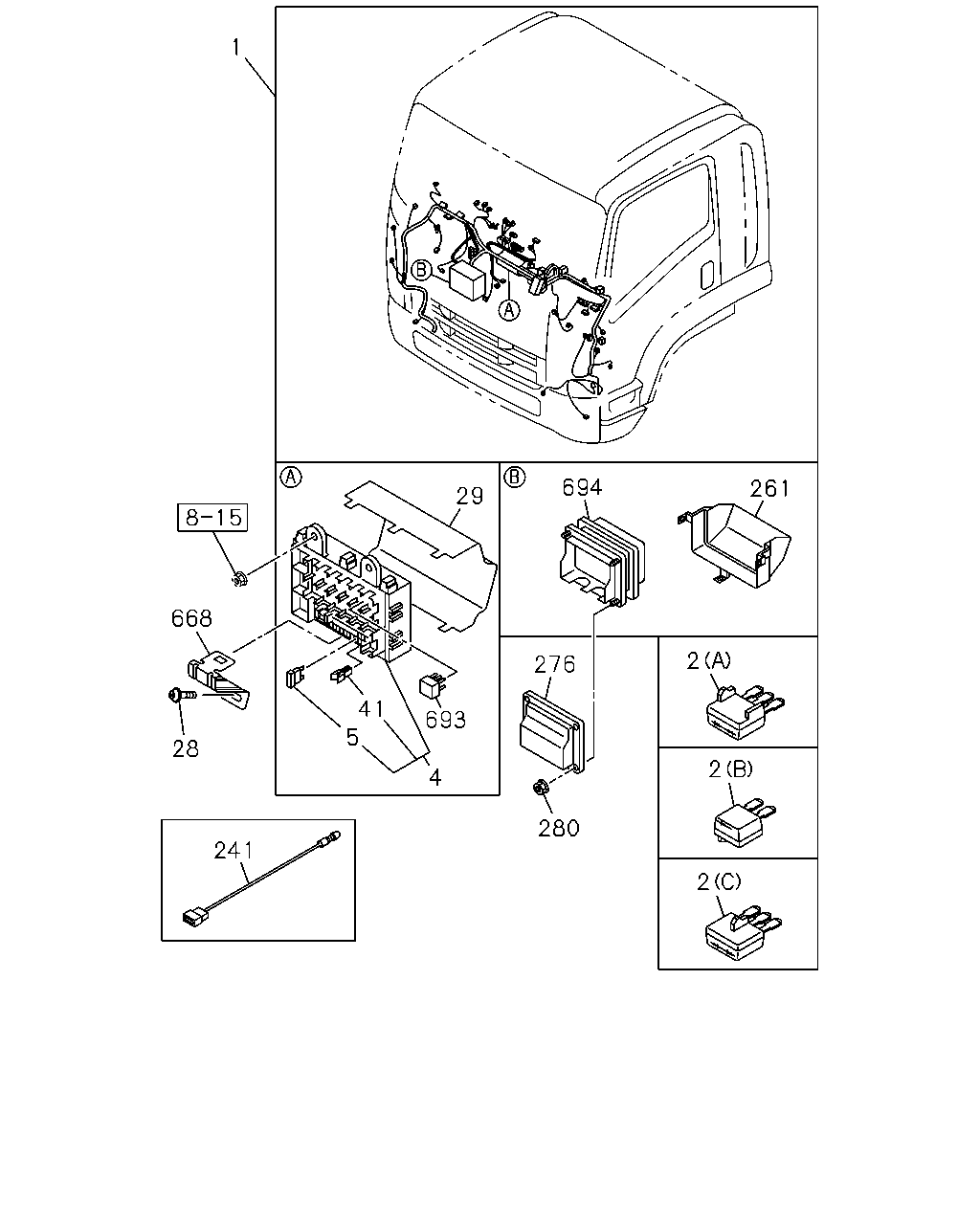

çizim 408161
1 668 28 241 5 41 4 693 280 276 29 694 261 2 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
MZW6P M/T<RSZ> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> HALOGEN HEADLAMPS<TT5> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97926-453-0 01 1 1402-
1 HARNESS; CAB
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> HALOGEN HEADLAMPS<TT5> THA 		8-97926-456-0 01 1 1402-
1 HARNESS; CAB
ZF9S1110 M/T<Y5E> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> HALOGEN HEADLAMPS<TT5> EXC. ANTI LOCK BRAKE<JE5> THA 		8-97926-454-0 01 1 1402-1410
1 HARNESS; CAB
THA 		8-98298-048-0 01 1 1411-
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 1402-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 03 1 1402-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A THA 		8-94422-640-1 01 1 1402-
4 BOX ASM; FUSE,HARNESS
THA 		8-98065-666-0 01 1 1402-
5 FUSE; FACIA HARNESS
25A WHITE THA 		8-98062-982-0 AR 1 1402-
5 FUSE; FACIA HARNESS
10A RED THA 		8-98054-257-0 AR 1 1402-
5 FUSE; FACIA HARNESS
15A BLUE THA 		8-98054-258-0 AR 1 1402-
5 FUSE; FACIA HARNESS
20A YELLOW THA 		8-98054-259-0 AR 1 1402-
28 SCREW; FUSE BOX
M6X16 FLANGE THA 		0-28650-616-0 01 1 1402-
29 COVER; FUSE BOX
THA 		8-98056-968-0 01 1 1402-
41 PULLER; FUSE
THA 		8-98054-260-0 01 1 1402-
241 HARNESS; MARKER LAMP
THA 		8-97924-671-0 01 1 1402-
261 COVER; CONNECTOR BOX
THA 		8-98065-986-1 01 1 1402-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1402-
280 NUT; BOX ASM FIX
M6 FLANGE THA 		0-91180-106-0 04 1 1402-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1402-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1402-
694 BOX ASM; CONNECTOR
THA 		8-98057-771-0 01 1 1402-

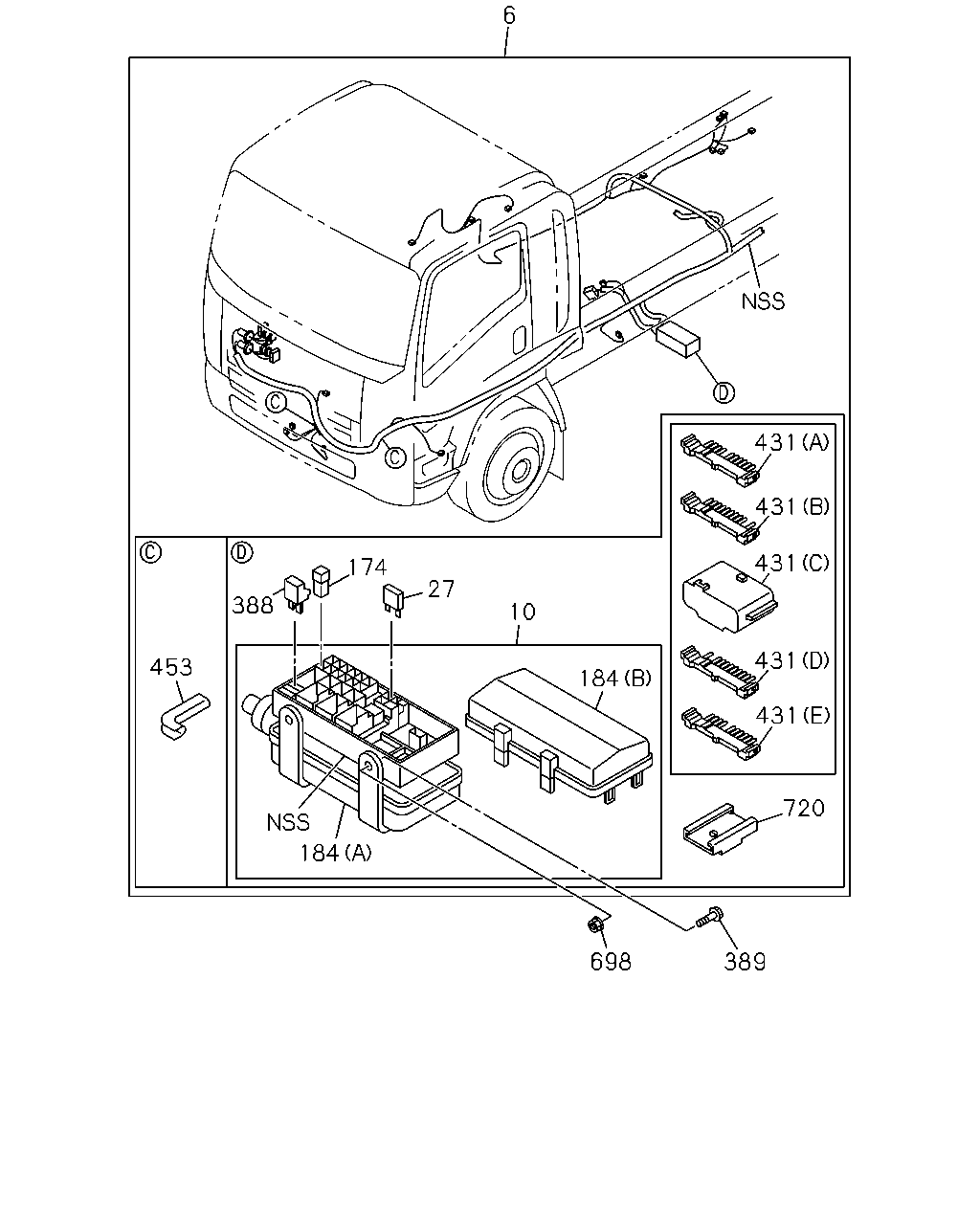

çizim 408264
6 453 388 174 27 10 184 184 431 431 431 431 431 720 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
MZW6P M/T<RSZ> ANTI LOCK BRAKE<JE5> THA 		8-98218-252-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98218-253-0 01 1 1402-
6 HARNESS; FRAME
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-251-0 01 1 1402-
6 HARNESS; FRAME
ZF9S1110 M/T<Y5E> EXC. ANTI LOCK BRAKE<JE5> THA 		8-98218-254-0 01 1 1402-
10 BOX; FUSE,HARNESS
THA 		8-98030-762-0 01 1 1402-
27 FUSE UNIT
10A RED THA 		8-98054-257-0 01 1 1402-
27 FUSE UNIT
15A BLUE THA 		8-98054-258-0 02 1 1402-
174 FUSE; SLOW BLOW
60A YELLOW THA 		8-97219-407-0 01 1 1402-
174 FUSE; SLOW BLOW
60A YELLOW THA 		8-97219-407-0 01 1 1402-
174 FUSE; SLOW BLOW
30A PINK THA 		8-98079-191-0 01 1 1402-
174 FUSE; SLOW BLOW
40A GREEN THA 		8-98079-192-0 01 1 1402-
174 FUSE; SLOW BLOW
50A RED THA 		8-98079-193-0 03 1 1402-
184 COVER; RELAY & FUSE BOX
(A) THA 		8-98030-766-0 01 1 1402-
184 COVER; RELAY & FUSE BOX
(B) THA 		8-98030-767-1 01 1 1402-
388 DIODE; RELAY BOX
BLACK 2P-1.5A THA 		8-94422-639-1 01 1 1402-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1402-
431 CONNECTOR; JOINT
(B) 10P GREEN THA 		1-82698-579-0 02 1 1402-
431 CONNECTOR; JOINT
(D) 10P GREEN THA 		1-82699-599-0 04 1 1402-
431 CONNECTOR; JOINT
(E) 10P BROWN THA 		1-82699-601-0 01 1 1402-
431 CONNECTOR; JOINT
(C) 6P BLACK THA 		8-97616-194-0 01 1 1402-
431 CONNECTOR; JOINT
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) 10P BLUE THA 		1-82699-598-0 04 1 1402-
431 CONNECTOR; JOINT
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 10P BLUE THA 		1-82699-598-0 05 1 1402-
431 CONNECTOR; JOINT
ZF9S1110 M/T<Y5E> (A) 10P BLUE THA 		1-82699-598-0 05 1 1402-
453 PROTECTOR; HARNESS
THA 		1-82699-709-0 01 1 1402-
698 NUT; COVER,RELAY BOX
M8 FLANGE THA 		0-91180-108-0 02 1 1402-
720 ATTACHMENT; CONNECTOR
THA 		1-82699-688-0 03 1 1402-

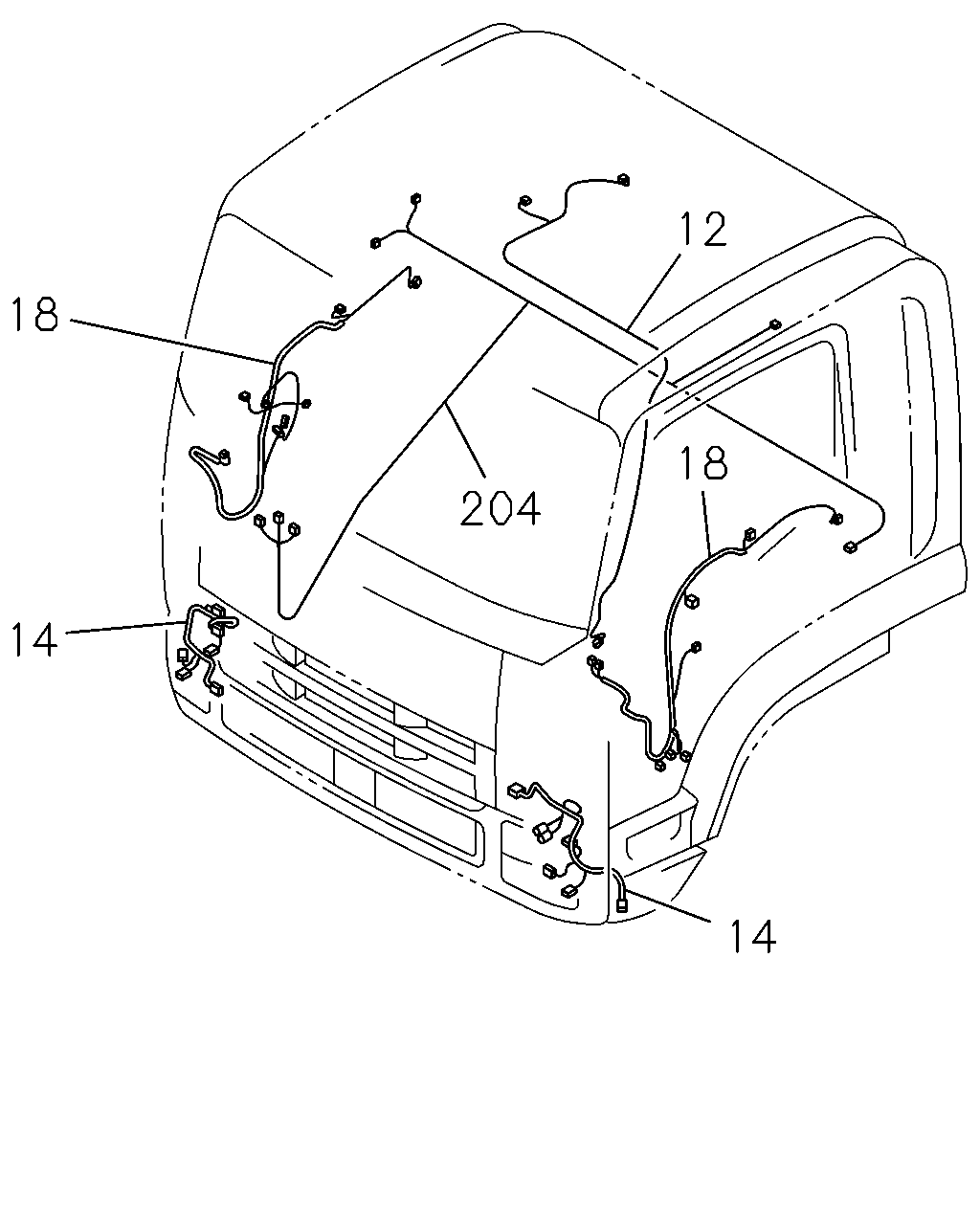

çizim 408323
12 18 14 204 18 14
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
THA 		8-97924-274-0 01 1 1402-
14 HARNESS; HEADLAMP
THA 		8-94270-986-0 02 1 1402-
18 HARNESS; DOOR
THA 		8-98076-305-3 01 1 1402-
18 HARNESS; DOOR
THA 		8-98076-304-3 01 1 1402-
204 HARNESS; CABLE,FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98081-205-2 01 1 1402-
204 HARNESS; CABLE,FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98081-206-2 01 1 1402-
