4-36 — POWER STEERING CONTROL; ENGINE SIDE (#13375) — 80 parça

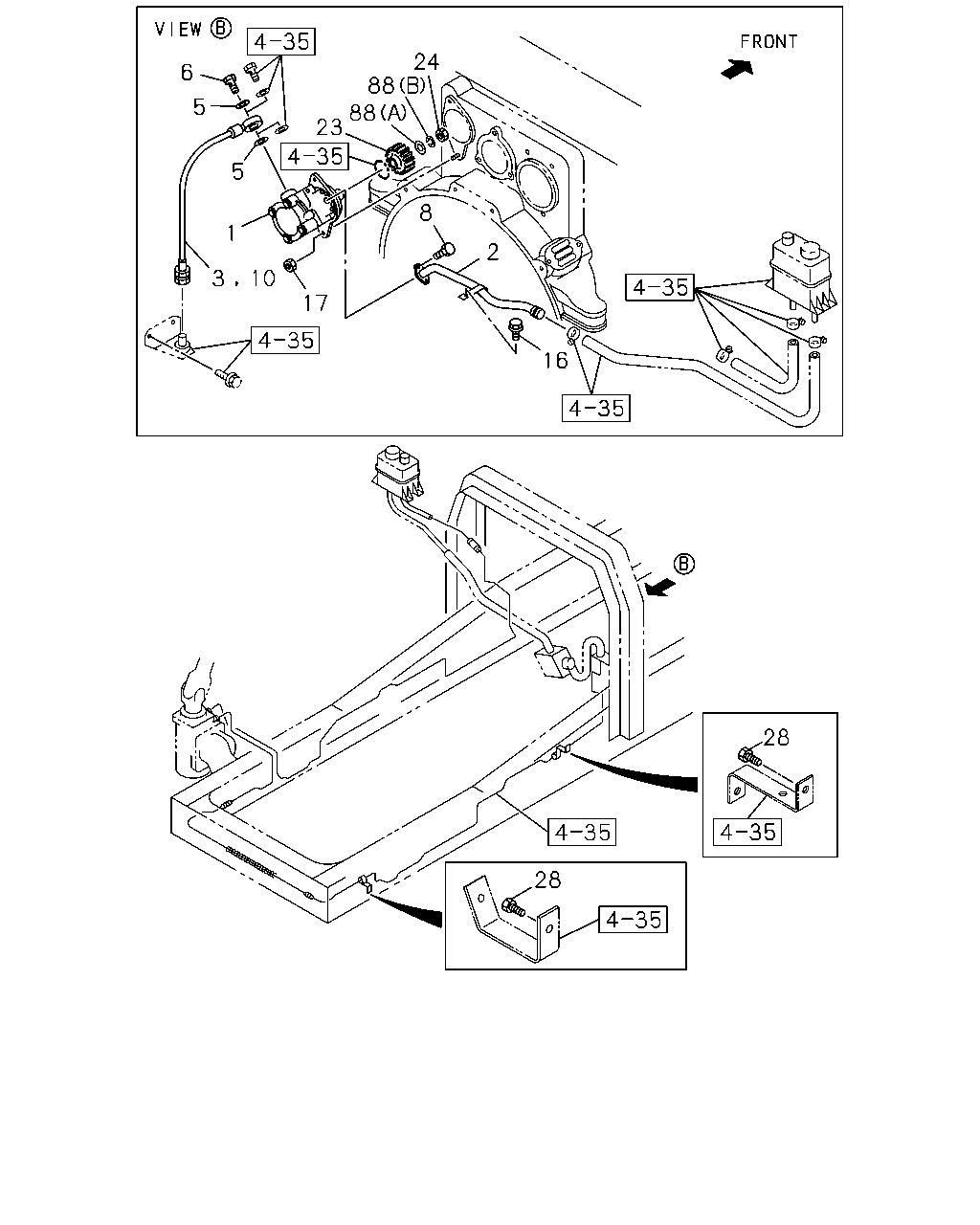

10 28 28 24 88 23 17 3 8 1 88 5 5 6 15 16 15 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WF1 TC-C(1B8)	1-19500-561-0	01	1	0105-0106	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WF1 TC-C(1B8),6WF1 TC(84L) EXC. STRG VARIABLE CONTROL<TFY>	1-19500-561-2	01	1	0107-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) STRG VARIABLE CONTROL<TFY>	1-19500-563-0	01	1	0105-0106	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) STRG VARIABLE CONTROL<TFY>	1-19500-563-2	01	1	0107-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. STRG VARIABLE CONTROL<TFY>	1-19500-447-2	01	1	0105-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-19500-447-2	01	1	0105-	●	●
3	PIPE; OIL,CHARGE,P/S 6WF1 TC-C(1B8)	1-13313-773-1	01	1	0105-0106	●
3	PIPE; OIL,CHARGE,P/S 6WF1 TC-C(1B8),6WF1 TC(84L) EXC. STRG VARIABLE CONTROL<TFY>	1-13313-773-1	01	1	0107-	●	●
3	PIPE; OIL,CHARGE,P/S 10PE1S(60L),10PE1N(61L),10PE1H(68L) MIXER TRUCK<RA2> ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	0105-	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8)	1-13313-637-1	01	1	0105-0106	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-C(55L),6WG1 TC-C(72L)	1-13313-637-1	01	1	0107-	●	●
3	PIPE; OIL,CHARGE,P/S 6WF1 TC(84L) STRG VARIABLE CONTROL<TFY>	1-13313-637-1	01	1	0107-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). W-SERIES ENG<1A2> ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). PE-SERIES ENG<1A0> ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-	●	●
6	BOLT; EYE,P/S PIPE W-SERIES ENG<1A2> M18X36	1-09675-174-0	01	1	0105-0306	●	●
6	BOLT; EYE,P/S PIPE W-SERIES ENG<1A2> M18X36	1-09675-205-0	01	1	0307-	●	●
6	BOLT; EYE,P/S PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) MIXER TRUCK<RA2> ENGINE REAR PTO(SV1) M18X40	1-09675-153-0	01	1	0105-	●	●
8	BOLT; OIL PIPE W-SERIES ENG<1A2> M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
8	BOLT; OIL PIPE W-SERIES ENG<1A2> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
8	BOLT; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512	●	●
8	BOLT; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	0105-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL W-SERIES ENG<1A2> L=430	0-09671-430-0	01	1	0105-0105	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL W-SERIES ENG<1A2> L=430	1-09365-045-0	01	1	0106-	●	●
15	CLIP; OIL PIPE SUCTION W-SERIES ENG<1A2>	1-09701-195-3	02	1	0105-	●	●
16	BOLT; STAY,P/S OIL PUMP W-SERIES ENG<1A2> M6X35 FLANGE	0-28680-635-0	02	1	0105-0512	●	●
16	BOLT; STAY,P/S OIL PUMP W-SERIES ENG<1A2> M6X35 FLANGE	0-28650-635-0	02	1	0601-	●	●
16	BOLT; STAY,P/S OIL PUMP 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X14 FLANGE	0-28080-814-0	01	1	0105-	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	0105-0602	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91180-110-0	02	1	0603-	●	●
23	GEAR; OIL PUMP W-SERIES ENG<1A2> Z=20	1-19581-038-0	01	1	0105-0202	●	●
23	GEAR; OIL PUMP W-SERIES ENG<1A2> Z=20	1-19581-041-0	01	1	0203-	●	●
23	GEAR; OIL PUMP 10PE1S(60L),10PE1N(61L),10PE1H(68L) Z=20	1-19581-011-1	01	1	0105-	●	●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0105-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
28	BOLT; BRKT,FLEX HOSE,P/S PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	0105-	●	●
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	0105-	●	●

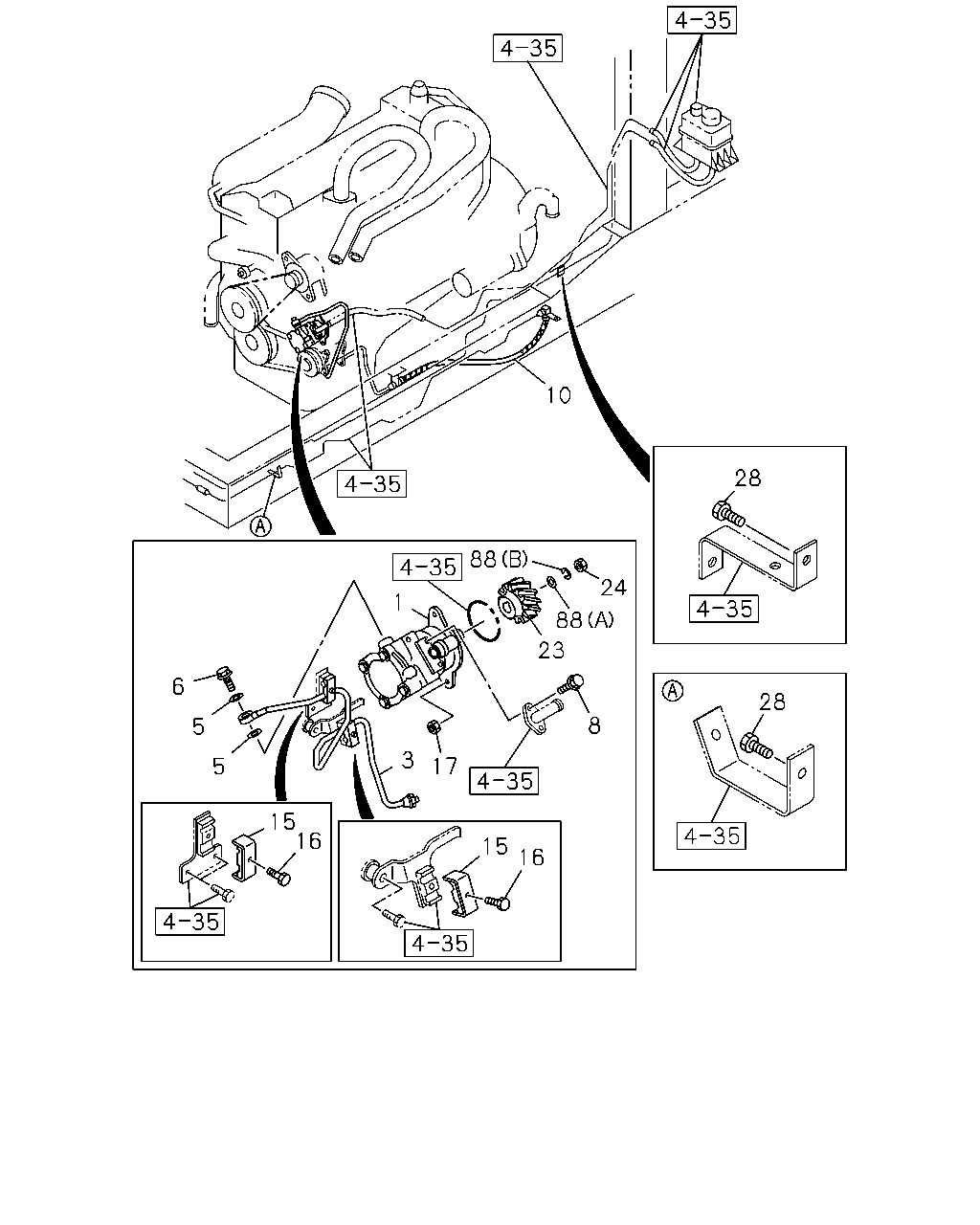

16 2 8 23 88 24 88 6 5 5 1 3 10 17 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WF1 TC-C(1B8)	1-19500-561-0	01	1	0105-0106	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WF1 TC-C(1B8),6WF1 TC(84L) EXC. STRG VARIABLE CONTROL<TFY>	1-19500-561-2	01	1	0107-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) STRG VARIABLE CONTROL<TFY>	1-19500-563-0	01	1	0105-0106	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L),6WF1 TC(84L) STRG VARIABLE CONTROL<TFY>	1-19500-563-2	01	1	0107-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. STRG VARIABLE CONTROL<TFY>	1-19500-447-2	01	1	0105-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-19500-447-2	01	1	0105-	●	●
2	PIPE ASM; OIL,SUCTION 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-13313-692-0	01	1	0105-	●	●
3	PIPE; OIL,CHARGE,P/S 6WF1 TC-C(1B8)	1-13313-773-1	01	1	0105-0106	●
3	PIPE; OIL,CHARGE,P/S 6WF1 TC-C(1B8),6WF1 TC(84L) EXC. STRG VARIABLE CONTROL<TFY>	1-13313-773-1	01	1	0107-	●	●
3	PIPE; OIL,CHARGE,P/S 10PE1S(60L),10PE1N(61L),10PE1H(68L) MIXER TRUCK<RA2> ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	0105-	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8)	1-13313-637-1	01	1	0105-0106	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-C(55L),6WG1 TC-C(72L)	1-13313-637-1	01	1	0107-	●	●
3	PIPE; OIL,CHARGE,P/S 6WF1 TC(84L) STRG VARIABLE CONTROL<TFY>	1-13313-637-1	01	1	0107-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). W-SERIES ENG<1A2> ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). PE-SERIES ENG<1A0> ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-	●	●
6	BOLT; EYE,P/S PIPE W-SERIES ENG<1A2> M18X36	1-09675-174-0	01	1	0105-0306	●	●
6	BOLT; EYE,P/S PIPE W-SERIES ENG<1A2> M18X36	1-09675-205-0	01	1	0307-	●	●
6	BOLT; EYE,P/S PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) MIXER TRUCK<RA2> ENGINE REAR PTO(SV1) M18X40	1-09675-153-0	01	1	0105-	●	●
8	BOLT; OIL PIPE W-SERIES ENG<1A2> M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
8	BOLT; OIL PIPE W-SERIES ENG<1A2> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
8	BOLT; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512	●	●
8	BOLT; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	0105-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL W-SERIES ENG<1A2> L=430	0-09671-430-0	01	1	0105-0105	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL W-SERIES ENG<1A2> L=430	1-09365-045-0	01	1	0106-	●	●
16	BOLT; STAY,P/S OIL PUMP W-SERIES ENG<1A2> M6X35 FLANGE	0-28680-635-0	02	1	0105-0512	●	●
16	BOLT; STAY,P/S OIL PUMP W-SERIES ENG<1A2> M6X35 FLANGE	0-28650-635-0	02	1	0601-	●	●
16	BOLT; STAY,P/S OIL PUMP 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X14 FLANGE	0-28080-814-0	01	1	0105-	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	0105-0602	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91180-110-0	02	1	0603-	●	●
23	GEAR; OIL PUMP W-SERIES ENG<1A2> Z=20	1-19581-038-0	01	1	0105-0202	●	●
23	GEAR; OIL PUMP W-SERIES ENG<1A2> Z=20	1-19581-041-0	01	1	0203-	●	●
23	GEAR; OIL PUMP 10PE1S(60L),10PE1N(61L),10PE1H(68L) Z=20	1-19581-011-1	01	1	0105-	●	●
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0105-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
28	BOLT; BRKT,FLEX HOSE,P/S PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
88	WASHER; GEAR,P/S PUMP (A)	1-19519-293-0	01	1	0105-	●	●
88	WASHER; GEAR,P/S PUMP (B)	9-09150-016-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
