Sayfa 4-35 - Isuzu EPC

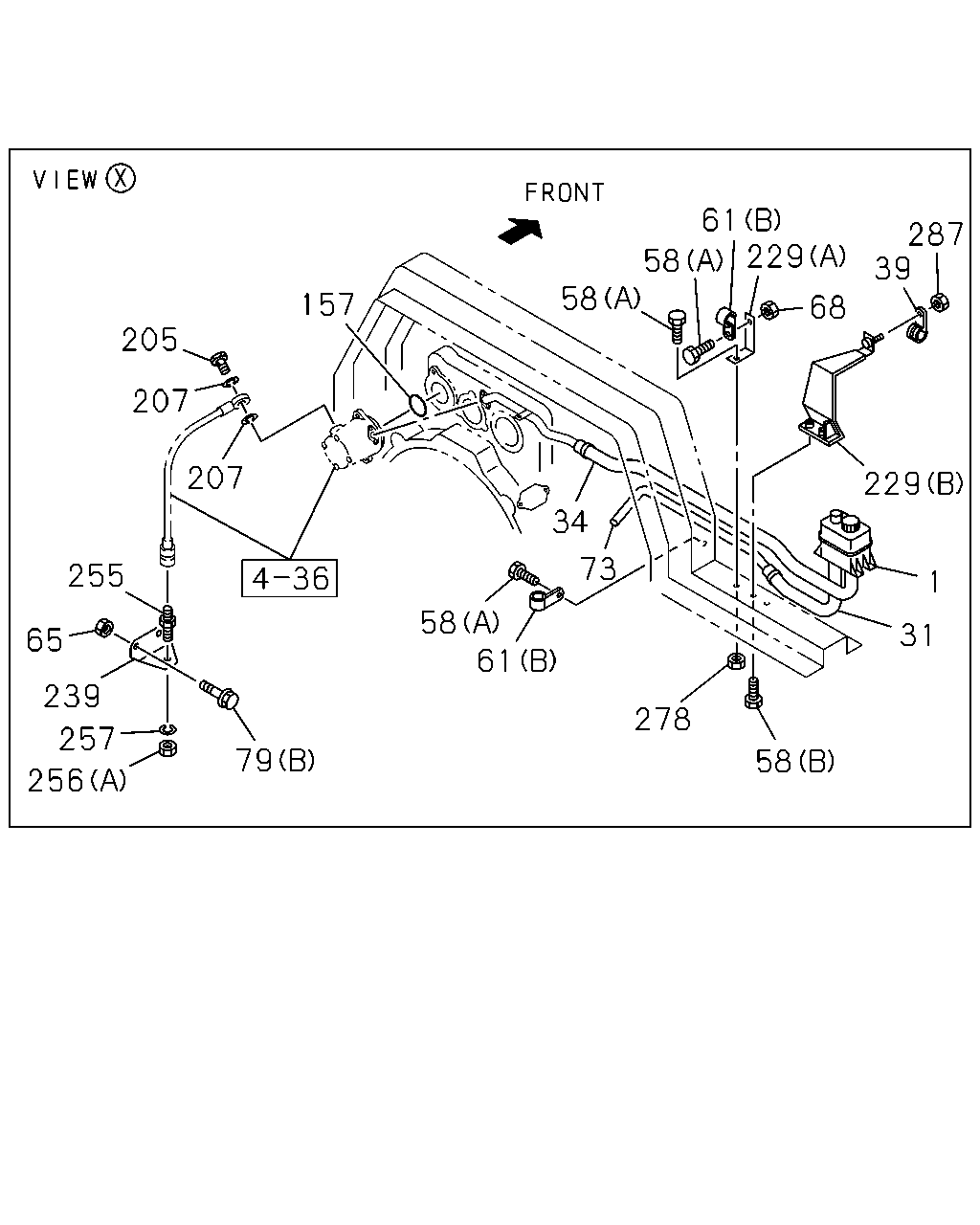

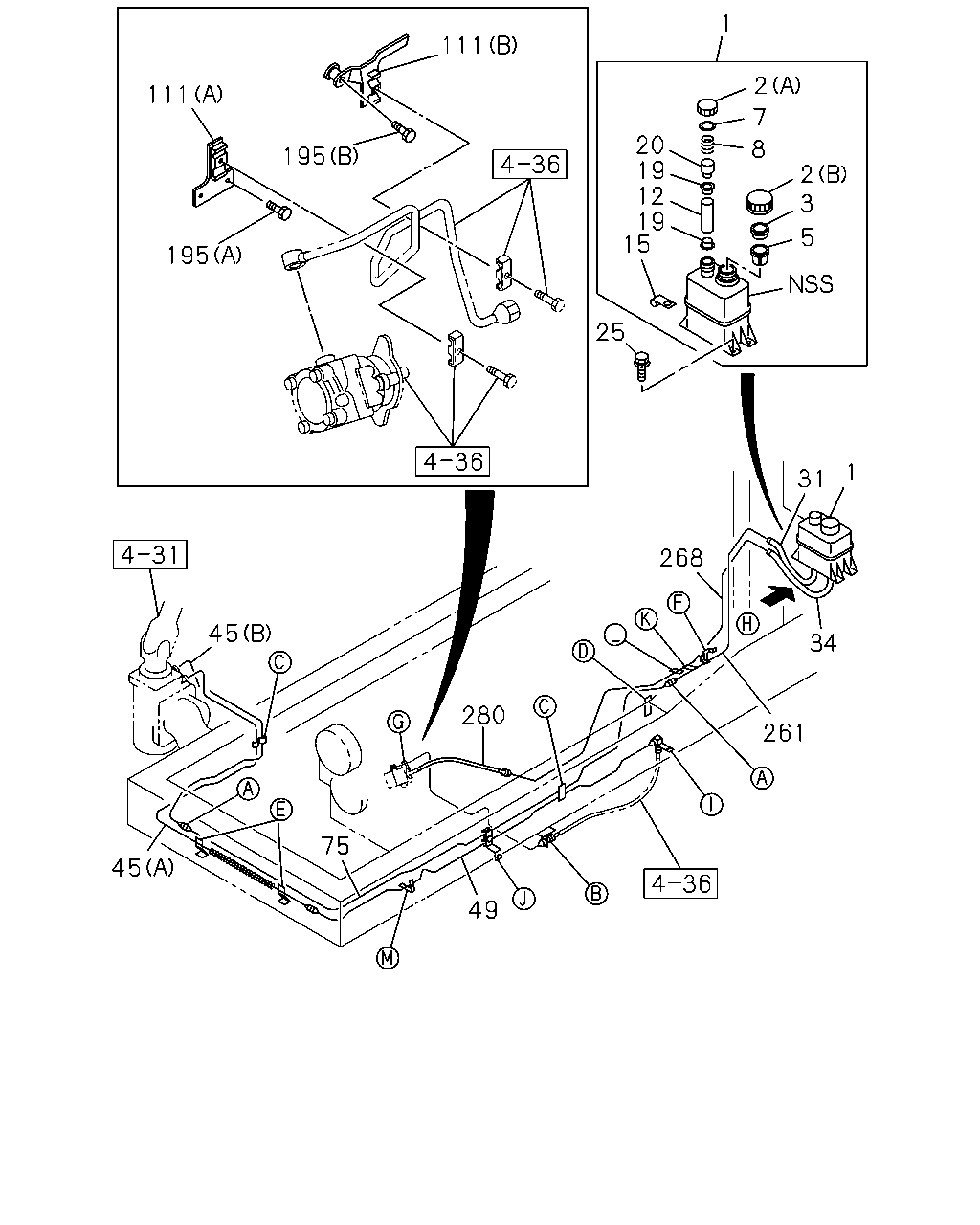

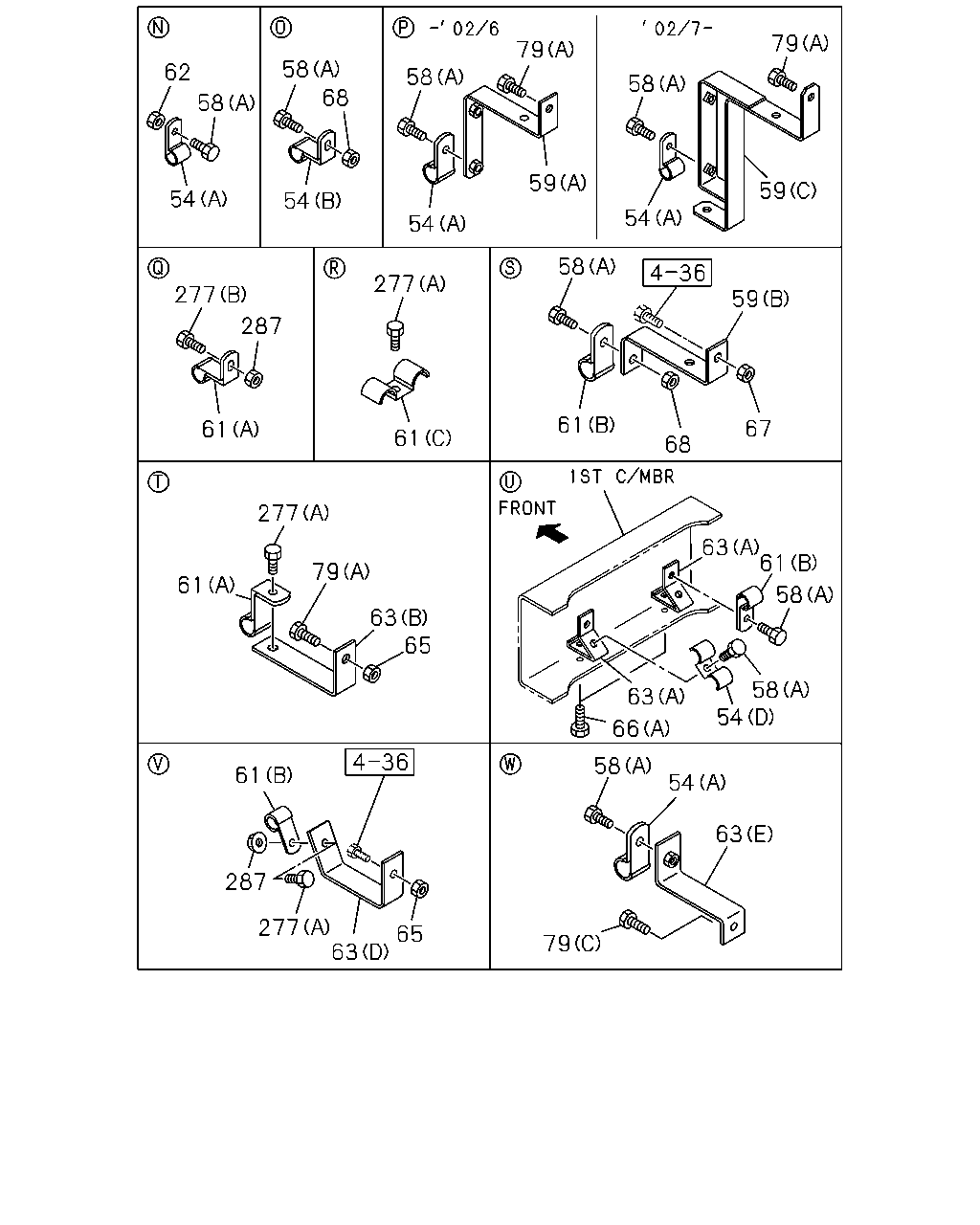

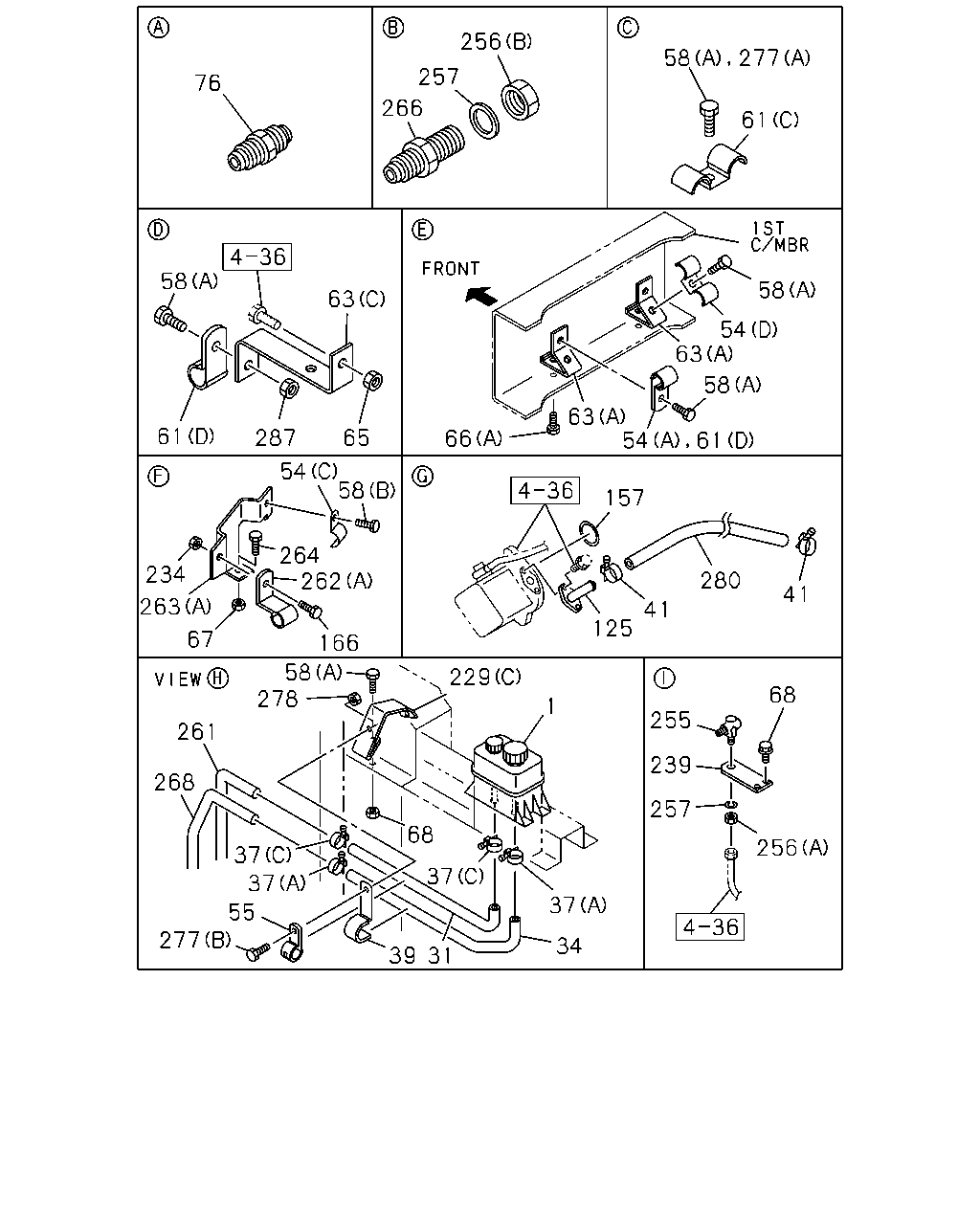

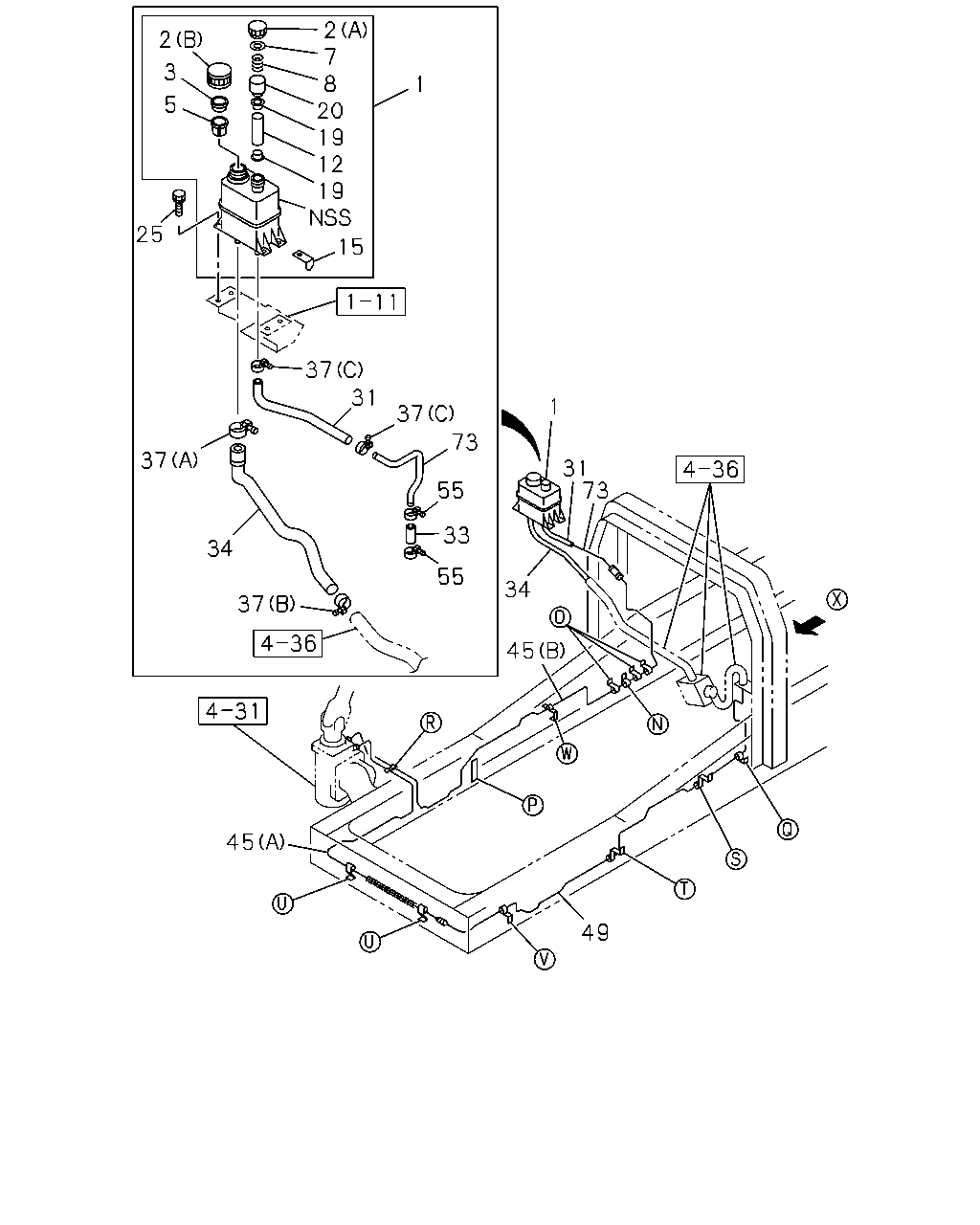

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#13374) — 419 parça

76 257 266 61 58 277 54 58 63 58 63 61 54 66 65 287 61 63 58 54 234 263 67 262 264 58 166 58 157 280 41 41 125 229 1 278 261 268 68 255 239 257 256 37 37 68 37 37 55 277 39 31 34 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
31	HOSE; P/S OIL TANK,INL PE-SERIES ENG<1A0>	1-21114-262-0	01	1	0105-	●	●
31	HOSE; P/S OIL TANK,INL W-SERIES ENG<1A2>	1-21114-284-0	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET PE-SERIES ENG<1A0>	1-21114-254-1	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET W-SERIES ENG<1A2>	1-21114-283-0	01	1	0105-	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	0105-	●	●
37	CLIP; HOSE,P/S PE-SERIES ENG<1A0> (B) ID=32	1-09704-085-0	01	1	0105-	●	●
37	CLIP; HOSE,P/S PE-SERIES ENG<1A0> (A) ID=38	9-09915-041-1	01	1	0105-	●	●
37	CLIP; HOSE,P/S W-SERIES ENG<1A2> (A) ID=38	9-09915-041-1	02	1	0105-	●	●
39	CLIP; FLEX HOSE PE-SERIES ENG<1A0> ID=31 L=35	1-09700-329-1	01	1	0105-	●	●
39	CLIP; FLEX HOSE W-SERIES ENG<1A2> ID=32 L=75	1-09700-702-0	01	1	0105-	●	●
41	CLIP; HOSE,P/S W-SERIES ENG<1A2> ID=38	9-09915-041-1	02	1	0105-	●	●
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
54	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0105-	●	●
54	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
54	CLIP; OIL PIPE ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> (A) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A> W-SERIES ENG<1A2> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (A) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
54	CLIP; OIL PIPE W-SERIES ENG<1A2> (C) ID=23.6 L=35	1-09700-634-0	02	1	0105-	●	●
54	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-	●	●
54	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
55	CLIP; P/S RUBBER HOSE PE-SERIES ENG<1A0> ID=28	9-09915-672-1	02	1	0105-	●	●
55	CLIP; P/S RUBBER HOSE W-SERIES ENG<1A2> ID=28 L=30	1-09700-607-1	01	1	0105-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	03	1	0105-	●	●
61	CLIP; OIL PIPE W-SERIES ENG<1A2> (D) ID=16 L=20	9-09525-535-0	04	1	0105-	●	●
63	BRACKET; CLIP,P/S (D)	1-47477-193-0	01	1	0105-	●	●
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	0105-	●	●
63	BRACKET; CLIP,P/S PE-SERIES ENG<1A0> (B)	1-34656-009-0	01	1	0105-	●	●
63	BRACKET; CLIP,P/S PE-SERIES ENG<1A0> (E) L=90	1-82699-856-0	01	1	0105-	●	●
63	BRACKET; CLIP,P/S W-SERIES ENG<1A2> (C)	1-47475-963-1	01	1	0105-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
67	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
67	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M10 FLANGE	0-91150-210-0	01	1	0105-0305	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
76	UNION; OIL PIPE W-SERIES ENG<1A2> M22	9-09233-015-1	01	1	0105-	●	●
76	UNION; OIL PIPE W-SERIES ENG<1A2> M22	9-09233-015-1	01	1	0105-	●	●
125	CONNECTOR; P/S PUMP W-SERIES ENG<1A2>	1-13313-532-0	01	1	0105-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-	●	●
166	BOLT; CLIP W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
166	BOLT; CLIP W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
229	BRACKET; HOSE,POWER STRG PE-SERIES ENG<1A0> (B)	1-21464-480-0	01	1	0105-	●	●
229	BRACKET; HOSE,POWER STRG PE-SERIES ENG<1A0> (A)	1-21464-481-0	01	1	0105-	●	●
229	BRACKET; HOSE,POWER STRG W-SERIES ENG<1A2> (C)	1-21464-407-1	01	1	0105-	●	●
234	NUT; PIPE CLIP,P/S W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
234	NUT; PIPE CLIP,P/S W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
239	BRACKET; FLEX HOSE PE-SERIES ENG<1A0>	1-47478-471-0	01	1	0105-	●	●
239	BRACKET; FLEX HOSE W-SERIES ENG<1A2>	1-47476-679-4	01	1	0105-	●	●
255	UNION; FLEX HOSE PE-SERIES ENG<1A0> M22 & M22 STRAIGHT	1-09654-204-1	01	1	0105-	●	●
255	UNION; FLEX HOSE W-SERIES ENG<1A2> M22 & M22 ELBOW	1-09654-163-1	01	1	0105-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0105-0512	●	●
256	NUT; UNION W-SERIES ENG<1A2> (B) M22	9-09111-522-0	01	1	0105-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION W-SERIES ENG<1A2> (A) M22	0-91111-522-0	01	1	0601-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603	●	●
257	WASHER; LK,UNION W-SERIES ENG<1A2> ID=22.5	9-09150-522-0	01	1	0105-0603	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
257	WASHER; LK,UNION W-SERIES ENG<1A2> ID=22.5	0-91510-522-0	01	1	0604-	●	●
261	PIPE; OIL,UNION TO HOSE W-SERIES ENG<1A2> L=1031	1-21117-048-0	01	1	0105-	●	●
262	CLIP; P/S PIPE W-SERIES ENG<1A2> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
262	CLIP; P/S PIPE W-SERIES ENG<1A2> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
263	BRACKET; P/S PIPE W-SERIES ENG<1A2> (A)	1-47476-483-2	01	1	0105-	●	●
263	BRACKET; P/S PIPE W-SERIES ENG<1A2> (B)	1-47477-597-3	01	1	0105-	●	●
264	BOLT; PIPE BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
264	BOLT; PIPE BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
266	UNION; OIL PIPE,P/S W-SERIES ENG<1A2> M20 & M22 STRAIGHT	1-09654-167-1	01	1	0105-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1315	1-21116-855-0	01	1	0105-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0105-	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
278	NUT; HOSE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
278	NUT; HOSE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
278	NUT; HOSE CLIP W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
278	NUT; HOSE CLIP W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
280	HOSE; P/S OIL PUMP,INL W-SERIES ENG<1A2>	1-21115-865-0	01	1	0105-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

79 79 58 58 58 68 58 62 54 54 54 59 54 59 59 58 277 277 287 61 61 61 68 67 277 61 79 63 65 63 61 58 58 54 63 66 58 54 63 61 287 277 65 63 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
54	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0105-	●	●
54	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
54	CLIP; OIL PIPE ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> (A) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A> W-SERIES ENG<1A2> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (A) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
54	CLIP; OIL PIPE W-SERIES ENG<1A2> (C) ID=23.6 L=35	1-09700-634-0	02	1	0105-	●	●
54	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-	●	●
54	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (B)	1-47477-833-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A)	1-47477-434-0	01	1	0105-0206	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (C)	1-47477-180-1	01	1	0207-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (B) L=90	1-82699-856-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (A)	1-47477-235-0	01	1	0105-0106	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (A)	1-47477-669-1	01	1	0107-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-47477-145-0	01	1	0105-	●	●
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	03	1	0105-	●	●
61	CLIP; OIL PIPE W-SERIES ENG<1A2> (D) ID=16 L=20	9-09525-535-0	04	1	0105-	●	●
62	NUT; CLIP FIX PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
62	NUT; CLIP FIX PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
63	BRACKET; CLIP,P/S (D)	1-47477-193-0	01	1	0105-	●	●
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	0105-	●	●
63	BRACKET; CLIP,P/S PE-SERIES ENG<1A0> (B)	1-34656-009-0	01	1	0105-	●	●
63	BRACKET; CLIP,P/S PE-SERIES ENG<1A0> (E) L=90	1-82699-856-0	01	1	0105-	●	●
63	BRACKET; CLIP,P/S W-SERIES ENG<1A2> (C)	1-47475-963-1	01	1	0105-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
67	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
67	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M10 FLANGE	0-91150-210-0	01	1	0105-0305	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

195 111 111 195 25 15 5 3 2 7 2 8 1 20 19 12 19 45 268 31 1 34 261 49 75 45 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-0508	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-0508	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
31	HOSE; P/S OIL TANK,INL PE-SERIES ENG<1A0>	1-21114-262-0	01	1	0105-	●	●
31	HOSE; P/S OIL TANK,INL W-SERIES ENG<1A2>	1-21114-284-0	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET PE-SERIES ENG<1A0>	1-21114-254-1	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET W-SERIES ENG<1A2>	1-21114-283-0	01	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION W-SERIES ENG<1A2> (B) L=1234	1-21116-238-0	01	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> (B)	1-21115-529-0	01	1	0105-0109	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> (B)	1-21117-150-0	01	1	0110-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-21115-527-0	01	1	0105-0109	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-21117-149-0	01	1	0110-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B)	1-21115-530-0	01	1	0105-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1663	1-21116-235-0	01	1	0105-0108	●	●
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1672	1-21117-137-0	01	1	0109-0211	●	●
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1662	1-21117-337-0	01	1	0212-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION PE-SERIES ENG<1A0> EXC. ZF M/T<X9E>	1-21116-346-0	01	1	0105-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21116-457-0	01	1	0105-0108	●	●
49	PIPE; OIL,FLEX HOSE TO UNION W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21117-133-0	01	1	0109-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION ZF M/T<X9E> PE-SERIES ENG<1A0>	1-21116-347-0	01	1	0105-	●	●
75	PIPE; OIL,P/S,UNION TO UNION W-SERIES ENG<1A2> L=1807	1-21116-404-0	01	1	0105-0106	●	●
75	PIPE; OIL,P/S,UNION TO UNION W-SERIES ENG<1A2> L=1815	1-21117-076-0	01	1	0107-	●	●
111	BRACKET; OIL PIPE W-SERIES ENG<1A2> (A)	1-13345-186-0	01	1	0105-	●	●
111	BRACKET; OIL PIPE W-SERIES ENG<1A2> (B)	1-13345-187-0	01	1	0105-	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-0512	●	●
195	BOLT; BRKT W-SERIES ENG<1A2> (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
261	PIPE; OIL,UNION TO HOSE W-SERIES ENG<1A2> L=1031	1-21117-048-0	01	1	0105-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1315	1-21116-855-0	01	1	0105-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0105-	●	●
280	HOSE; P/S OIL PUMP,INL W-SERIES ENG<1A2>	1-21115-865-0	01	1	0105-	●	●

157 205 207 207 255 65 239 257 256 79 58 34 73 61 278 31 1 58 68 39 287 229 61 58 58 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
31	HOSE; P/S OIL TANK,INL PE-SERIES ENG<1A0>	1-21114-262-0	01	1	0105-	●	●
31	HOSE; P/S OIL TANK,INL W-SERIES ENG<1A2>	1-21114-284-0	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET PE-SERIES ENG<1A0>	1-21114-254-1	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET W-SERIES ENG<1A2>	1-21114-283-0	01	1	0105-	●	●
39	CLIP; FLEX HOSE PE-SERIES ENG<1A0> ID=31 L=35	1-09700-329-1	01	1	0105-	●	●
39	CLIP; FLEX HOSE W-SERIES ENG<1A2> ID=32 L=75	1-09700-702-0	01	1	0105-	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512	●	●
58	BOLT; CLIP PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
58	BOLT; CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	03	1	0105-	●	●
61	CLIP; OIL PIPE W-SERIES ENG<1A2> (D) ID=16 L=20	9-09525-535-0	04	1	0105-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
68	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M10 FLANGE	0-91150-210-0	01	1	0105-0305	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
68	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE PE-SERIES ENG<1A0>	1-21115-014-1	01	1	0105-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-	●	●
205	BOLT; EYE,FLEX HOSE,P/S PE-SERIES ENG<1A0> M18X40	1-09675-153-0	01	1	0105-0305	●	●
205	BOLT; EYE,FLEX HOSE,P/S PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) M18X40	1-09675-153-0	01	1	0306-	●	●
207	GASKET; FLEX HOSE,P/S PUMP PE-SERIES ENG<1A0> ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-0305	●	●
207	GASKET; FLEX HOSE,P/S PUMP PE-SERIES ENG<1A0> EXC. ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	0306-	●	●
229	BRACKET; HOSE,POWER STRG PE-SERIES ENG<1A0> (B)	1-21464-480-0	01	1	0105-	●	●
229	BRACKET; HOSE,POWER STRG PE-SERIES ENG<1A0> (A)	1-21464-481-0	01	1	0105-	●	●
229	BRACKET; HOSE,POWER STRG W-SERIES ENG<1A2> (C)	1-21464-407-1	01	1	0105-	●	●
239	BRACKET; FLEX HOSE PE-SERIES ENG<1A0>	1-47478-471-0	01	1	0105-	●	●
239	BRACKET; FLEX HOSE W-SERIES ENG<1A2>	1-47476-679-4	01	1	0105-	●	●
255	UNION; FLEX HOSE PE-SERIES ENG<1A0> M22 & M22 STRAIGHT	1-09654-204-1	01	1	0105-	●	●
255	UNION; FLEX HOSE W-SERIES ENG<1A2> M22 & M22 ELBOW	1-09654-163-1	01	1	0105-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0105-0512	●	●
256	NUT; UNION W-SERIES ENG<1A2> (B) M22	9-09111-522-0	01	1	0105-0512	●	●
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION W-SERIES ENG<1A2> (A) M22	0-91111-522-0	01	1	0601-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603	●	●
257	WASHER; LK,UNION W-SERIES ENG<1A2> ID=22.5	9-09150-522-0	01	1	0105-0603	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
257	WASHER; LK,UNION W-SERIES ENG<1A2> ID=22.5	0-91510-522-0	01	1	0604-	●	●
278	NUT; HOSE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
278	NUT; HOSE CLIP PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
278	NUT; HOSE CLIP W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
278	NUT; HOSE CLIP W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

262 263 59 65 66 61 79 64 59 54 287 61 277 63 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
54	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0105-	●	●
54	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
54	CLIP; OIL PIPE ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> (A) ID=16 L=20	9-09525-535-0	02	1	0105-	●	●
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A> W-SERIES ENG<1A2> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
54	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ISUZU M/T<X9A>,FULLER M/T<X9B> W-SERIES ENG<1A2> (A) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
54	CLIP; OIL PIPE W-SERIES ENG<1A2> (C) ID=23.6 L=35	1-09700-634-0	02	1	0105-	●	●
54	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-	●	●
54	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (B)	1-47477-833-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A)	1-47477-434-0	01	1	0105-0206	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (C)	1-47477-180-1	01	1	0207-	●	●
59	BRACKET; CLIP,OIL PIPE PE-SERIES ENG<1A0> (B) L=90	1-82699-856-0	01	1	0105-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (A)	1-47477-235-0	01	1	0105-0106	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> (A)	1-47477-669-1	01	1	0107-	●	●
59	BRACKET; CLIP,OIL PIPE W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-47477-145-0	01	1	0105-	●	●
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-	●	●
61	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
61	CLIP; OIL PIPE PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	03	1	0105-	●	●
61	CLIP; OIL PIPE W-SERIES ENG<1A2> (D) ID=16 L=20	9-09525-535-0	04	1	0105-	●	●
63	BRACKET; CLIP,P/S (D)	1-47477-193-0	01	1	0105-	●	●
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	0105-	●	●
63	BRACKET; CLIP,P/S PE-SERIES ENG<1A0> (B)	1-34656-009-0	01	1	0105-	●	●
63	BRACKET; CLIP,P/S PE-SERIES ENG<1A0> (E) L=90	1-82699-856-0	01	1	0105-	●	●
63	BRACKET; CLIP,P/S W-SERIES ENG<1A2> (C)	1-47475-963-1	01	1	0105-	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> M8X25 FLANGE	0-28080-825-0	01	1	0105-0512	●	●
64	BOLT; CLIP BRKT FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
64	BOLT; CLIP BRKT W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
64	BOLT; CLIP BRKT W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
65	NUT; BRKT PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
66	BOLT; BRKT,OIL PIPE W-SERIES ENG<1A2> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0> (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
79	BOLT; BRKT PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
262	CLIP; P/S PIPE W-SERIES ENG<1A2> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-	●	●
262	CLIP; P/S PIPE W-SERIES ENG<1A2> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
263	BRACKET; P/S PIPE W-SERIES ENG<1A2> (A)	1-47476-483-2	01	1	0105-	●	●
263	BRACKET; P/S PIPE W-SERIES ENG<1A2> (B)	1-47477-597-3	01	1	0105-	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
277	BOLT; HOSE CLIP PE-SERIES ENG<1A0> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●
277	BOLT; HOSE CLIP W-SERIES ENG<1A2> (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

1 2 3 5 2 25 7 8 20 19 12 19 15 37 31 37 1 37 73 55 33 34 37 45 55 34 31 73 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-0508	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-0508	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
31	HOSE; P/S OIL TANK,INL PE-SERIES ENG<1A0>	1-21114-262-0	01	1	0105-	●	●
31	HOSE; P/S OIL TANK,INL W-SERIES ENG<1A2>	1-21114-284-0	01	1	0105-	●	●
33	HOSE; RUBBER,POWER STRG PE-SERIES ENG<1A0> L=80	1-09360-570-0	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET PE-SERIES ENG<1A0>	1-21114-254-1	01	1	0105-	●	●
34	HOSE; P/S OIL TANK,OUTLET W-SERIES ENG<1A2>	1-21114-283-0	01	1	0105-	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	0105-	●	●
37	CLIP; HOSE,P/S PE-SERIES ENG<1A0> (B) ID=32	1-09704-085-0	01	1	0105-	●	●
37	CLIP; HOSE,P/S PE-SERIES ENG<1A0> (A) ID=38	9-09915-041-1	01	1	0105-	●	●
37	CLIP; HOSE,P/S W-SERIES ENG<1A2> (A) ID=38	9-09915-041-1	02	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION W-SERIES ENG<1A2> (B) L=1234	1-21116-238-0	01	1	0105-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> (B)	1-21115-529-0	01	1	0105-0109	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> (B)	1-21117-150-0	01	1	0110-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-21115-527-0	01	1	0105-0109	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-21117-149-0	01	1	0110-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B)	1-21115-530-0	01	1	0105-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1663	1-21116-235-0	01	1	0105-0108	●	●
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1672	1-21117-137-0	01	1	0109-0211	●	●
49	PIPE; OIL,FLEX HOSE TO UNION CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1662	1-21117-337-0	01	1	0212-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION PE-SERIES ENG<1A0> EXC. ZF M/T<X9E>	1-21116-346-0	01	1	0105-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21116-457-0	01	1	0105-0108	●	●
49	PIPE; OIL,FLEX HOSE TO UNION W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-21117-133-0	01	1	0109-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION ZF M/T<X9E> PE-SERIES ENG<1A0>	1-21116-347-0	01	1	0105-	●	●
55	CLIP; P/S RUBBER HOSE PE-SERIES ENG<1A0> ID=28	9-09915-672-1	02	1	0105-	●	●
55	CLIP; P/S RUBBER HOSE W-SERIES ENG<1A2> ID=28 L=30	1-09700-607-1	01	1	0105-	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE PE-SERIES ENG<1A0>	1-21115-014-1	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
