◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11577 - FVM(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#133733) — 60 parça

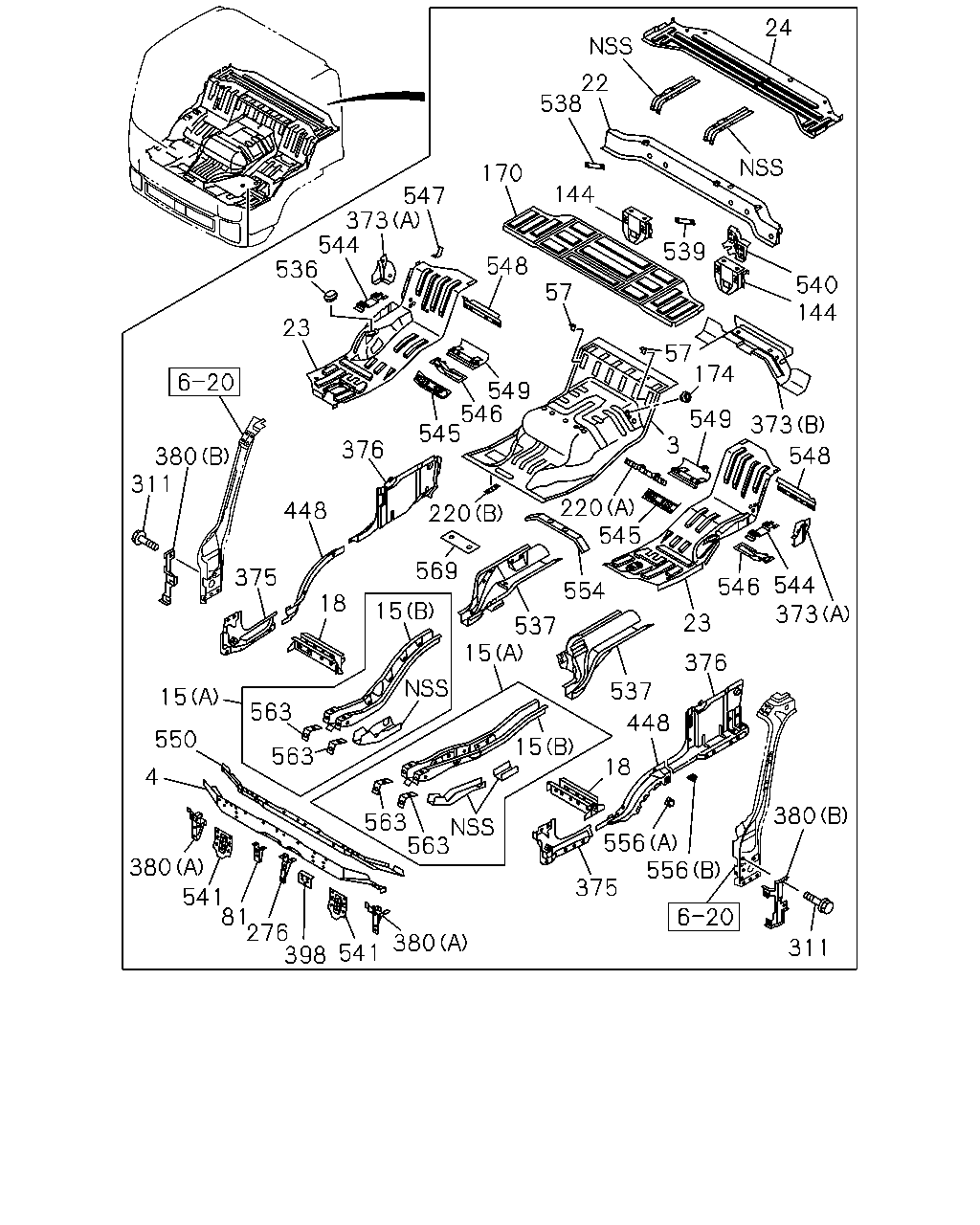

çizim 406709
380 541 81 276 398 541 380 563 563 15 556 375 18 556 380 311 448 537 23 376 546 373 544 548 373 549 3 220 554 537 15 15 18 563 563 15 550 4 375 448 376 545 546 549 23 380 311 536 544 373 547 548 170 538 22 24 540 144 174 57 539 144 57 545 220 569
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1402-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1402-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1402-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1402-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1402-
15 FRAME; UNDER
(B) THA 		8-97584-412-6 01 1 1402-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1402-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1402-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1402-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1402-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1402-
24 PANEL; BED PAN 8-97584-378-6 01 1 1402-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1402-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1402-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1402-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1402-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1402-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1402-
220 PATCH
(A) 		8-97588-840-4 01 1 1402-
220 PATCH
(B) 		8-97589-603-3 01 1 1402-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1402-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1402-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1402-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1402-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1402-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1402-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1402-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1402-1403
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1402-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1402-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1402-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1402-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1402-
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1402-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1402-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1402-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1402-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1402-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1402-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1402-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1402-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1402-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1402-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1402-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1402-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1402-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1402-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1402-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1402-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1402-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1402-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1402-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1402-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1402-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1402-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1402-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1402-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1402-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1402-
