Isuzu WW
▶
TRUCKS
▶
FVM
▶
11577 - FVM(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

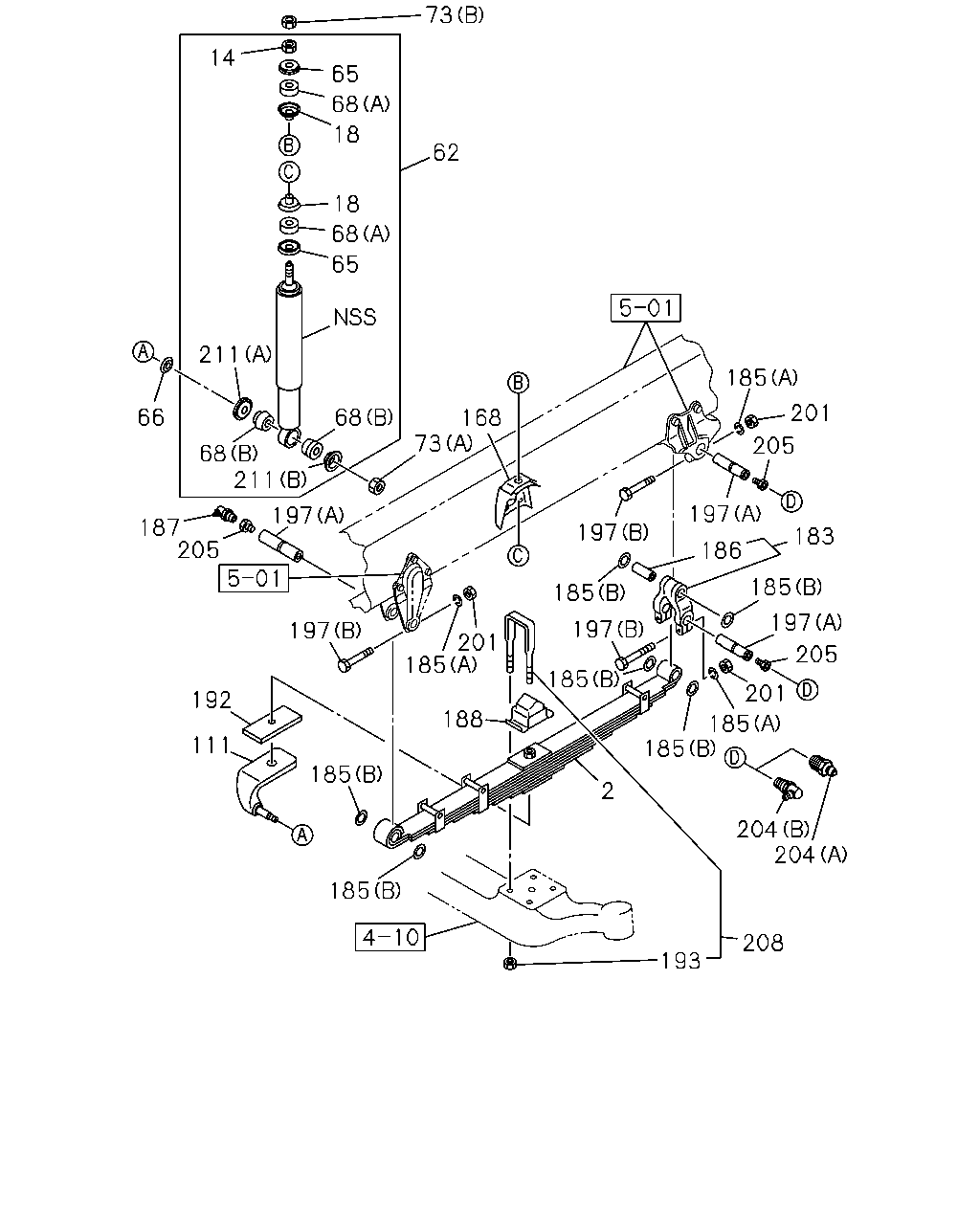

4-50 — FRONT SUSPENSION
(#133710) — 30 parça
73
62
18
68
65
14
18
68
65
211
66
68
68
168
73
197
211
187
205
197
185
201
185
197
197
205
201
185
183
186
185
197
205
201
185
185
204
204
2
185
197
188
185
111
192
208
185
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-98167-308-0
02
1
1402-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1402-
18
WASHER; CENTERING,S/ABS
ID=20.8 THA
9-51631-041-0
04
1
1402-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97924-224-0
02
1
1402-
65
WASHER; S/ABS
ID=16.5 THA
9-51631-040-0
04
1
1402-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1402-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1402-
68
BUSHING; S/ABS
(A) THA
9-51631-039-0
04
1
1402-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1402-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1402-
111
SUPPORTER; S/ABS,FRT SUSP
THA
8-97948-498-0
01
1
1402-
111
SUPPORTER; S/ABS,FRT SUSP
THA
8-97948-497-0
01
1
1402-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1402-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1402-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1402-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1402-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1402-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1402-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
8-97948-188-0
02
1
1402-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
AR
1
1402-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1402-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1402-
197
PIN; FRT SPR,FRT
(A) THA
8-97948-141-0
06
1
1402-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1402-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1402-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1402-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1402-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1402-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1402-
