4-40 — STEERING UNIT (#133708) — 54 parça

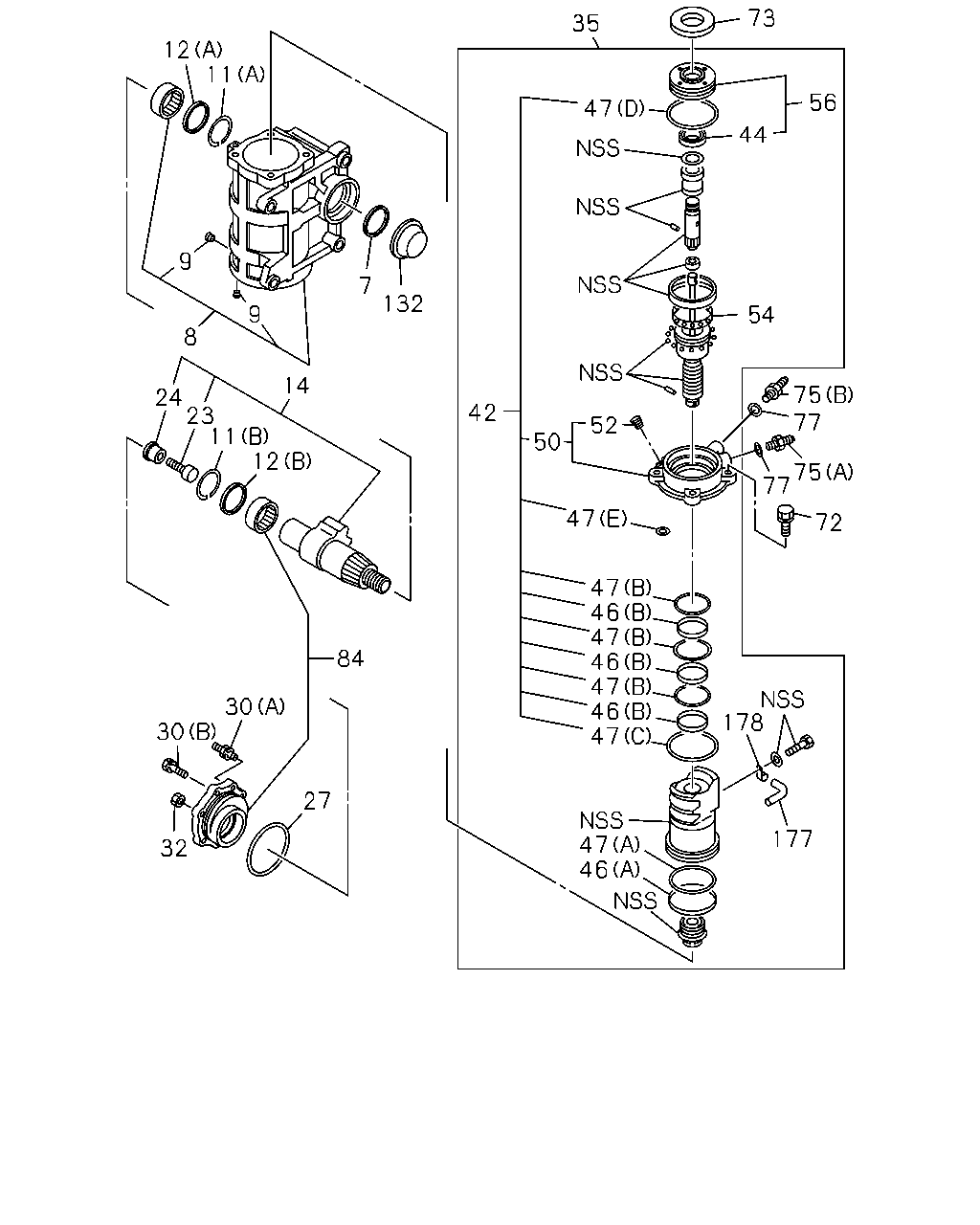

çizim 406628
73 56 44 47 35 54 75 77 77 75 72 178 177 42 52 50 132 7 12 11 9 9 8 14 11 12 23 24 84 30 27 30 32 46 47 47 47 47 47 47 46 46 46
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-836-0 01 1 -
8 BOX ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-840-1 01 1 -
9 PLUG; FILLER,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-830-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-837-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-855-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-838-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-854-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-861-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-859-0 01 1 -
24 RETAINER; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-858-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-853-0 01 1 -
30 BOLT; COVER STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-850-0 03 1 -
30 BOLT; COVER STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-851-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-880-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-835-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-834-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-824-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-819-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-828-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E), THA ASM PART: A = 8-97948-359-1 		8-97948-818-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-820-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), THA ASM PART: A = 8-97948-359-1 		8-97948-826-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), THA ASM PART: A = 8-97948-359-1 		8-97948-827-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-829-0 03 1 -
50 HOUSING ASM; VALVE STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-831-0 01 1 -
52 PLUG; HSG STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-830-0 01 1 -
54 CASE; BEARING STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-823-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-825-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-852-0 04 1 -
73 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-847-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-843-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-845-0 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-844-0 02 1 -
84 COVER ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-856-0 01 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-846-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-822-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-821-0 01 1 -

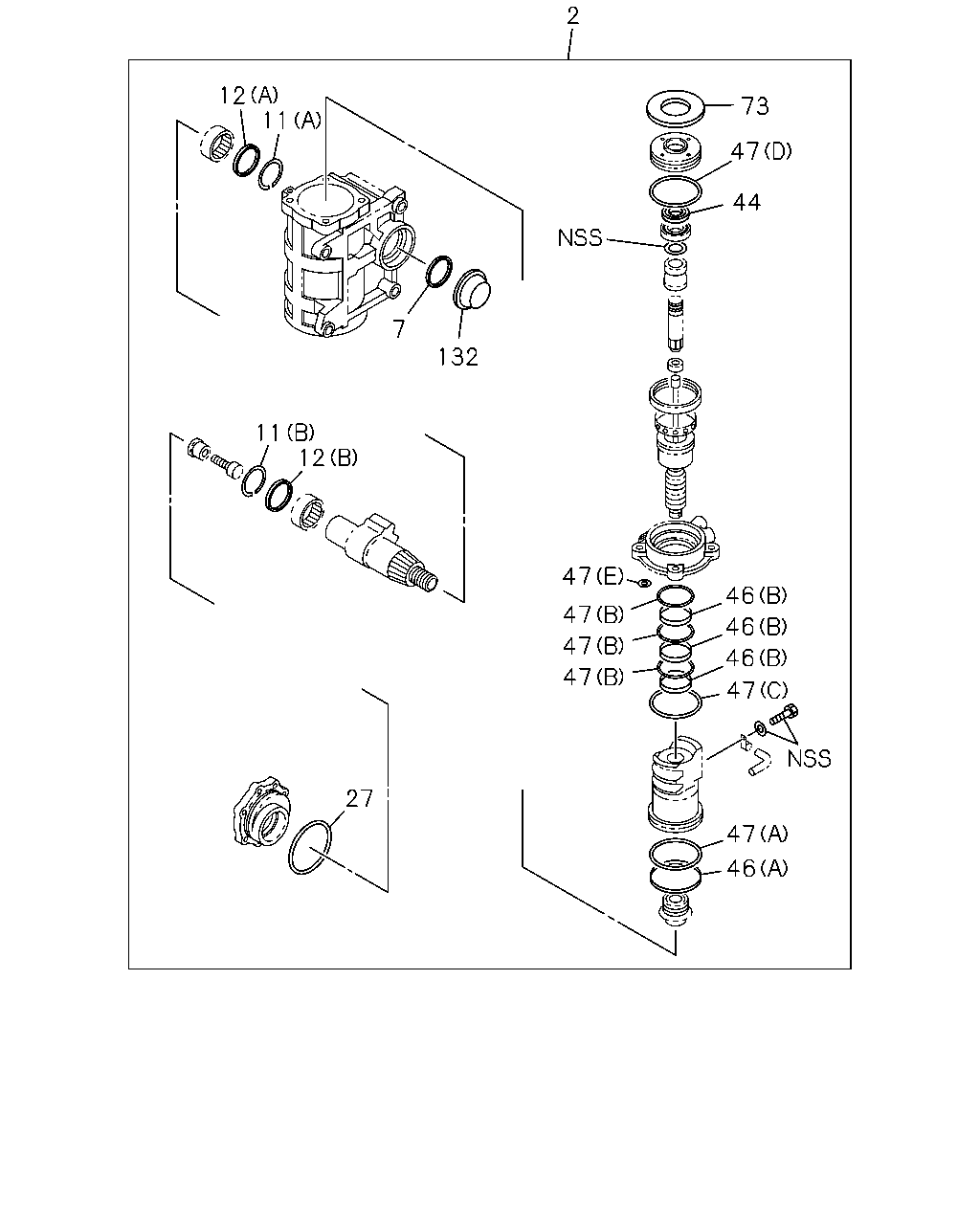

çizim 407636
2 73 47 44 132 7 11 12 11 12 27 47 47 47 47 47 47 46 46 46 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
THA ASM PART: A = 8-97948-359-1 		8-97948-842-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-836-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-837-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-855-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-838-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-854-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-853-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-824-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-819-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-828-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E), THA ASM PART: A = 8-97948-359-1 		8-97948-818-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-820-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), THA ASM PART: A = 8-97948-359-1 		8-97948-826-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), THA ASM PART: A = 8-97948-359-1 		8-97948-827-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-829-0 03 1 -
73 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-847-0 01 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-846-0 01 1 -
