Sayfa 4-25B - Isuzu EPC

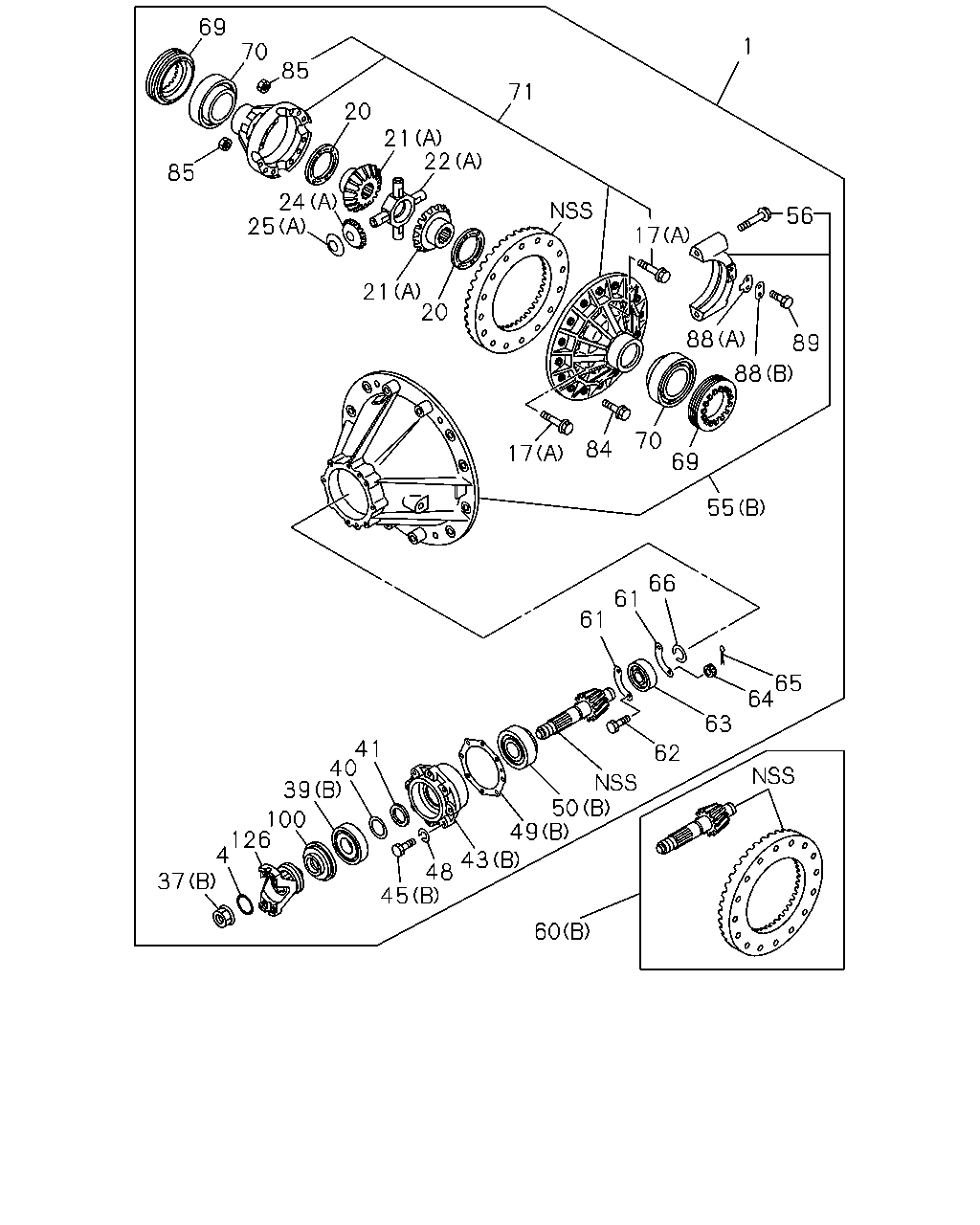

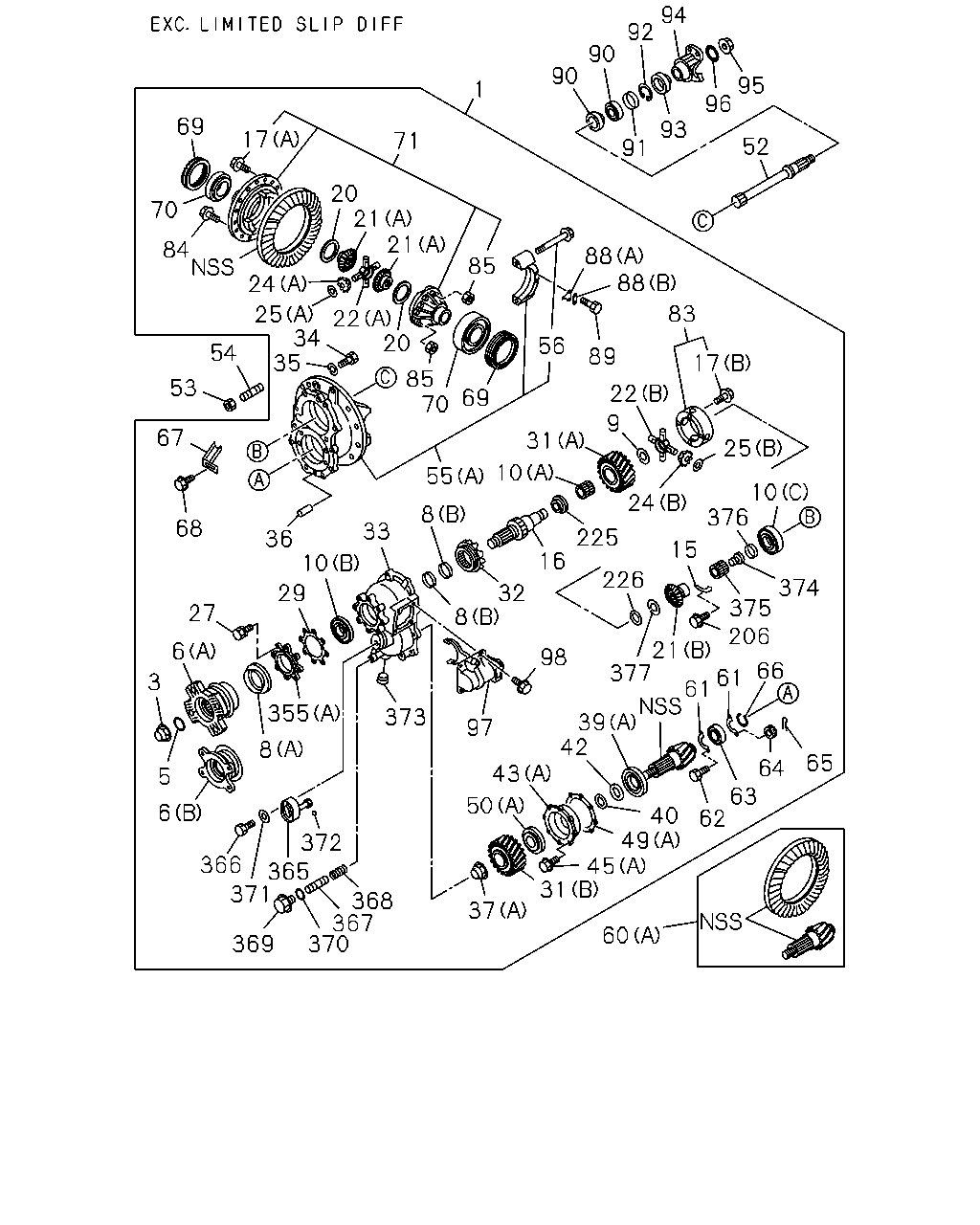

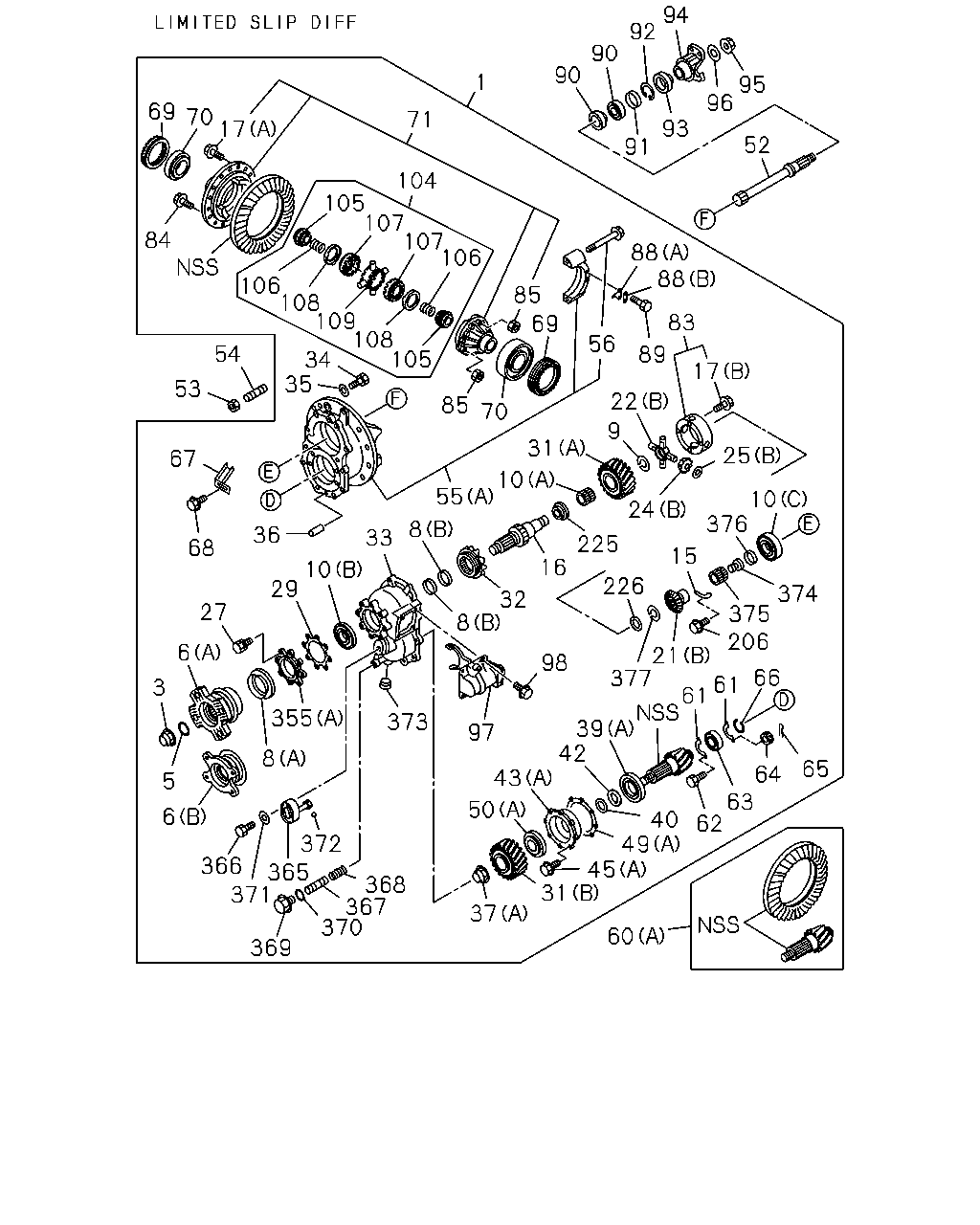

4-25B — REAR FINAL DRIVE (#13370) — 665 parça

31 10 55 8 33 36 68 67 53 54 35 85 70 69 56 89 88 85 21 21 20 17 69 70 84 71 1 90 90 92 94 95 96 93 91 52 24 25 22 34 20 10 29 27 6 3 9 22 83 88 17 25 24 225 16 32 8 373 355 8 5 6 226 15 376 10 374 375 206 21 377 98 97 372 366 371 365 369 370 367 368 37 31 66 61 61 39 42 43 50 45 49 40 62 63 64 65 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41001-363-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41002-447-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FORWARD 41/6	1-41002-034-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LIMITED SLIP DIFF(G86) FORWARD 41/6	1-41002-763-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) FORWARD 41/6	1-41002-759-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR REARWARD 41/10	1-41001-710-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR FORWARD 41/10	1-41002-114-0	01	1	0105-			●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	0105-	●	●	●
6	FLANGE ASM; INPUT SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-37245-265-2	01	1	0105-		●
6	FLANGE ASM; INPUT SHAFT (A)	1-37245-343-0	01	1	0105-	●		●
6	FLANGE ASM; INPUT SHAFT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-37245-343-0	01	1	0105-		●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	0105-	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	0105-	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (A) JTEKT	1-09811-346-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (C) JTEKT	1-09812-182-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (B) JTEKT	1-09812-198-0	01	1	0105-	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	0105-	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=2.8	1-41562-112-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=2.9	1-41562-113-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.0	1-41562-114-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.1	1-41562-115-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.2	1-41562-116-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.3	1-41562-117-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.4	1-41562-118-0	AR	1	0105-		●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-0409	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-0409	●		●
21	GEAR; SIDE,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=16	1-41561-086-0	02	1	0105-0409		●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-139-0	02	1	0410-	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-139-0	02	1	0410-	●		●
21	GEAR; SIDE,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=16	1-41561-139-0	02	1	0410-		●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	0105-0407	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-138-0	01	1	0408-	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	0105-	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	0105-	●		●
22	SPIDER; DIFF PINION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) OD=35	1-41521-037-2	01	1	0105-		●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	0105-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-0409	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-0409	●		●
24	GEAR; PINION,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=10	1-41551-025-0	04	1	0105-0409		●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-044-0	04	1	0410-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-044-0	04	1	0410-	●		●
24	GEAR; PINION,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=10	1-41551-044-0	04	1	0410-		●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-031-0	04	1	0105-0407	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-043-0	04	1	0408-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●		●
25	WASHER; THRUST,PINION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) T=1.6	1-41552-017-0	04	1	0105-		●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	0105-	●	●	●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50051-235-0	08	1	0105-	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	0105-	●	●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	0105-	●	●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	0105-	●	●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	0105-	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-030-0	01	1	0105-0407	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-042-0	01	1	0408-	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	0105-	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	0105-	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	0105-	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	10	1	0105-0512	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23851-440-0	10	1	0601-	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	9-09150-814-0	10	1	0105-0603	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	0-91510-814-0	10	1	0604-	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	0105-	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0105-	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-1	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	1-09812-076-1	01	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	0105-	●	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	0105-	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	0105-	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	0105-	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	0105-	●	●	●
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	0105-	●	●	●
50	BEARING; FINAL PINION (B) JTEKT	1-09812-074-1	01	1	0105-	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	0105-	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	0105-	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	0105-	●	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	01	1	0105-0512	●	●	●
53	NUT; FINAL DRIVE SET M16	0-91110-516-0	01	1	0601-	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	0105-	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	0105-	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	0105-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-481-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-611-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-473-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-601-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (A) 41/10	1-41210-449-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/10	1-41210-610-0	01	1	0105-			●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0105-	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0105-	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0105-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0105-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-0512	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-0512	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	0105-	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0105-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	0105-	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	0105-	●		●
83	CAGE ASM; DIFF	1-41510-224-0	01	1	0105-	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-0512	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-0512	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	0105-	●	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	0105-	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	0105-	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	0105-	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	0105-	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	0105-	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	0105-	●	●	●

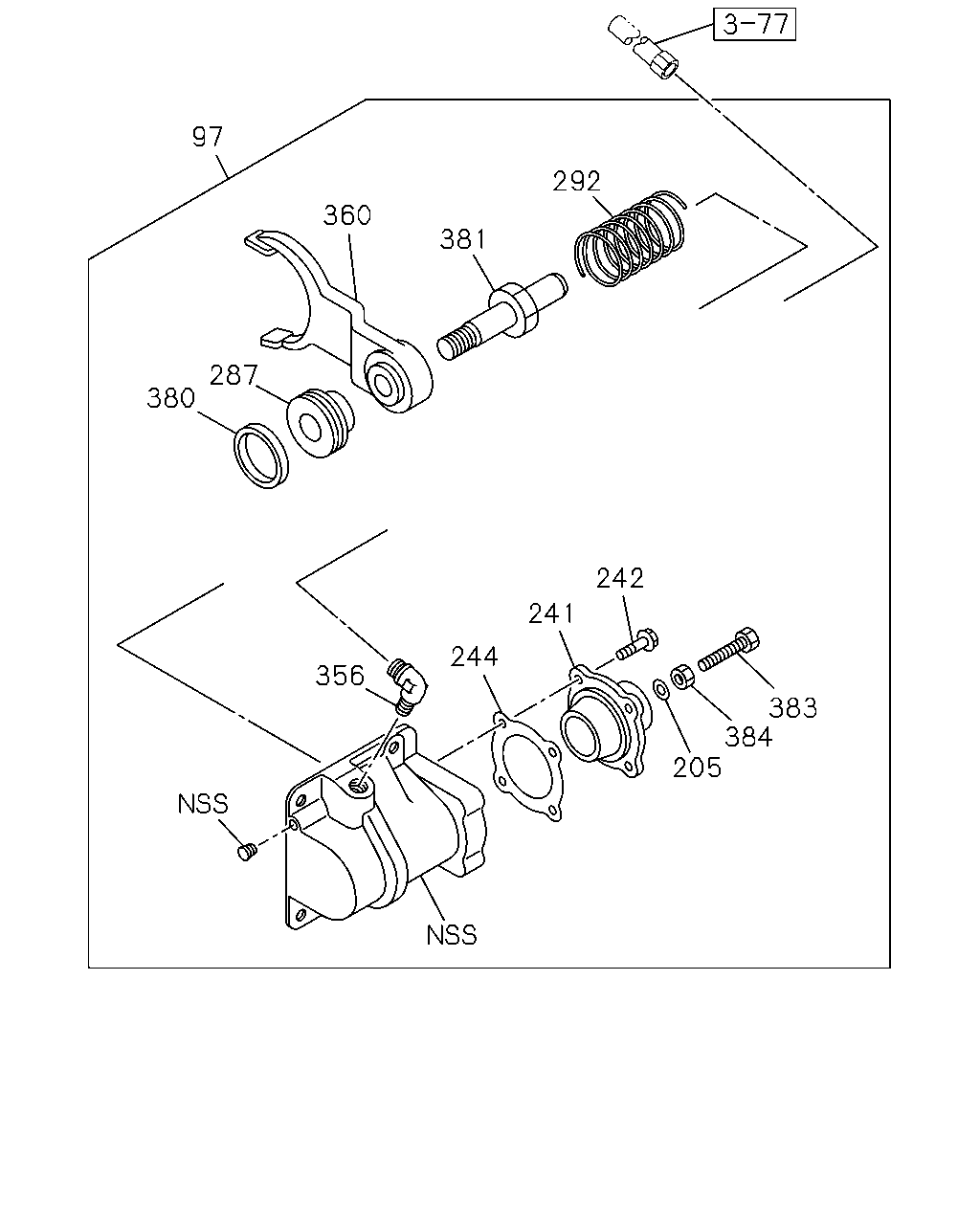

97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	0105-	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	0105-0512	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	0105-0512	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	0601-	●	●	●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	0105-	●	●	●
225	WASHER; THRUST T=5.9	1-41552-024-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.0	1-41552-025-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.1	1-41552-026-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.2	1-41552-027-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.3	1-41552-028-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.4	1-41552-029-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.5	1-41552-030-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.6	1-41552-031-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.7	1-41552-032-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.8	1-41552-033-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.9	1-41552-034-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=7.0	1-41552-035-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=7.1	1-41552-036-2	AR	1	0105-	●	●	●
226	WASHER; THRUST	1-41562-267-0	01	1	0105-	●	●	●
355	RETAINER; BRG (A)	1-41227-016-0	01	1	0105-	●	●	●
365	PUMP ASM; OIL	1-41381-008-1	01	1	0105-	●	●	●
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	0105-	●	●	●
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	0105-	●	●	●
368	SPRING; STRAINER	1-09580-504-0	01	1	0105-	●	●	●
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	0105-	●	●	●
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	0105-	●	●	●
371	WASHER; LK,PUMP ID=8.2	9-09150-808-0	04	1	0105-0603	●	●	●
371	WASHER; LK,PUMP ID=8.2	0-91510-808-0	04	1	0604-	●	●	●
372	BALL; CASE	9-00097-517-0	01	1	0105-	●	●	●
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	0105-	●	●	●
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	0105-	●	●	●
375	BEARING; SIDE GEAR JTEKT	1-09811-348-0	01	1	0105-	●	●	●
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	0105-	●	●	●
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	0105-	●	●	●
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	0105-	●	●	●

1 71 104 105 107 106 107 17 70 69 84 106 108 109 108 105 34 35 54 53 67 68 36 29 10 27 6 3 5 33 8 55 85 70 10 31 9 22 56 89 83 69 85 88 91 93 96 95 90 90 92 94 52 88 17 25 24 225 16 32 8 10 374 376 15 226 98 97 373 355 8 366 6 372 365 375 206 21 377 39 61 61 66 65 64 63 62 40 49 45 31 37 50 43 42 368 367 370 369 371 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41001-363-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41002-447-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FORWARD 41/6	1-41002-034-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LIMITED SLIP DIFF(G86) FORWARD 41/6	1-41002-763-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) FORWARD 41/6	1-41002-759-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR REARWARD 41/10	1-41001-710-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR FORWARD 41/10	1-41002-114-0	01	1	0105-			●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	0105-	●	●	●
6	FLANGE ASM; INPUT SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-37245-265-2	01	1	0105-		●
6	FLANGE ASM; INPUT SHAFT (A)	1-37245-343-0	01	1	0105-	●		●
6	FLANGE ASM; INPUT SHAFT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-37245-343-0	01	1	0105-		●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	0105-	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	0105-	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (A) JTEKT	1-09811-346-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (C) JTEKT	1-09812-182-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	0105-	●	●	●
10	BEARING; INPUT SHAFT (B) JTEKT	1-09812-198-0	01	1	0105-	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	0105-	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	0105-	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-0409	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-0409	●		●
21	GEAR; SIDE,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=16	1-41561-086-0	02	1	0105-0409		●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-139-0	02	1	0410-	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-139-0	02	1	0410-	●		●
21	GEAR; SIDE,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=16	1-41561-139-0	02	1	0410-		●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	0105-0407	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-138-0	01	1	0408-	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	0105-	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	0105-	●		●
22	SPIDER; DIFF PINION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) OD=35	1-41521-037-2	01	1	0105-		●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	0105-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-0409	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-0409	●		●
24	GEAR; PINION,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=10	1-41551-025-0	04	1	0105-0409		●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-044-0	04	1	0410-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-044-0	04	1	0410-	●		●
24	GEAR; PINION,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=10	1-41551-044-0	04	1	0410-		●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-031-0	04	1	0105-0407	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-043-0	04	1	0408-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●		●
25	WASHER; THRUST,PINION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) T=1.6	1-41552-017-0	04	1	0105-		●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	0105-	●	●	●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50051-235-0	08	1	0105-	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	0105-	●	●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	0105-	●	●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	0105-	●	●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	0105-	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-030-0	01	1	0105-0407	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-042-0	01	1	0408-	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	0105-	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	0105-	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	0105-	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	10	1	0105-0512	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23851-440-0	10	1	0601-	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	9-09150-814-0	10	1	0105-0603	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	0-91510-814-0	10	1	0604-	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	0105-	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0105-	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-1	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	1-09812-076-1	01	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	0105-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	0105-	●	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	0105-	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	0105-	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	0105-	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	0105-	●	●	●
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	0105-	●	●	●
50	BEARING; FINAL PINION (B) JTEKT	1-09812-074-1	01	1	0105-	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	0105-	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	0105-	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	0105-	●	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	01	1	0105-0512	●	●	●
53	NUT; FINAL DRIVE SET M16	0-91110-516-0	01	1	0601-	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	0105-	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	0105-	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	0105-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-481-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-611-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-473-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-601-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (A) 41/10	1-41210-449-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/10	1-41210-610-0	01	1	0105-			●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0105-	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0105-	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0105-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0105-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-0512	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-0512	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	0105-	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0105-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	0105-	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	0105-	●		●
83	CAGE ASM; DIFF	1-41510-224-0	01	1	0105-	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-0512	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-0512	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	0105-	●	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	0105-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	0105-	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	0105-	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	0105-	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	0105-	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	0105-	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	0105-	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	0105-	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	0105-0512	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	0105-0512	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	0601-	●	●	●
104	DIFF ASM; NO SPIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LIMITED SLIP DIFF(G86)	1-41530-023-0	01	1	0105-		●
105	GEAR; SIDE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LIMITED SLIP DIFF(G86) Z=24	1-41539-028-0	02	1	0105-		●
106	SPRING; NO SPIN DIFF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	0105-		●
107	CLUTCH; DRIVEN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LIMITED SLIP DIFF(G86)	1-41532-006-0	02	1	0105-		●
108	RING; HOLD OUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LIMITED SLIP DIFF(G86)	1-41539-024-0	02	1	0105-		●
109	SPIDER; DIFF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LIMITED SLIP DIFF(G86)	1-41539-027-0	01	1	0105-		●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	0105-	●	●	●
225	WASHER; THRUST T=5.9	1-41552-024-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.0	1-41552-025-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.1	1-41552-026-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.2	1-41552-027-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.3	1-41552-028-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.4	1-41552-029-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.5	1-41552-030-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.6	1-41552-031-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.7	1-41552-032-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.8	1-41552-033-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=6.9	1-41552-034-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=7.0	1-41552-035-2	AR	1	0105-	●	●	●
225	WASHER; THRUST T=7.1	1-41552-036-2	AR	1	0105-	●	●	●
226	WASHER; THRUST	1-41562-267-0	01	1	0105-	●	●	●
355	RETAINER; BRG (A)	1-41227-016-0	01	1	0105-	●	●	●
365	PUMP ASM; OIL	1-41381-008-1	01	1	0105-	●	●	●
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	0105-	●	●	●
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	0105-	●	●	●
368	SPRING; STRAINER	1-09580-504-0	01	1	0105-	●	●	●
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	0105-	●	●	●
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	0105-	●	●	●
371	WASHER; LK,PUMP ID=8.2	9-09150-808-0	04	1	0105-0603	●	●	●
371	WASHER; LK,PUMP ID=8.2	0-91510-808-0	04	1	0604-	●	●	●
372	BALL; CASE	9-00097-517-0	01	1	0105-	●	●	●
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	0105-	●	●	●
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	0105-	●	●	●
375	BEARING; SIDE GEAR JTEKT	1-09811-348-0	01	1	0105-	●	●	●
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	0105-	●	●	●
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	0105-	●	●	●
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	0105-	●	●	●

21 20 85 70 69 85 25 24 21 71 22 1 17 56 89 88 88 70 84 17 20 69 55 66 61 61 65 64 63 62 50 49 43 48 45 41 40 39 100 126 4 37 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41001-363-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41002-447-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FORWARD 41/6	1-41002-034-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LIMITED SLIP DIFF(G86) FORWARD 41/6	1-41002-763-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) FORWARD 41/6	1-41002-759-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR REARWARD 41/10	1-41001-710-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR FORWARD 41/10	1-41002-114-0	01	1	0105-			●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X125	1-09070-007-0	04	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X113	1-09070-018-0	08	1	0105-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M10X55	1-09070-108-0	08	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=2.8	1-41562-112-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=2.9	1-41562-113-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.0	1-41562-114-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.1	1-41562-115-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.2	1-41562-116-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.3	1-41562-117-0	AR	1	0105-		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0105-	●		●
20	WASHER; THRUST,SIDE GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) T=3.4	1-41562-118-0	AR	1	0105-		●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-0409	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-086-0	02	1	0105-0409	●		●
21	GEAR; SIDE,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=16	1-41561-086-0	02	1	0105-0409		●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-139-0	02	1	0410-	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-139-0	02	1	0410-	●		●
21	GEAR; SIDE,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=16	1-41561-139-0	02	1	0410-		●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	0105-0407	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-138-0	01	1	0408-	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	0105-	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-2	01	1	0105-	●		●
22	SPIDER; DIFF PINION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) OD=35	1-41521-037-2	01	1	0105-		●
22	SPIDER; DIFF PINION (B)	1-41521-049-2	01	1	0105-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-0409	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-025-0	04	1	0105-0409	●		●
24	GEAR; PINION,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=10	1-41551-025-0	04	1	0105-0409		●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-044-0	04	1	0410-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-044-0	04	1	0410-	●		●
24	GEAR; PINION,DIFF BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) Z=10	1-41551-044-0	04	1	0410-		●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-031-0	04	1	0105-0407	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-043-0	04	1	0408-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	0105-	●		●
25	WASHER; THRUST,PINION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LIMITED SLIP DIFF(G86) (A) T=1.6	1-41552-017-0	04	1	0105-		●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	0105-	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0105-	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-1	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	0105-	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	1-09812-076-1	01	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0105-	●	●	●
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	0105-	●	●	●
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	0105-	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	0105-	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	0105-	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0105-0603	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	0105-	●	●	●
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	0105-	●	●	●
50	BEARING; FINAL PINION (B) JTEKT	1-09812-074-1	01	1	0105-	●	●	●
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	0105-	●	●	●
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	0105-	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	0105-	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	0105-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●
60	GEAR SET; FINAL DRIVE,RR (A) 43/11	1-41210-481-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/11	1-41210-611-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-473-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-601-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR (A) 41/10	1-41210-449-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/10	1-41210-610-0	01	1	0105-			●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0105-	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0105-	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0105-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0105-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-0512	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-0512	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0105-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	0105-	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-142-0	01	1	0105-	●		●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-0512	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-0512	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0105-	●	●	●
126	COUPLING; DRIVING PINION	1-37245-336-0	01	1	0105-	●	●	●

97 360 381 292 287 380 356 244 241 242 205 384 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	0105-	●	●	●
205	WASHER; PL ID=10.5 OD=18	9-09160-510-0	01	1	0105-	●	●	●
241	COVER; SHIFT HSG	1-48266-012-1	01	1	0105-	●	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	0105-	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	0105-	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	0105-	●	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	0105-	●	●	●
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●	●
360	FORK; SHIFT	1-48269-066-0	01	1	0105-	●	●	●
380	GASKET; PISTON	1-48269-064-0	01	1	0105-	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	0105-	●	●	●
383	BOLT; SET,SHIFT UNIT M10X45	0-20801-045-0	01	1	0105-	●	●	●
384	NUT; LK,SHIFT UNIT M10	9-09111-410-0	01	1	0105-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
