Isuzu WW
▶
TRUCKS
▶
FVM
▶
11577 - FVM(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-02 - PROPELLER SHAFT GUARD
▶

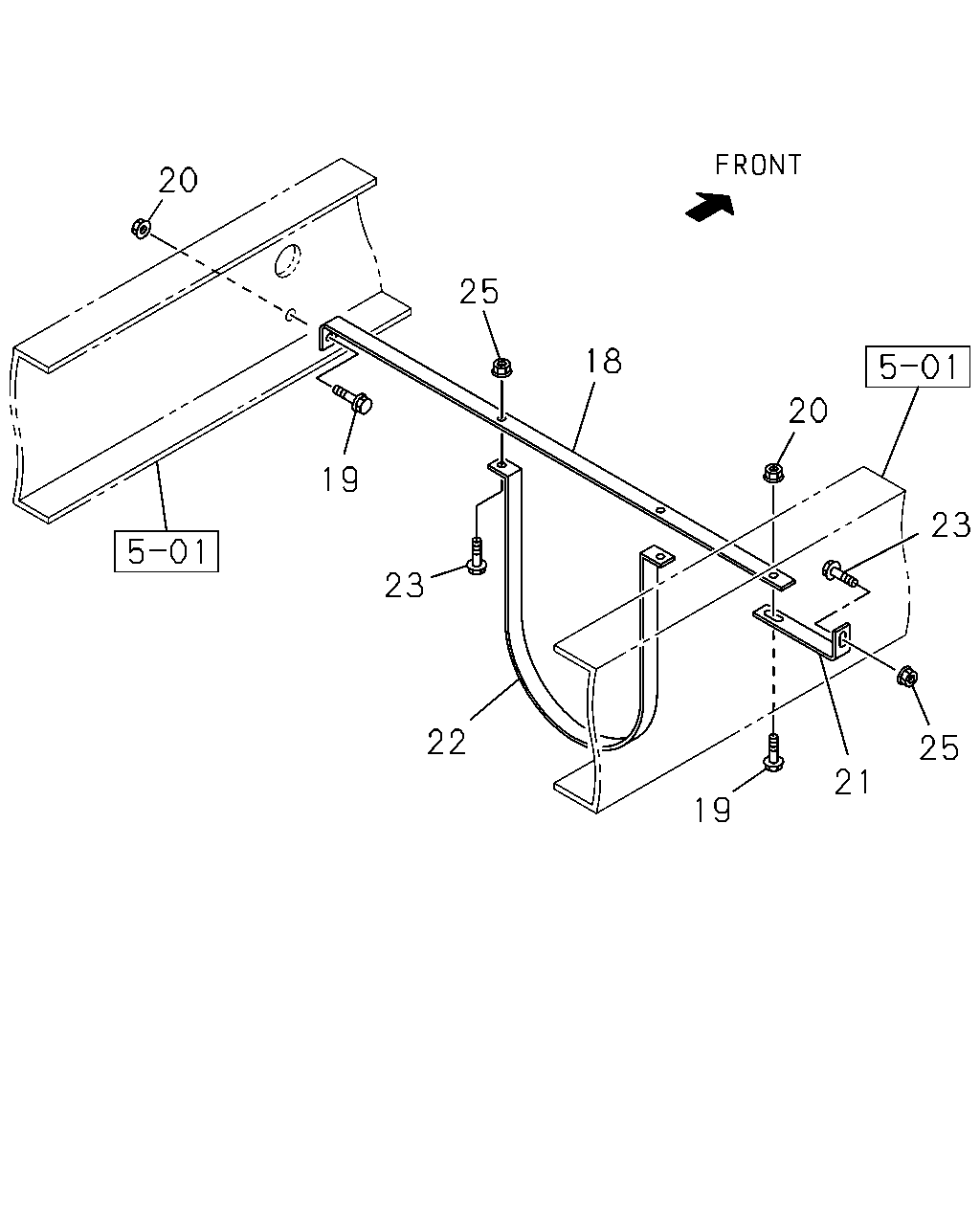

4-02 — PROPELLER SHAFT GUARD
(#133698) — 15 parça
20
25
18
20
23
25
21
19
22
23
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
BRACKET; PROP SHAFT GUARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA
1-53279-249-0
01
1
1402-
18
BRACKET; PROP SHAFT GUARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA
1-53279-116-0
01
1
1402-
19
BOLT; BRKT,PROP SHAFT GUARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X35 FLANGE THA
0-28051-035-0
03
1
1402-
19
BOLT; BRKT,PROP SHAFT GUARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA
0-28051-035-0
02
1
1402-
20
NUT; BRKT,PROP SHAFT GUARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA
0-91180-210-0
03
1
1402-
20
NUT; BRKT,PROP SHAFT GUARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA
0-91180-210-0
02
1
1402-
21
BRACKET; PROP GUARD
THA
8-98098-347-0
01
1
1402-1410
21
BRACKET; PROP GUARD
THA
8-98277-933-0
01
1
1411-
22
GUARD; PROP SHAFT
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA
1-53279-168-0
01
1
1402-
22
GUARD; PROP SHAFT
WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA
1-53279-168-0
01
1
1402-
22
GUARD; PROP SHAFT
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA
1-53279-166-0
01
1
1402-
22
GUARD; PROP SHAFT
WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W> THA
1-53279-166-0
01
1
1402-
22
GUARD; PROP SHAFT
WHEEL BASE 6300MM<63W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA
1-53279-166-0
01
1
1402-
23
BOLT; GUARD
M10X35 FLANGE THA
0-28051-035-0
03
1
1402-
25
NUT; GUARD
M10 FLANGE THA
0-91180-210-0
03
1
1402-
