Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#133696) — 200 parça

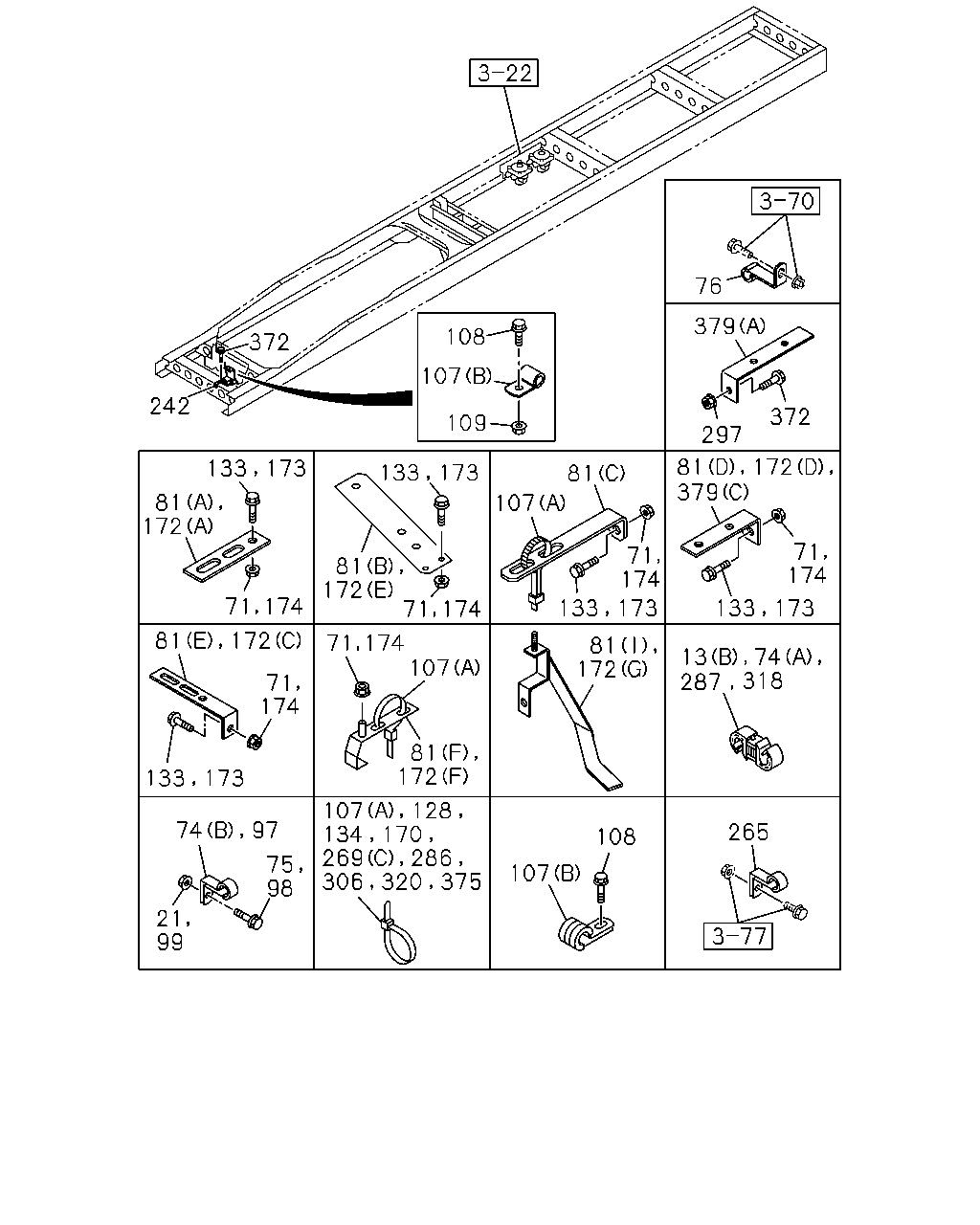

108 107 109 372 242 76 372 297 81 172 379 71 174 173 133 174 173 71 81 107 133 133 173 174 71 172 81 173 133 81 172 71 174 71 174 107 81 172 71 172 81 174 133 173 97 74 75 98 21 81 172 287 318 13 265 108 107 375 320 306 128 170 286 107 134 269 99 379 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1402-
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=6.35 & 15	1-09709-276-1	01	1	1402-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=7 L=16	0-95234-625-0	01	1	1402-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=6.35 & 6.35	1-09709-273-1	03	1	1402-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=6.35 & 15	1-09709-276-1	03	1	1402-
21	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1402-
21	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	04	1	1402-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	11	1	1402-
74	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=13 H=50 L=25	1-09700-529-0	01	1	1402-
74	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=12 & 15	1-09709-281-1	01	1	1402-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=12 & 12	1-09709-280-1	01	1	1402-
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
76	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=13 H=50 L=25	1-09700-529-0	01	1	1402-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) L=170	1-47479-380-0	01	1	1402-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) L=65 B=25	8-98135-584-0	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=150 H=30	1-47477-629-2	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30	1-47477-645-2	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=60 H=30	1-47477-716-1	02	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98031-420-2	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	8-98047-730-0	02	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-47477-514-3	02	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (E) L=225	1-47477-646-3	01	1	1402-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) THA	8-98139-765-0	01	1	1402-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J)	8-98177-873-0	01	1	1402-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K)	8-98182-760-0	01	1	1402-
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J)	8-98177-873-0	03	1	1402-
97	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=11 H=20 L=20	8-98033-780-0	01	1	1402-
98	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
99	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1402-
107	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=31 L=30	1-09700-969-0	01	1	1402-
107	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=39 L=33	8-98009-359-0	01	1	1402-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) ID=19 L=40	0-95235-876-0	01	1	1402-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=350	1-09707-183-0	37	1	1402-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	37	1	1402-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	35	1	1402-
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=350	1-09707-183-0	38	1	1402-
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) L=350	1-09707-183-0	36	1	1402-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=350	1-09707-183-0	39	1	1402-
108	BOLT; TUBE CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1402-
128	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	01	1	1402-
128	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350	1-09707-183-0	01	1	1402-
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1402-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1402-
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
133	BOLT; BRKT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	04	1	1402-
133	BOLT; BRKT ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	03	1	1402-
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350	1-09707-183-0	01	1	1402-
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350	1-09707-183-0	29	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A)	1-47477-514-3	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=100 H=30	1-47477-645-2	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=225	1-47477-646-3	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=60 H=30	1-47477-716-1	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-47479-693-0	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E)	8-98031-420-2	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F)	8-98047-730-0	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) THA	8-98139-765-0	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H)	8-98169-222-0	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I)	8-98182-760-0	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J)	8-98184-177-0	01	1	1402-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	04	1	1402-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	07	1	1402-
174	NUT; CLIP BRKT 6HK1-TCN ENG<82L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	14	1	1402-
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98106-046-0	01	1	1402-
265	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=21 H=25.5 L=26	8-94176-806-0	01	1	1402-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=35 L=33	1-09700-945-0	06	1	1402-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=350	1-09707-183-0	01	1	1402-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) ID=11X2 L=20	0-95325-035-0	02	1	1402-
286	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350	1-09707-183-0	05	1	1402-
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	01	1	1402-
287	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=6.35 & 6.35	1-09709-273-1	01	1	1402-
297	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	02	1	1402-
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	21	1	1402-
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	15	1	1402-
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	22	1	1402-
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	16	1	1402-
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	23	1	1402-
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	17	1	1402-
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=6.35 & 15	1-09709-276-1	05	1	1402-
318	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=6.35 & 15	1-09709-276-1	03	1	1402-
320	CLIP; BAND,FLEX FIX L=250	5-09707-030-1	01	1	1402-
372	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
372	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
375	CLIP; AIR PIPE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> L=350	1-09707-183-0	01	1	1402-
375	CLIP; AIR PIPE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350	1-09707-183-0	01	1	1402-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=60 H=30	1-47477-716-1	01	1	1402-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=90	1-47477-755-1	01	1	1402-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98044-013-0	01	1	1402-

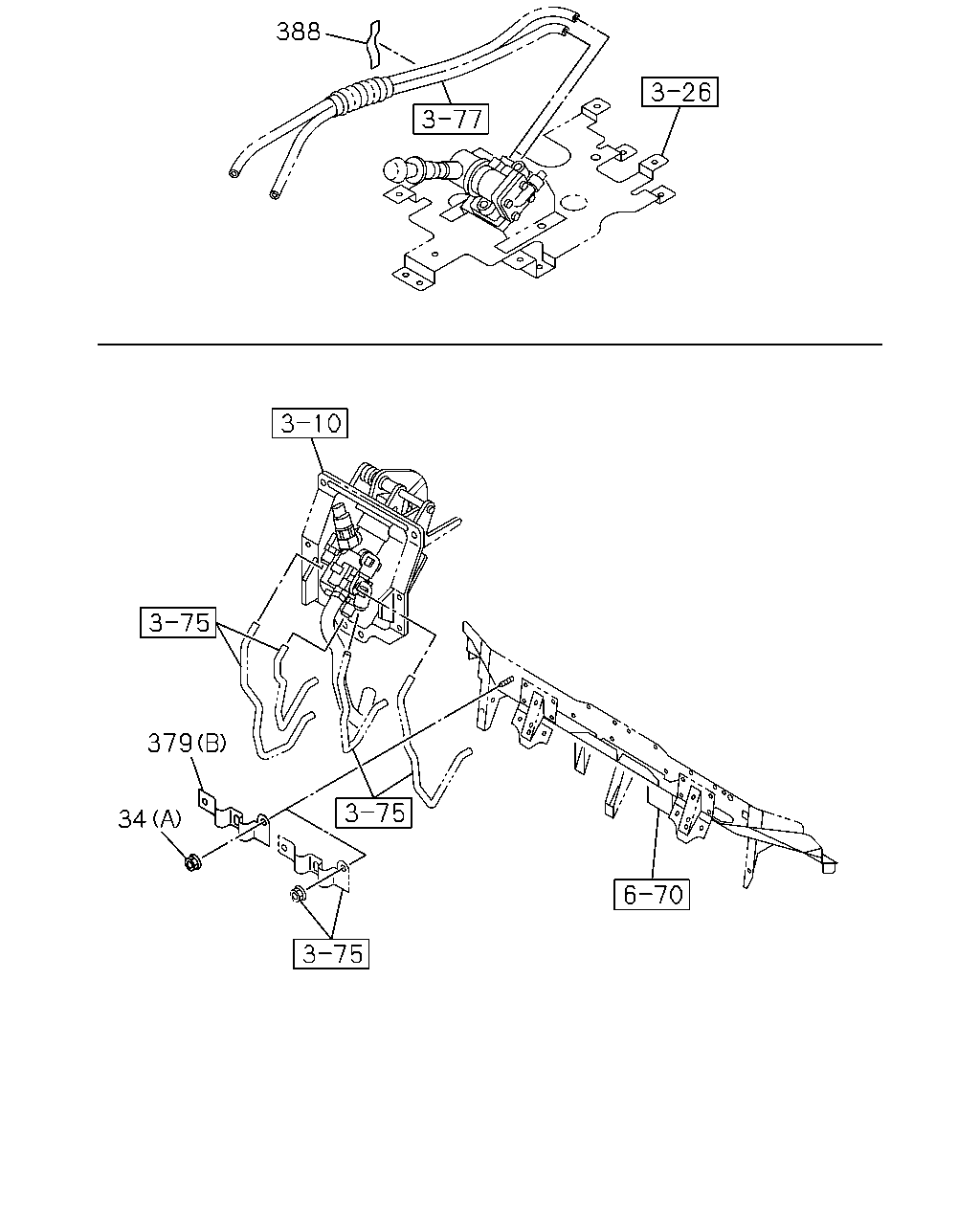

388 379 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M6 FLANGE THA	0-91180-106-0	02	1	1402-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=60 H=30	1-47477-716-1	01	1	1402-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=90	1-47477-755-1	01	1	1402-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98044-013-0	01	1	1402-
388	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> 100X40	1-72498-022-1	03	1	1402-

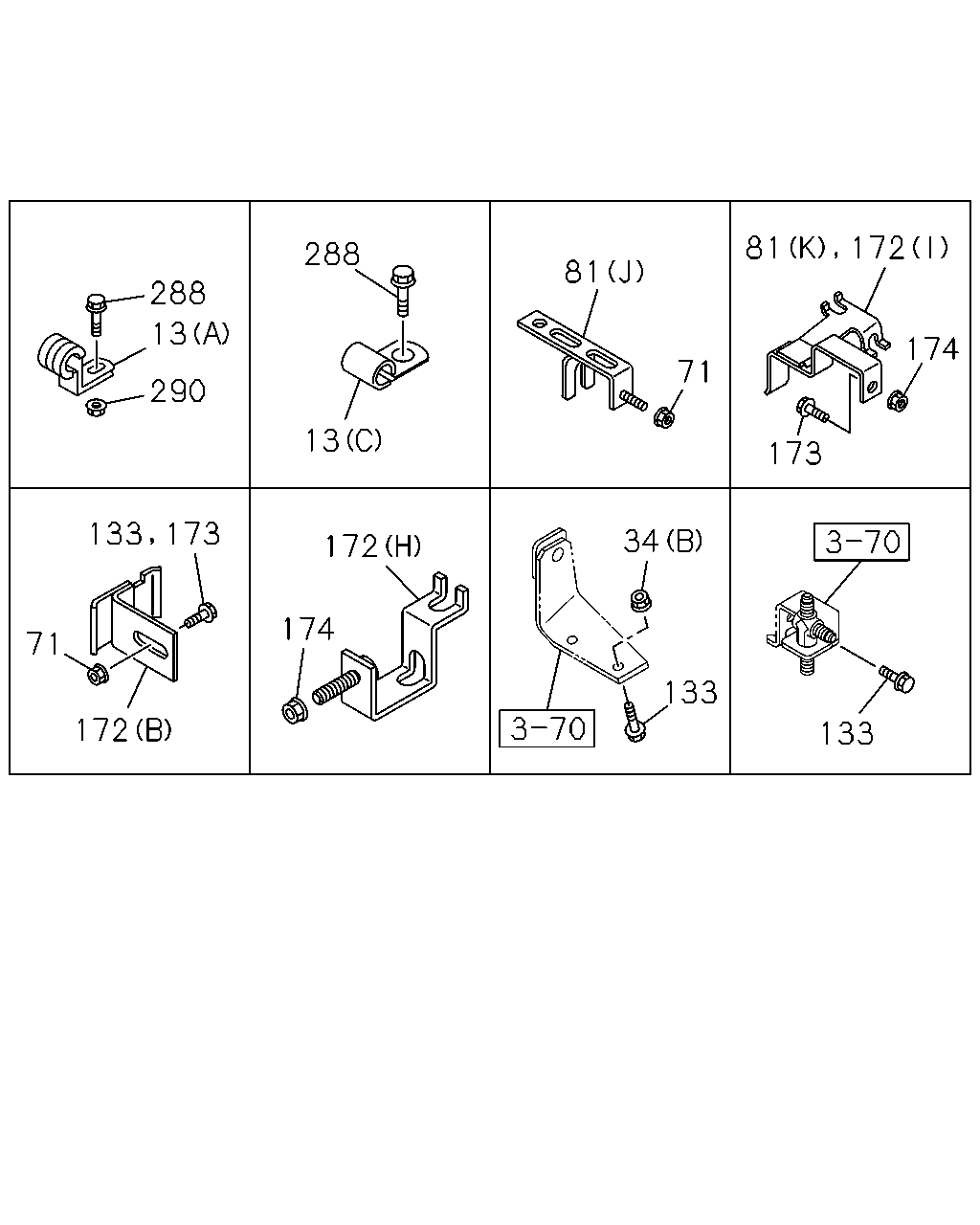

288 290 13 288 13 81 71 81 172 174 173 133 133 34 172 174 172 71 133 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1402-
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=6.35 & 15	1-09709-276-1	01	1	1402-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=7 L=16	0-95234-625-0	01	1	1402-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=6.35 & 6.35	1-09709-273-1	03	1	1402-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=6.35 & 15	1-09709-276-1	03	1	1402-
34	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M6 FLANGE THA	0-91180-106-0	02	1	1402-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	11	1	1402-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) L=170	1-47479-380-0	01	1	1402-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) L=65 B=25	8-98135-584-0	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=150 H=30	1-47477-629-2	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30	1-47477-645-2	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=60 H=30	1-47477-716-1	02	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98031-420-2	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	8-98047-730-0	02	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-47477-514-3	02	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (E) L=225	1-47477-646-3	01	1	1402-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) THA	8-98139-765-0	01	1	1402-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J)	8-98177-873-0	01	1	1402-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K)	8-98182-760-0	01	1	1402-
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J)	8-98177-873-0	03	1	1402-
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1402-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1402-
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
133	BOLT; BRKT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	04	1	1402-
133	BOLT; BRKT ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	03	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A)	1-47477-514-3	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=100 H=30	1-47477-645-2	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=225	1-47477-646-3	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=60 H=30	1-47477-716-1	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-47479-693-0	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E)	8-98031-420-2	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F)	8-98047-730-0	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) THA	8-98139-765-0	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H)	8-98169-222-0	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I)	8-98182-760-0	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J)	8-98184-177-0	01	1	1402-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	04	1	1402-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	07	1	1402-
174	NUT; CLIP BRKT 6HK1-TCN ENG<82L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	14	1	1402-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
290	NUT; CLIP,AIR PIPE M8 FLANGE THA	0-91180-108-0	01	1	1402-

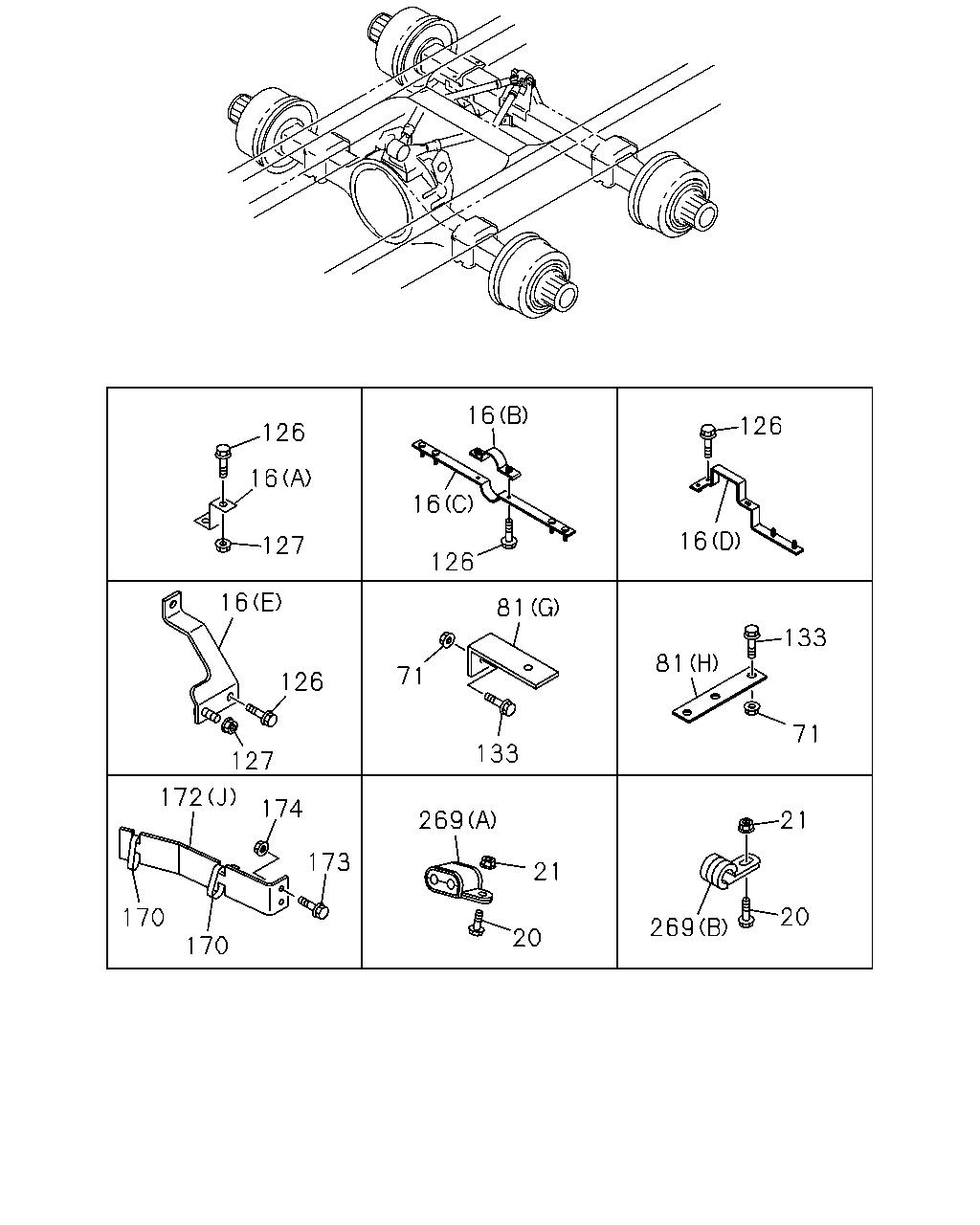

126 16 133 71 21 20 269 81 16 16 126 81 71 133 269 21 20 170 170 172 127 126 16 127 16 126 174 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47475-868-0	01	1	1402-
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-47479-546-0	02	1	1402-
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C)	1-47479-720-0	02	1	1402-
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D)	1-47479-901-0	02	1	1402-
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E)	8-98110-074-0	01	1	1402-
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X10 FLANGE THA	0-28050-810-0	02	1	1402-
21	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1402-
21	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	04	1	1402-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	11	1	1402-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) L=170	1-47479-380-0	01	1	1402-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) L=65 B=25	8-98135-584-0	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=150 H=30	1-47477-629-2	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30	1-47477-645-2	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=60 H=30	1-47477-716-1	02	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98031-420-2	01	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	8-98047-730-0	02	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-47477-514-3	02	1	1402-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (E) L=225	1-47477-646-3	01	1	1402-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) THA	8-98139-765-0	01	1	1402-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J)	8-98177-873-0	01	1	1402-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K)	8-98182-760-0	01	1	1402-
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J)	8-98177-873-0	03	1	1402-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X10 FLANGE THA	0-28050-810-0	04	1	1402-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	04	1	1402-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	01	1	1402-
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1402-
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	01	1	1402-
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1402-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1402-
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
133	BOLT; BRKT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	04	1	1402-
133	BOLT; BRKT ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	03	1	1402-
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350	1-09707-183-0	29	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A)	1-47477-514-3	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=100 H=30	1-47477-645-2	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=225	1-47477-646-3	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=60 H=30	1-47477-716-1	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-47479-693-0	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E)	8-98031-420-2	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F)	8-98047-730-0	02	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) THA	8-98139-765-0	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H)	8-98169-222-0	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I)	8-98182-760-0	01	1	1402-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J)	8-98184-177-0	01	1	1402-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	04	1	1402-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	07	1	1402-
174	NUT; CLIP BRKT 6HK1-TCN ENG<82L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	14	1	1402-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=35 L=33	1-09700-945-0	06	1	1402-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=350	1-09707-183-0	01	1	1402-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) ID=11X2 L=20	0-95325-035-0	02	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
