3-75 — BRAKE PIPING; AIR,FRONT (#133694) — 63 parça

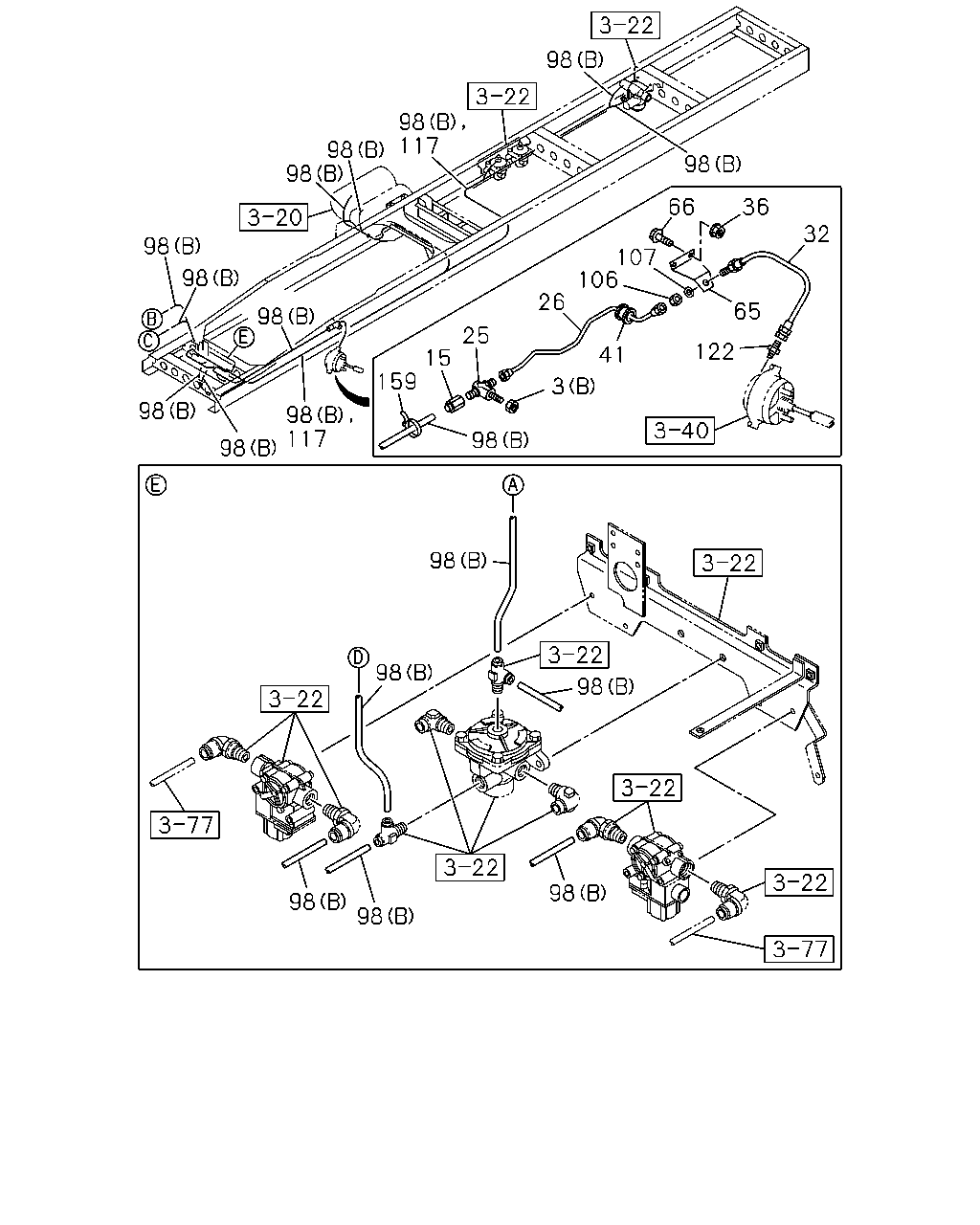

çizim 407499
98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 117 159 15 25 26 106 107 66 36 65 32 122 41 3 117
BalonParca AdiParca NoAdetTipApplied Date
3 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
3 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M12 		0-91111-512-0 02 1 1402-
15 CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1402-
25 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 		1-09654-148-1 02 1 1402-
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=500 THA 		8-98047-734-0 01 1 1402-
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=661 THA 		8-98085-122-0 01 1 1402-
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-09363-892-1 02 1 1402-
36 NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA 		0-91180-108-0 04 1 1402-
41 GROMMET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=28 OD=35 T=17 		9-09956-256-2 02 1 1402-
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-47476-210-0 01 1 1402-
65 BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-47476-211-0 01 1 1402-
66 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA 		0-28650-830-0 04 1 1402-
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA 		8-97625-675-0 01 1 1402-
98 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-98091-308-0 01 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 AR 1 1402-
106 NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 THA 		0-91111-516-0 02 1 1402-
107 WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=16.2 		0-91510-516-0 02 1 1402-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1402-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1402-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1402-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 1402-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 AR 1 1402-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1402-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 THA 		1-87411-034-0 AR 1 1402-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 THA 		1-87411-035-0 AR 1 1402-
122 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 1402-
159 CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350 		1-09707-183-0 01 1 1402-

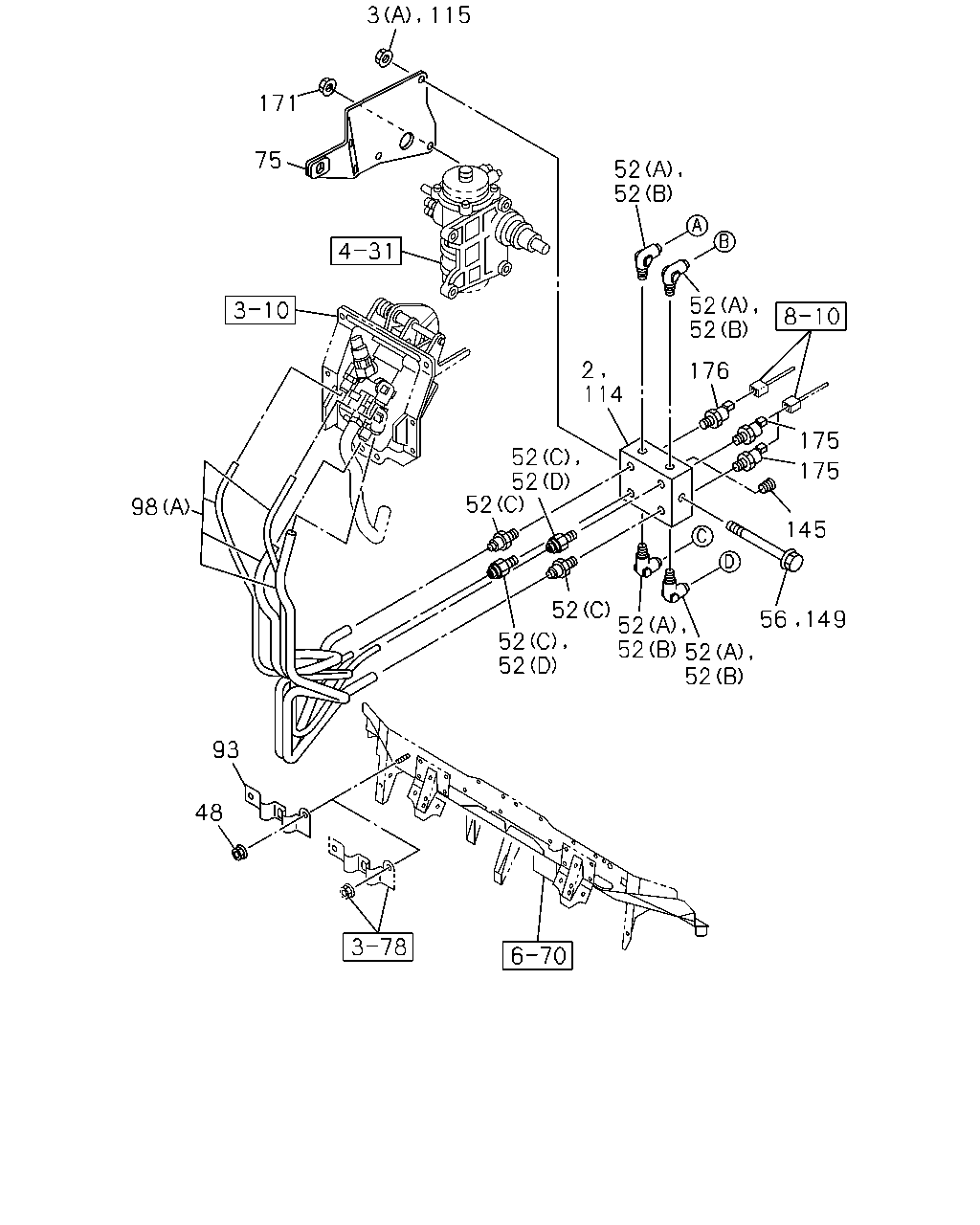

çizim 407830
52 52 52 52 52 52 52 149 56 52 114 2 52 52 176 115 171 75 98 93 48 52 52 175 175 145 52 3 52
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		8-98057-394-1 01 1 1402-
3 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
3 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M12 		0-91111-512-0 02 1 1402-
48 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M6 FLANGE THA 		0-91180-106-0 02 1 1402-
52 CONNECTOR; NYLON TUBE
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 1402-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) DIN12 & R1/4 ELBOW 		1-09660-958-0 04 1 1402-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1402-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 1402-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1402-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1402-
52 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1402-
56 BOLT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X100 FLANGE THA 		0-28050-800-0 01 1 1402-
75 BRACKET; UNION 8-98099-485-1 01 1 1402-
93 BRACKET; UNION,TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		8-98044-013-0 01 1 1402-
98 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA 		8-97625-675-0 01 1 1402-
98 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-98091-308-0 01 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1402-
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=12 THA 		1-87411-014-0 AR 1 1402-
114 UNION; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		8-98057-394-1 01 1 1402-
115 NUT; TUBE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA 		0-91180-108-0 01 1 1402-
145 PLUG
PT1/4 		9-99204-513-0 01 1 1402-
149 BOLT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X100 FLANGE THA 		0-28050-800-0 01 1 1402-
171 NUT; BRACKET
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1402-
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1402-
