3-58 — FIXING PARTS; OIL PIPING
(#133692) — 23 parça
◀

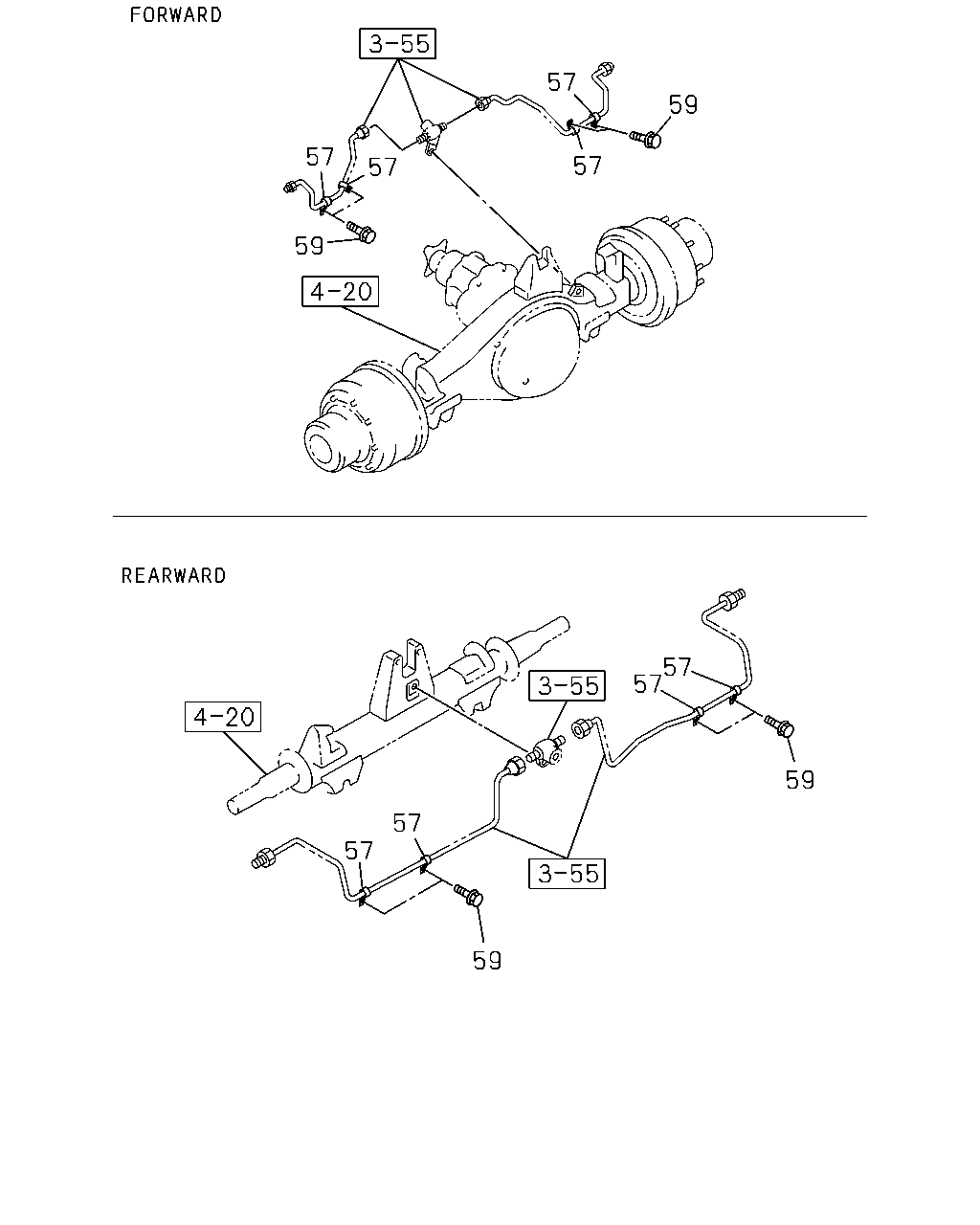

[358A] BRK SYSTEM AIR OVER HYD DUAL CIRC NO.2 (4 parça)

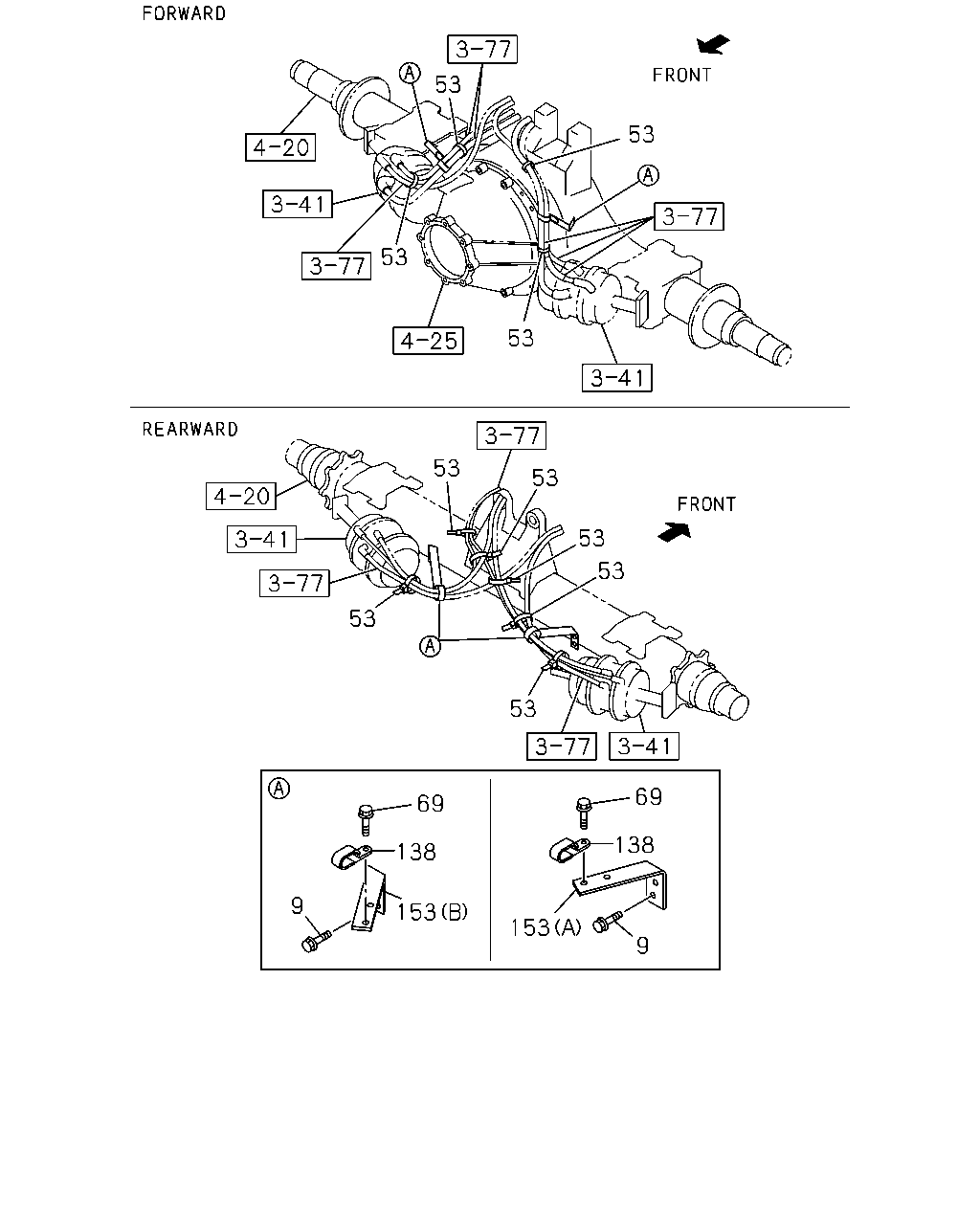

[358A] BRK SYSTEM FULL AIR DUAL CIRC (6 parça)

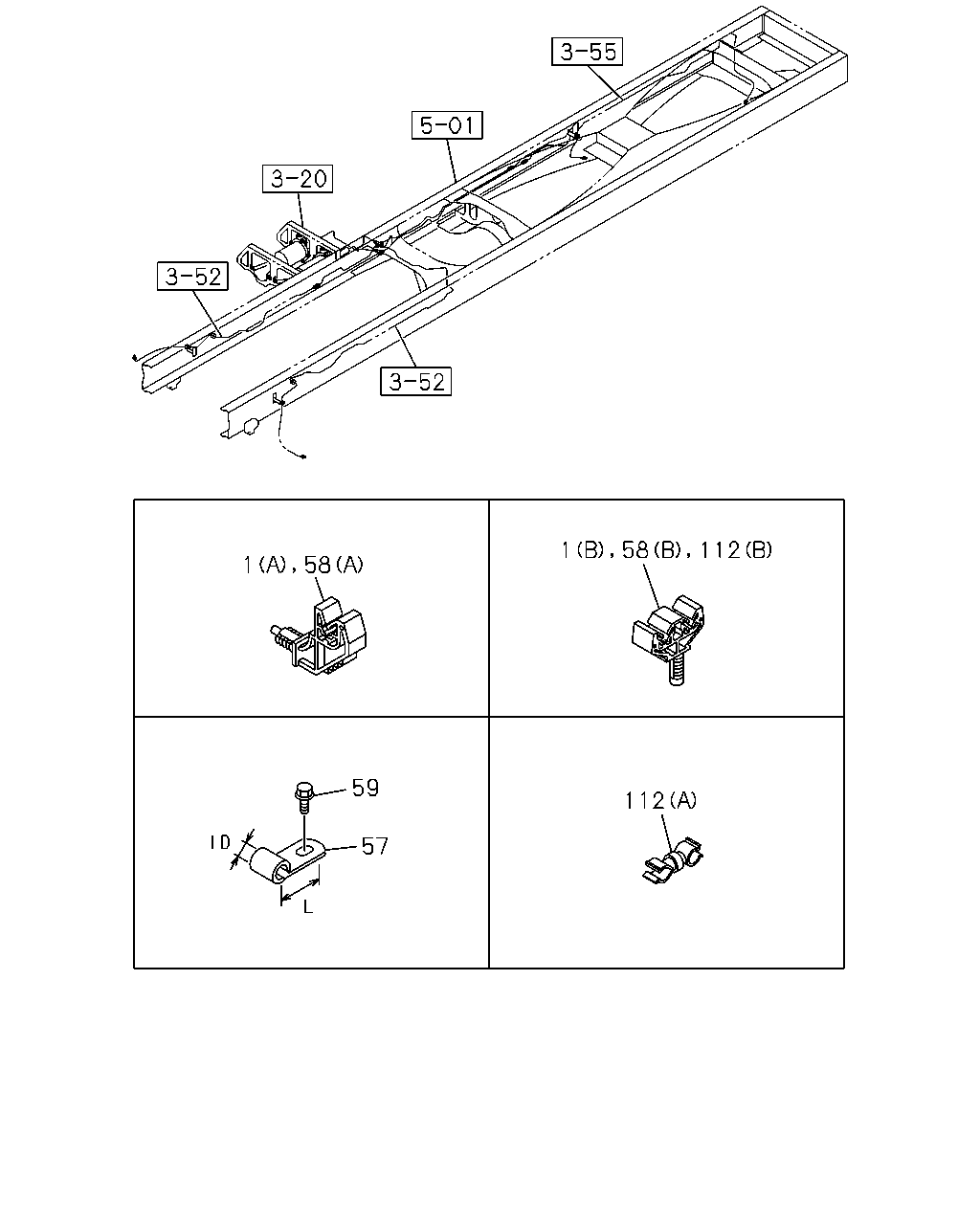

[358A] BRK SYSTEM AIR OVER HYD DUAL CIRC NO.1 (13 parça)
▶
57
57
57
57
59
59
57
57
59
57
57
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=7 L=20
0-95234-635-0
04
1
1402-
57
CLIP; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=7 L=20
0-95234-635-0
04
1
1402-
59
BOLT; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X10 FLANGE THA
0-28050-810-0
04
1
1402-
59
BOLT; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X10 FLANGE THA
0-28050-810-0
04
1
1402-
9
153
138
69
69
138
153
9
53
53
53
53
53
53
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X16 FLANGE THA
0-28050-816-0
08
1
1402-
53
CLIP; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350
1-09707-183-0
12
1
1402-
69
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA
0-28650-820-0
04
1
1402-
138
CLIP; TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=35 L=33
1-09700-945-0
04
1
1402-
153
BRACKET; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) FORWARD RH,REARWARD LH
1-42129-481-2
02
1
1402-
153
BRACKET; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) FORWARD LH,REARWARD RH
1-42129-482-2
02
1
1402-
1
58
1
58
112
112
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=6.35
1-09701-247-1
08
1
1402-
1
CLIP; OIL PIPE TO BODY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)
8-98012-254-1
04
1
1402-
57
CLIP; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=7 L=20
0-95234-635-0
04
1
1402-
57
CLIP; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=7 L=20
0-95234-635-0
04
1
1402-
58
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=6.35
1-09701-247-1
04
1
1402-
58
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)
8-98012-254-1
01
1
1402-
59
BOLT; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X10 FLANGE THA
0-28050-810-0
04
1
1402-
59
BOLT; BRK PIPE,RR AXLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X10 FLANGE THA
0-28050-810-0
04
1
1402-
112
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=6 & 8.3
8-94167-742-0
01
1
1402-
112
CLIP; OIL PIPE
WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)
8-98012-254-1
04
1
1402-
112
CLIP; OIL PIPE
WHEEL BASE 5800MM<58W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)
8-98012-254-1
05
1
1402-
112
CLIP; OIL PIPE
WHEEL BASE 6300MM<63W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)
8-98012-254-1
06
1
1402-
112
CLIP; OIL PIPE
WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)
8-98012-254-1
08
1
1402-
