Sayfa 3-26 - Isuzu EPC

151 138 138 138 32 112 256 256

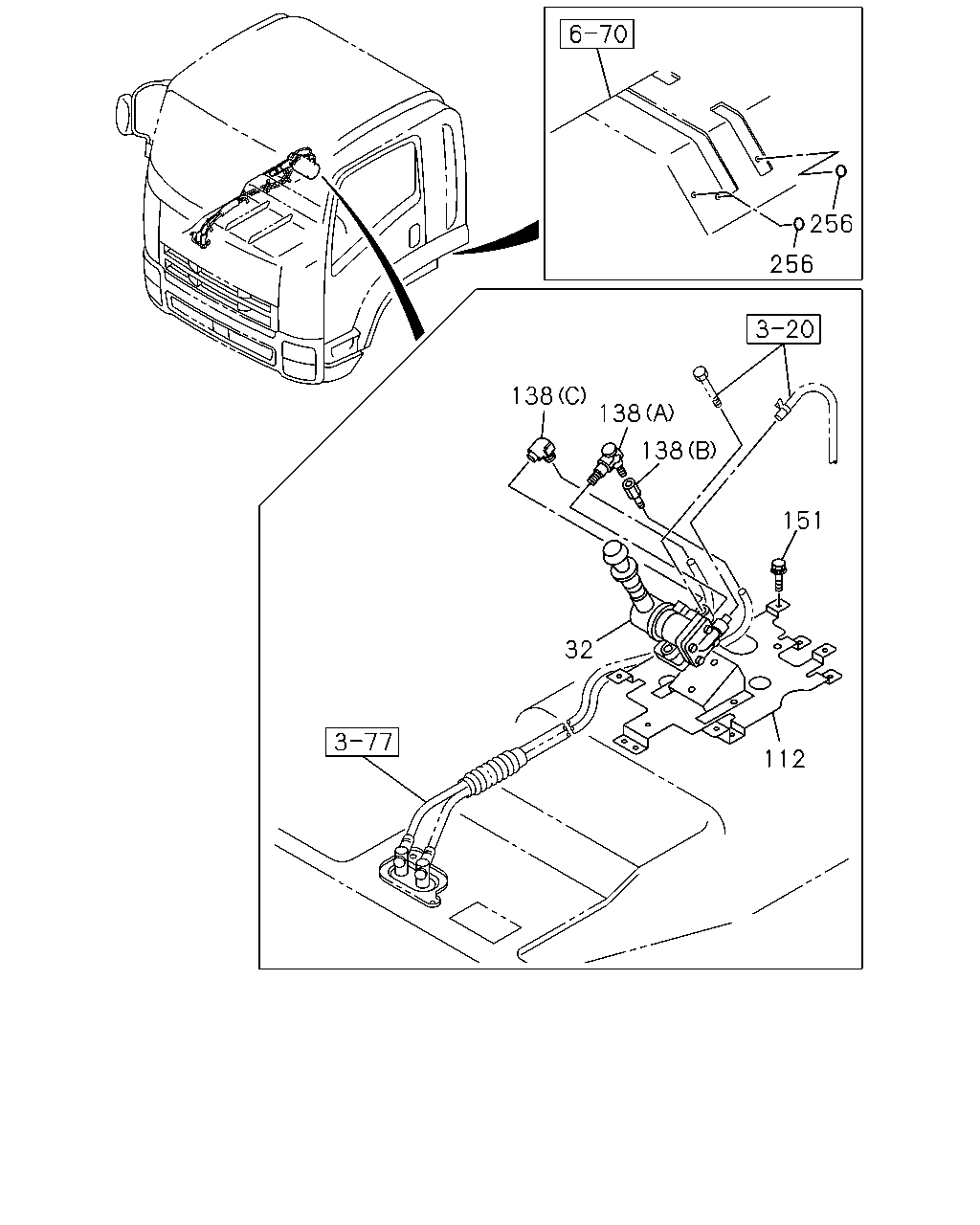

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48460-306-0	01	1	1402-
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-73908-054-7	01	1	1402-
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A)	1-09650-240-1	01	1	1402-
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1402-
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1402-
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M6X16 THA	0-52000-616-0	04	1	1402-
256	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=25 BLACK THA	1-76798-019-0	08	1	1402-

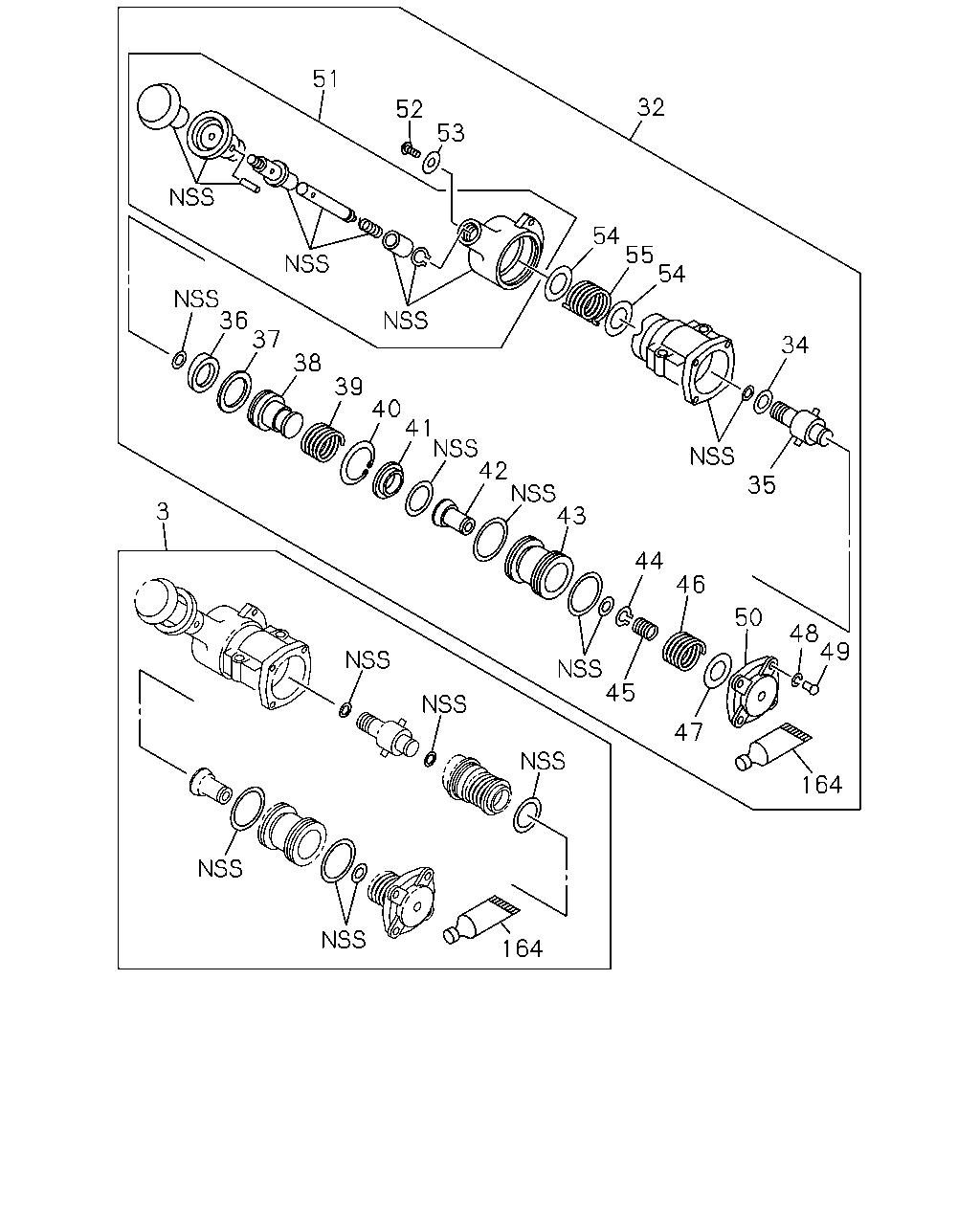

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-096-0	01	1	1402-
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48460-306-0	01	1	1402-
34	SHIM; CAM HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-055-0	AR	1	1402-
35	HOLDER; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-054-0	01	1	1402-
36	RING; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-056-0	01	1	1402-
37	GUIDE; CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-058-0	01	1	1402-
38	SEAT; EXH VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-057-0	01	1	1402-
39	SPRING; RETURN,CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-063-0	01	1	1402-
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-067-0	01	1	1402-
41	SEAT; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-066-0	01	1	1402-
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-065-0	01	1	1402-
43	PISTON; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-064-0	01	1	1402-
44	RING; SNAP,FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-068-0	02	1	1402-
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-070-0	01	1	1402-
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-089-0	01	1	1402-
47	SHIM; MAIN SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-072-0	AR	1	1402-
48	WASHER; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-091-0	04	1	1402-
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-092-0	04	1	1402-
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-090-0	01	1	1402-
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-122-0	01	1	1402-
52	SCREW; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-062-0	01	1	1402-
53	WASHER; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-061-0	01	1	1402-
54	SEAT; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-082-0	02	1	1402-
55	SPRING; RETURN,HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-059-0	01	1	1402-
164	GREASE; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-084-0	01	1	1402-
