Isuzu WW
▶
TRUCKS
▶
FVM
▶
11577 - FVM(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-25 - BRAKE LOCK CONTROL
▶

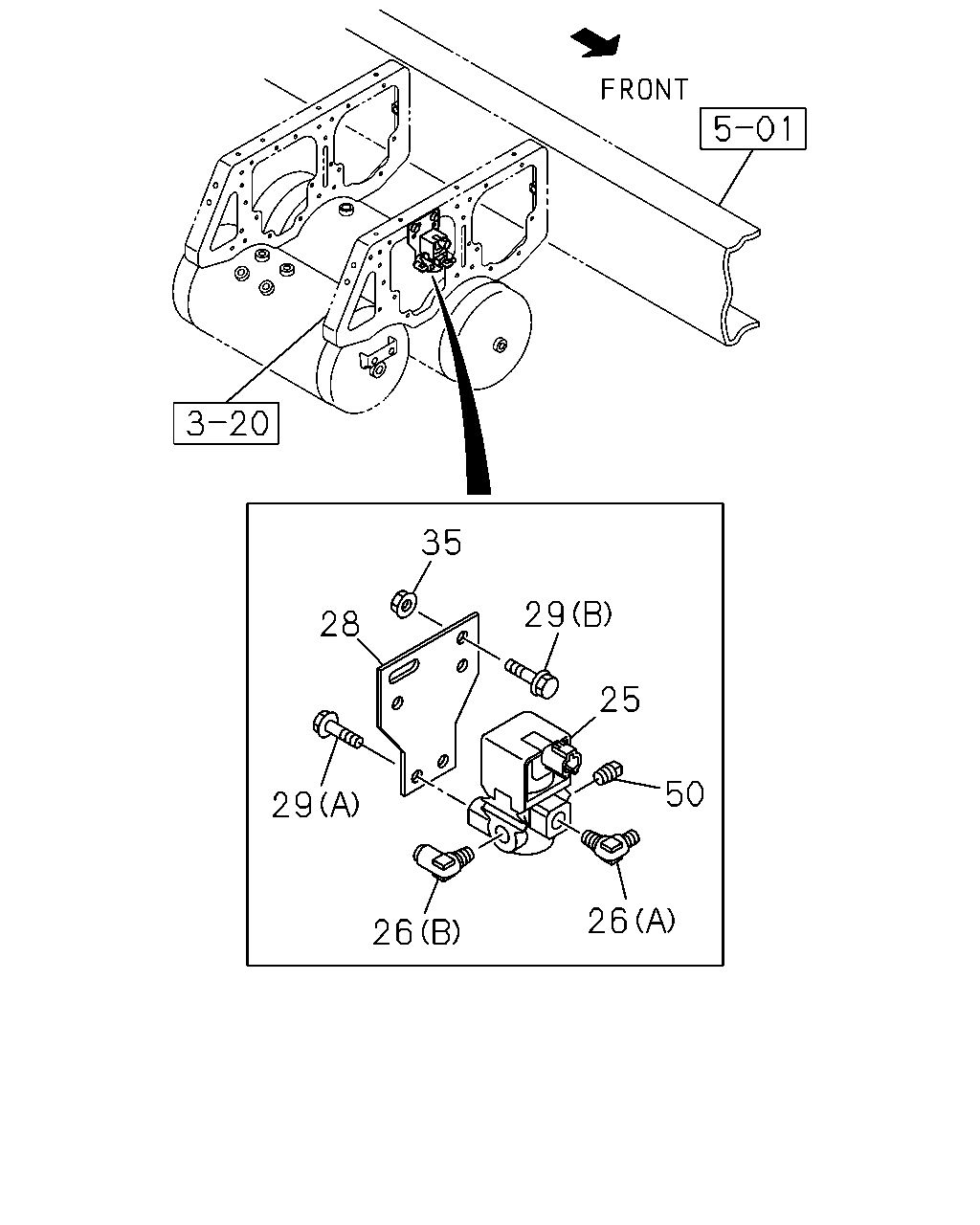

3-25 — BRAKE LOCK CONTROL
(#133683) — 9 parça
50
25
29
35
28
29
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
VALVE; CONT,BRK LOCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA
8-97948-152-0
01
1
1402-
26
UNION; CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1402-
26
UNION; CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1402-
28
BRACKET; CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
8-98179-100-0
01
1
1402-1405
28
BRACKET; CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
8-98273-570-0
01
1
1406-
29
BOLT; BRKT,CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M8X20 FLANGE THA
0-28650-820-0
02
1
1402-
29
BOLT; BRKT,CONT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M8X25 FLANGE THA
0-28650-825-0
02
1
1402-
35
NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA
0-91180-108-0
02
1
1402-
50
PLUG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> PT1/4
9-99204-513-0
01
1
1402-
