Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#133681) — 208 parça

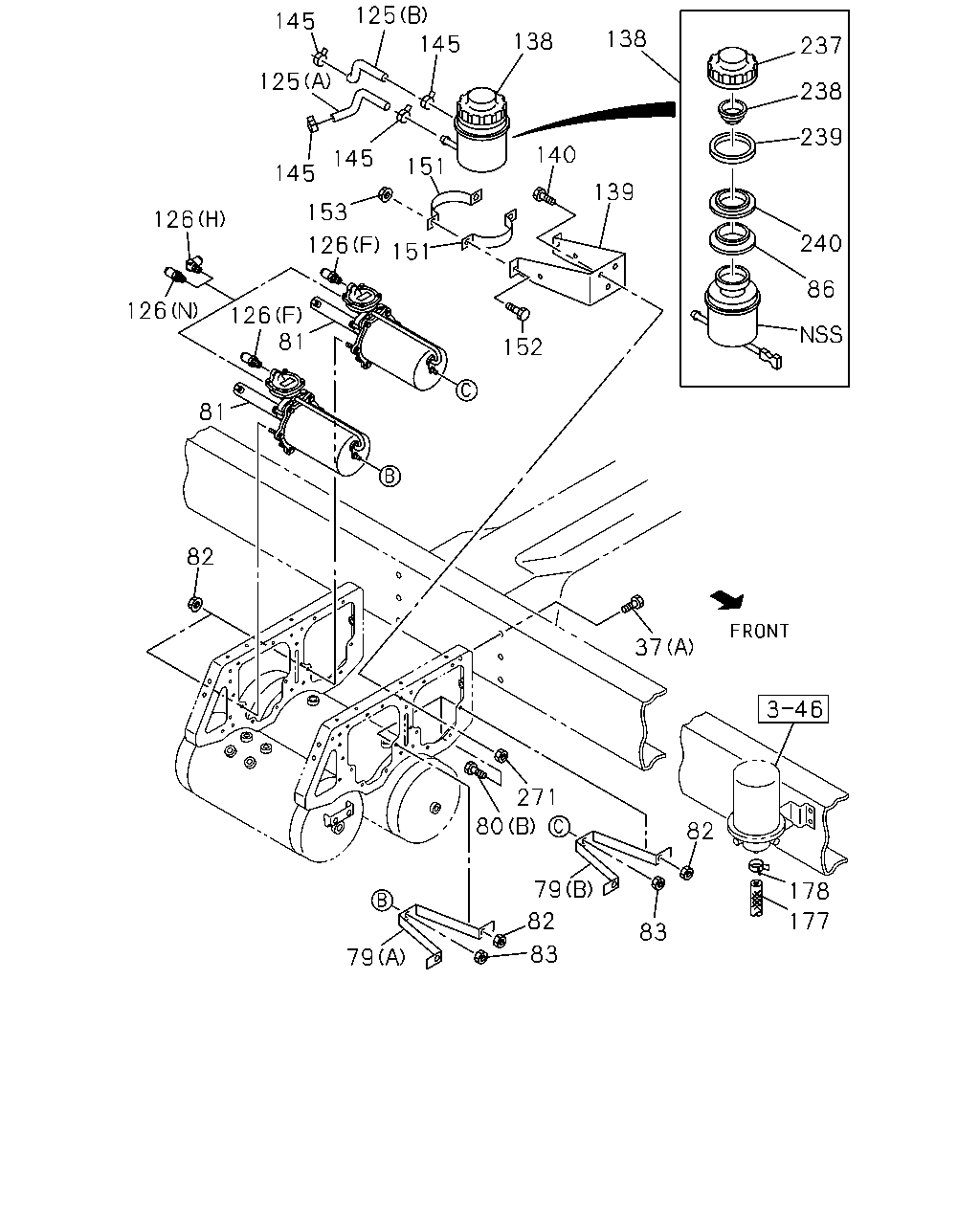

152 139 140 138 138 145 125 145 125 145 145 126 153 126 126 126 151 151 81 82 81 37 82 178 177 83 79 271 80 82 83 79 237 238 239 240 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK (B) M10X45 FLANGE THA	0-28051-045-0	04	1	1402-
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12X40 FLANGE	0-28651-240-0	06	1	1402-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M12X40 FLANGE	0-28651-240-0	08	1	1402-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A)	1-53318-348-0	01	1	1402-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98120-254-0	01	1	1402-
80	BOLT; BRKT (A) M10X25 FLANGE THA	0-28651-025-0	04	1	1402-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA	0-28651-030-0	04	1	1402-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> SECONDARY	1-47800-794-0	01	1	1402-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> PRIMARY	1-47800-795-0	01	1	1402-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA	0-91180-210-0	04	1	1402-
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA	0-91180-210-0	10	1	1402-
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47529-019-0	01	1	1402-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A)	1-47469-118-0	01	1	1402-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-47469-119-0	01	1	1402-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I)	1-09656-698-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (N) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G)	1-09650-283-1	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY	1-09660-693-0	04	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98166-127-0	01	1	1402-
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47530-185-1	01	1	1402-
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	8-98174-721-0	01	1	1402-
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X25 FLANGE THA	0-28651-025-0	03	1	1402-
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14	1-09704-102-0	04	1	1402-
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47537-056-2	02	1	1402-
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8	0-91110-508-0	02	1	1402-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1402-
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1402-
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47525-030-0	01	1	1402-
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47529-022-0	01	1	1402-
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47529-017-0	01	1	1402-
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47529-018-0	01	1	1402-
271	NUT; BRKT,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA	0-91180-210-0	03	1	1402-

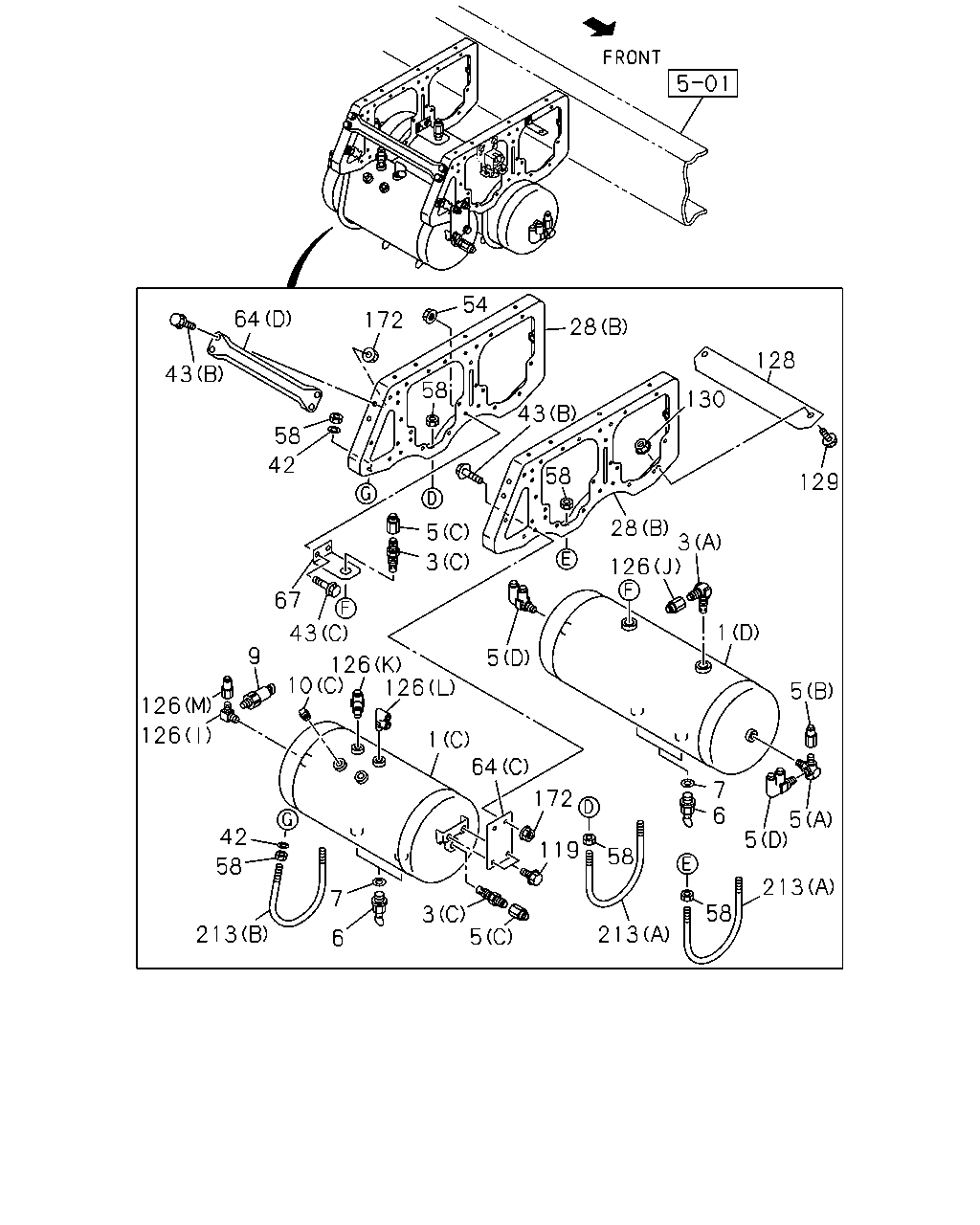

129 128 130 28 43 28 126 1 5 5 3 5 213 6 58 7 172 119 58 213 5 3 64 1 126 126 43 67 10 126 126 42 58 213 7 6 42 58 172 54 64 5 3 5 58 9 43 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	8-97948-040-0	01	1	1402-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) THA	8-97948-041-0	01	1	1402-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98202-945-0	01	1	1402-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98202-946-0	01	1	1402-
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1402-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	1-48410-182-3	02	1	1402-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-48320-031-1	01	1	1402-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1402-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1402-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1402-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M16 & R3/8	8-98204-239-0	01	1	1402-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-48312-015-0	05	1	1402-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48312-015-0	01	1	1402-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48312-015-0	04	1	1402-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14	1-09630-145-0	05	1	1402-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14	1-09630-145-0	01	1	1402-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14	1-09630-145-0	04	1	1402-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> STAMP 5.5	8-97609-249-0	01	1	1402-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> STAMP 5.5	8-97609-249-0	04	1	1402-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) PT1/4	9-99204-513-0	01	1	1402-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8	9-09204-517-0	01	1	1402-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4	9-09204-526-0	03	1	1402-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98174-720-0	02	1	1402-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-97948-888-0	02	1	1402-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=8.4 OD=18 THA	0-91610-608-0	04	1	1402-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5	0-91614-510-0	02	1	1402-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1402-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA	0-28651-030-0	06	1	1402-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X25 FLANGE THA	0-28650-825-0	06	1	1402-
54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA	0-91180-210-0	02	1	1402-
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8	0-91110-508-0	12	1	1402-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D)	1-53318-293-1	01	1	1402-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	8-97948-205-0	01	1	1402-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48317-607-0	01	1	1402-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-48317-691-0	01	1	1402-
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-48317-321-2	01	1	1402-
119	BOLT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X25 FLANGE THA	0-28651-025-0	02	1	1402-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I)	1-09656-698-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (N) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G)	1-09650-283-1	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY	1-09660-693-0	04	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98166-127-0	01	1	1402-
128	PROTECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-53319-018-0	01	1	1402-
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
130	NUT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	02	1	1402-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA	0-91180-210-0	06	1	1402-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A)	1-48317-301-0	02	1	1402-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	1-48317-302-0	01	1	1402-

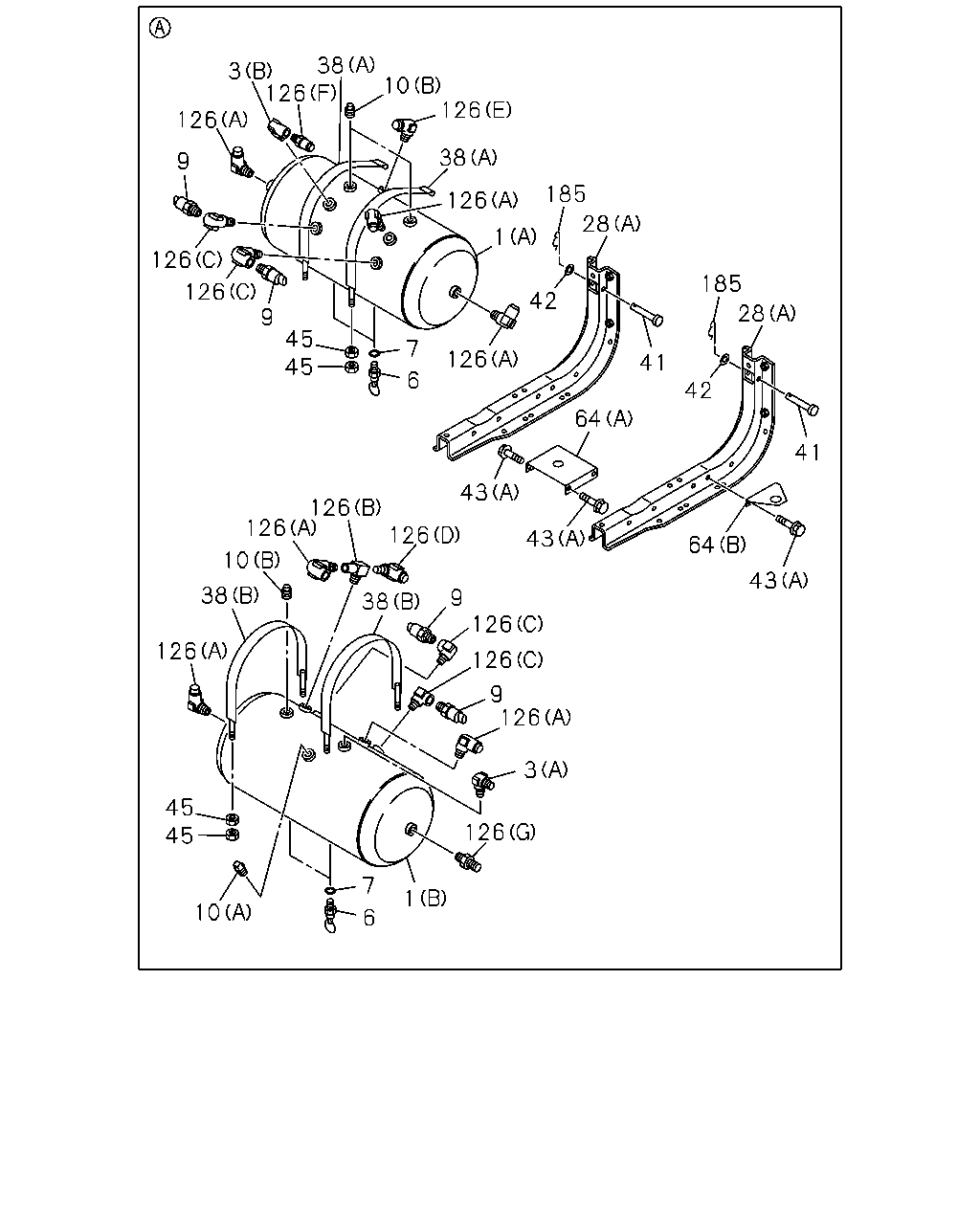

43 41 28 185 42 41 64 43 43 126 42 28 185 126 38 126 1 6 7 10 38 126 3 126 126 9 126 45 126 45 126 126 9 126 126 126 9 3 126 1 6 10 45 7 126 38 10 64 38 45 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	8-97948-040-0	01	1	1402-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) THA	8-97948-041-0	01	1	1402-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98202-945-0	01	1	1402-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98202-946-0	01	1	1402-
3	VALVE; CHECK,AIR TANK (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1402-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C)	1-48410-182-3	02	1	1402-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-48320-031-1	01	1	1402-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-48312-015-0	05	1	1402-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48312-015-0	01	1	1402-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48312-015-0	04	1	1402-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14	1-09630-145-0	05	1	1402-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14	1-09630-145-0	01	1	1402-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14	1-09630-145-0	04	1	1402-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> STAMP 5.5	8-97609-249-0	01	1	1402-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> STAMP 5.5	8-97609-249-0	04	1	1402-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) PT1/4	9-99204-513-0	01	1	1402-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8	9-09204-517-0	01	1	1402-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4	9-09204-526-0	03	1	1402-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B)	8-98174-720-0	02	1	1402-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-97948-888-0	02	1	1402-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48317-108-2	02	1	1402-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-48317-109-2	02	1	1402-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> OD=10 L=60	0-82254-060-0	02	1	1402-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=8.4 OD=18 THA	0-91610-608-0	04	1	1402-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5	0-91614-510-0	02	1	1402-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1402-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA	0-28651-030-0	06	1	1402-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X25 FLANGE THA	0-28650-825-0	06	1	1402-
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8	0-91110-508-0	12	1	1402-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D)	1-53318-293-1	01	1	1402-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	8-97948-205-0	01	1	1402-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48317-607-0	01	1	1402-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-48317-691-0	01	1	1402-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I)	1-09656-698-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (N) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G)	1-09650-283-1	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY	1-09660-693-0	04	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98166-127-0	01	1	1402-
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=32.6	8-98062-280-0	02	1	1402-

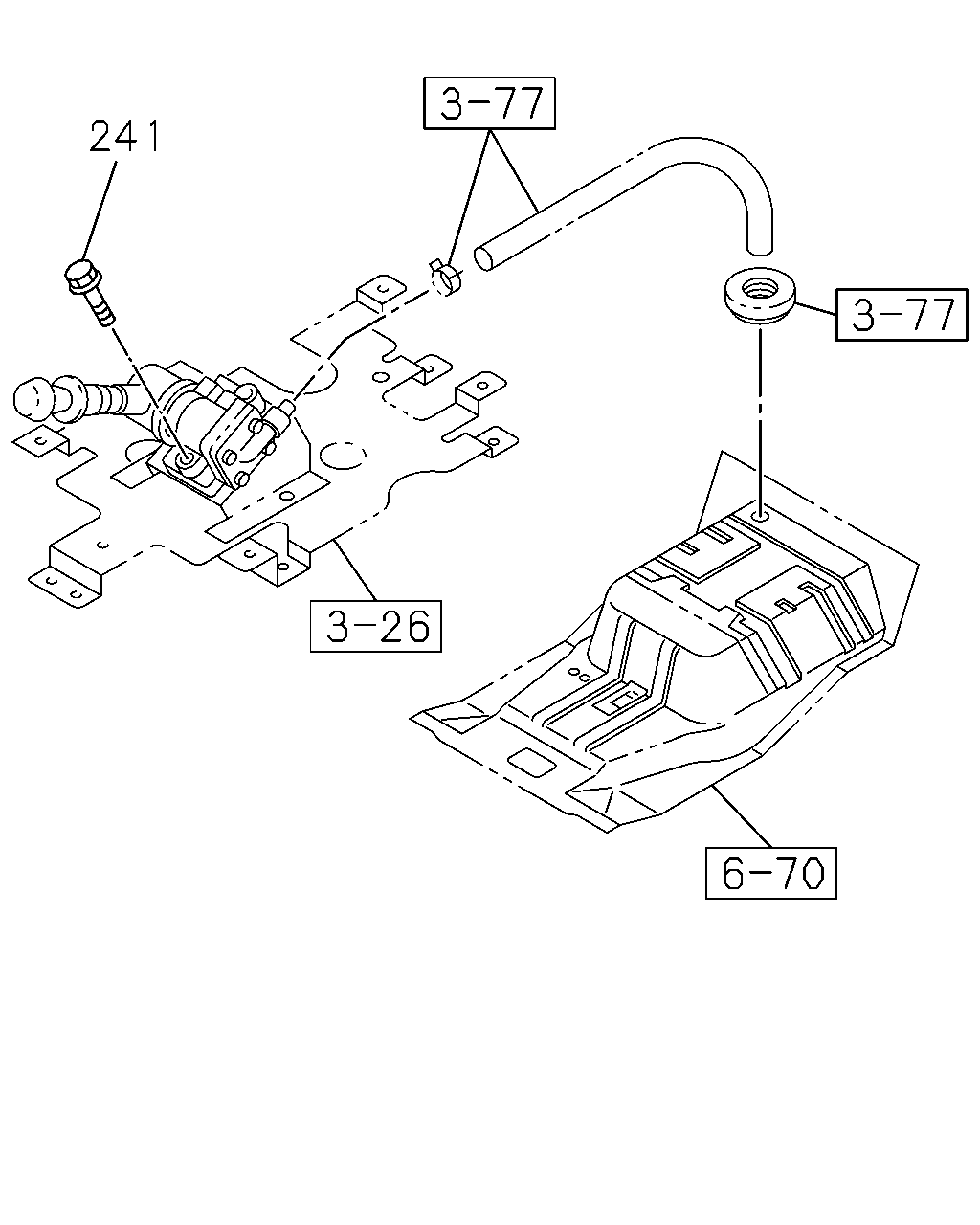

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X70 FLANGE THA	0-28050-870-0	02	1	1402-

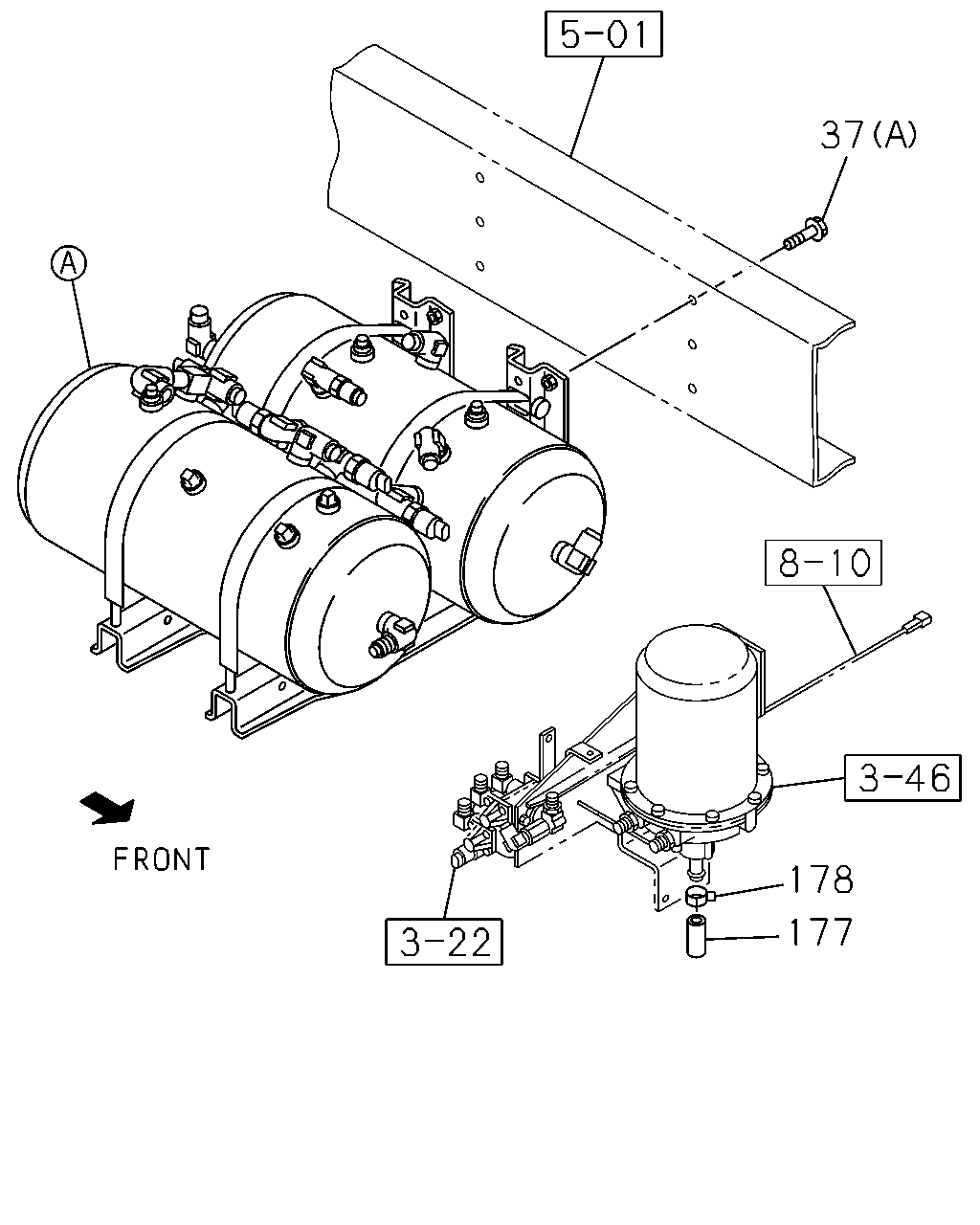

178 177 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK (B) M10X45 FLANGE THA	0-28051-045-0	04	1	1402-
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12X40 FLANGE	0-28651-240-0	06	1	1402-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M12X40 FLANGE	0-28651-240-0	08	1	1402-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1402-
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1402-

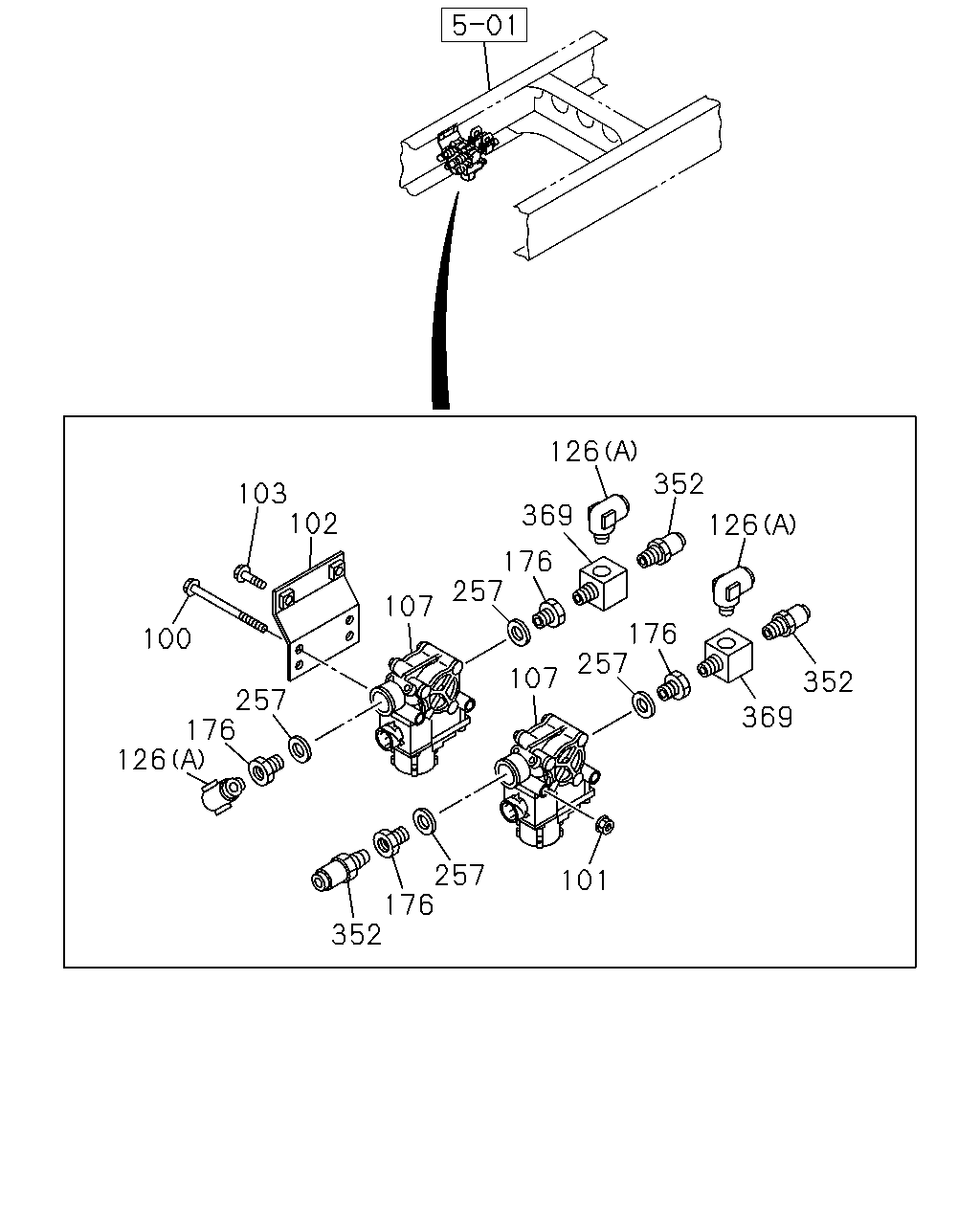

126 352 126 352 369 176 257 107 257 369 107 101 257 176 352 257 176 126 100 103 176 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X140 FLANGE	0-28055-814-0	02	1	1402-
101	NUT; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	02	1	1402-
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98034-539-2	01	1	1402-1410
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98272-821-0	01	1	1411-
103	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
107	MODULATOR; RR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48240-115-0	02	1	1402-1410
107	MODULATOR; RR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98215-454-0	02	1	1411-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I)	1-09656-698-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (N) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G)	1-09650-283-1	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY	1-09660-693-0	04	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1402-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98166-127-0	01	1	1402-
176	ADAPTER ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1402-
257	GASKET; PLUG ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=22.5	9-09571-422-0	04	1	1402-
352	CONNECTOR; STRAIGHT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1402-
369	CONNECTOR; 3WAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98203-578-0	02	1	1402-1410
369	CONNECTOR; 3WAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PT3/8 3WAY	1-09661-300-0	02	1	1411-

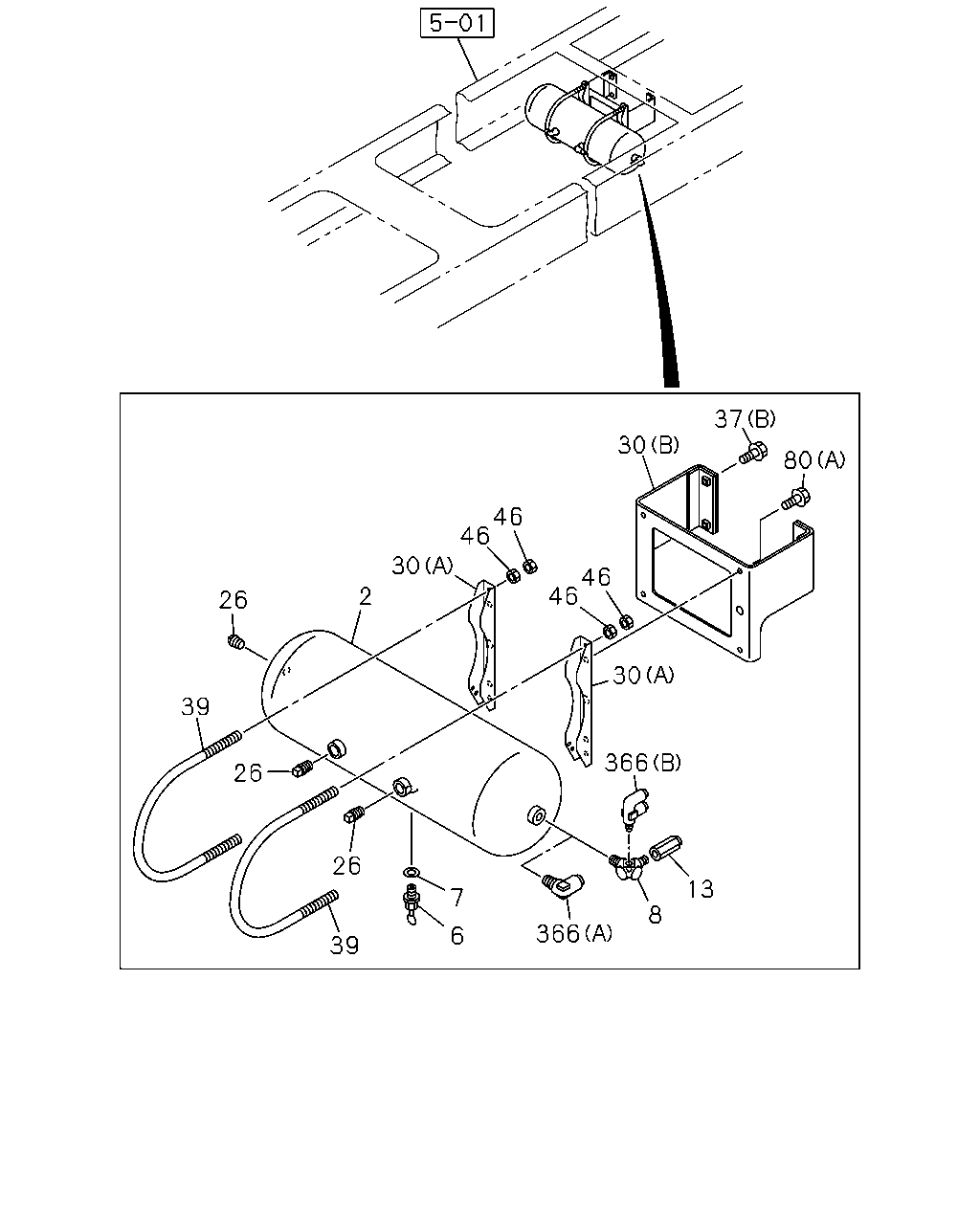

80 37 30 46 46 30 2 26 39 26 26 7 6 366 13 8 366 30 46 46 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR THA	8-98202-947-0	01	1	1402-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-48312-015-0	05	1	1402-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48312-015-0	01	1	1402-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48312-015-0	04	1	1402-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14	1-09630-145-0	05	1	1402-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14	1-09630-145-0	01	1	1402-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14	1-09630-145-0	04	1	1402-
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 & R3/8	8-98204-239-0	01	1	1402-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1402-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	03	1	1402-
30	BRACKET; AIR TANK,SUB (A) THA	8-97948-143-0	02	1	1402-
30	BRACKET; AIR TANK,SUB (B) THA	8-98245-717-0	01	1	1402-
37	BOLT; AIR TANK (B) M10X45 FLANGE THA	0-28051-045-0	04	1	1402-
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12X40 FLANGE	0-28651-240-0	06	1	1402-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M12X40 FLANGE	0-28651-240-0	08	1	1402-
39	U-BOLT; AIR TANK	1-48317-289-0	02	1	1402-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1402-
80	BOLT; BRKT (A) M10X25 FLANGE THA	0-28651-025-0	04	1	1402-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA	0-28651-030-0	04	1	1402-
366	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1402-
366	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
