3-08A — PARKING BRAKE (#133678) — 26 parça

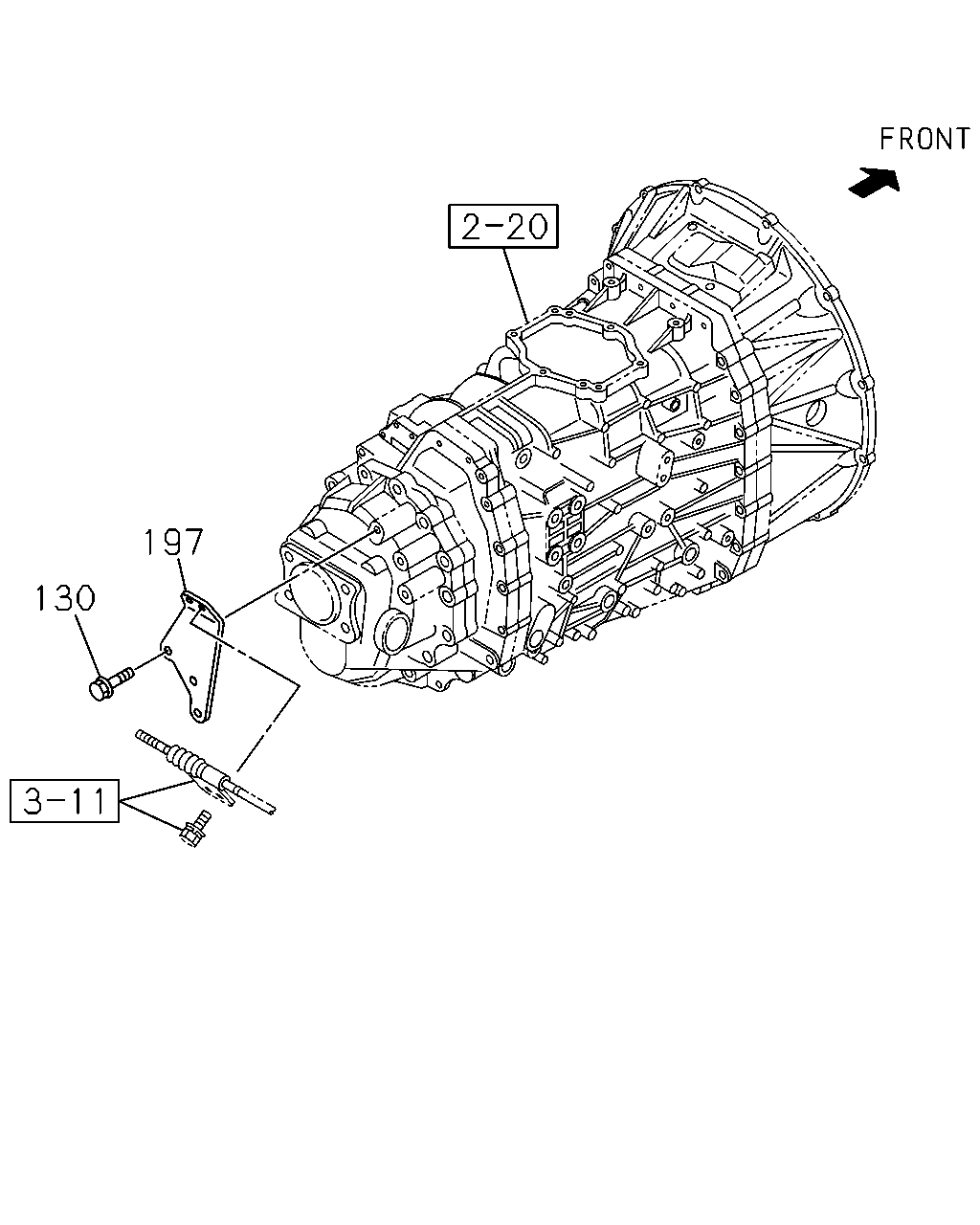

çizim 406693
130 197
BalonParca AdiParca NoAdetTipApplied Date
130 BOLT; BRKT
PARKING BRAKE DRUM 10"<B1T> M10X25 FLANGE THA 		0-28751-025-0 03 1 1402-
197 BRACKET; CENTER BRAKE CABLE
PARKING BRAKE DRUM 10"<B1T> 		8-98009-002-1 01 1 1402-

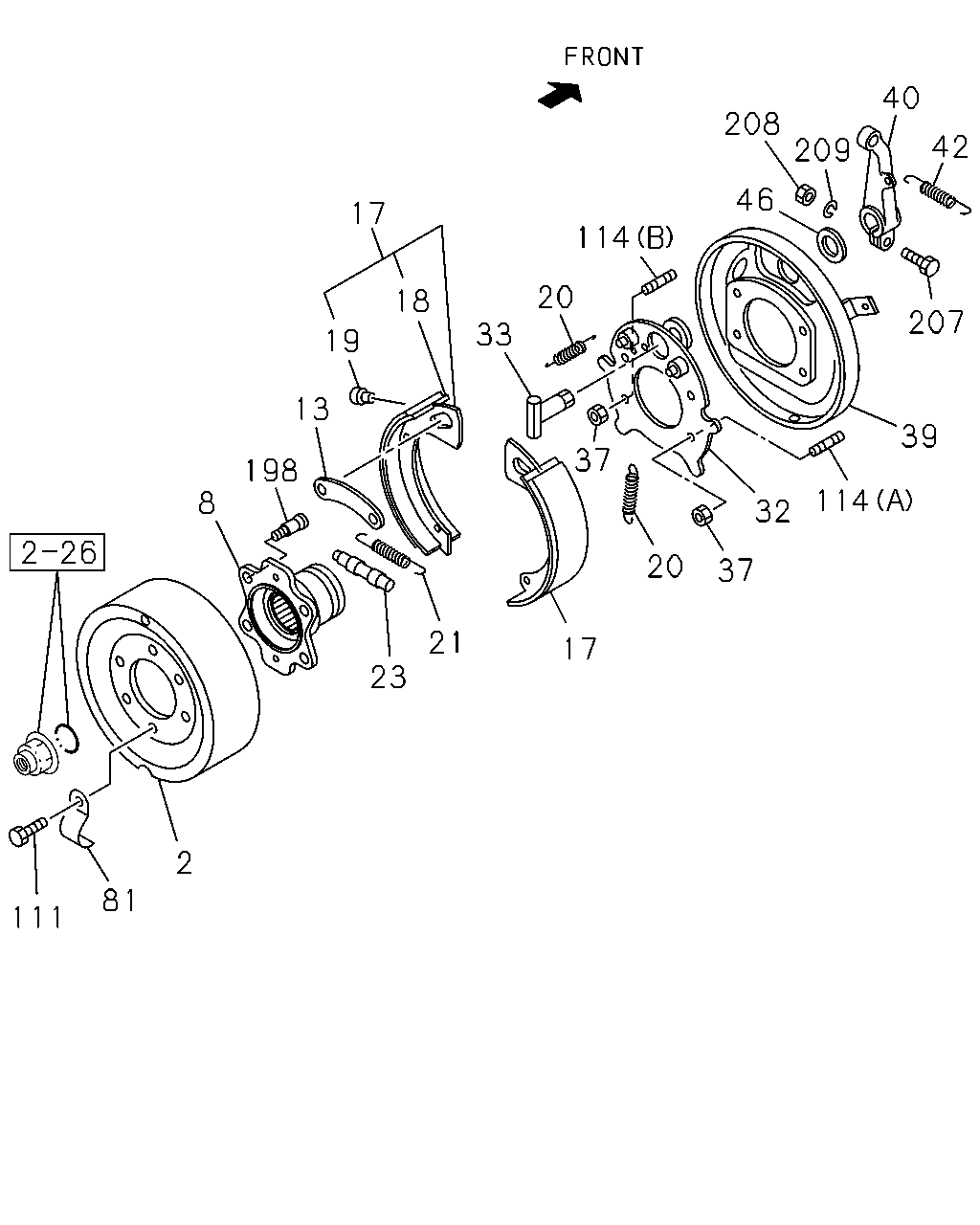

çizim 407480
207 42 40 209 208 46 114 20 33 18 19 17 13 198 8 23 17 20 37 114 39 32 37 21 2 81 111
BalonParca AdiParca NoAdetTipApplied Date
2 DRUM; PARKING BRK
PARKING BRAKE DRUM 10"<B1T> THA 		1-46211-019-0 01 1 1402-
8 FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		8-98153-193-0 01 1 1402-
13 BRACE; PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		9-46239-002-0 01 1 1402-
17 SHOE; PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		1-46220-022-1 02 1 1402-
18 LINING; BRK,PARKING
PARKING BRAKE DRUM 10"<B1T> 		1-46225-023-0 02 1 1402-
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		1-09732-058-0 32 1 1402-
20 SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		9-09942-434-0 02 1 1402-
21 SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"<B1T> 		9-09942-516-0 01 1 1402-
23 SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"<B1T> 		1-46240-003-0 01 1 1402-
32 PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		1-46213-039-0 01 1 1402-
33 SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		1-46251-010-0 01 1 1402-
37 NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T> M14 FLANGE 		8-97365-444-0 04 1 1402-
39 COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		1-46213-038-0 01 1 1402-
40 LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		1-46252-046-0 01 1 1402-
42 SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"<B1T> 		1-09583-104-0 01 1 1402-
46 WASHER; LEVER
PARKING BRAKE DRUM 10"<B1T> 		9-09855-362-0 01 1 1402-
81 COVER; CHECK HOLE,PARKING BRK
PARKING BRAKE DRUM 10"<B1T> 		1-46219-030-0 02 1 1402-
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"<B1T> M8X20 W/LK WASHER 		0-50740-820-0 02 1 1402-
114 STUD; SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T> (B) M14X22 WO/DRY-ROCK 		8-98014-137-0 03 1 1402-
114 STUD; SUPPORT PLATE
PARKING BRAKE DRUM 10"<B1T> (A) M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 1402-
198 BOLT; KNURL
PARKING BRAKE DRUM 10"<B1T> M16X55 		8-98023-172-0 04 1 1402-
207 BOLT; LEVER
PARKING BRAKE DRUM 10"<B1T> 		8-98061-595-0 01 1 1402-
208 NUT; LEVER
PARKING BRAKE DRUM 10"<B1T> M10 		0-91111-510-0 01 1 1402-
209 WASHER; SP,LEVER
PARKING BRAKE DRUM 10"<B1T> ID=10.2 		0-91510-510-0 01 1 1402-
