Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#133677) — 260 parça

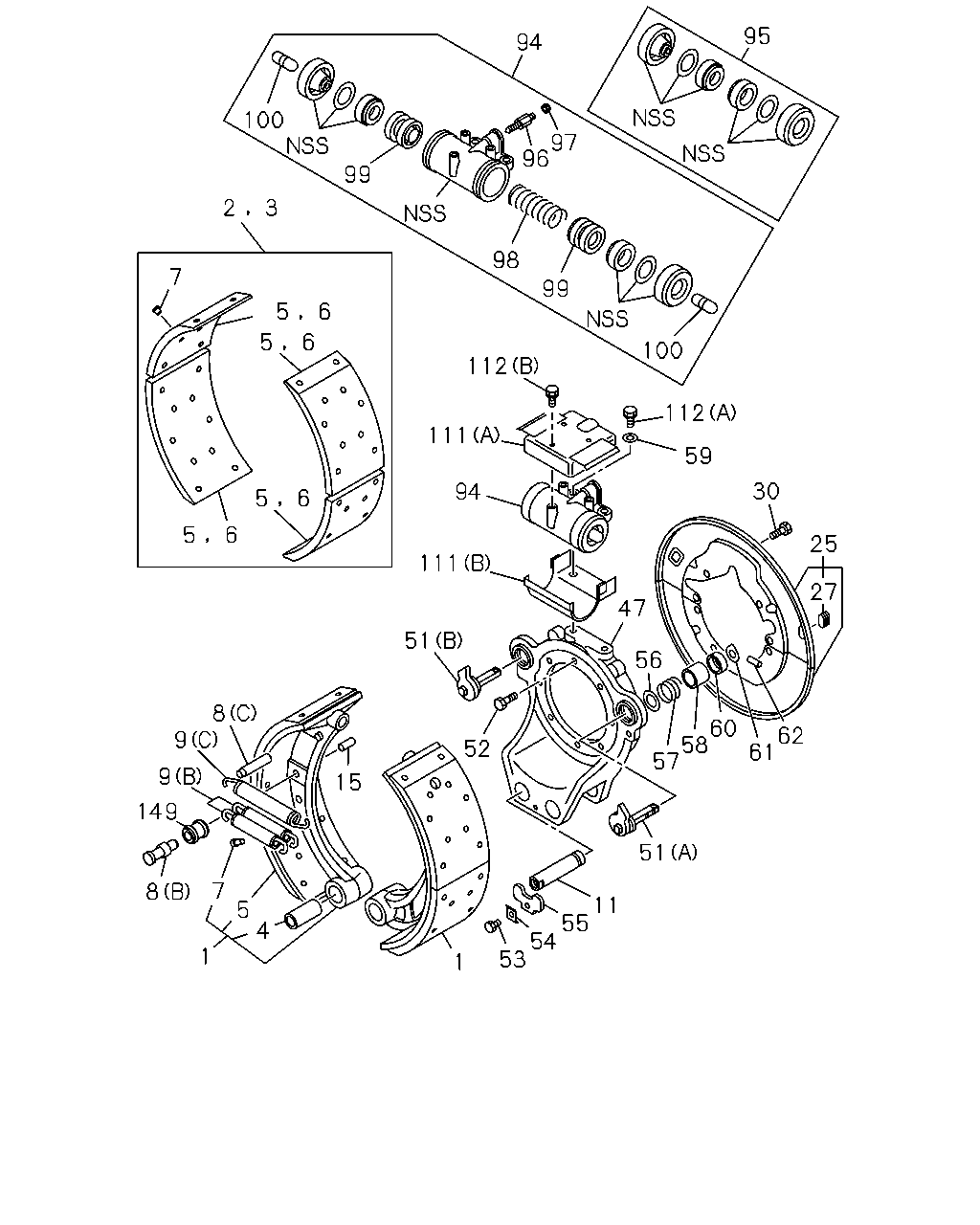

94 95 97 96 99 100 98 100 99 112 59 25 30 27 112 111 94 111 51 6 5 6 5 6 5 6 5 3 2 8 9 9 149 8 5 4 1 1 7 15 52 11 55 54 53 51 57 61 60 58 56 47 62 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	04	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	04	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1402-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=16	1-88311-359-1	02	1	1402-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=16	1-88311-359-1	02	1	1402-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-773-1	02	1	1402-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-773-1	02	1	1402-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17	1-88311-360-1	02	1	1402-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17	1-88311-360-1	02	1	1402-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-774-1	02	1	1402-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-774-1	02	1	1402-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-012-0	04	1	1402-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-012-0	04	1	1402-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	08	1	1402-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	08	1	1402-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1402-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1402-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17 THA	1-47126-761-0	08	1	1402-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17 THA	1-47126-761-0	08	1	1402-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1402-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1402-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1402-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1402-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1402-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	02	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	02	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	04	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	04	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1402-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	04	1	1402-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	04	1	1402-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1402-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1402-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47116-002-0	04	1	1402-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47116-002-0	04	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47151-526-1	02	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47151-526-1	02	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-806-0	01	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-806-0	01	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-807-0	01	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-807-0	01	1	1402-
27	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	1402-
27	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	1402-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	1402-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	02	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	02	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-254-1	01	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-255-1	01	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-253-1	02	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA	8-98091-253-1	02	1	1402-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47165-058-1	02	1	1402-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47165-058-1	02	1	1402-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47165-059-1	02	1	1402-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47165-059-1	02	1	1402-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14X50 THA	1-09040-066-0	02	1	1402-1408
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14X50 THA	1-09040-066-0	02	1	1402-1408
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-98281-531-0	02	1	1409-1410
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-98281-531-0	02	1	1409-1410
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14X50 THA	1-09040-066-0	02	1	1411-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14X50 THA	1-09040-066-0	02	1	1411-
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	1402-
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	1402-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	1402-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	1402-
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47133-005-0	02	1	1402-
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47133-005-0	02	1	1402-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-033-0	04	1	1402-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-033-0	04	1	1402-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-046-0	04	1	1402-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-046-0	04	1	1402-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-034-0	04	1	1402-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-034-0	04	1	1402-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14.2	0-91510-514-0	04	1	1402-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14.2	0-91510-514-0	04	1	1402-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-031-0	04	1	1402-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-031-0	04	1	1402-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-032-1	04	1	1402-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-032-1	04	1	1402-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-030-0	04	1	1402-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-030-0	04	1	1402-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-684-0	02	1	1402-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-684-0	02	1	1402-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-87830-527-0	02	1	1402-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-87830-527-0	02	1	1402-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47615-002-0	02	1	1402-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47615-002-0	02	1	1402-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> OD=12 THA	1-47619-011-0	02	1	1402-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> OD=12 THA	1-47619-011-0	02	1	1402-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09580-019-0	02	1	1402-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09580-019-0	02	1	1402-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47624-302-0	04	1	1402-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47624-302-0	04	1	1402-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47621-009-0	04	1	1402-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47621-009-0	04	1	1402-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47159-089-0	02	1	1402-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47159-089-0	02	1	1402-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47159-118-0	02	1	1402-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47159-118-0	02	1	1402-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M14X35	0-20851-435-0	04	1	1402-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M14X35	0-20851-435-0	04	1	1402-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98248-393-0	06	1	1402-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98248-393-0	06	1	1402-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47119-024-0	04	1	1402-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47119-024-0	04	1	1402-

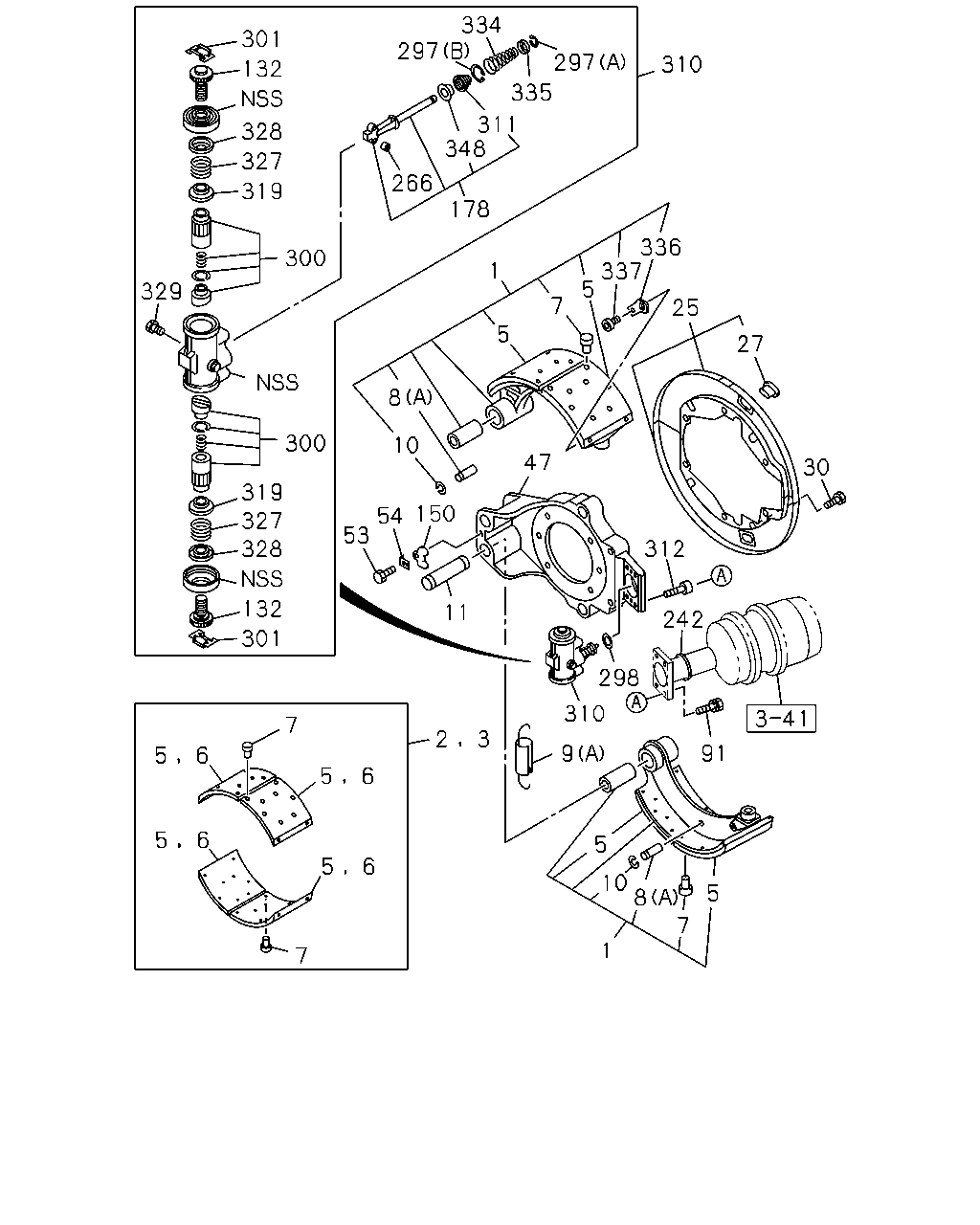

301 328 132 327 300 319 329 300 319 328 327 132 301 7 5 6 2 3 6 5 5 6 5 6 7 9 310 242 91 5 10 8 7 298 5 312 47 150 54 53 8 10 5 1 178 348 266 311 335 297 310 297 334 7 5 337 336 25 30 27 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	04	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	04	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1402-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1402-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=16	1-88311-359-1	02	1	1402-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=16	1-88311-359-1	02	1	1402-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-773-1	02	1	1402-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-773-1	02	1	1402-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17	1-88311-360-1	02	1	1402-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17	1-88311-360-1	02	1	1402-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-774-1	02	1	1402-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-774-1	02	1	1402-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	08	1	1402-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	08	1	1402-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1402-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1402-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17 THA	1-47126-761-0	08	1	1402-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17 THA	1-47126-761-0	08	1	1402-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1402-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1402-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1402-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1402-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1402-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1402-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	02	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	02	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	04	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	04	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1402-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1402-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10	0-91805-510-0	04	1	1402-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10	0-91805-510-0	04	1	1402-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	04	1	1402-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	04	1	1402-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1402-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47151-526-1	02	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47151-526-1	02	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-806-0	01	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-806-0	01	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-807-0	01	1	1402-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-807-0	01	1	1402-
27	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	1402-
27	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	1402-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	1402-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	02	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	02	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-254-1	01	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-255-1	01	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-253-1	02	1	1402-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA	8-98091-253-1	02	1	1402-
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	1402-
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	1402-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	1402-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	1402-
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X45 THA	1-47139-174-0	08	1	1402-
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X45 THA	1-47139-174-0	08	1	1402-
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47623-035-2	04	1	1402-
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47623-035-2	04	1	1402-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47133-010-0	02	1	1402-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47133-010-0	02	1	1402-
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47640-012-0	02	1	1402-
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47640-012-0	02	1	1402-
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47159-186-0	04	1	1402-
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47159-186-0	04	1	1402-
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47643-007-0	04	1	1402-
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47643-007-0	04	1	1402-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1402-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1402-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1402-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1402-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48259-231-0	02	1	1402-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48259-231-0	02	1	1402-
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-247-1	04	1	1402-
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-247-1	04	1	1402-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1402-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1402-
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47601-087-0	02	1	1402-
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47601-087-0	02	1	1402-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1402-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1402-
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47634-008-0	04	1	1402-
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47634-008-0	04	1	1402-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1402-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1402-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1402-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1402-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1402-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1402-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1402-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1402-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1402-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1402-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1402-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1402-
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-152-0	04	1	1402-
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-152-0	04	1	1402-
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-153-0	04	1	1402-
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-153-0	04	1	1402-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1402-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1402-

346 301 328 319 334 297 297 335 311 348 319 327 328 301 329 347 301 301 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1402-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1402-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1402-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1402-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1402-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1402-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1402-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1402-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1402-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1402-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1402-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1402-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1402-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1402-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1402-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1402-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1402-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1402-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1402-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1402-
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-403-0	02	1	1402-
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-403-0	02	1	1402-
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-404-0	02	1	1402-
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-404-0	02	1	1402-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1402-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
