4-11 — FRONT HUB AND DRUM OR ROTOR (#13367) — 56 parça

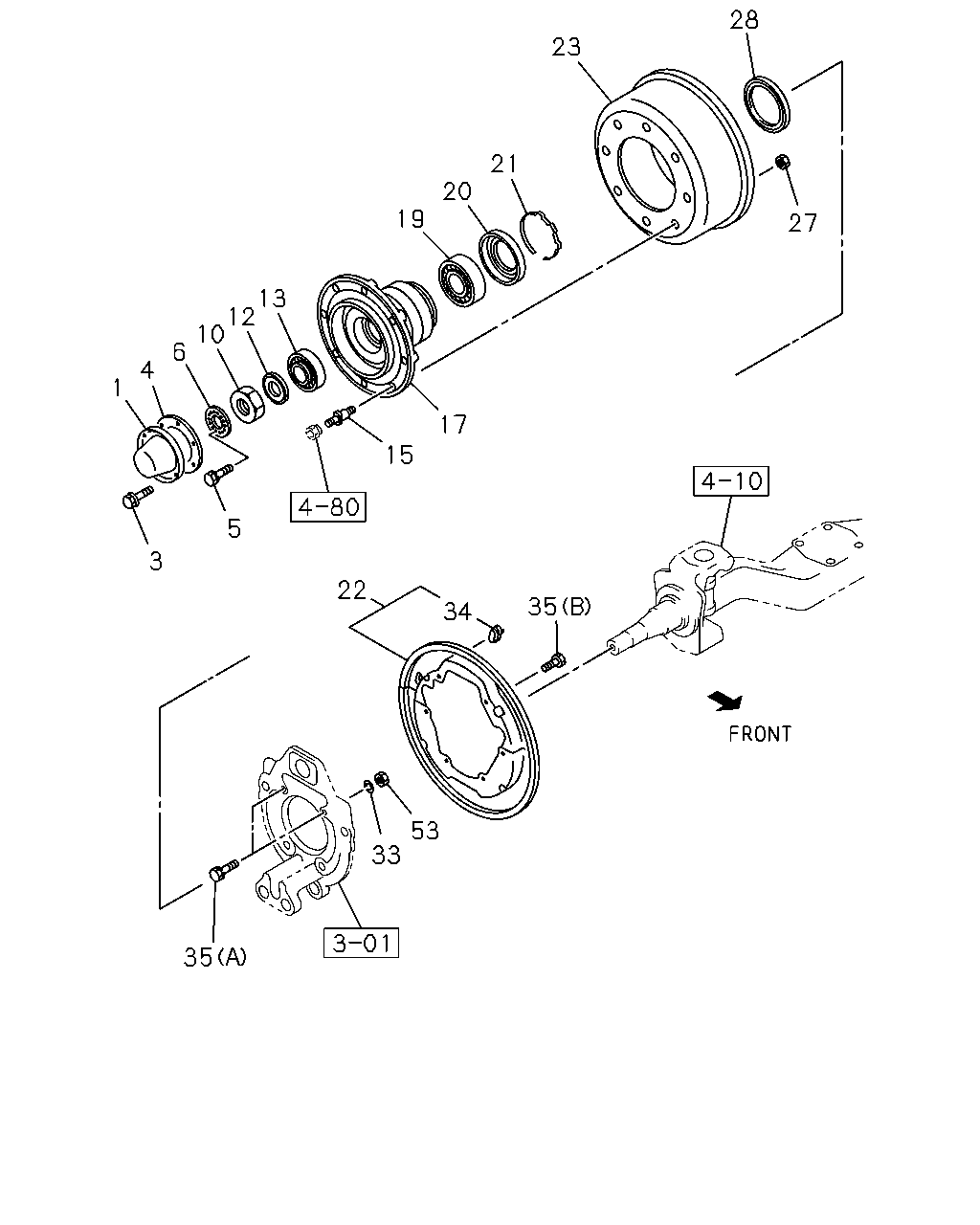

çizim 80875
1 4 6 10 12 13 19 20 21 23 28 17 5 15 3 35 33 53 22 34 35 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0105- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 0105-0512 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 0601- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-1 02 1 0105- ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 0105-0512 ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 04 1 0601- ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 0105- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 0105- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0105- ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 0105- ● ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 0105-0204 ● ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 0205-0206 ● ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22X48.8,M22X55.5 RH THREAD 		1-42337-068-1 20 1 0207- ● ●
15 PIN; WHEEL,FRT AXLE
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,RR TIRE 12.00-20<98X> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0105-0204 ● ●
15 PIN; WHEEL,FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-13TC(SKV),RR TIRE12.00-20<98X> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0205-0206 ● ●
15 PIN; WHEEL,FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-13TC(SKV),RR TIRE12.00-20<98X> M22X42.8,M22X55.5 RH THREAD 		1-42337-067-1 20 1 0207- ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 0105-0204 ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 0205- ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 0105-0204 ● ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 0205- ● ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 12.00-20<98X> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM> M22X42.8,M22X75.5 RH THREAD 		1-42337-058-0 20 1 0105-0204 ●
15 PIN; WHEEL,FRT AXLE
RR TIRE 12.00-20<98X> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22X42.8,M22X75.5 RH THREAD 		1-42337-058-1 20 1 0205- ●
17 HUB; FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42312-128-2 02 1 0105-0204 ● ●
17 HUB; FRT AXLE
WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42312-128-2 02 1 0205- ● ●
17 HUB; FRT AXLE
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42312-100-0 02 1 0105-0204 ●
17 HUB; FRT AXLE
DISC WHEEL AL<SDM> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42312-100-0 02 1 0105-0204 ●
17 HUB; FRT AXLE
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,RR TIRE 12.00-20<98X> 		1-42312-100-0 02 1 0105-0204 ●
17 HUB; FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42312-100-1 02 1 0205- ●
17 HUB; FRT AXLE
DISC WHEEL AL<SDM> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42312-100-1 02 1 0205- ●
17 HUB; FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-13TC(SKV),RR TIRE12.00-20<98X> 		1-42312-100-1 02 1 0205- ●
17 HUB; FRT AXLE
RR TIRE 12.00-20<98X> EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM> 		1-42312-136-0 02 1 0105-0204 ●
17 HUB; FRT AXLE
RR TIRE 12.00-20<98X> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42312-136-0 02 1 0205- ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 0105- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0105- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0105- ● ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47151-458-1 02 1 0105- ● ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47151-459-1 02 1 0105- ● ●
23 DRUM; BRK,FRT
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42315-337-0 02 1 0105-0204 ● ●
23 DRUM; BRK,FRT
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42315-337-0 02 1 0205- ● ●
23 DRUM; BRK,FRT
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) 		1-42315-336-1 02 1 0105-0204 ● ●
23 DRUM; BRK,FRT
WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42315-336-1 02 1 0205-0308 ● ●
23 DRUM; BRK,FRT
WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-42315-355-0 02 1 0309- ● ●
27 NUT; WHEEL PIN,FRT AXLE
EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 		1-09400-071-0 20 1 0105-0204 ● ●
27 NUT; WHEEL PIN,FRT AXLE
EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 		1-09400-071-0 20 1 0205- ● ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.50VX20 165-13(Q62) M22 FLANGE 		1-09440-065-0 16 1 0105-0204 ● ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M22 FLANGE 		1-09440-065-0 16 1 0205- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0105- ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 0105-0603 ● ●
33 WASHER; LK,DRUM COVER
ID=16.2 		0-91510-816-0 04 1 0604- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0105- ● ●
35 BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16X52 		1-09044-001-2 04 1 0105- ● ●
35 BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X12 		1-47159-187-0 12 1 0105- ● ●
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0105- ● ●
35 BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16X59 FLANGE 		1-09044-002-2 04 1 0105- ● ●
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 0105-0512 ● ●
53 NUT; DRUM COVER
M16 		0-91110-516-0 04 1 0601- ● ●
