Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#133668) — 67 parça

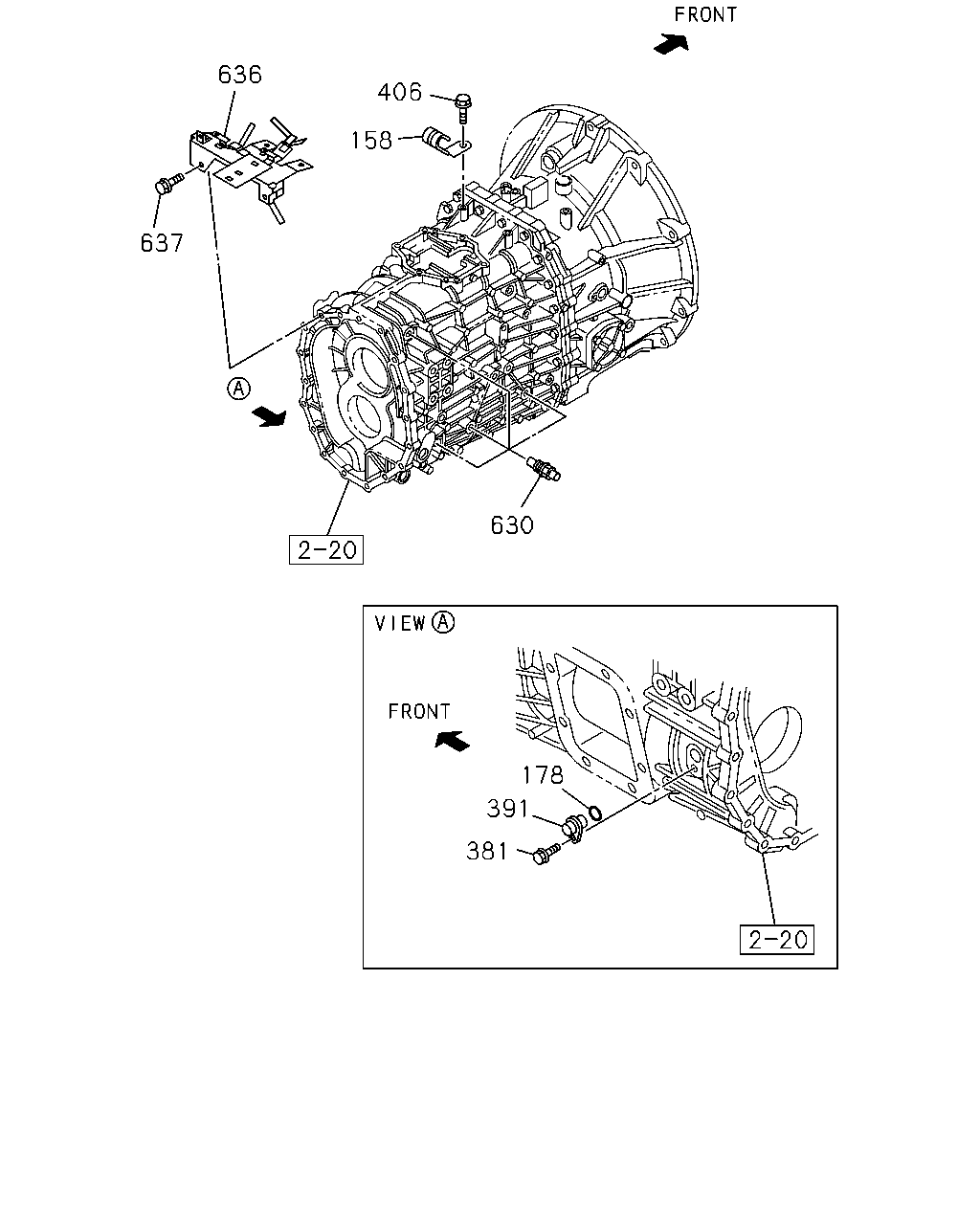

406 636 158 630 637 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1402-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1402-
381	BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	1402-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1402-
406	BOLT; HARNESS CLIP M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
630	DETENT ASM	8-98019-536-0	04	1	1402-
636	BRACKET; CLIP	8-97610-096-2	01	1	1402-
637	BOLT; BRACKET M8X16 FLANGE THA	0-28050-816-0	02	1	1402-

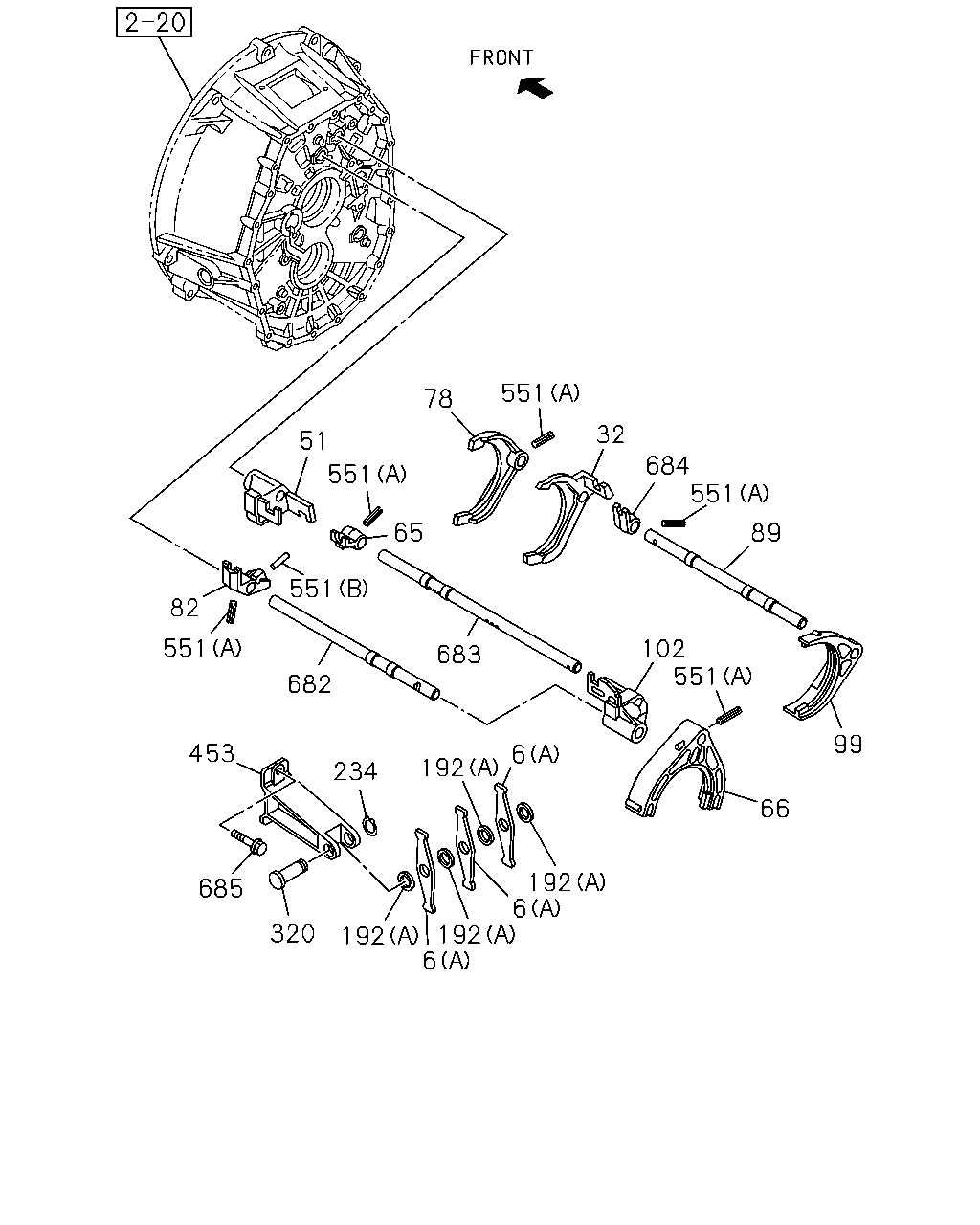

99 66 89 551 684 32 551 78 51 65 551 82 551 683 6 102 551 682 551 453 192 234 685 192 6 192 6 192 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1402-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1402-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1402-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1402-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1402-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1402-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1402-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1402-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1402-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1402-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1402-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1402-
192	WASHER; PL (B)	8-97305-661-0	02	1	1402-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1402-
320	SHAFT; LEVER	8-97377-928-0	01	1	1402-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1402-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1402-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1402-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1402-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1402-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1402-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1402-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1402-

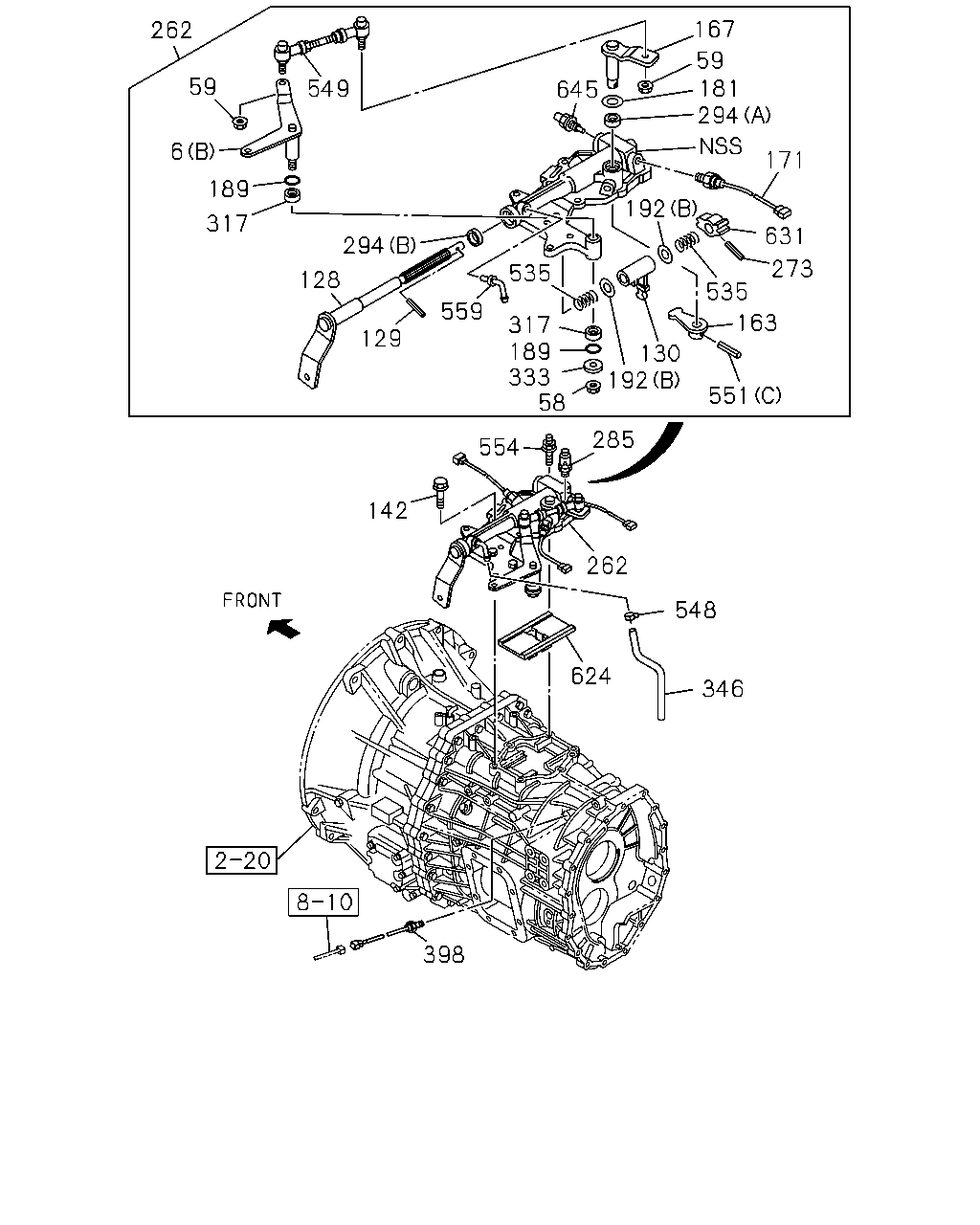

59 262 6 189 317 128 294 129 559 535 317 189 333 58 192 130 551 163 535 273 192 645 167 59 181 294 171 631 554 142 398 624 346 548 262 285 549

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1402-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1402-
58	NUT M10 FLANGE THA	0-91180-110-0	01	1	1402-
59	NUT M8 FLANGE THA	0-91180-108-0	02	1	1402-
128	LEVER; SHIFT,EXTERNAL	8-97306-927-0	01	1	1402-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1402-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1402-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1402-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1402-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1402-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1402-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1402-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1402-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1402-
192	WASHER; PL (B)	8-97305-661-0	02	1	1402-
262	BOX ASM; SHIFT CONT	8-98241-010-0	01	1	1402-1404
262	BOX ASM; SHIFT CONT	8-98276-161-1	01	1	1405-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1402-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1402-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1402-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1402-
317	BUSHING; LEVER	1-09330-119-0	02	1	1402-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1402-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1402-
535	SPRING; LEVER	8-97385-713-0	02	1	1402-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1402-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1402-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1402-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1402-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1402-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1402-
631	STOPPER; SPRING	8-97305-666-0	01	1	1402-
645	DETENT ASM	8-98019-536-0	01	1	1402-
