Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#133663) — 77 parça

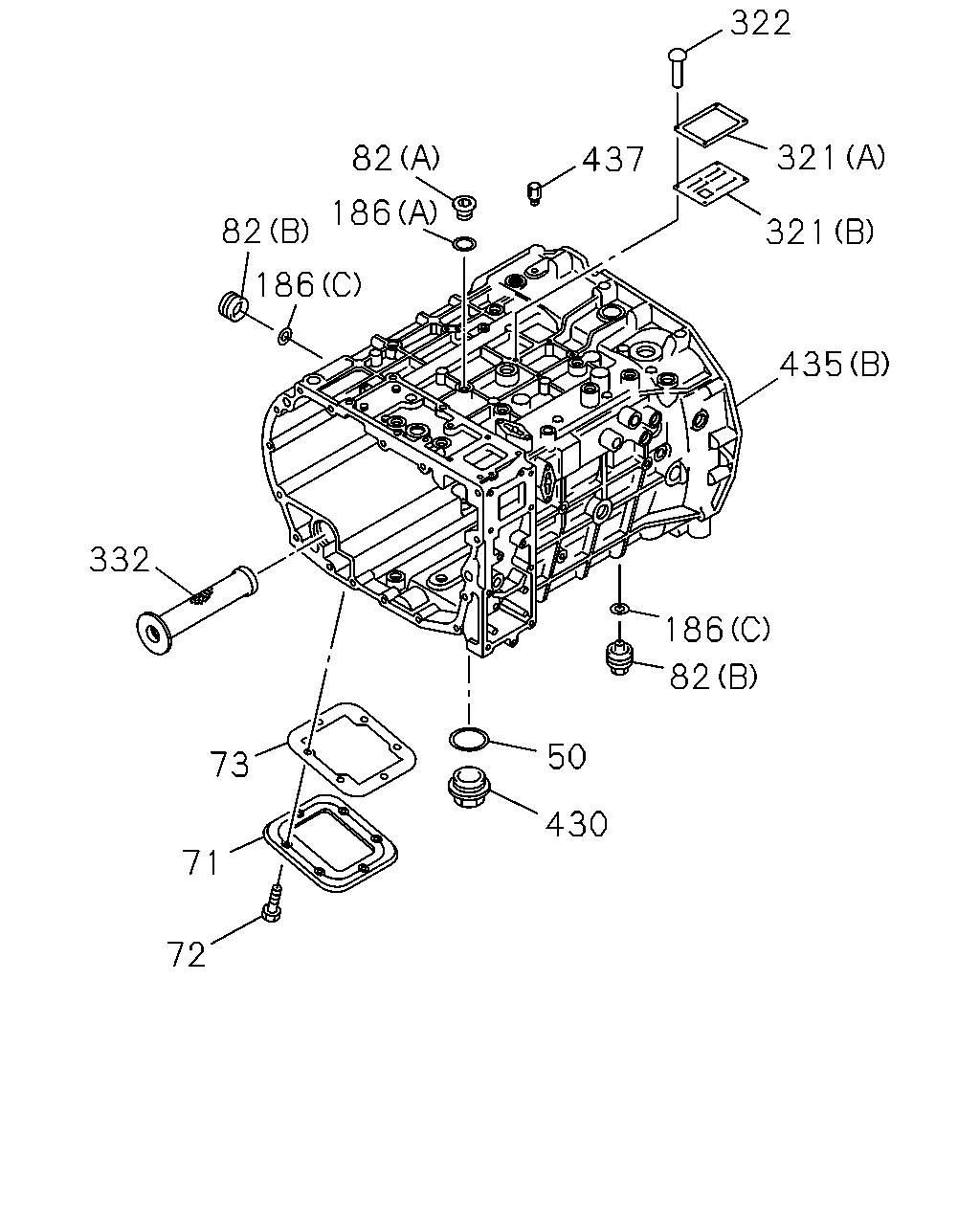

322 321 321 435 186 82 50 430 72 71 73 332 186 82 186 82 437

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-293-0	01	1	1402-
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1402-
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1402-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-237-0	01	1	1402-
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1402-
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1402-
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1402-
186	RING; SEAL (A)	1-33119-249-0	01	1	1402-
186	RING; SEAL (B)	1-33119-286-0	02	1	1402-
186	RING; SEAL (C)	1-33119-435-0	02	1	1402-
321	PLATE; NAME (A)	1-33119-519-0	01	1	1402-
321	PLATE; NAME (B)	1-33119-520-0	01	1	1402-
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1402-
332	FILTER; OIL	1-33119-437-0	01	1	1402-
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1402-
435	CASE; TRANS (B)	1-33111-372-0	01	1	1402-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1402-
437	BREATHER; TRANS	1-36122-006-0	01	1	1402-

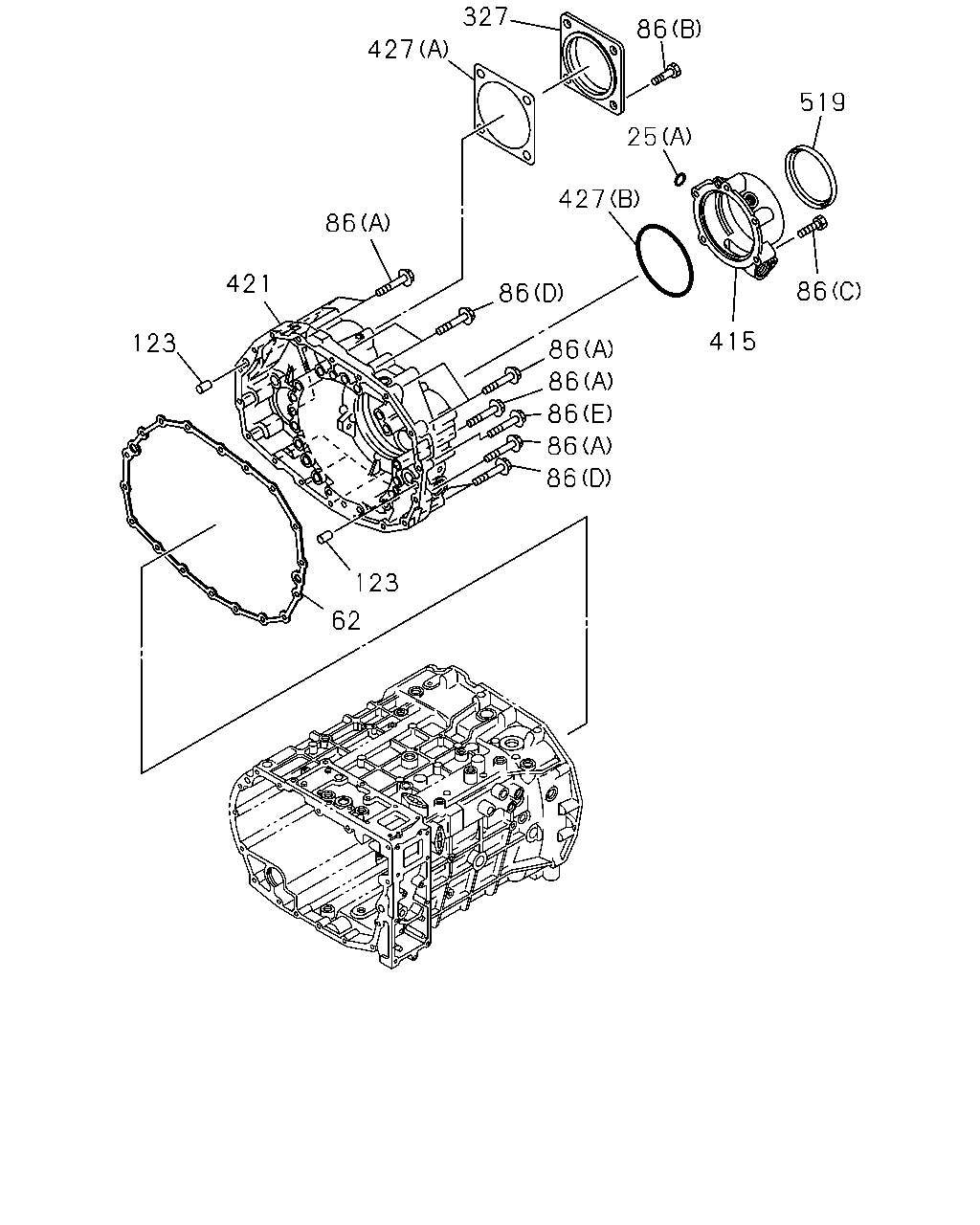

62 123 86 86 86 86 86 86 86 421 123 415 86 519 427 25 86 327 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-060-0	01	1	1402-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	8-98138-241-0	01	1	1402-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-087-0	01	1	1402-
86	BOLT; RR COVER (B) M12X25	1-33119-594-0	04	1	1402-
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1402-
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1402-
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1402-
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1402-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1402-
327	COVER; RR,COUNTER	1-33131-273-0	01	1	1402-
415	COVER; BRG	1-33131-269-0	01	1	1402-
421	COVER; RR,TRANS	1-33131-275-0	01	1	1402-
427	GASKET; RR COVER (A)	1-33132-054-0	01	1	1402-
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1402-
519	GASKET; SHAFT	1-33139-059-0	01	1	1402-

82 468 329 245 478 477 27 24 25 2 412 561 343 37 36 36 561 413 463 28 330 561 561 29 113 315 33 435 314 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	1402-
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1402-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-060-0	01	1	1402-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	8-98138-241-0	01	1	1402-
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1402-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1402-
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1402-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-321-0	01	1	1402-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1402-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1402-
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1402-
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1402-
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1402-
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1402-
186	RING; SEAL (A)	1-33119-249-0	01	1	1402-
186	RING; SEAL (B)	1-33119-286-0	02	1	1402-
186	RING; SEAL (C)	1-33119-435-0	02	1	1402-
245	PIPE; OIL	1-33119-517-0	01	1	1402-
314	GASKET; CASE	1-33112-052-0	01	1	1402-
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1402-
329	PUMP ASM; OIL	1-34150-123-0	01	1	1402-
330	RING; RET	1-33129-005-0	01	1	1402-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1402-
412	CAP; CLU HSG	1-31119-026-0	01	1	1402-
413	BALL; CLU HSG	1-31119-014-0	04	1	1402-
435	CASE; TRANS (B)	1-33111-372-0	01	1	1402-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1402-
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1402-
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1402-
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1402-
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1402-
561	PLUG (A)	1-31119-044-0	02	1	1402-
561	PLUG (B)	1-31119-045-0	03	1	1402-
561	PLUG (C)	1-31119-046-0	02	1	1402-
561	PLUG (D)	1-31119-047-0	01	1	1402-

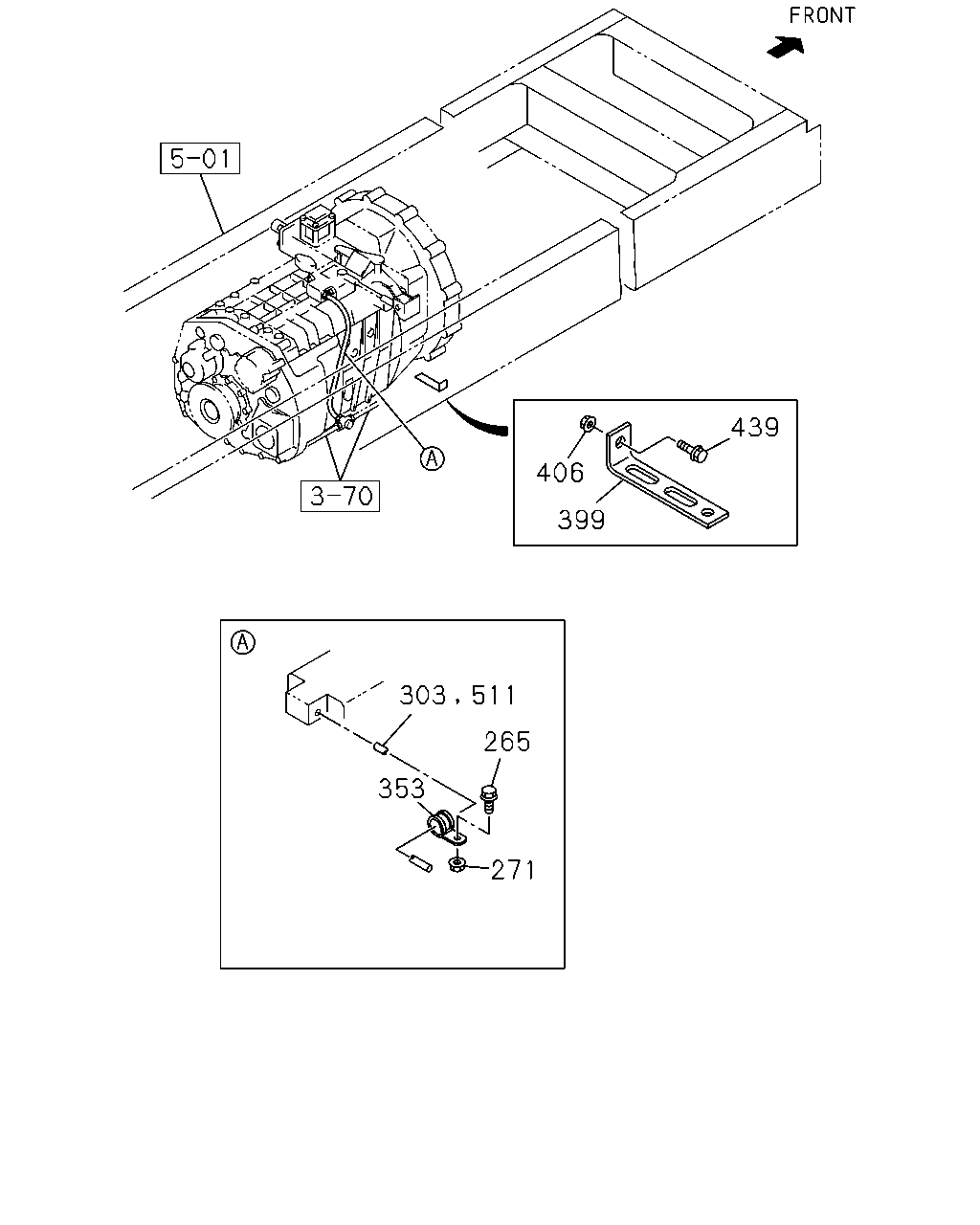

439 406 399 303 511 265 271 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
271	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1402-
303	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	01	1	1402-
353	CLIP; NYLON TUBE ID=18 L=28	1-09701-067-0	02	1	1402-
399	BRACKET; CLIP	1-47479-598-0	01	1	1402-
406	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1402-
439	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	01	1	1402-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	TRANSMISSION ASM; MANUAL	8-98083-334-2	01	1	1402-
