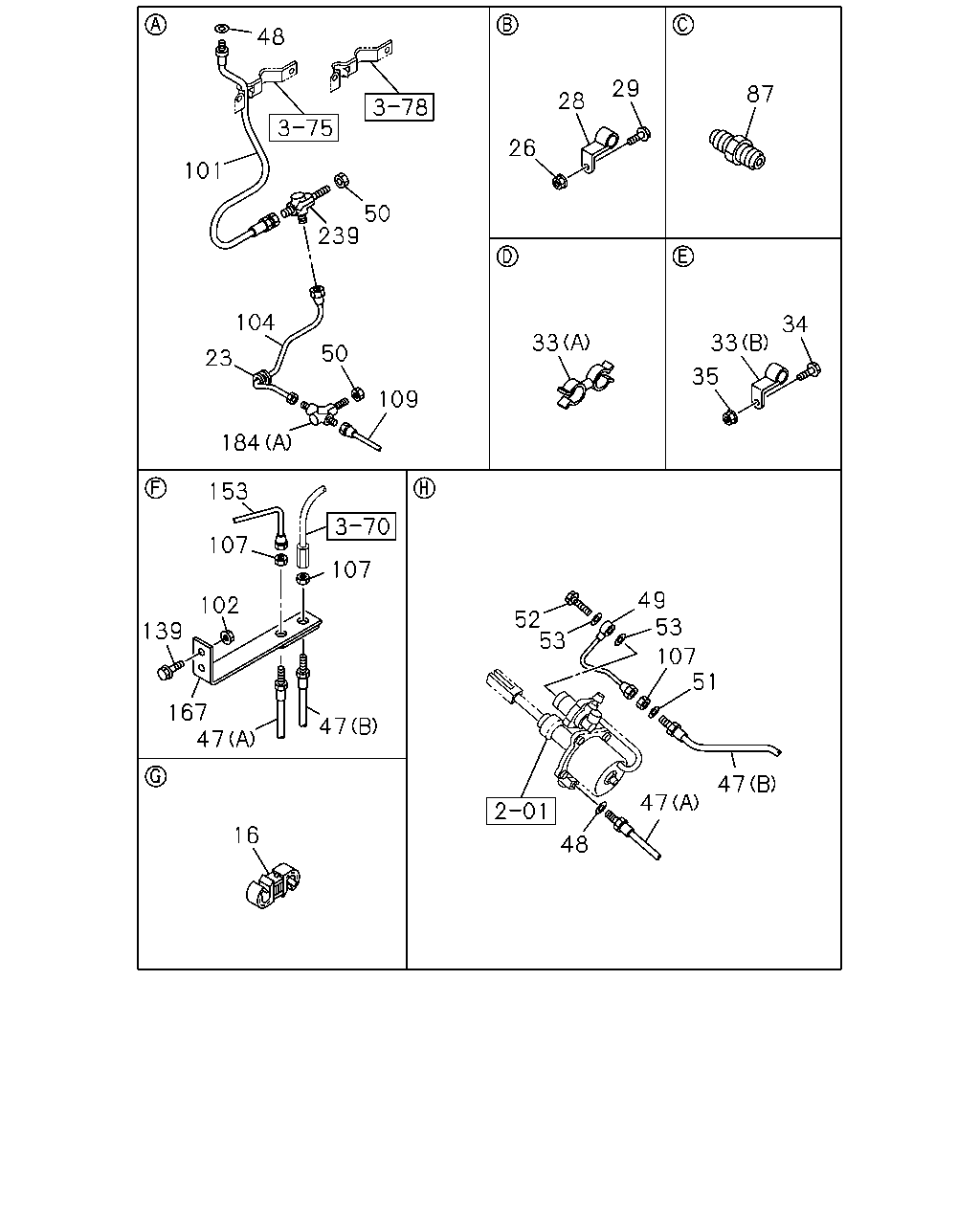

2-05 — CLUTCH PIPING (#133657) — 100 parça

48 101 104 23 184 153 50 23 104 50 153 184 239 50 107 102 153 139 167 47 33 47 48 107 16 107 51 53 49 53 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1402-
23	GROMMET; CLU PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1402-
23	GROMMET; CLU PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-
33	CLIP; OIL PIPE MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=6.35	1-09701-247-1	04	1	1402-
33	CLIP; OIL PIPE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=6.35	1-09701-247-1	05	1	1402-
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1402-
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (A) ID=8.3 & 10	8-94176-792-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=500	1-09363-720-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=500	1-09364-267-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (B) L=560	1-09363-689-0	01	1	1402-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (A) L=520	1-09364-583-0	01	1	1402-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1402-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T<RSZ> L=239 THA	8-97948-221-0	01	1	1402-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T<Y5E> L=232 THA	8-97948-222-0	01	1	1402-
50	NUT; UNION M12	0-91111-512-0	01	1	1402-
50	NUT; UNION M12	0-91111-512-0	01	1	1402-
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	1402-
52	BOLT; EYE,AIR PIPE 15" CLUTCH<RE9> M14X27 FLANGE	1-09675-086-0	01	1	1402-
53	GASKET; JOINT BOLT 15" CLUTCH<RE9> ID=14.2 OD=19.2	8-98251-345-0	02	1	1402-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1402-
102	NUT; FLEX HOSE,CLU CONT M8 FLANGE THA	0-91180-108-0	02	1	1402-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=585 SERVICED BY L=600	1-47428-725-0	01	1	1402-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=554 THA	8-97948-219-0	01	1	1402-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=542 SERVICED BY L=550	1-47428-753-0	01	1	1402-
107	NUT; UNION,OIL PIPE MZW6P M/T<RSZ> M12	9-09840-280-0	03	1	1402-
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M14	0-91111-514-0	01	1	1402-
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M12	9-09840-280-0	02	1	1402-
139	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2855 SERVICED BY L=2900	1-47428-744-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2738 THA	8-98152-246-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T<Y5E> L=2227 THA	8-98130-573-0	01	1	1402-
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	8-98077-571-0	01	1	1402-
167	BRACKET; UNION ZF9S1110 M/T<Y5E>	8-98077-571-0	01	1	1402-
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98105-654-0	01	1	1402-
184	UNION; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12 3WAY	1-09654-137-2	01	1	1402-
184	UNION; FLEX HOSE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98150-865-0	01	1	1402-
184	UNION; FLEX HOSE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M14 2WAY	1-09654-176-2	01	1	1402-
239	UNION; CLU HOSE MZW6P M/T<RSZ> M12 2WAY	1-09654-059-2	01	1	1402-
239	UNION; CLU HOSE ZF9S1110 M/T<Y5E>	8-98107-850-0	01	1	1402-

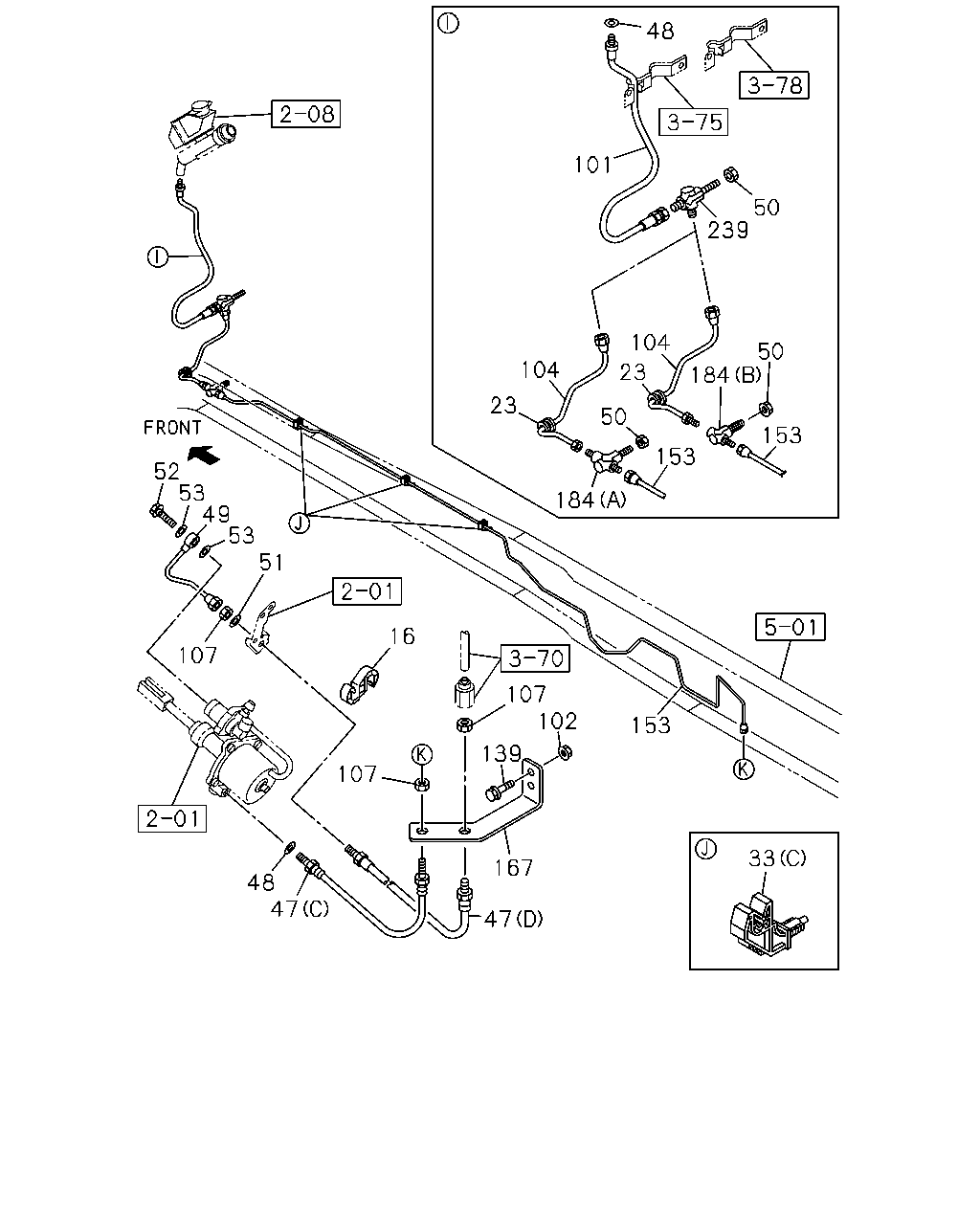

87 29 28 26 33 35 33 34 48 101 239 104 23 184 153 107 102 139 167 47 16 47 107 109 50 50 49 52 53 47 48 47 51 107 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1402-
23	GROMMET; CLU PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1402-
23	GROMMET; CLU PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T<Y5E> M8 FLANGE THA	0-91180-108-0	03	1	1402-
28	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> ID=8 H=20 L=20	1-09700-604-0	03	1	1402-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T<Y5E> M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T<Y5E> M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
33	CLIP; OIL PIPE MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=6.35	1-09701-247-1	04	1	1402-
33	CLIP; OIL PIPE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=6.35	1-09701-247-1	05	1	1402-
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1402-
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (A) ID=8.3 & 10	8-94176-792-0	01	1	1402-
34	BOLT; PIPE CLIP ZF9S1110 M/T<Y5E> M8X30 FLANGE THA	0-28650-830-0	04	1	1402-
35	NUT; PIPE CLIP ZF9S1110 M/T<Y5E> M8 FLANGE THA	0-91180-108-0	04	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=500	1-09363-720-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=500	1-09364-267-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (B) L=560	1-09363-689-0	01	1	1402-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (A) L=520	1-09364-583-0	01	1	1402-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1402-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T<RSZ> L=239 THA	8-97948-221-0	01	1	1402-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T<Y5E> L=232 THA	8-97948-222-0	01	1	1402-
50	NUT; UNION M12	0-91111-512-0	01	1	1402-
50	NUT; UNION M12	0-91111-512-0	01	1	1402-
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	1402-
52	BOLT; EYE,AIR PIPE 15" CLUTCH<RE9> M14X27 FLANGE	1-09675-086-0	01	1	1402-
53	GASKET; JOINT BOLT 15" CLUTCH<RE9> ID=14.2 OD=19.2	8-98251-345-0	02	1	1402-
87	UNION; OIL PIPE ZF9S1110 M/T<Y5E> M14 STRAIGHT	0-92113-008-0	01	1	1402-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1402-
102	NUT; FLEX HOSE,CLU CONT M8 FLANGE THA	0-91180-108-0	02	1	1402-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=585 SERVICED BY L=600	1-47428-725-0	01	1	1402-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=554 THA	8-97948-219-0	01	1	1402-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=542 SERVICED BY L=550	1-47428-753-0	01	1	1402-
107	NUT; UNION,OIL PIPE MZW6P M/T<RSZ> M12	9-09840-280-0	03	1	1402-
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M14	0-91111-514-0	01	1	1402-
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M12	9-09840-280-0	02	1	1402-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T<Y5E> L=1407 SERVICED BY L=1550	1-47428-766-0	01	1	1402-
139	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2855 SERVICED BY L=2900	1-47428-744-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2738 THA	8-98152-246-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T<Y5E> L=2227 THA	8-98130-573-0	01	1	1402-
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	8-98077-571-0	01	1	1402-
167	BRACKET; UNION ZF9S1110 M/T<Y5E>	8-98077-571-0	01	1	1402-
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98105-654-0	01	1	1402-
184	UNION; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12 3WAY	1-09654-137-2	01	1	1402-
184	UNION; FLEX HOSE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	8-98150-865-0	01	1	1402-
184	UNION; FLEX HOSE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M14 2WAY	1-09654-176-2	01	1	1402-
239	UNION; CLU HOSE MZW6P M/T<RSZ> M12 2WAY	1-09654-059-2	01	1	1402-
239	UNION; CLU HOSE ZF9S1110 M/T<Y5E>	8-98107-850-0	01	1	1402-

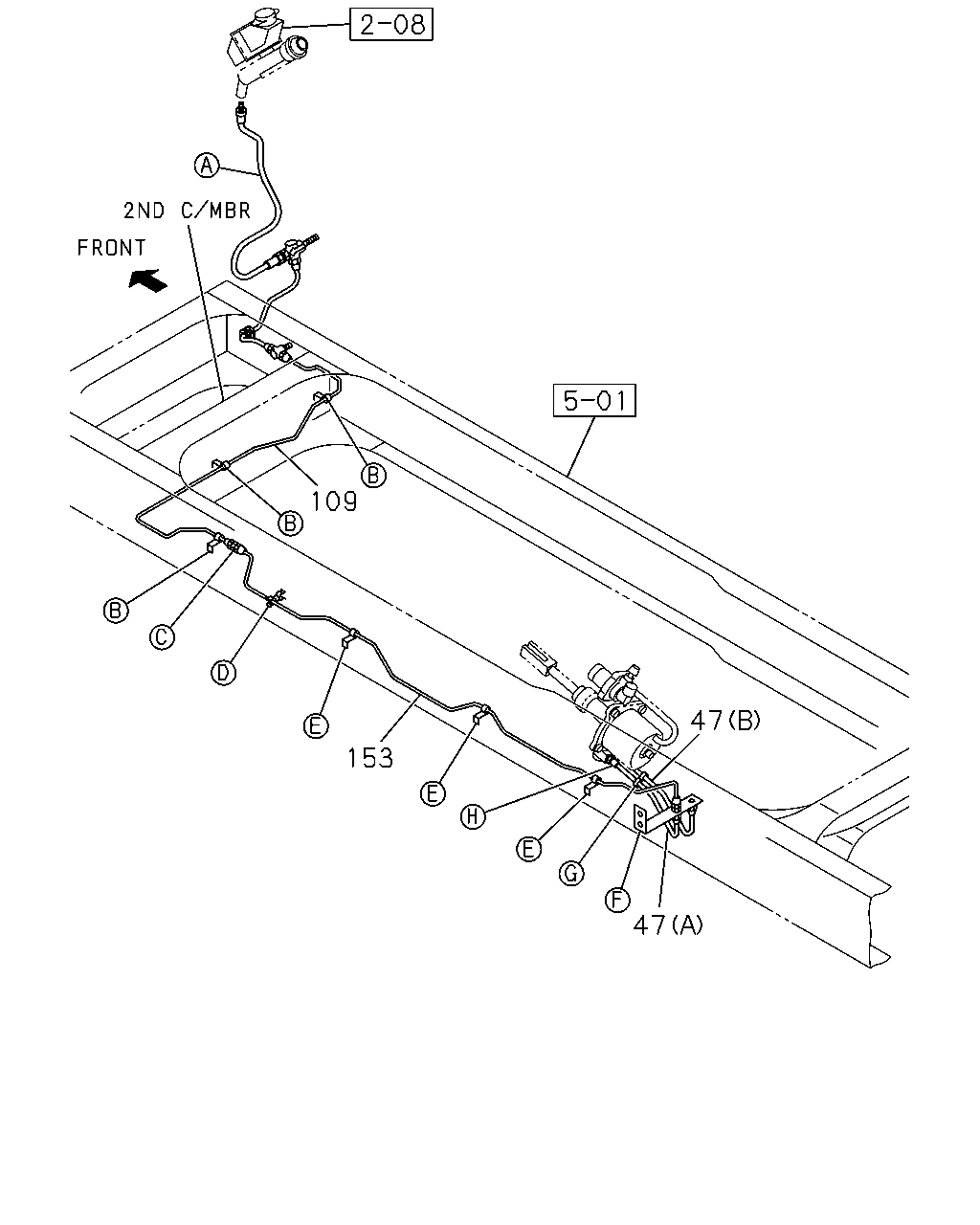

109 153 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=500	1-09363-720-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=500	1-09364-267-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=470	1-09363-716-0	01	1	1402-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=375	1-09364-407-0	01	1	1402-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (B) L=560	1-09363-689-0	01	1	1402-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (A) L=520	1-09364-583-0	01	1	1402-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T<Y5E> L=1407 SERVICED BY L=1550	1-47428-766-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2855 SERVICED BY L=2900	1-47428-744-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2738 THA	8-98152-246-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T<Y5E> L=2227 THA	8-98130-573-0	01	1	1402-
