◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶

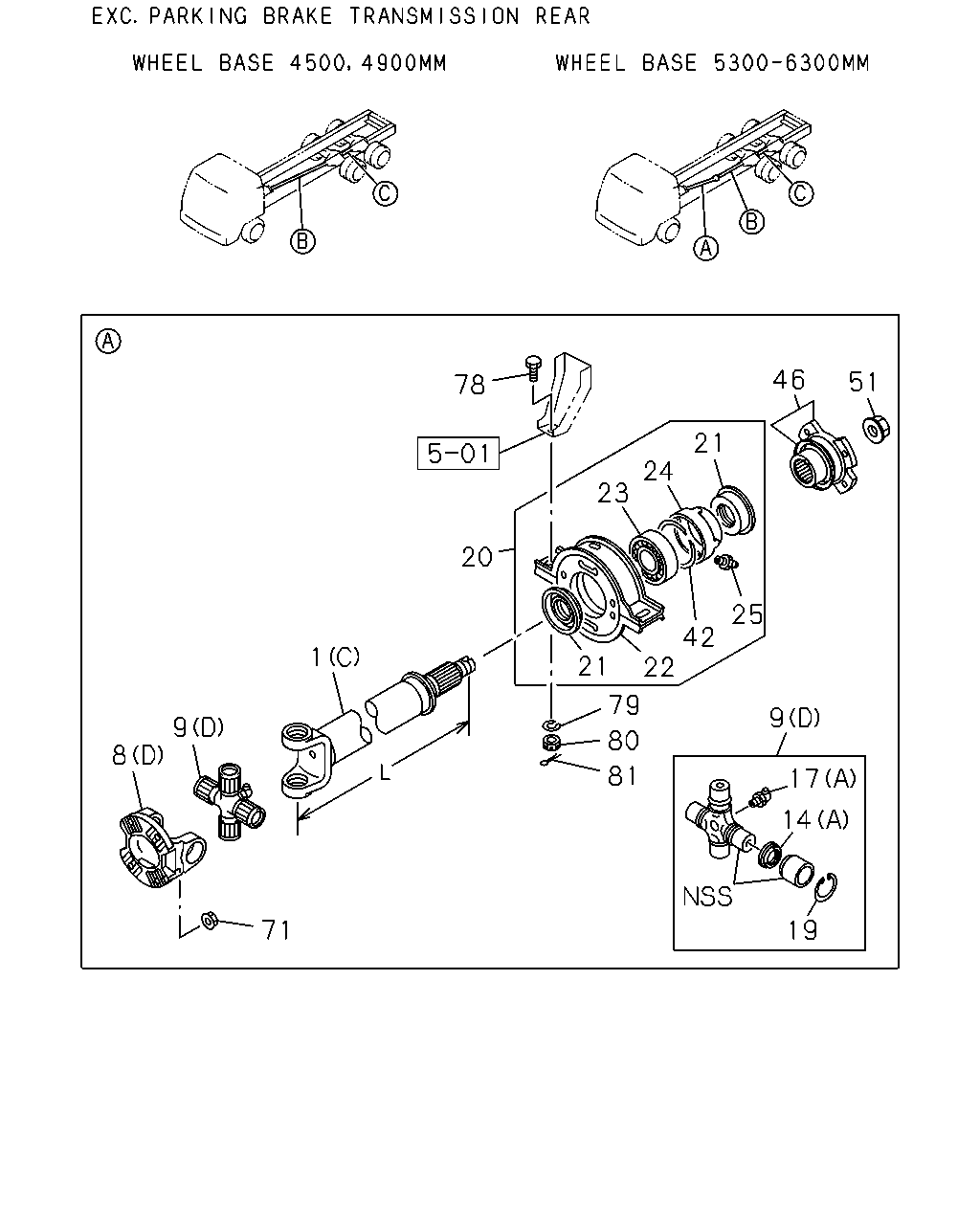

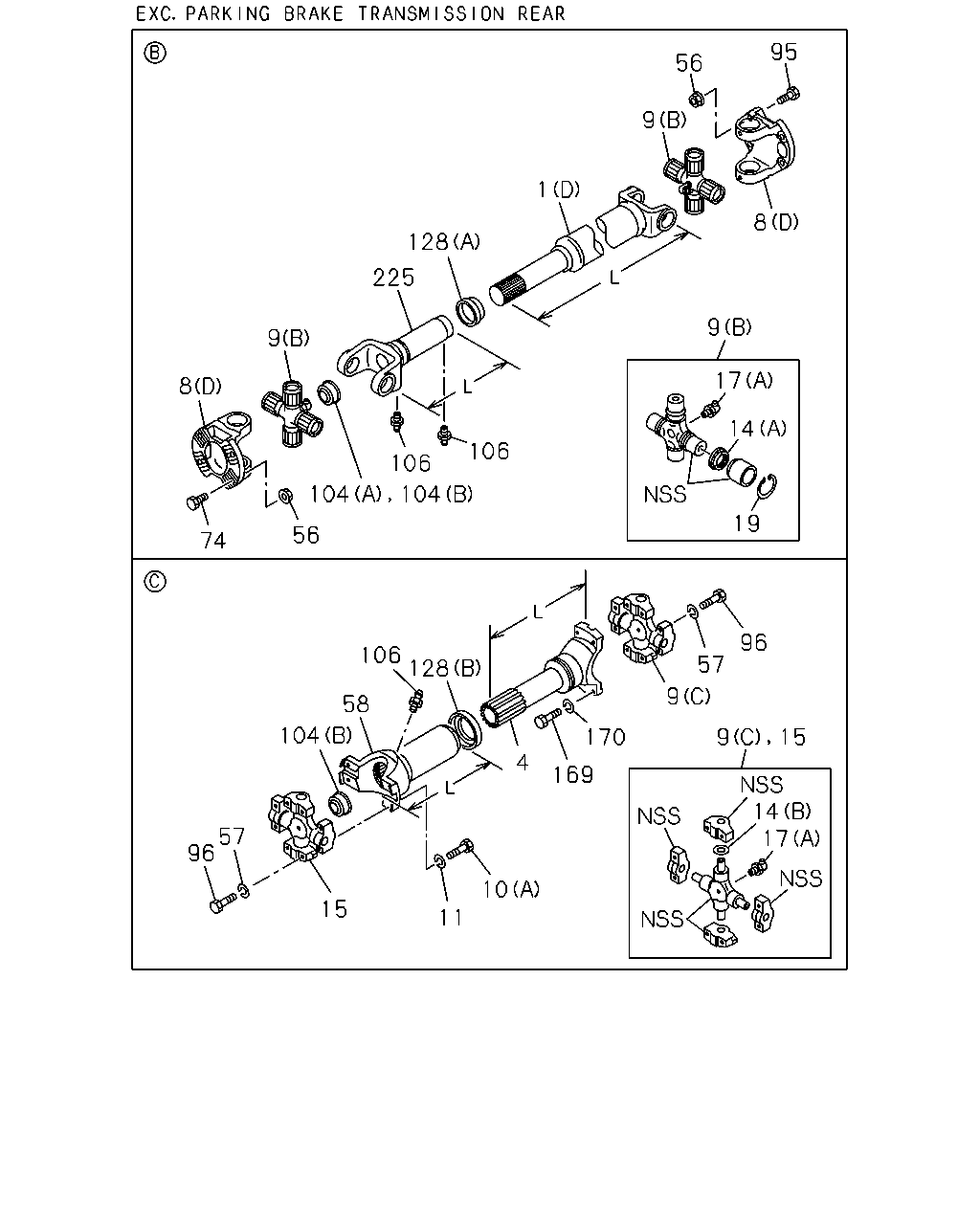

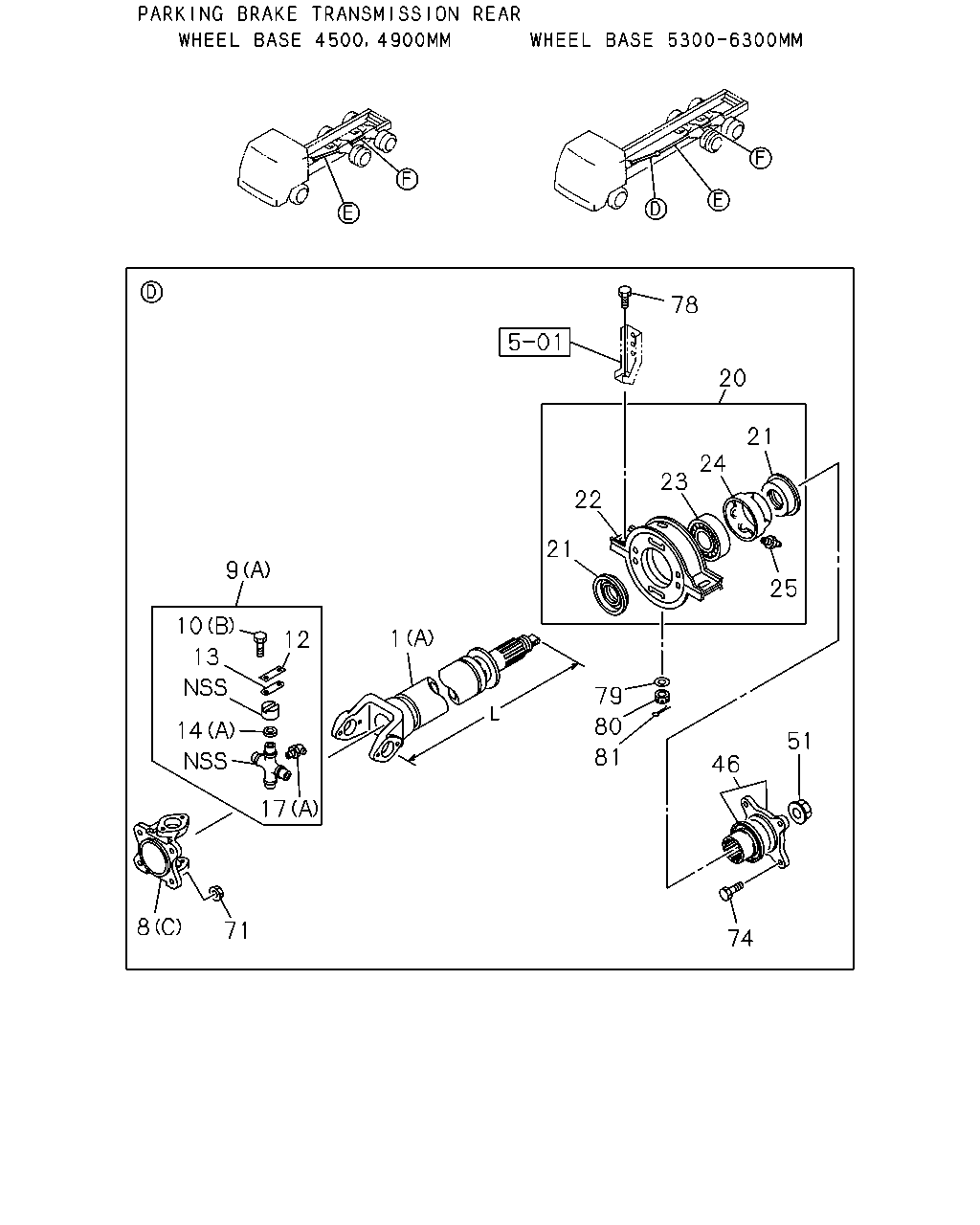

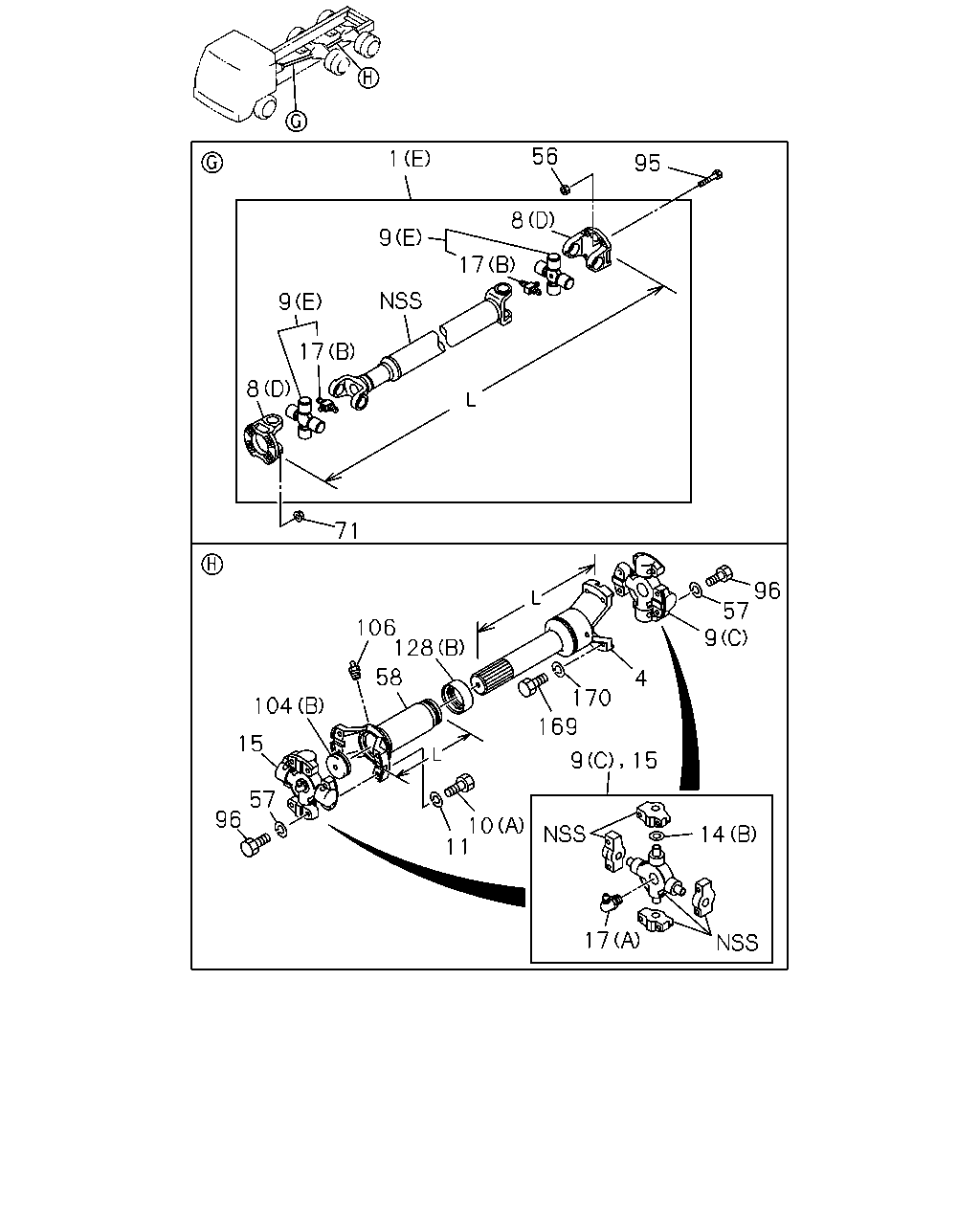

4-01 — PROPELLER SHAFT (#13365) — 643 parça

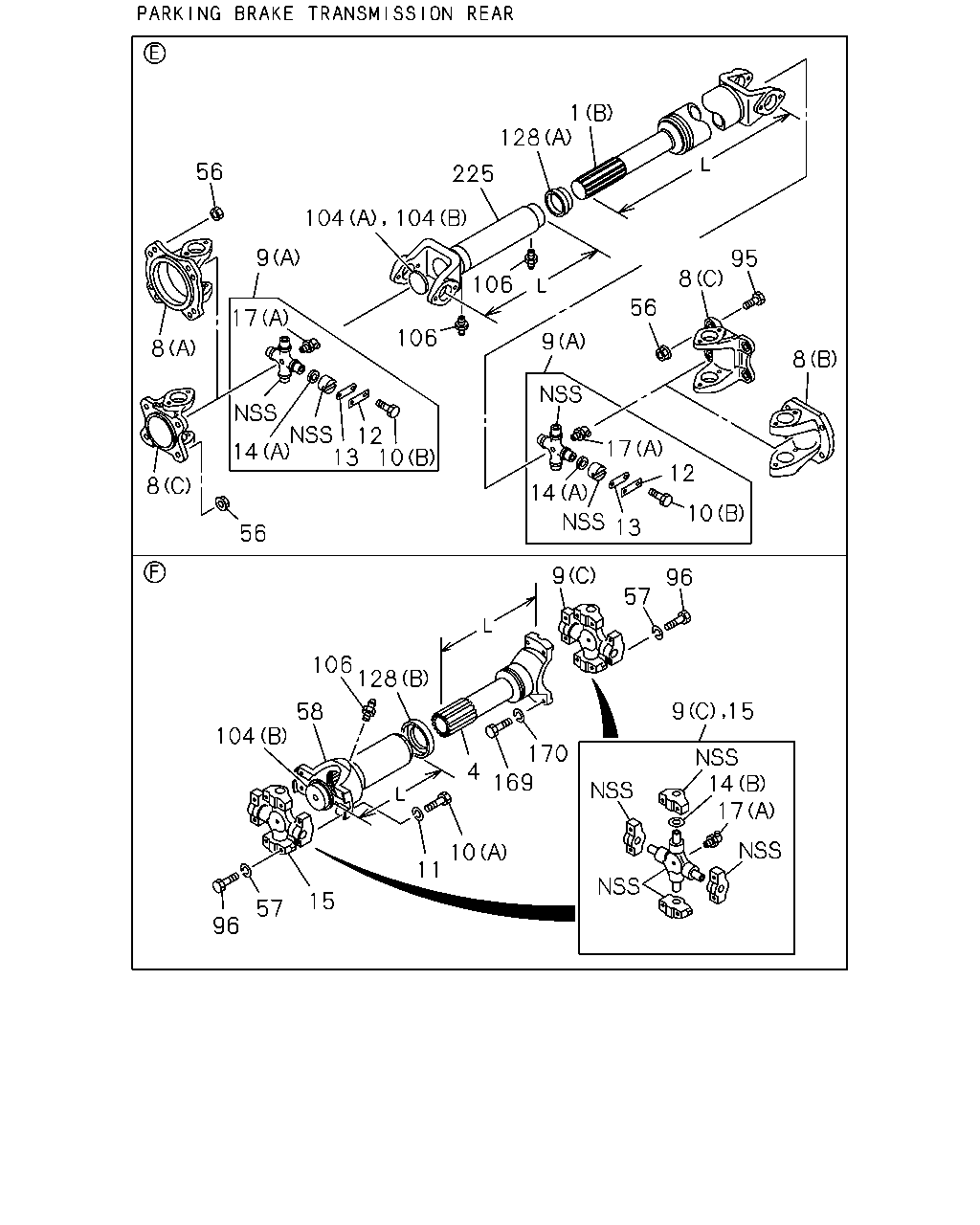

çizim 22289
15 57 96 11 10 4 169 170 9 15 14 17 104 58 106 128 9 57 56 8 13 12 10 14 17 8 106 9 14 13 12 17 10 8 56 96 106 9 104 104 56 8 95 225 128 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=570 		1-37124-642-1 01 1 0207- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1320 		1-37124-952-0 01 1 0110- ●
1 SHAFT; PROP
MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1040 		1-37124-711-1 01 1 0105- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=900 		1-37124-770-1 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1002 		1-37123-846-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=942 		1-37123-861-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=944 		1-37124-614-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=717 		1-37124-807-0 01 1 0105- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1010 		1-37124-712-1 01 1 0105- ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1475 		1-37124-934-1 01 1 0105-0210 ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1460 		1-37125-172-0 01 1 0211- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1354 		1-37124-823-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> ENGINE REAR PTO(SV1) (B) L=1067 		1-37124-292-0 01 1 0105- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=595 		1-37124-783-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=614 		1-37124-960-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=818 		1-37153-058-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1219 		1-37152-922-0 01 1 0105- ● ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> W-SERIES ENG<1A2> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=854 		1-37153-062-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1163 		1-37153-059-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1113 		1-37153-060-0 01 1 0105- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (C) L=888 		1-37153-103-0 01 1 0105- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1085 		1-37124-176-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1110 		1-37124-566-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1122 		1-37124-187-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> FULLER M/T<X9B> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=909 		1-37153-063-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1173 		1-37152-995-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1333 		1-37153-061-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1084 		1-37153-064-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=893 		1-37153-055-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0105-0109 ● ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0110- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) FULLER M/T<X9B> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1123 		1-37152-996-0 01 1 0105- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37124-303-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37125-226-0 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1585 		1-37124-779-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1602 		1-37124-188-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1614 		1-37124-961-0 01 1 0105- ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0105- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT<BEE> (D) 		1-37211-083-0 02 1 0112- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 02 1 0105-0109 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 02 1 0110- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 02 1 0105- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 02 1 0105- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 01 1 0105-0109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0110-0410 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 01 1 0105- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37211-068-1 01 1 0105- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37211-069-2 01 1 0105-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 01 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-110-0 02 1 0105- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-110-0 01 1 0105-0304 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-111-0 01 1 0305- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0105-0109 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0110- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0105-0109 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0110-0410 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT<BEE> (E) 		1-37300-118-0 02 1 0112- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0105- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-091-0 AR 1 0105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-093-0 AR 1 0105- ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 0105- ● ● ● ● ● ●
10 BOLT; UJT
PARKING BRAKE TRANSMISSION REAR<PJ8> (B) M10X20 		9-02061-020-0 AR 1 0105-0512 ● ● ● ●
10 BOLT; UJT
PARKING BRAKE TRANSMISSION REAR<PJ8> (B) M10X20 		0-20951-020-0 AR 1 0601- ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ● ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37356-008-0 AR 1 0105- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37356-009-0 AR 1 0105- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37355-020-0 AR 1 0105- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37355-021-0 AR 1 0105- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 0105- ● ● ● ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0105- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37319-013-0 02 1 0112- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-0512 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ● ● ● ●
56 NUT; YOKE
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 0105- ● ● ● ● ●
56 NUT; YOKE
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 0105- ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ● ● ●
56 NUT; YOKE
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ● ● ●
56 NUT; YOKE
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M16 FLANGE 		1-09449-065-0 08 1 0105- ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0105-0603 ● ● ● ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ● ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0105- ● ● ● ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M14X50 		1-09000-645-0 04 1 0105- ● ● ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14X50 		1-09000-645-0 04 1 0105- ● ● ● ● ●
95 BOLT; YOKE,FINAL
FULLER M/T<X9B>,ZF M/T<X9E> M14X50 		1-09000-645-0 04 1 0105- ● ●
95 BOLT; YOKE,FINAL
FULLER M/T<X9B>,ZF M/T<X9E> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0105- ● ● ●
95 BOLT; YOKE,FINAL
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 0105- ● ● ● ● ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0105- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0105-0109 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 0105-0109 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0110- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 0110- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 0105- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-0109 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0110-0206 ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0207-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0207-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0105-0312 ● ● ● ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401- ● ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0105-0109 ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0110-0206 ● ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37247-020-0 01 1 0207- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0207- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 0105- ● ● ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0105- ● ● ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ● ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0604- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> L=339 		1-37241-140-0 01 1 0105-0109 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> L=339 		1-37241-140-0 01 1 0110- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> L=330 		1-37241-124-0 01 1 0105- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> L=332 		1-37241-103-1 01 1 0105- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> L=345 		1-37241-107-1 01 1 0105- ● ●
çizim 24018
95 56 9 1 8 9 128 225 9 8 106 106 104 104 56 74 14 17 19 96 57 9 15 9 14 17 169 4 10 11 15 170 106 58 104 128 57 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=570 		1-37124-642-1 01 1 0207- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1320 		1-37124-952-0 01 1 0110- ●
1 SHAFT; PROP
MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1040 		1-37124-711-1 01 1 0105- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=900 		1-37124-770-1 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1002 		1-37123-846-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=942 		1-37123-861-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=944 		1-37124-614-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=717 		1-37124-807-0 01 1 0105- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1010 		1-37124-712-1 01 1 0105- ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1475 		1-37124-934-1 01 1 0105-0210 ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1460 		1-37125-172-0 01 1 0211- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1354 		1-37124-823-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> ENGINE REAR PTO(SV1) (B) L=1067 		1-37124-292-0 01 1 0105- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=595 		1-37124-783-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=614 		1-37124-960-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=818 		1-37153-058-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1219 		1-37152-922-0 01 1 0105- ● ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> W-SERIES ENG<1A2> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=854 		1-37153-062-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1163 		1-37153-059-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1113 		1-37153-060-0 01 1 0105- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (C) L=888 		1-37153-103-0 01 1 0105- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1085 		1-37124-176-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1110 		1-37124-566-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1122 		1-37124-187-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> FULLER M/T<X9B> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=909 		1-37153-063-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1173 		1-37152-995-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1333 		1-37153-061-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1084 		1-37153-064-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=893 		1-37153-055-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0105-0109 ● ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0110- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) FULLER M/T<X9B> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1123 		1-37152-996-0 01 1 0105- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37124-303-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37125-226-0 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1585 		1-37124-779-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1602 		1-37124-188-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1614 		1-37124-961-0 01 1 0105- ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0105- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT<BEE> (D) 		1-37211-083-0 02 1 0112- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 02 1 0105-0109 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 02 1 0110- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 02 1 0105- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 02 1 0105- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 01 1 0105-0109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0110-0410 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 01 1 0105- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37211-068-1 01 1 0105- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37211-069-2 01 1 0105-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 01 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-110-0 02 1 0105- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-110-0 01 1 0105-0304 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-111-0 01 1 0305- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0105-0109 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0110- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0105-0109 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0110-0410 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT<BEE> (E) 		1-37300-118-0 02 1 0112- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0105- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-091-0 AR 1 0105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-093-0 AR 1 0105- ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 0105- ● ● ● ● ● ●
10 BOLT; UJT
PARKING BRAKE TRANSMISSION REAR<PJ8> (B) M10X20 		9-02061-020-0 AR 1 0105-0512 ● ● ● ●
10 BOLT; UJT
PARKING BRAKE TRANSMISSION REAR<PJ8> (B) M10X20 		0-20951-020-0 AR 1 0601- ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ● ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 0105- ● ● ● ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0105- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37319-013-0 02 1 0112- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-0512 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> T=2.2 		1-09587-103-1 AR 1 0105- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> T=2.17 		1-09587-107-0 AR 1 0105- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> T=2.2 		1-09587-102-1 AR 1 0105- ● ● ● ● ● ●
56 NUT; YOKE
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 0105- ● ● ● ● ●
56 NUT; YOKE
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 0105- ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ● ● ●
56 NUT; YOKE
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ● ● ●
56 NUT; YOKE
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M16 FLANGE 		1-09449-065-0 08 1 0105- ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0105-0603 ● ● ● ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ● ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0105- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 0105- ● ● ●
74 BOLT; YOKE,TRANS
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14X50 		1-09000-645-0 04 1 0105- ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M16X48 		1-09000-383-0 08 1 0105- ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M14X50 		1-09000-645-0 04 1 0105- ● ● ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14X50 		1-09000-645-0 04 1 0105- ● ● ● ● ●
95 BOLT; YOKE,FINAL
FULLER M/T<X9B>,ZF M/T<X9E> M14X50 		1-09000-645-0 04 1 0105- ● ●
95 BOLT; YOKE,FINAL
FULLER M/T<X9B>,ZF M/T<X9E> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0105- ● ● ●
95 BOLT; YOKE,FINAL
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 0105- ● ● ● ● ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0105- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0105-0109 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 0105-0109 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0110- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 0110- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 0105- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-0109 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0110-0206 ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0207-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0207-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0105-0312 ● ● ● ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401- ● ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0105-0109 ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0110-0206 ● ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37247-020-0 01 1 0207- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0207- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 0105- ● ● ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0105- ● ● ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ● ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0604- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> L=339 		1-37241-140-0 01 1 0105-0109 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> L=339 		1-37241-140-0 01 1 0110- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> L=330 		1-37241-124-0 01 1 0105- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> L=332 		1-37241-103-1 01 1 0105- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> L=345 		1-37241-107-1 01 1 0105- ● ●
çizim 76742
17 14 11 10 9 15 169 170 4 9 57 96 128 106 58 104 15 57 96 8 17 9 1 56 95 8 17 9 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=570 		1-37124-642-1 01 1 0207- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1320 		1-37124-952-0 01 1 0110- ●
1 SHAFT; PROP
MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1040 		1-37124-711-1 01 1 0105- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=900 		1-37124-770-1 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1002 		1-37123-846-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=942 		1-37123-861-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=944 		1-37124-614-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=717 		1-37124-807-0 01 1 0105- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1010 		1-37124-712-1 01 1 0105- ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1475 		1-37124-934-1 01 1 0105-0210 ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1460 		1-37125-172-0 01 1 0211- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1354 		1-37124-823-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> ENGINE REAR PTO(SV1) (B) L=1067 		1-37124-292-0 01 1 0105- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=595 		1-37124-783-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=614 		1-37124-960-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=818 		1-37153-058-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1219 		1-37152-922-0 01 1 0105- ● ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> W-SERIES ENG<1A2> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=854 		1-37153-062-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1163 		1-37153-059-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1113 		1-37153-060-0 01 1 0105- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (C) L=888 		1-37153-103-0 01 1 0105- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1085 		1-37124-176-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1110 		1-37124-566-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1122 		1-37124-187-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> FULLER M/T<X9B> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=909 		1-37153-063-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1173 		1-37152-995-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1333 		1-37153-061-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1084 		1-37153-064-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=893 		1-37153-055-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0105-0109 ● ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0110- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) FULLER M/T<X9B> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1123 		1-37152-996-0 01 1 0105- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37124-303-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37125-226-0 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1585 		1-37124-779-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1602 		1-37124-188-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1614 		1-37124-961-0 01 1 0105- ●
4 SHAFT; PROP
L=348 		1-37171-127-2 01 1 0105- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT<BEE> (D) 		1-37211-083-0 02 1 0112- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 02 1 0105-0109 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 02 1 0110- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 02 1 0105- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 02 1 0105- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 01 1 0105-0109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0110-0410 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 01 1 0105- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37211-068-1 01 1 0105- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37211-069-2 01 1 0105-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 01 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-110-0 02 1 0105- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-110-0 01 1 0105-0304 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-111-0 01 1 0305- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0105-0109 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0110- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0105-0109 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0110-0410 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT<BEE> (E) 		1-37300-118-0 02 1 0112- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0105- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-091-0 AR 1 0105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-093-0 AR 1 0105- ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 0105- ● ● ● ● ● ●
10 BOLT; UJT
PARKING BRAKE TRANSMISSION REAR<PJ8> (B) M10X20 		9-02061-020-0 AR 1 0105-0512 ● ● ● ●
10 BOLT; UJT
PARKING BRAKE TRANSMISSION REAR<PJ8> (B) M10X20 		0-20951-020-0 AR 1 0601- ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ● ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 0105- ● ● ● ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0105- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37319-013-0 02 1 0112- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-0512 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ● ● ● ●
56 NUT; YOKE
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 0105- ● ● ● ● ●
56 NUT; YOKE
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 0105- ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ● ● ●
56 NUT; YOKE
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ● ● ●
56 NUT; YOKE
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M16 FLANGE 		1-09449-065-0 08 1 0105- ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0105-0603 ● ● ● ● ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0604- ● ● ● ● ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0105- ● ● ● ● ● ●
71 NUT; YOKE
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 0105- ● ● ● ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ● ● ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M16 FLANGE 		1-09449-065-0 08 1 0105- ● ● ● ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M14X50 		1-09000-645-0 04 1 0105- ● ● ● ● ●
95 BOLT; YOKE,FINAL
ISUZU M/T<X9A> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14X50 		1-09000-645-0 04 1 0105- ● ● ● ● ●
95 BOLT; YOKE,FINAL
FULLER M/T<X9B>,ZF M/T<X9E> M14X50 		1-09000-645-0 04 1 0105- ● ●
95 BOLT; YOKE,FINAL
FULLER M/T<X9B>,ZF M/T<X9E> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0105- ● ● ●
95 BOLT; YOKE,FINAL
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 0105- ● ● ● ● ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0105- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0105-0109 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 0105-0109 ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 0110- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (B) 		1-09600-049-0 01 1 0110- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 0105- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT<C5T> PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-0109 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0110-0206 ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0207-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		9-09031-010-0 02 1 0207-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 0105-0312 ● ● ● ● ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0401- ● ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0105-0109 ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0110-0206 ● ● ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37247-020-0 01 1 0207- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-020-0 01 1 0207- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-019-0 01 1 0105- ● ● ● ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0105- ● ● ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0105-0603 ● ● ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0604- ● ● ● ● ● ●
çizim 77497
51 46 21 24 23 20 78 1 9 8 71 79 81 21 80 19 14 9 17 22 42 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=570 		1-37124-642-1 01 1 0207- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1320 		1-37124-952-0 01 1 0110- ●
1 SHAFT; PROP
MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1040 		1-37124-711-1 01 1 0105- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=900 		1-37124-770-1 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1002 		1-37123-846-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=942 		1-37123-861-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=944 		1-37124-614-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=717 		1-37124-807-0 01 1 0105- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1010 		1-37124-712-1 01 1 0105- ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1475 		1-37124-934-1 01 1 0105-0210 ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1460 		1-37125-172-0 01 1 0211- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1354 		1-37124-823-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> ENGINE REAR PTO(SV1) (B) L=1067 		1-37124-292-0 01 1 0105- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=595 		1-37124-783-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=614 		1-37124-960-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=818 		1-37153-058-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1219 		1-37152-922-0 01 1 0105- ● ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> W-SERIES ENG<1A2> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=854 		1-37153-062-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1163 		1-37153-059-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1113 		1-37153-060-0 01 1 0105- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (C) L=888 		1-37153-103-0 01 1 0105- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1085 		1-37124-176-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1110 		1-37124-566-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1122 		1-37124-187-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> FULLER M/T<X9B> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=909 		1-37153-063-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1173 		1-37152-995-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1333 		1-37153-061-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1084 		1-37153-064-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=893 		1-37153-055-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0105-0109 ● ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0110- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) FULLER M/T<X9B> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1123 		1-37152-996-0 01 1 0105- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37124-303-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37125-226-0 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1585 		1-37124-779-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1602 		1-37124-188-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1614 		1-37124-961-0 01 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT<BEE> (D) 		1-37211-083-0 02 1 0112- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 02 1 0105-0109 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 02 1 0110- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 02 1 0105- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 02 1 0105- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 01 1 0105-0109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0110-0410 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 01 1 0105- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37211-068-1 01 1 0105- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37211-069-2 01 1 0105-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 01 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-110-0 02 1 0105- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-110-0 01 1 0105-0304 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-111-0 01 1 0305- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0105-0109 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0110- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0105-0109 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0110-0410 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT<BEE> (E) 		1-37300-118-0 02 1 0112- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0105- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-091-0 AR 1 0105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-093-0 AR 1 0105- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 0105- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37319-013-0 02 1 0112- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-0512 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> T=2.2 		1-09587-103-1 AR 1 0105- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> T=2.17 		1-09587-107-0 AR 1 0105- ● ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> T=2.2 		1-09587-102-1 AR 1 0105- ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> ID=65 		1-37510-116-0 01 1 0105-0109 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> ID=65 		1-37510-116-0 01 1 0110- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> ID=60 		1-37510-115-0 01 1 0105- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37510-094-3 01 1 0105- ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> FRONT OD=114 		1-09625-222-1 01 1 0105-0109 ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> FRONT OD=114 		1-09625-222-1 01 1 0110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> REAR OD=106 		1-09625-622-0 01 1 0105-0109 ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> REAR OD=106 		1-09625-622-0 01 1 0110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> FRONT D=120 		1-09625-127-0 01 1 0105- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> REAR 		1-09625-621-0 01 1 0105- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> D=120 		1-09625-127-0 02 1 0105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37516-056-0 01 1 0105-0109 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37516-056-0 01 1 0110- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 0105- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-09800-210-0 01 1 0105-0109 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-09800-210-0 01 1 0110- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 0105- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37529-110-0 01 1 0105-0109 ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37529-110-0 01 1 0110- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37529-109-0 01 1 0105- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37529-041-0 01 1 0105- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0105-0109 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0110- ● ● ● ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-09587-085-0 01 1 0105-0109 ● ● ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-09587-085-0 01 1 0110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37245-349-0 01 1 0105-0109 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37245-349-0 01 1 0110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37245-348-0 01 1 0105- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37245-271-1 01 1 0105- ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M45 FLAMGE 		1-09449-040-0 01 1 0105-0109 ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M45 FLAMGE 		1-09449-040-0 01 1 0110- ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 0105- ● ● ●
71 NUT; YOKE
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 0105- ● ● ● ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ● ● ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M16 FLANGE 		1-09449-065-0 08 1 0105- ● ● ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0105- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0105- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0105- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0105- ● ● ●
çizim 80839
78 20 21 24 23 22 21 25 51 46 74 79 80 81 1 9 12 10 13 14 71 8 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=570 		1-37124-642-1 01 1 0207- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1320 		1-37124-952-0 01 1 0110- ●
1 SHAFT; PROP
MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1040 		1-37124-711-1 01 1 0105- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=900 		1-37124-770-1 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1002 		1-37123-846-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=974 		1-37124-611-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=942 		1-37123-861-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=944 		1-37124-614-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=717 		1-37124-807-0 01 1 0105- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1010 		1-37124-712-1 01 1 0105- ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1475 		1-37124-934-1 01 1 0105-0210 ●
1 SHAFT; PROP
P130 PROP SHAFT<BEE> (E) L=1460 		1-37125-172-0 01 1 0211- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0105-0410 ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1085 		1-37124-639-1 01 1 0411- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1354 		1-37124-823-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1134 		1-37124-581-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> ENGINE REAR PTO(SV1) (B) L=1067 		1-37124-292-0 01 1 0105- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=595 		1-37124-783-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=614 		1-37124-960-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> ENGINE REAR PTO(SV1) EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=818 		1-37153-058-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA6 M/T<X9S> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1219 		1-37152-922-0 01 1 0105- ● ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> W-SERIES ENG<1A2> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=854 		1-37153-062-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1163 		1-37153-059-0 01 1 0105- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1113 		1-37153-060-0 01 1 0105- ● ● ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJA7 M/T<X9Q> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>, ENGINE REAR PTO(SV1) (C) L=888 		1-37153-103-0 01 1 0105- ● ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1085 		1-37124-176-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1110 		1-37124-566-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1122 		1-37124-187-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> FULLER M/T<X9B> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=909 		1-37153-063-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAG6 M/T<X9T> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1173 		1-37152-995-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F> P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1333 		1-37153-061-0 01 1 0105- ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=1084 		1-37153-064-0 01 1 0105- ●
1 SHAFT; PROP
6WA1 TC-C(55L) MJD7 M/T<X9J> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=893 		1-37153-055-0 01 1 0105- ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0105-0109 ● ●
1 SHAFT; PROP
W-SERIES ENG<1A2> MJD7 M/T<X9J> P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (C) L=844 		1-37152-891-0 01 1 0110- ● ● ●
1 SHAFT; PROP
10PE1S(60L),10PE1N(61L),10PE1H(68L) FULLER M/T<X9B> P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) L=1123 		1-37152-996-0 01 1 0105- ● ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37124-303-0 01 1 0105-0410 ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1565 		1-37125-226-0 01 1 0411- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1585 		1-37124-779-1 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) L=1602 		1-37124-188-0 01 1 0105- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) L=1614 		1-37124-961-0 01 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT
P130 PROP SHAFT<BEE> (D) 		1-37211-083-0 02 1 0112- ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 02 1 0105-0109 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 02 1 0110- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 02 1 0105- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 02 1 0105- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-0 01 1 0105-0109 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0110-0410 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37211-077-1 01 1 0411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37211-079-1 01 1 0105- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37211-068-1 01 1 0105- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37211-069-2 01 1 0105-0410 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (C) 		1-37211-066-1 01 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-110-0 02 1 0105- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-110-0 01 1 0105-0304 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-111-0 01 1 0305- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0105-0109 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (B) 		1-37300-112-0 02 1 0110- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0105-0109 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0110-0410 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-112-0 01 1 0411- ● ●
9 JOURNAL ASM; PROP SHAFT
P130 PROP SHAFT<BEE> (E) 		1-37300-118-0 02 1 0112- ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-100-1 01 1 0105- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-091-0 AR 1 0105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> (A) 		1-37300-093-0 AR 1 0105- ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 0105- ● ● ● ● ● ●
10 BOLT; UJT
PARKING BRAKE TRANSMISSION REAR<PJ8> (B) M10X20 		9-02061-020-0 AR 1 0105-0512 ● ● ● ●
10 BOLT; UJT
PARKING BRAKE TRANSMISSION REAR<PJ8> (B) M10X20 		0-20951-020-0 AR 1 0601- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37356-008-0 AR 1 0105- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37356-009-0 AR 1 0105- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37355-020-0 AR 1 0105- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37355-021-0 AR 1 0105- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0105- ● ● ● ● ● ●
14 COVER; DUST,SPIDER
P115 PROP SHAFT<C5X> (A) 		1-37249-133-0 AR 1 0105- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-131-0 AR 1 0105- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P130 PROP SHAFT<BEE> (B) 		1-37319-013-0 02 1 0112- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-0512 ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> ID=65 		1-37510-116-0 01 1 0105-0109 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> ID=65 		1-37510-116-0 01 1 0110- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> ID=60 		1-37510-115-0 01 1 0105- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37510-094-3 01 1 0105- ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> FRONT OD=114 		1-09625-222-1 01 1 0105-0109 ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> FRONT OD=114 		1-09625-222-1 01 1 0110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> REAR OD=106 		1-09625-622-0 01 1 0105-0109 ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> REAR OD=106 		1-09625-622-0 01 1 0110- ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> FRONT D=120 		1-09625-127-0 01 1 0105- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> REAR 		1-09625-621-0 01 1 0105- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> D=120 		1-09625-127-0 02 1 0105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37516-056-0 01 1 0105-0109 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37516-056-0 01 1 0110- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 0105- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-09800-210-0 01 1 0105-0109 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-09800-210-0 01 1 0110- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 0105- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37529-110-0 01 1 0105-0109 ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37529-110-0 01 1 0110- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37529-109-0 01 1 0105- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37529-041-0 01 1 0105- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0105-0109 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37245-349-0 01 1 0105-0109 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37245-349-0 01 1 0110- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37245-348-0 01 1 0105- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-37245-271-1 01 1 0105- ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M45 FLAMGE 		1-09449-040-0 01 1 0105-0109 ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M45 FLAMGE 		1-09449-040-0 01 1 0110- ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 FLANGE 		1-09440-046-0 01 1 0105- ● ● ●
71 NUT; YOKE
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 04 1 0105- ● ● ● ● ● ●
71 NUT; YOKE
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14 FLANGE 		1-09440-048-0 04 1 0105- ● ● ● ● ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M16 FLANGE 		1-09449-065-0 08 1 0105- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 04 1 0105- ● ● ●
74 BOLT; YOKE,TRANS
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> M14X50 		1-09000-645-0 04 1 0105- ● ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> PARKING BRAKE TRANSMISSION REAR<PJ8> M16X48 		1-09000-383-0 08 1 0105- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0105- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0105- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0105- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0105- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
