1-31 — AIR DUCT (#133647) — 79 parça

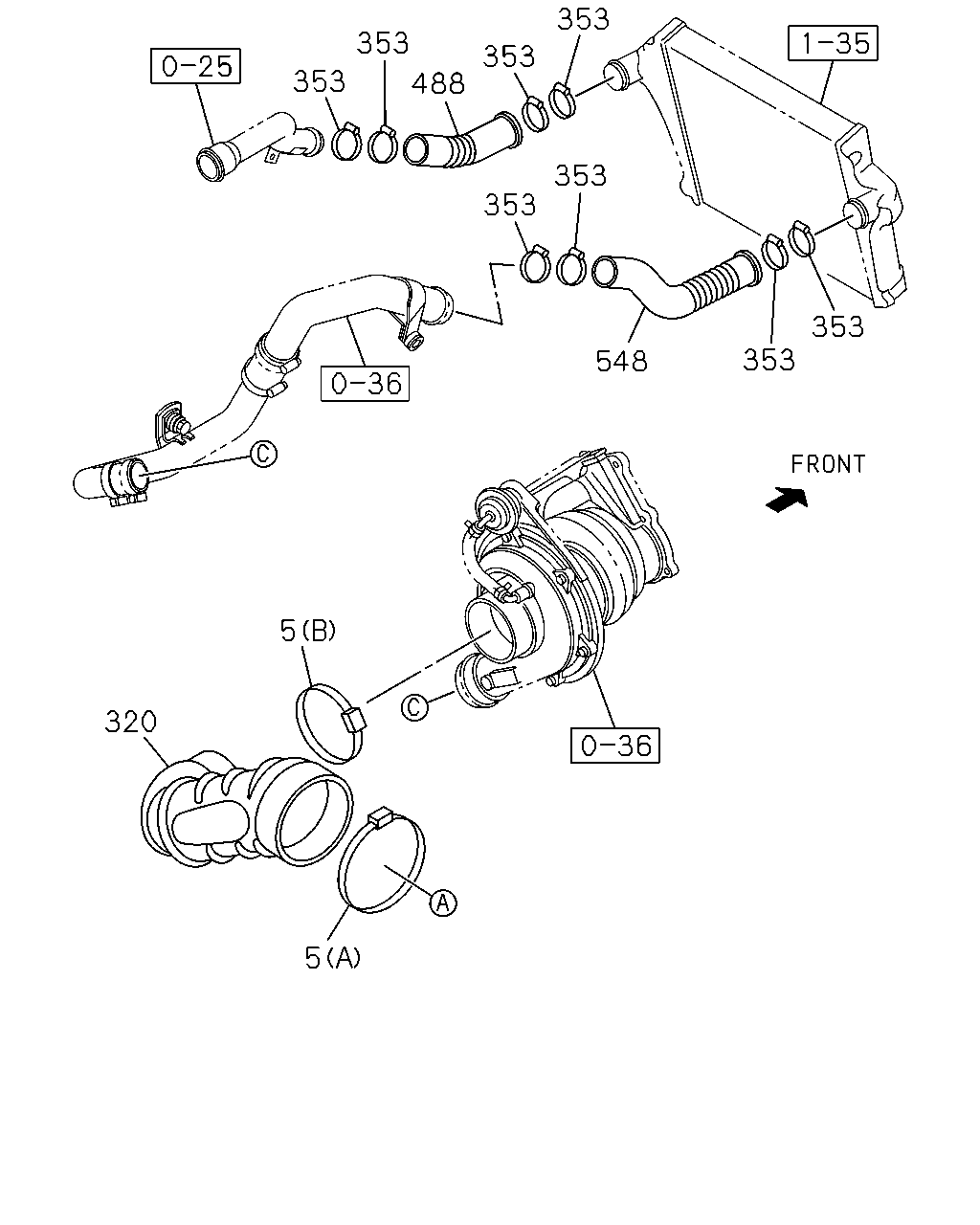

çizim 406424
353 353 353 353 353 353 353 353 488 548 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1402- ●
5 CLIP; AIR DUCT
(B) ID=90-110 		8-98133-365-0 01 1 1402- ● ●
5 CLIP; AIR DUCT
(A) ID=130-150 		8-98133-360-0 01 1 1402- ●
320 HOSE; CONN,ACL
THA 		8-97948-681-0 01 1 1402- ●
320 HOSE; CONN,ACL
THA 		8-97948-680-0 01 1 1402- ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 1402- ● ●
488 HOSE; RUBBER,PIPE 8-97950-126-0 01 1 1402- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98181-974-1 01 1 1402- ● ●

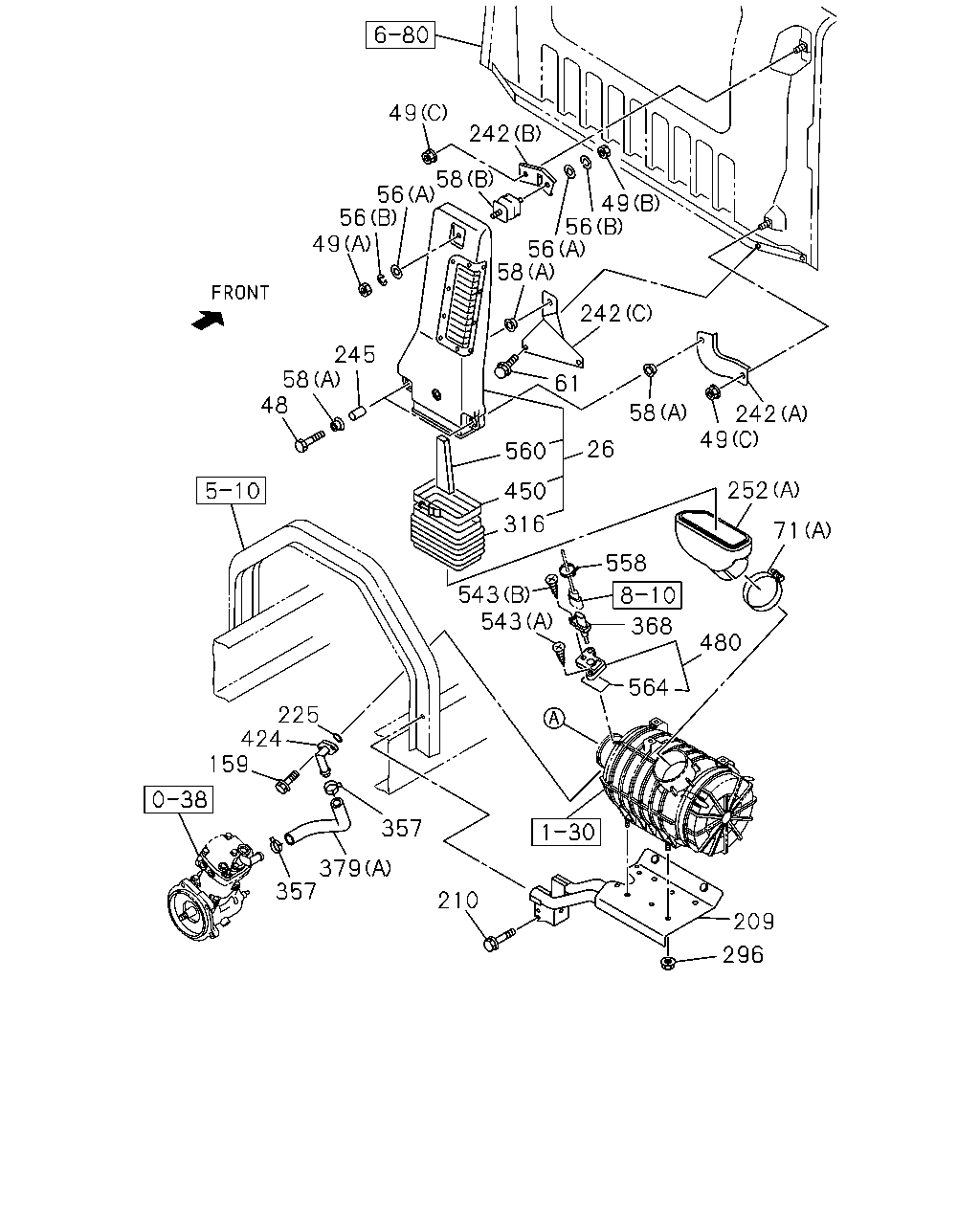

çizim 406889
296 209 210 357 379 357 159 424 225 543 543 558 316 71 480 564 368 252 49 242 58 26 560 450 61 242 245 58 48 58 56 56 49 58 56 56 49 242 49
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1402- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1402- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1402- ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 1402- ● ●
71 CLIP; AIR DUCT
(A) ID=120-140 		8-98133-367-0 01 1 1402- ●
71 CLIP; AIR DUCT
(B) ID=140-160 		8-98133-368-0 01 1 1402- ●
159 BOLT; AIR PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1402- ●
209 BRACKET; ACL
THA 		8-97948-148-0 01 1 1402- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1402- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1402- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1402- ● ●
252 DUCT; AIR INT
(A) 		8-98012-861-1 01 1 1402- ●
252 DUCT; AIR INT
(B) 		8-98021-989-1 01 1 1402- ●
296 NUT; ACL
M8 FLANGE THA 		0-91180-108-0 04 1 1402- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1402- ● ●
357 CLIP; RUBBER HOSE
ID=26 		1-09707-091-0 02 1 1402- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1402- ● ●
379 HOSE; RUBBER
(A) 		8-98077-469-0 01 1 1402- ●
379 HOSE; RUBBER
(B) 		8-98077-470-0 01 1 1402- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1402- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1402- ● ●
480 ADAPTER 8-98086-417-0 01 1 1402- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1402- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1402- ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1402- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1402- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1402- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1402- ● ●

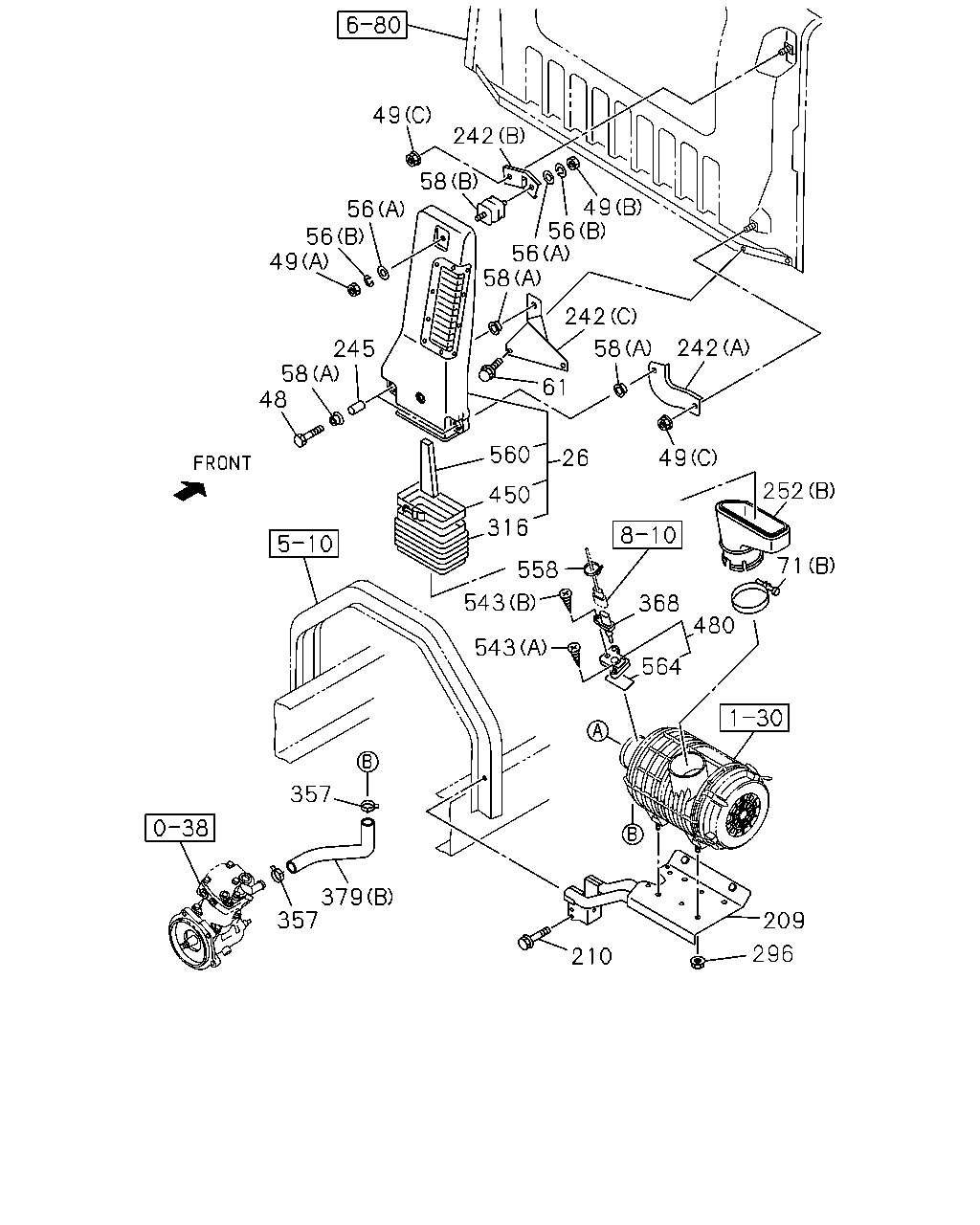

çizim 407204
296 209 210 379 357 357 543 543 558 316 450 368 480 564 71 252 49 26 560 61 58 242 242 245 58 48 49 56 56 58 58 242 49 56 56 49
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1402- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1402- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1402- ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 1402- ● ●
71 CLIP; AIR DUCT
(A) ID=120-140 		8-98133-367-0 01 1 1402- ●
71 CLIP; AIR DUCT
(B) ID=140-160 		8-98133-368-0 01 1 1402- ●
209 BRACKET; ACL
THA 		8-97948-148-0 01 1 1402- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1402- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1402- ● ●
252 DUCT; AIR INT
(A) 		8-98012-861-1 01 1 1402- ●
252 DUCT; AIR INT
(B) 		8-98021-989-1 01 1 1402- ●
296 NUT; ACL
M8 FLANGE THA 		0-91180-108-0 04 1 1402- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1402- ● ●
357 CLIP; RUBBER HOSE
ID=26 		1-09707-091-0 02 1 1402- ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1402- ● ●
379 HOSE; RUBBER
(A) 		8-98077-469-0 01 1 1402- ●
379 HOSE; RUBBER
(B) 		8-98077-470-0 01 1 1402- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1402- ● ●
480 ADAPTER 8-98086-417-0 01 1 1402- ● ●
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1402- ● ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1402- ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1402- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1402- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1402- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1402- ● ●
