0-40 — FUEL INJECTION SYSTEM (#133633) — 86 parça

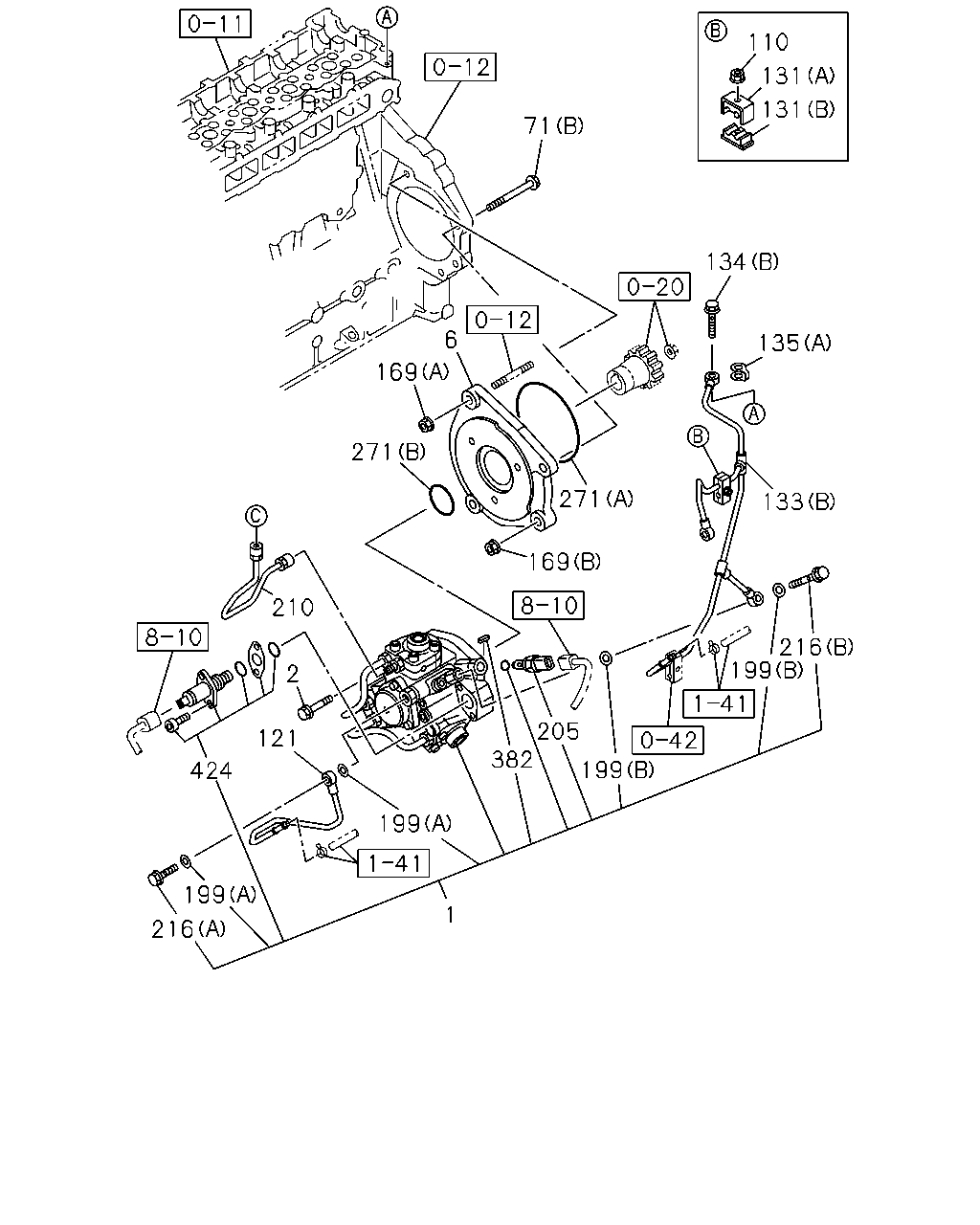

çizim 406263
1 199 382 199 205 199 133 271 169 135 134 169 271 71 110 131 131 6 210 216 199 216 424 121 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ 8-97605-946-7 01 1 1402- ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 1402- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 1402- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 1402- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1402- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 05 1 1402- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 1402- ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) 		8-98000-010-2 01 1 1402- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) 		8-98000-011-2 01 1 1402- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 1402- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1402- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1402- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1402- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 1402- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1402- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1402- ● ●
169 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1402- ● ●
169 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-112-0 01 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1402- ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1402- ● ●
210 PIPE; INJ,C/R 8-97608-480-1 01 1 1402- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1402- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1402- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1402- ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 1402- ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 1402- ● ●
382 KEY; DRIVE SHAFT
THA 		8-98161-995-0 01 1 1402- ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 1402- ● ●

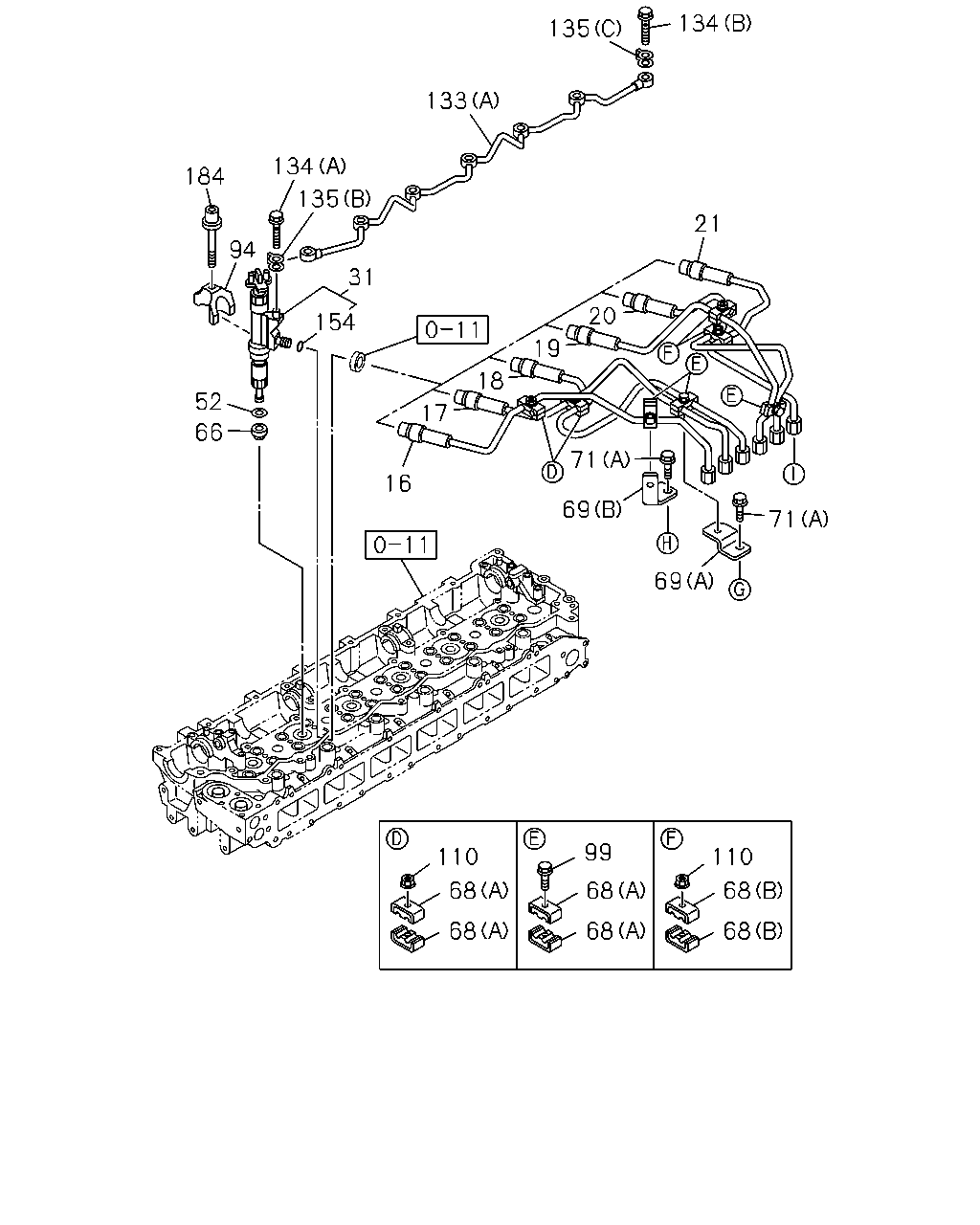

çizim 406270
21 135 134 133 134 184 135 31 94 154 52 66 16 17 18 19 20 71 69 69 71 110 68 68 99 68 68 110 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1402-1403 ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1402-1403 ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1402-1403 ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1402-1403 ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ●
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1402-1403 ● ●
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1404-1501 ● ●
20 PIPE; INJ NO.5 8-98298-615-0 01 1 1502- ● ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1402-1403 ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1501 ● ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502- ● ●
31 NOZZLE ASM; INJ 8-98172-046-1 06 1 1402- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 1402- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 1402- ● ●
68 CLIP; INJ PIPE
(A) 		8-98039-293-0 10 1 1402-1405 ● ●
68 CLIP; INJ PIPE
(B) 		8-98148-996-2 04 1 1402-1405 ● ●
68 CLIP; INJ PIPE
(B) 		8-98148-996-2 14 1 1406- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1402- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1402- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1402- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 1402- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 1402- ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 1402- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 1402- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 05 1 1402- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 1402- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1402- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 1402- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 1402- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-98065-992-0 06 1 1402- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 1402- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1402- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1402- ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 1402- ● ●

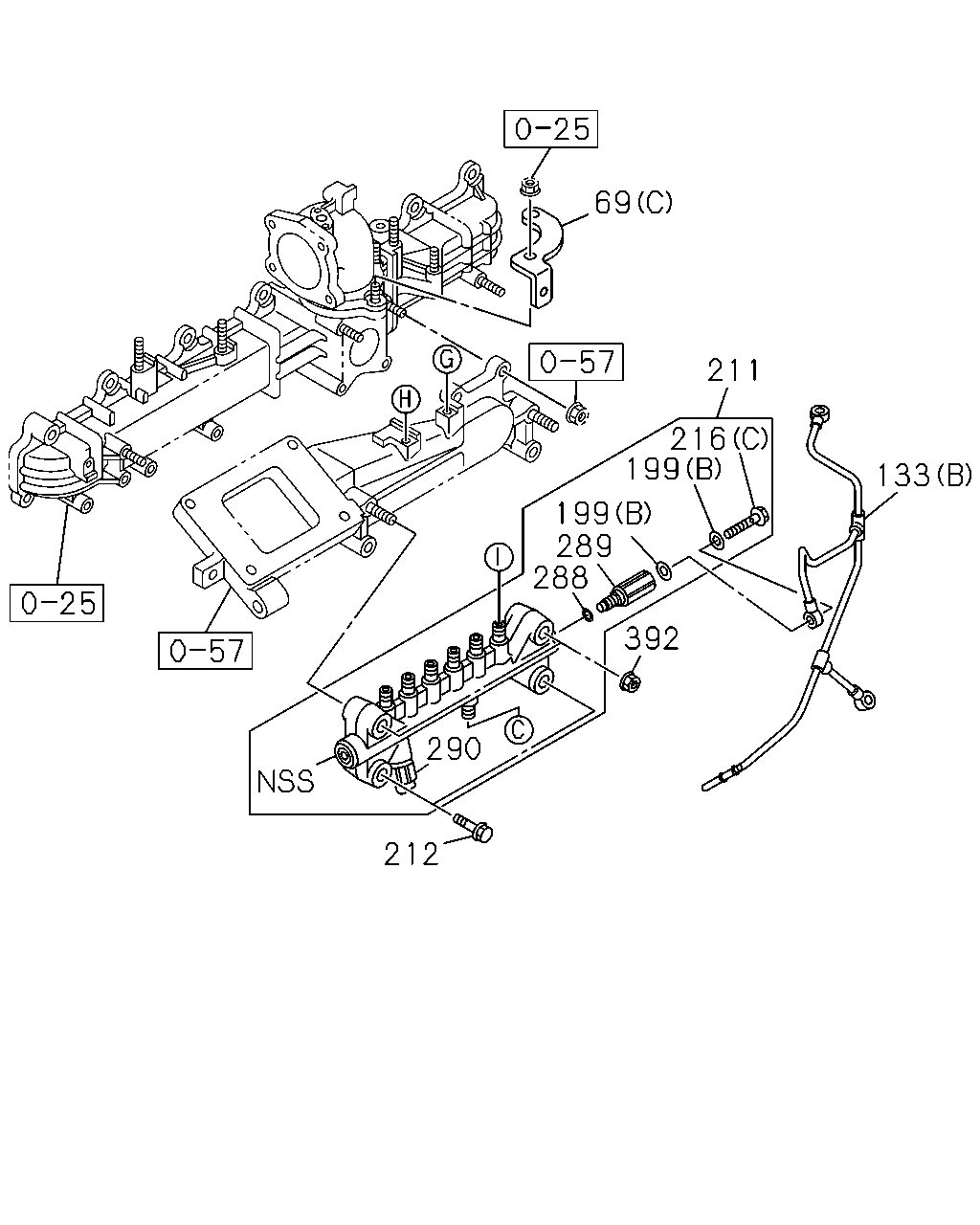

çizim 406820
133 211 216 199 199 289 288 392 290 212 69
BalonParca AdiParca NoAdetTipApplied Date A B
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 1402- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 1402- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 1402- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 1402- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1402- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1402- ● ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 1402- ● ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 1402- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1402- ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1402- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 1402- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1402- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1402- ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1402- ● ●
392 NUT; RAIL ASM
M10 FLANGE THA 		0-91180-110-0 02 1 1402- ● ●
