◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 3 - Brakes, Brake System ▶ 3-80 - BRAKE PIPING; TRAILER ▶
3-80 — BRAKE PIPING; TRAILER (#13363) — 55 parça

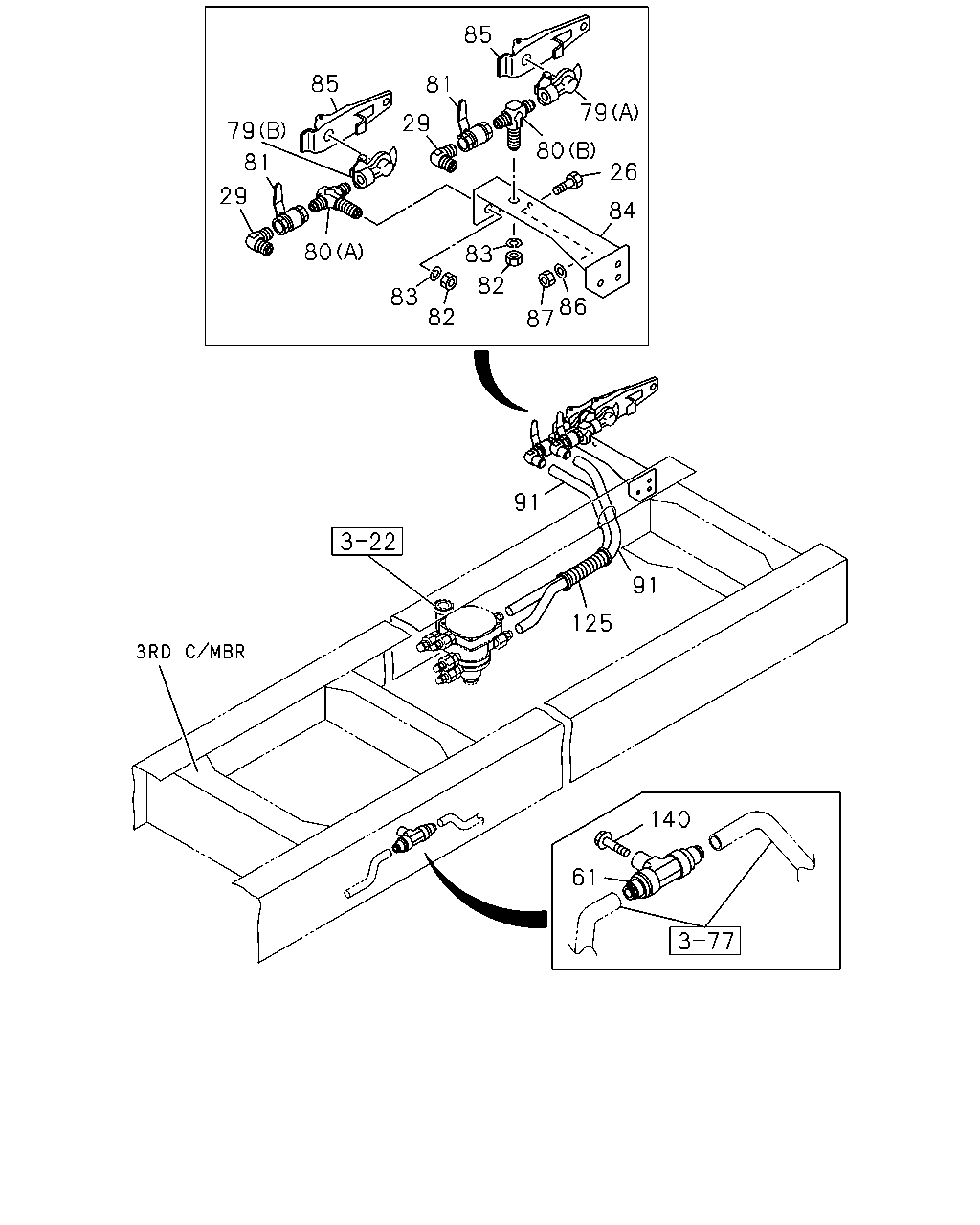

çizim 77496
85 81 29 85 79 81 29 80 82 83 87 86 82 83 84 26 80 79 91 91 125 140 61
BalonParca AdiParca NoAdetTipApplied Date A B
26 BOLT; CHAIN
FULL TRACTOR TRUCK<RD6> M10X33 		9-09808-590-0 02 1 0105-0108 ●
26 BOLT; CHAIN
FULL TRACTOR TRUCK<RD6> M10X33 		9-09808-590-0 02 1 0109- ● ●
29 CONNECTOR; COCK
FULL TRACTOR TRUCK<RD6> DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0105-0108 ●
29 CONNECTOR; COCK
FULL TRACTOR TRUCK<RD6> DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0109- ● ●
61 UNION; NYLON TUBE
BRAKE REGULATION ECE<TDV> 		1-09661-128-0 01 1 0105- ● ●
79 COUPLING; AIR,TRAILER
FULL TRACTOR TRUCK<RD6> (A) BLUE 		1-47465-151-0 01 1 0105-0108 ●
79 COUPLING; AIR,TRAILER
FULL TRACTOR TRUCK<RD6> (A) BLUE 		1-47465-151-0 01 1 0109- ● ●
79 COUPLING; AIR,TRAILER
FULL TRACTOR TRUCK<RD6> (B) RED 		1-47465-152-0 01 1 0105-0108 ●
79 COUPLING; AIR,TRAILER
FULL TRACTOR TRUCK<RD6> (B) RED 		1-47465-152-0 01 1 0109- ● ●
80 NIPPLE; AIR COUPLING
FULL TRACTOR TRUCK<RD6> (B) 		1-09656-377-1 01 1 0105-0108 ●
80 NIPPLE; AIR COUPLING
FULL TRACTOR TRUCK<RD6> (B) 		1-09656-377-1 01 1 0109- ● ●
80 NIPPLE; AIR COUPLING
FULL TRACTOR TRUCK<RD6> (A) 		1-09664-171-1 01 1 0105-0108 ●
80 NIPPLE; AIR COUPLING
FULL TRACTOR TRUCK<RD6> (A) 		1-09664-171-1 01 1 0109- ● ●
81 COCK; AIR COUPLING
FULL TRACTOR TRUCK<RD6> RED 		1-09680-091-0 01 1 0105-0108 ●
81 COCK; AIR COUPLING
FULL TRACTOR TRUCK<RD6> RED 		1-09680-091-0 01 1 0109- ● ●
81 COCK; AIR COUPLING
FULL TRACTOR TRUCK<RD6> BLUE 		1-09680-092-0 01 1 0105-0108 ●
81 COCK; AIR COUPLING
FULL TRACTOR TRUCK<RD6> BLUE 		1-09680-092-0 01 1 0109- ● ●
82 NUT; LK,CONNECTOR
FULL TRACTOR TRUCK<RD6> M16 		9-99111-416-0 02 1 0105-0108 ●
82 NUT; LK,CONNECTOR
FULL TRACTOR TRUCK<RD6> M16 		9-99111-416-0 02 1 0109-0512 ● ●
82 NUT; LK,CONNECTOR
FULL TRACTOR TRUCK<RD6> M16 		0-91111-516-0 02 1 0601- ● ●
83 WASHER; LK,CONNECTOR
FULL TRACTOR TRUCK<RD6> ID=16.2 		9-09150-516-0 02 1 0105-0108 ●
83 WASHER; LK,CONNECTOR
FULL TRACTOR TRUCK<RD6> ID=16.2 		9-09150-516-0 02 1 0109-0603 ● ●
83 WASHER; LK,CONNECTOR
FULL TRACTOR TRUCK<RD6> ID=16.2 		0-91510-516-0 02 1 0604- ● ●
84 BRACKET; COUPLER
FULL TRACTOR TRUCK<RD6> 		1-47465-883-1 01 1 0105-0108 ●
84 BRACKET; COUPLER
FULL TRACTOR TRUCK<RD6> 		1-47465-883-1 01 1 0109- ● ●
85 CHAIN; AIR HOSE
FULL TRACTOR TRUCK<RD6> 		1-47469-010-0 02 1 0105-0108 ●
85 CHAIN; AIR HOSE
FULL TRACTOR TRUCK<RD6> 		1-47469-010-0 02 1 0109- ● ●
86 WASHER; PL
FULL TRACTOR TRUCK<RD6> ID=10.5 OD=22 		9-09164-610-0 02 1 0105-0108 ●
86 WASHER; PL
FULL TRACTOR TRUCK<RD6> ID=10.5 OD=22 		9-09164-610-0 02 1 0109- ● ●
87 NUT
FULL TRACTOR TRUCK<RD6> M10 FLANGE 		0-91150-210-0 02 1 0105-0108 ●
87 NUT
FULL TRACTOR TRUCK<RD6> M10 FLANGE 		0-91150-210-0 02 1 0109-0602 ● ●
87 NUT
FULL TRACTOR TRUCK<RD6> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
91 TUBE; NYLON
BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 0105- ● ●
125 TUBE; CORRUGATE
BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 ID=13 		1-87410-091-0 02 1 0109- ●
125 TUBE; CORRUGATE
BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0105-0108 ● ●
125 TUBE; CORRUGATE
BRAKE REGULATION ECE<TDV> SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0109- ●
140 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X25 FLANGE 		0-28080-825-0 01 1 0105-0512 ● ●
140 BOLT; UNION
BRAKE REGULATION ECE<TDV> M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●

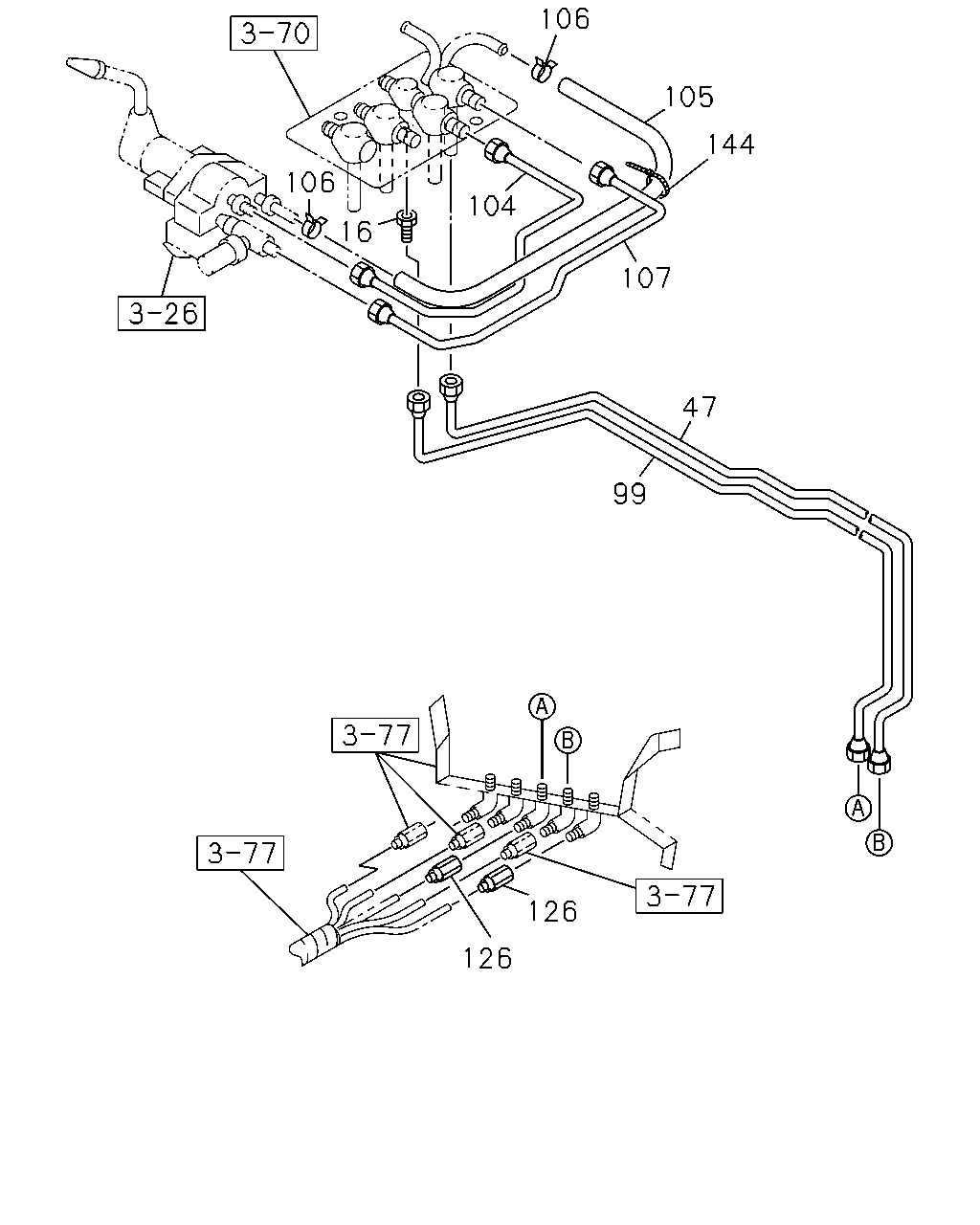

çizim 79277
126 126 99 47 107 144 105 106 104 16 106
BalonParca AdiParca NoAdetTipApplied Date A B
16 UNION; AIR PIPE
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09654-258-1 01 1 0105- ● ●
47 PIPE; AIR,UNION TO UNION
FULL TRACTOR TRUCK<RD6> SPRING BRAKE(SU9) L=1936 		1-49121-473-1 01 1 0105- ● ●
99 PIPE; AIR,JOINT TO JOINT
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> L=1551 		1-49121-054-0 01 1 0105- ● ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47495-159-0 01 1 0105-0109 ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47495-159-0 01 1 0110- ● ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-295-0 01 1 0105- ● ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0109 ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0110- ● ●
106 CLIP; PIPE
SPRING BRAKE(SU9) ID=14 		8-94238-572-0 02 1 0105-0111 ● ●
106 CLIP; PIPE
FULL TRACTOR TRUCK<RD6> ID=14 		8-94238-572-0 02 1 0112- ● ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47495-160-0 01 1 0105-0109 ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47495-160-0 01 1 0110- ● ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-296-0 01 1 0105- ● ●
126 CONNECTOR; NYLON TUBE
SPRING BRAKE(SU9) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0206 ● ●
126 CONNECTOR; NYLON TUBE
FULL TRACTOR TRUCK<RD6> SPRING BRAKE(SU9) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0206 ● ●
126 CONNECTOR; NYLON TUBE
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0207- ● ●
144 CLIP; BAND
FULL TRACTOR TRUCK<RD6> L=140 		5-09707-031-1 01 1 0112- ● ●
