Isuzu WW
▶
TRUCKS
▶
FVM
▶
11577 - FVM(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#133629) — 40 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
◀

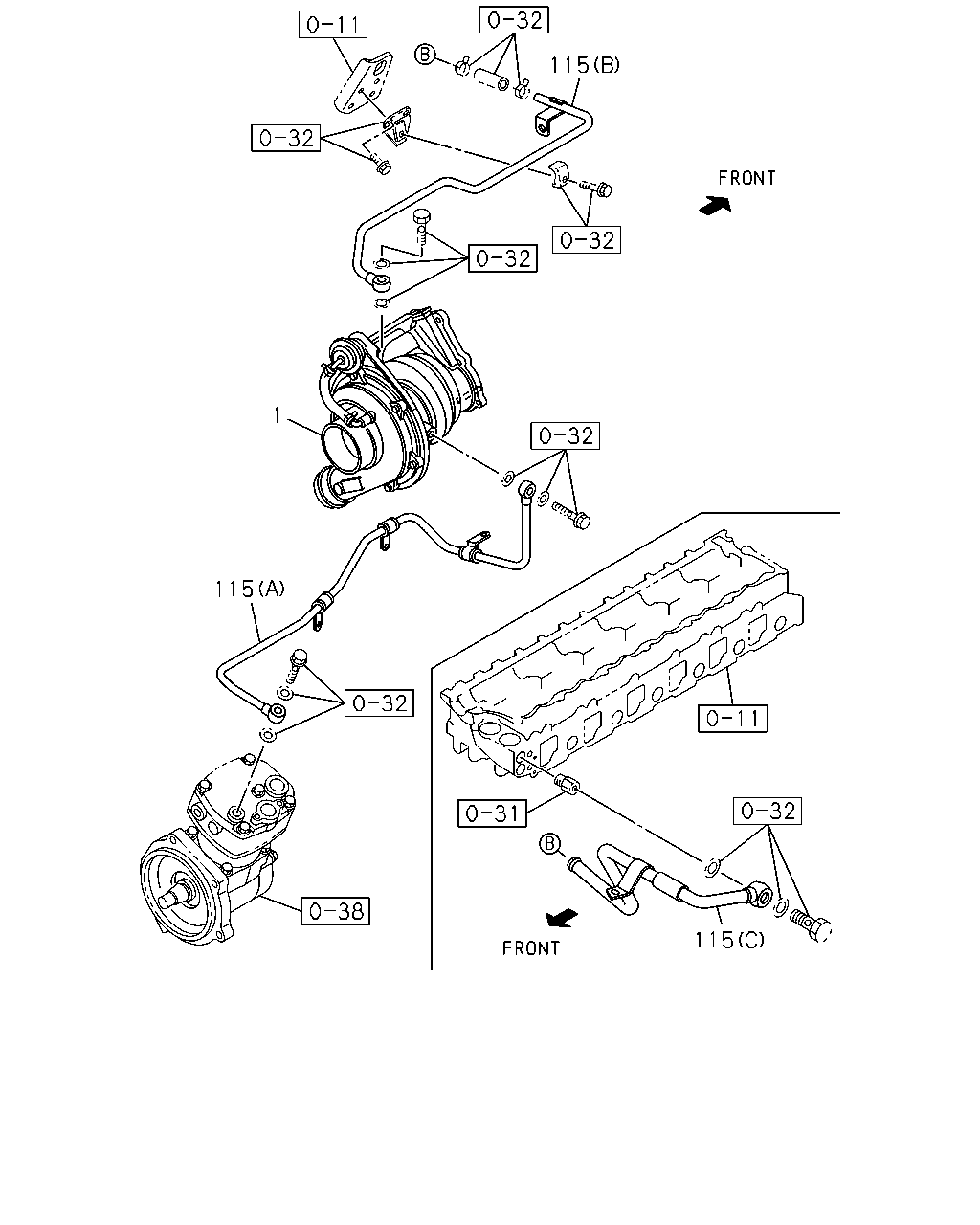

[036A] WATER PIPING (4 parça)
[036A] TURBOCHARGER FIXING (36 parça)
▶
1
115
115
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97602-926-2
01
1
1402-
●
●
115
PIPE; WATER,TURBOCHARGER OUT
(B)
8-94392-950-0
01
1
1402-
●
●
115
PIPE; WATER,TURBOCHARGER OUT
(C)
8-94395-454-4
01
1
1402-
●
●
115
PIPE; WATER,TURBOCHARGER OUT
(A)
8-97618-807-0
01
1
1402-
●
●
2
12
212
10
11
212
11
16
388
17
162
217
265
275
217
275
162
17
12
13
1
94
17
122
20
20
79
79
398
398
20
398
398
488
398
398
92
92
28
143
98
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97602-926-2
01
1
1402-
●
●
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
1402-
●
●
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
1402-
●
●
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
1402-
●
●
12
STUD; TURBOCHARGER
(A)
9-04130-825-0
01
1
1402-
●
●
12
STUD; TURBOCHARGER
(B)
9-04731-080-0
02
1
1402-
●
●
13
STUD; EXH PIPE
M12X103 L=123
8-94394-656-0
01
1
1402-
●
●
16
ADAPTER; EXH PIPE
8-94395-767-0
01
1
1402-
●
●
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
1402-
●
●
20
PIPE; INL,TURBOCHARGER OUT
(B)
8-97606-675-1
01
1
1402-
●
●
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-97618-726-2
01
1
1402-1408
●
●
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-98251-577-0
01
1
1409-
●
●
20
PIPE; INL,TURBOCHARGER OUT
(C)
8-97618-734-0
01
1
1402-
●
●
28
PROTECTOR; HEAT,HOSE,AIR DUCT
8-94393-182-0
01
1
1402-
●
●
79
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
02
1
1402-
●
●
92
BOLT; INL PIPE
(B) M8X35 FLANGE THA
0-28650-835-0
01
1
1402-
●
●
92
BOLT; INL PIPE
(A) M8X40 FLANGE THA
0-28650-840-0
01
1
1402-
●
●
94
GASKET; INL PIPE
8-98053-830-0
01
1
1402-1402
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
1-09360-797-1
01
1
1402-1408
●
●
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98245-240-0
01
1
1409-
●
●
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
1402-
●
●
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
8-94126-771-0
02
1
1402-
●
●
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
1402-
●
●
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
1402-
●
●
217
BOLT; BRKT
M12X30
8-94394-324-0
03
1
1402-
●
●
265
BRACKET; EXH PIPE
8-94395-764-2
01
1
1402-
●
●
275
WASHER; PL
ID=12.2
1-09503-008-0
03
1
1402-
●
●
388
GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94394-248-2
01
1
1402-
●
●
398
MOUNTING
(F)
8-94160-177-0
01
1
1402-
●
●
398
MOUNTING
(C)
8-94390-551-1
01
1
1402-
●
●
398
MOUNTING
(D)
8-94394-504-0
01
1
1402-
●
●
398
MOUNTING
(E)
8-94394-529-0
01
1
1402-
●
●
398
MOUNTING
(A)
8-94395-766-0
01
1
1402-
●
●
398
MOUNTING
(B) OD=23
8-97105-689-6
01
1
1402-
●
●
488
HOSE; RUBBER
1-09360-797-1
01
1
1402-1408
●
●
488
HOSE; RUBBER
8-98245-240-0
01
1
1409-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
