0-22 — ENGINE MOUNTING (#133620) — 22 parça

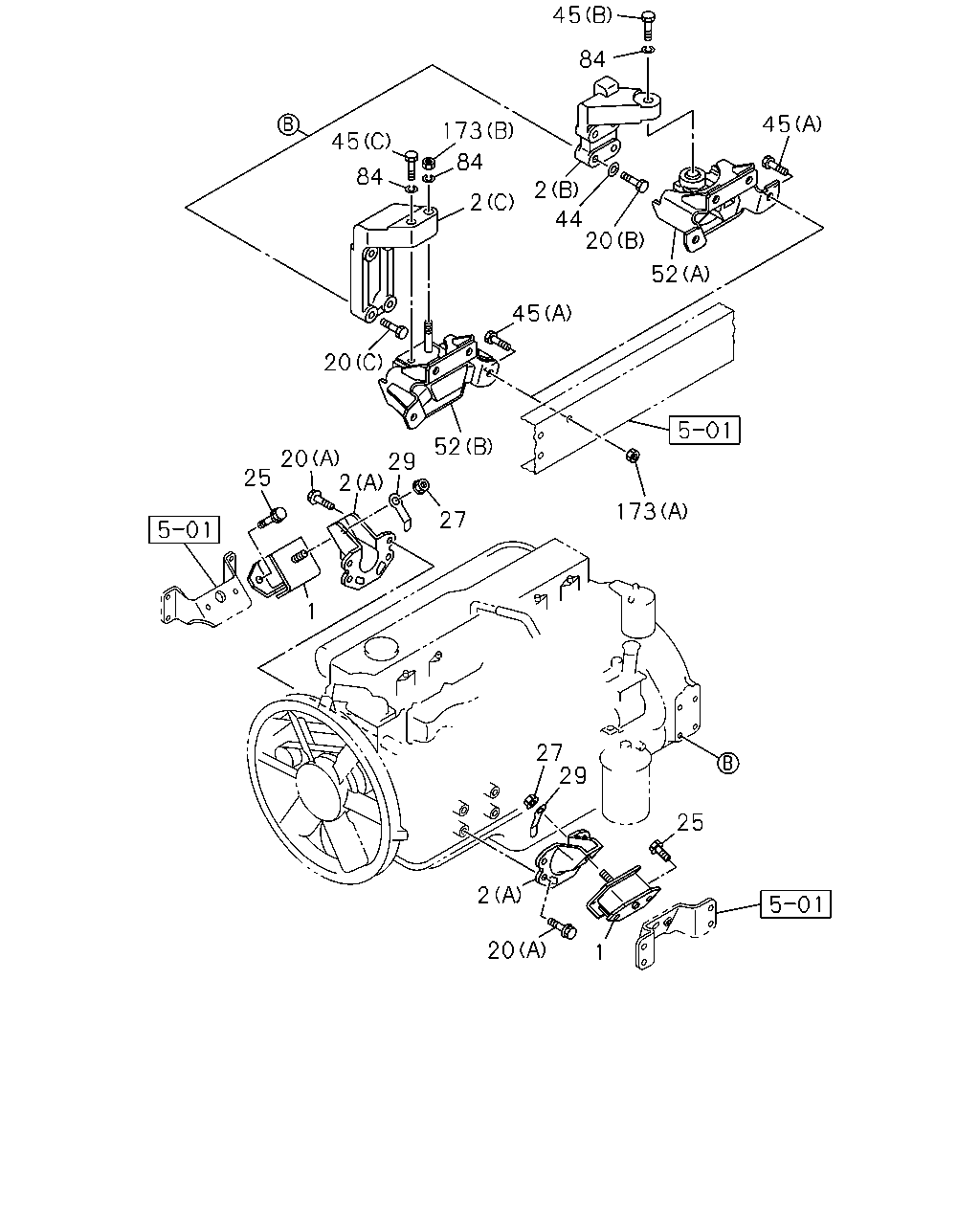

çizim 406163
45 173 2 84 84 2 44 20 45 52 45 84 45 20 52 29 27 2 20 25 1 27 29 25 2 20 1 173
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1402- ● ●
2 FOOT; ENG
MZW6P M/T<RSZ> (B) 		8-97611-988-0 01 1 1402- ●
2 FOOT; ENG
MZW6P M/T<RSZ> (B) 		8-97611-989-0 01 1 1402- ●
2 FOOT; ENG
(A) 		8-97602-589-1 02 1 1402- ● ●
2 FOOT; ENG
ZF9S1110 M/T<Y5E> (C) 		8-97611-990-0 01 1 1402- ● ●
2 FOOT; ENG
ZF9S1110 M/T<Y5E> (C) 		8-97611-991-0 01 1 1402- ● ●
20 BOLT; ENG FOOT
MZW6P M/T<RSZ> (B) M12X50 		0-16956-250-0 08 1 1402- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1402- ● ●
20 BOLT; ENG FOOT
ZF9S1110 M/T<Y5E> (C) M12X55 		8-94399-884-1 08 1 1402- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE THA 		0-28651-235-0 04 1 1402- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE THA 		0-91180-212-0 02 1 1402- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1402- ● ●
44 WASHER; LK,ENG FOOT
MZW6P M/T<RSZ> ID=12.5 		0-91614-512-0 08 1 1402- ●
45 BOLT; CUSHION RUBBER TO FRAME
(A) M14X50 		0-29261-450-0 08 1 1402- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
MZW6P M/T<RSZ> (B) M18X65 		8-94393-260-1 02 1 1402- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
ZF9S1110 M/T<Y5E> (C) M16X60 		0-10956-660-0 02 1 1402- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
MZW6P M/T<RSZ> (A) 		8-98013-021-1 02 1 1402- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
ZF9S1110 M/T<Y5E> (B) 		8-98013-022-1 02 1 1402- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
MZW6P M/T<RSZ> ID=19 OD=36 		0-91614-618-0 02 1 1402- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ZF9S1110 M/T<Y5E> ID=17 		9-09164-516-0 04 1 1402- ● ●
173 NUT; ENG MTG RR TO FRAME
(A) M14 FLANGE THA 		0-91180-214-0 08 1 1402- ● ●
173 NUT; ENG MTG RR TO FRAME
ZF9S1110 M/T<Y5E> (B) M16 THA 		0-91110-516-0 02 1 1402- ● ●
