Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#13361) — 205 parça

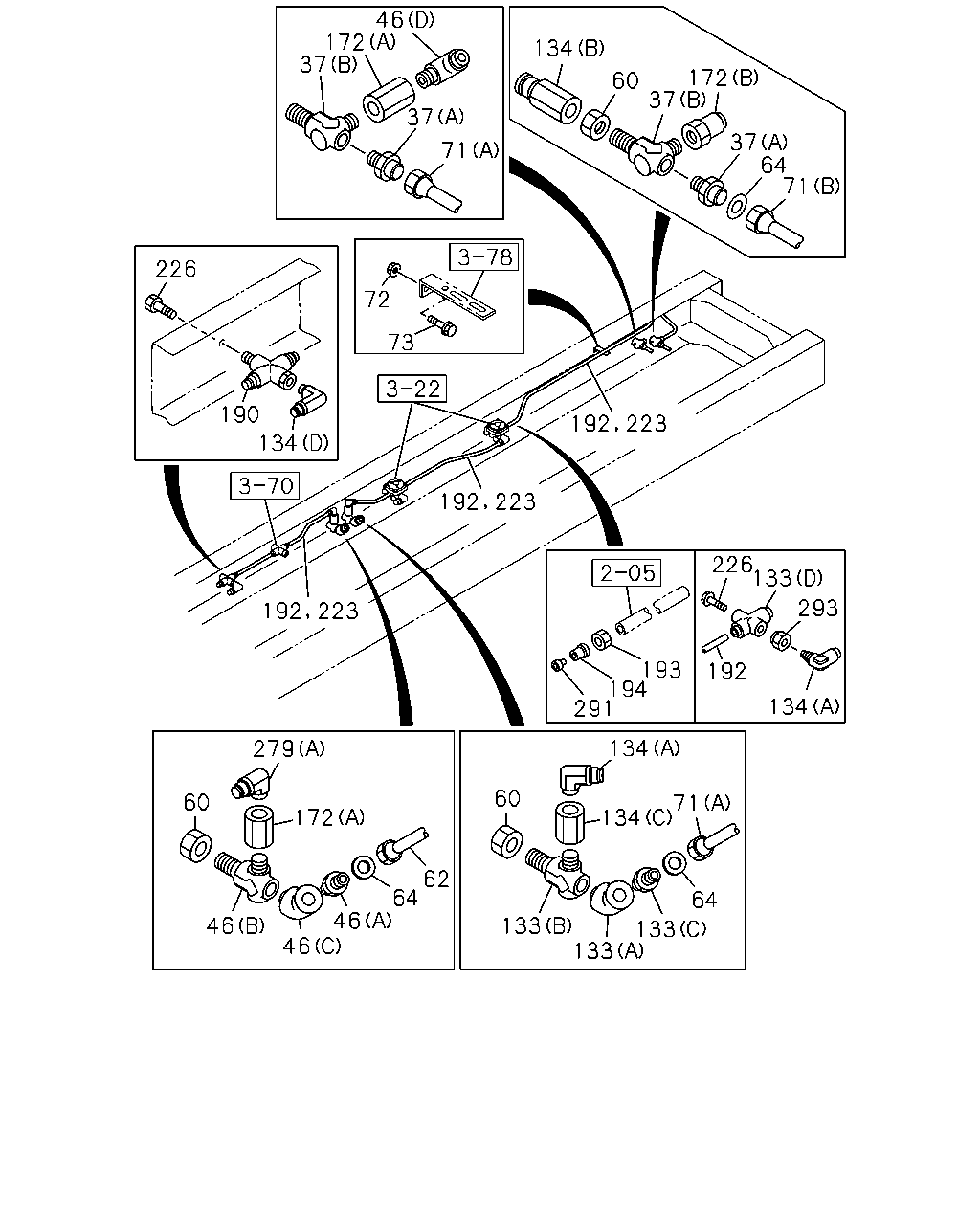

71 64 37 172 37 60 134 46 172 37 71 37 72 73 226 190 134 223 192 223 192 223 192 293 133 226 134 192 193 194 291 134 134 71 60 64 133 133 133 62 64 46 46 46 172 279 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-0206	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-0206	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0207-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T>,PARKING BRAKE VALVE LEVER TYPE<W48> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0207-	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0207-		●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	0105-0206	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	0105-0206	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	0207-	●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T>,PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09650-251-1	01	1	0207-	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-09650-251-1	01	1	0207-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-0206	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0207-	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0207-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	0105-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-251-1	01	1	0105-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-251-1	02	1	0105-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	0105-		●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> M20	9-99111-420-0	02	1	0105-0512	●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	02	1	0105-0512		●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> M20	0-91111-520-0	02	1	0601-	●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M20	0-91111-520-0	02	1	0601-		●
62	HOSE; FLEX,FWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> L=630	0-07909-630-0	01	1	0105-		●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> ID=17.5	9-09572-515-0	04	1	0105-	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=17.5	9-09572-515-0	04	1	0105-		●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=17.5	9-09572-515-0	04	1	0105-		●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) L=550	0-07909-550-0	02	1	0105-	●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=630	0-07909-630-0	01	1	0105-		●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) L=670	0-07909-670-0	02	1	0105-		●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
72	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X25 FLANGE	0-28680-825-0	04	1	0105-0206	●	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> M8X25 FLANGE	0-28680-825-0	02	1	0207-0512	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	0207-0512	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X25 FLANGE	0-28680-825-0	02	1	0207-0512		●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X25 FLANGE	0-28680-825-0	02	1	0207-0512		●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
73	BOLT; CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> M8X40 FLANGE	0-28680-840-0	02	1	0105-0512		●
73	BOLT; CLIP POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> M8X40 FLANGE	0-28650-840-0	02	1	0601-		●
133	UNION; NIPPLE BRAKE REGULATION ECE<TDV> (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0105-	●	●
133	UNION; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-		●
133	UNION; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-251-1	01	1	0105-		●
133	UNION; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	0105-		●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
134	CONNECTOR BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-		●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-		●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-		●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-0206	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-0206		●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0207-	●	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0207-		●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0207-		●
190	UNION; 3 WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0301-	●	●
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	0105-0105	●	●
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0105-0105	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-	●	●
226	BOLT; UNION BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
226	BOLT; UNION BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
226	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-	●	●
226	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28080-825-0	01	1	0105-0512	●	●
226	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (C) M14X35	1-09650-272-2	01	1	0105-	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	0105-	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-		●
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0105-0105	●	●
293	VALVE; CHECK BRAKE REGULATION ECE<TDV>	1-48320-013-2	01	1	0105-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	81	CONNECTOR; NYLON TUBE,FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-	●
	81	CONNECTOR; NYLON TUBE,FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-		●

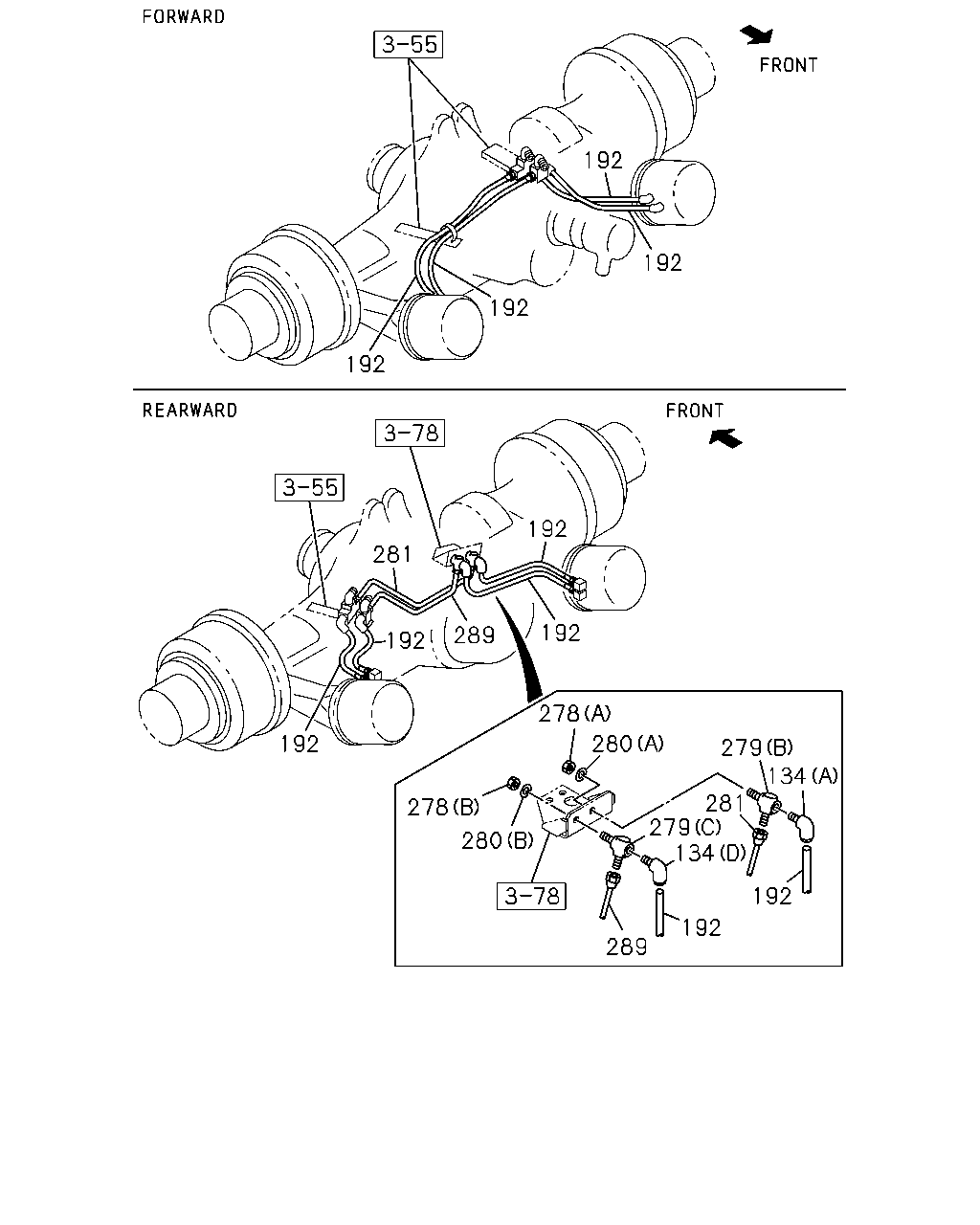

192 192 192 192 192 192 289 192 281 192 278 280 279 134 192 192 289 134 279 281 280 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
134	CONNECTOR BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-		●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-		●
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0301-	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M16	9-99111-416-0	01	1	0105-0512	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M16	0-91111-516-0	01	1	0601-	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M20	9-99111-420-0	01	1	0105-0512	●	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M20	0-91111-520-0	01	1	0601-	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (C) M14X35	1-09650-272-2	01	1	0105-	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	0105-	●	●
279	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-		●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) ID=16.2	9-09150-516-0	01	1	0105-0603	●	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) ID=16.2	0-91510-516-0	01	1	0604-	●	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=20.2	9-09150-520-0	01	1	0105-0603	●	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=20.2	0-91510-520-0	01	1	0604-	●	●
281	PIPE; AIR,EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-109-0	01	1	0105-	●	●
289	PIPE; AIR,MODULATOR TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T>	1-49117-108-0	01	1	0105-	●	●

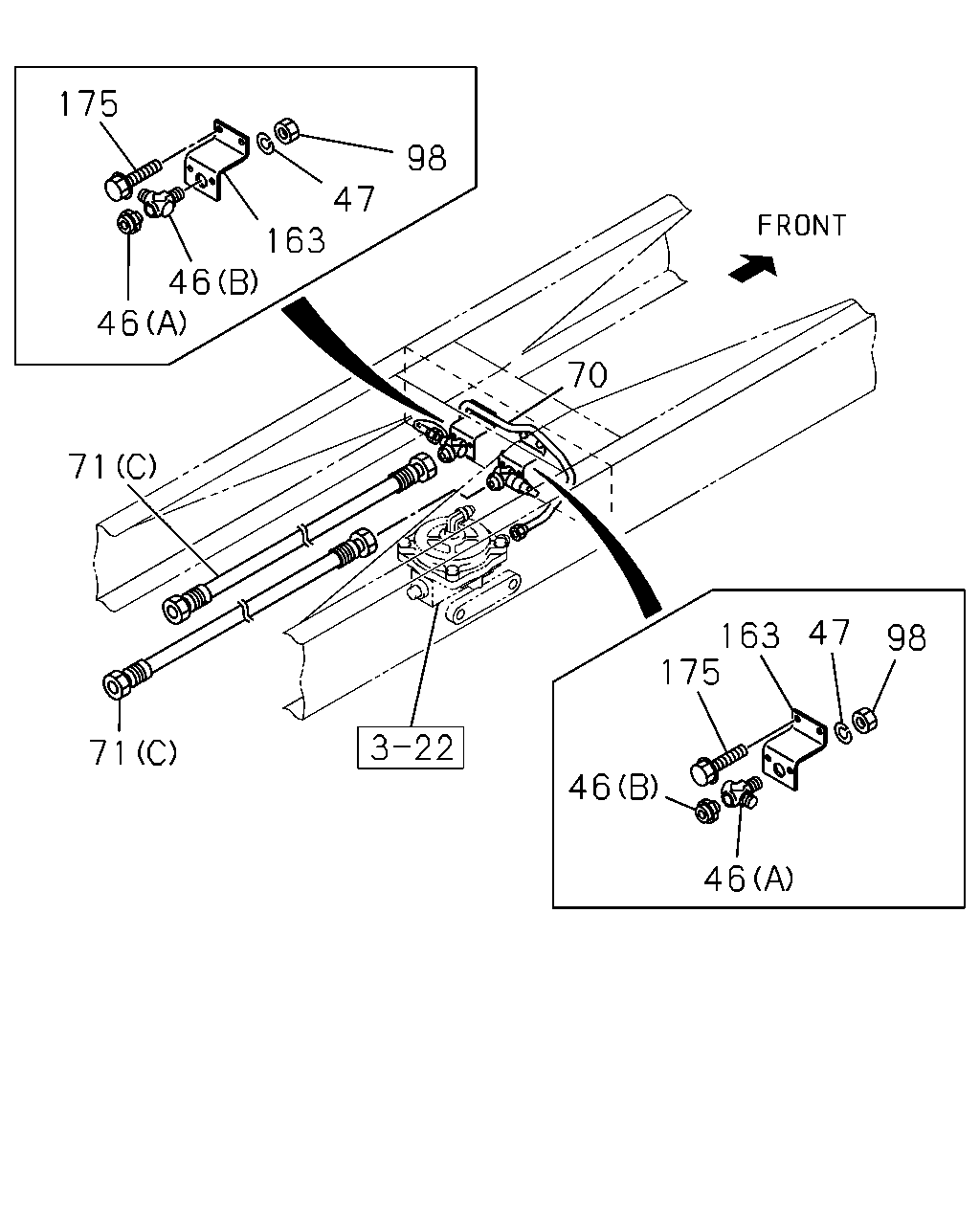

98 47 163 46 46 175 71 70 98 47 163 175 46 46 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-0206	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0207-	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PARKING BRAKE VALVE LEVER TYPE<W48> EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0207-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	0105-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-251-1	01	1	0105-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-251-1	02	1	0105-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	0105-		●
47	WASHER; LK,HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=20.2	9-09150-520-0	02	1	0105-0603		●
47	WASHER; LK,HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=20.2	0-91510-520-0	02	1	0604-		●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-49117-247-0	01	1	0105-		●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) L=550	0-07909-550-0	02	1	0105-	●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=630	0-07909-630-0	01	1	0105-		●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) L=670	0-07909-670-0	02	1	0105-		●
98	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	02	1	0105-0512		●
98	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M20	0-91111-520-0	02	1	0601-		●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-47475-540-1	02	1	0105-		●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28680-840-0	04	1	0105-0512		●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X40 FLANGE	0-28650-840-0	04	1	0601-		●

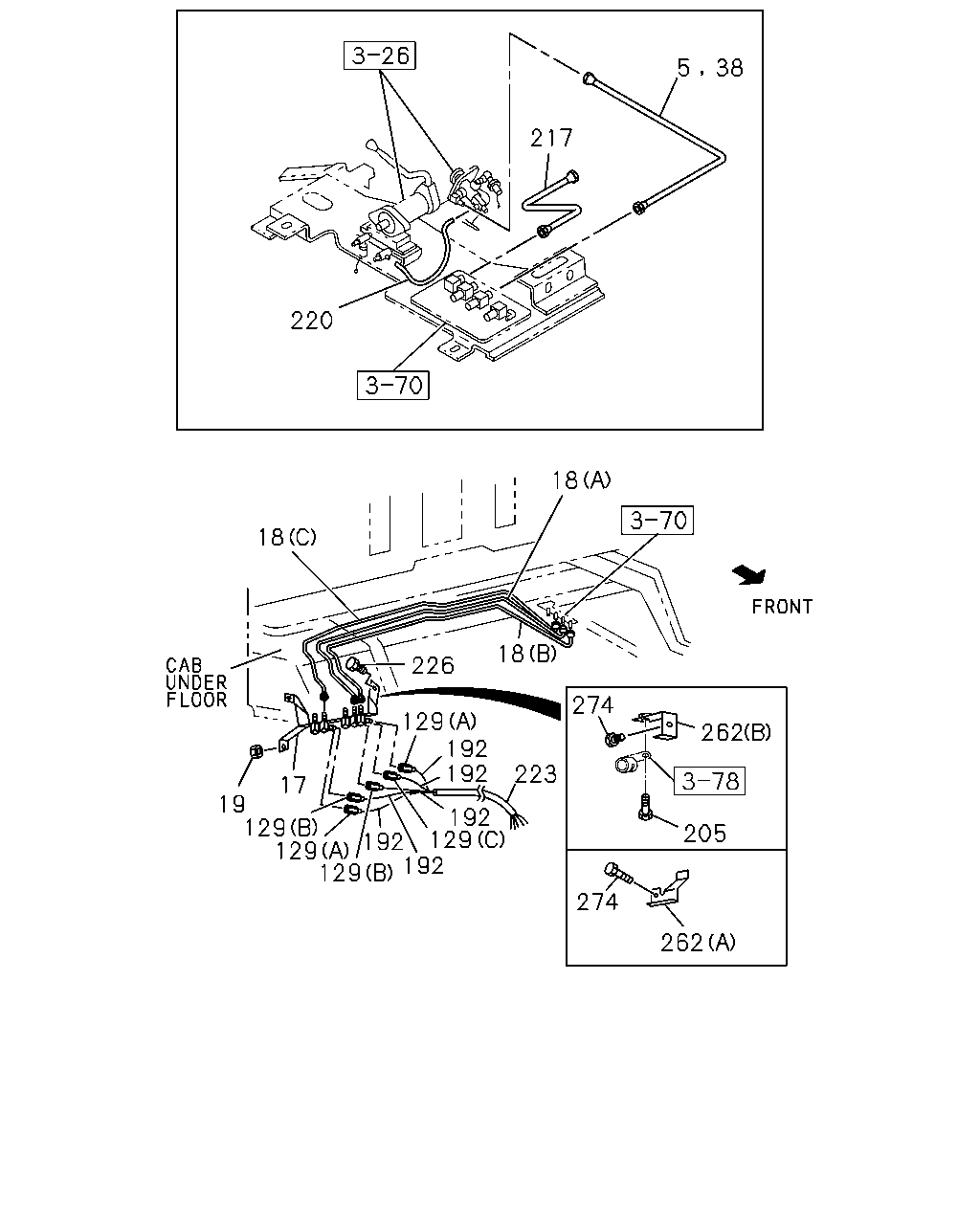

38 5 217 220 18 18 18 226 129 192 192 223 192 129 192 192 129 129 129 19 17 274 274 262 262 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	PIPE; AIR,UNION TO PARKING VLV SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47495-161-0	01	1	0105-	●	●
17	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-453-2	01	1	0105-	●	●
17	UNION; AIR PIPE SPRING BRAKE(SU9) EXC. FULL TRACTOR TRUCK<RD6>	1-47470-456-2	01	1	0105-	●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (C) L=1942	1-49121-057-0	01	1	0105-	●	●
18	PIPE; AIR,UNION TO UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1854	1-49121-053-0	01	1	0105-	●	●
18	PIPE; AIR,UNION TO UNION FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1982	1-49121-055-1	01	1	0105-	●	●
18	PIPE; AIR,UNION TO UNION SPRING BRAKE(SU9) (A) L=1800	1-49121-052-0	01	1	0105-	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	0105-0512	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	01	1	0601-	●	●
38	PIPE; AIR,UNION TO MAG VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6>	1-49116-870-0	01	1	0105-0106	●	●
38	PIPE; AIR,UNION TO MAG VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6>	1-49116-870-0	01	1	0107-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0207-	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0207-	●	●
129	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0106	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0106	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0206	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0206	●	●
129	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0207-	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0207-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0105-0206	●	●
129	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0105-0206	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0207-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (C) DIN12 ID=15.4 ELBOW	1-09661-079-0	01	1	0105-0106	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> (C) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0107-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (B)	1-09661-083-0	01	1	0105-0106	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> (B)	1-09661-083-0	01	1	0107-	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-0106	●	●
129	CONNECTOR; NYLON TUBE SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0105-0106	●	●
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0107-0206	●	●
129	CONNECTOR; NYLON TUBE SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0107-0206	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	03	1	0207-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0105-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0301-	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
205	BOLT; TUBE CLIP SPRING BRAKE(SU9) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6>	1-49116-871-0	01	1	0105-0106	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6>	1-49116-871-0	01	1	0107-	●	●
217	PIPE; AIR,PARKING BRK VLV TO UNION SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-456-0	01	1	0105-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6>,PARKING BRAKE VALVE LEVER TYPE<W48> L=400 SERVICED BY L=10000	9-09914-701-0	01	1	0309-0312	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> L=140	5-09707-031-1	01	1	0112-0203	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV FULL TRACTOR TRUCK<RD6> FULLER M/T<X9B>,ZF M/T<X9E> L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0106-0106	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0107-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0105-0105	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV FULL TRACTOR TRUCK<RD6> ISUZU M/T<X9A> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0106-0106	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0106-0106	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0107-0111	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0107-0111	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV SPRING BRAKE(SU9) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0112-0203	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0204-0308	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0204-0308	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0309-0312	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6>,PARKING BRAKE VALVE LEVER TYPE<W48> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0401-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0401-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-	●	●
226	BOLT; UNION BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28080-820-0	01	1	0105-0512	●	●
226	BOLT; UNION BRAKE REGULATION ECE<TDV> M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
226	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-	●	●
226	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28080-825-0	01	1	0105-0512	●	●
226	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
262	BRACKET SPRING BRAKE(SU9) (B)	1-79996-143-0	01	1	0105-	●	●
262	BRACKET SPRING BRAKE(SU9) (A)	1-79996-144-0	01	1	0105-	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
274	BOLT; BRKT SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
