8-71 — COMPRESSOR; AIR CONDITIONING (#133605) — 10 parça

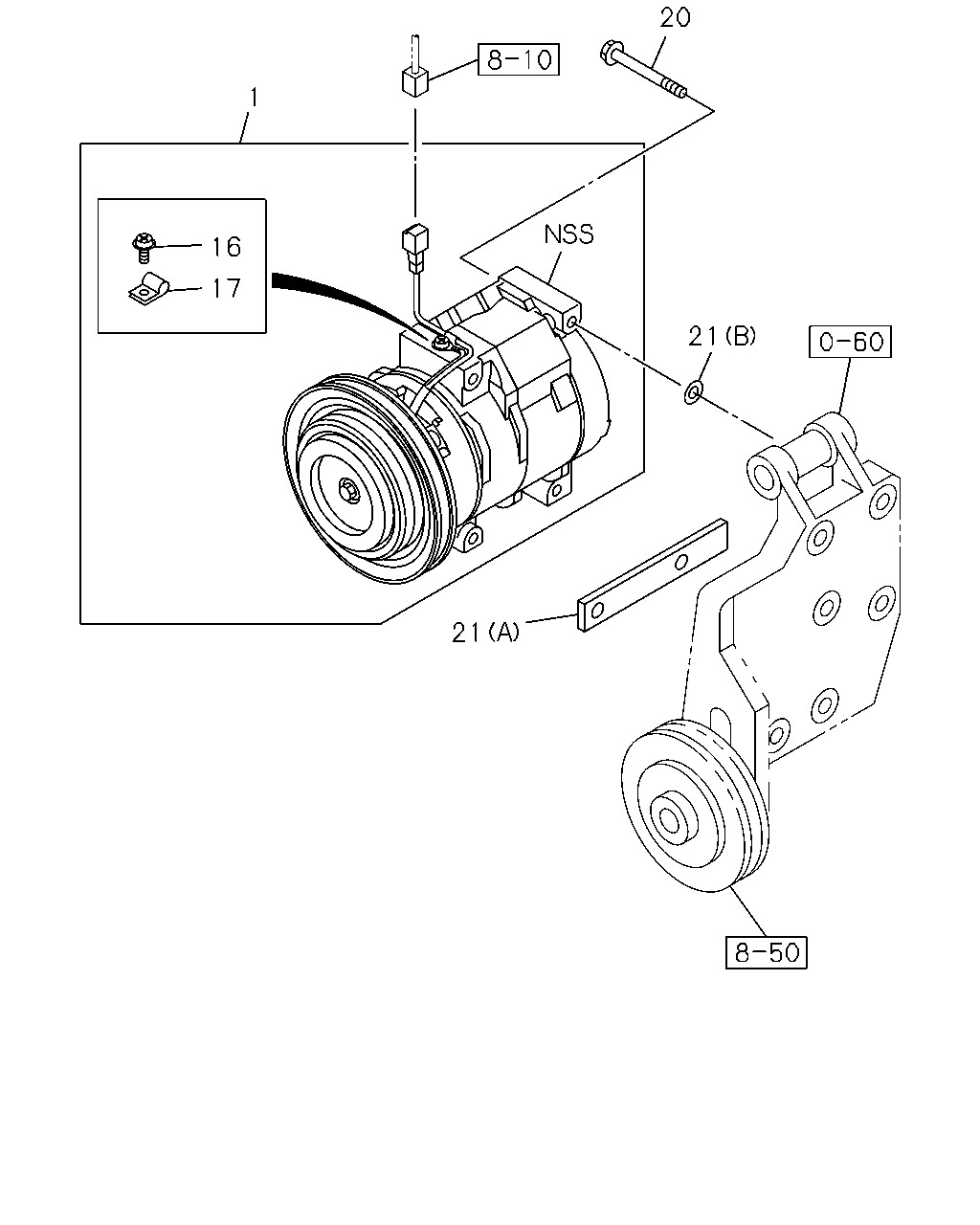

çizim 408198
20 1 16 17 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C 1-83532-328-0 01 1 1402-1402
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		1-83532-328-0 01 1 1403-
16 CLIP; WIRE,MAGNET CLU 1-83579-893-0 01 1 1402-1402
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		1-83579-893-0 01 1 1403-
17 SCREW; WIRE CLIP MAGNET CLU 5-81129-130-0 01 1 1402-1402
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		5-81129-130-0 01 1 1403-
20 BOLT; CMPR
M8X78 W/LK WASHER 		5-09000-228-1 04 1 1402-
21 WASHER; COOLER CMPR
(A) 		1-83573-271-0 01 1 1402-
21 WASHER; COOLER CMPR
(B) ID=8.2 		8-94312-733-0 02 1 1402-1402
21 WASHER; COOLER CMPR
(B) ID=8.2 		8-98019-967-0 02 1 1403-
