Isuzu WW
▶
TRUCKS
▶
FTR
▶
11576 - FTR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

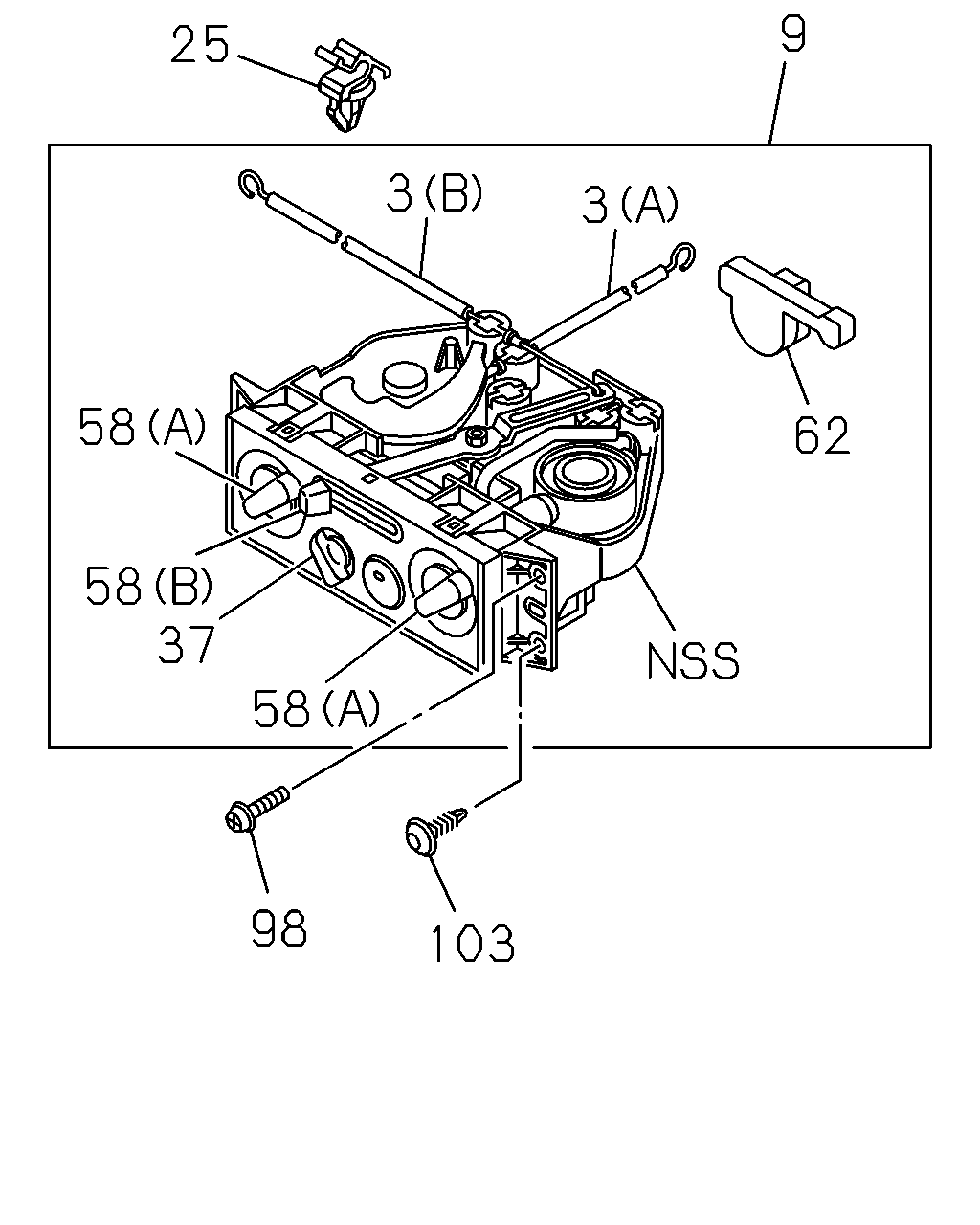

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#133604) — 10 parça
9
3
62
3
25
58
58
37
58
103
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) MODE THA
8-97927-124-0
01
1
1402-
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) R/F THA
8-97927-125-0
01
1
1402-
9
LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-518-0
01
1
1402-
25
CLIP; CABLE,CONT LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=4.8
8-94128-483-0
03
1
1402-
37
KNOB; SW,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-674-0
01
1
1402-
58
KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA
8-97926-673-0
02
1
1402-
58
KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA
8-97926-675-0
01
1
1402-
62
BULB; HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-676-0
01
1
1402-
98
SCREW; CONT PANEL
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
1402-
103
CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> DARK GRAY
8-97098-326-0
01
1
1402-
