Isuzu WW
▶
TRUCKS
▶
FTR
▶
11576 - FTR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#133601) — 21 parça
◀

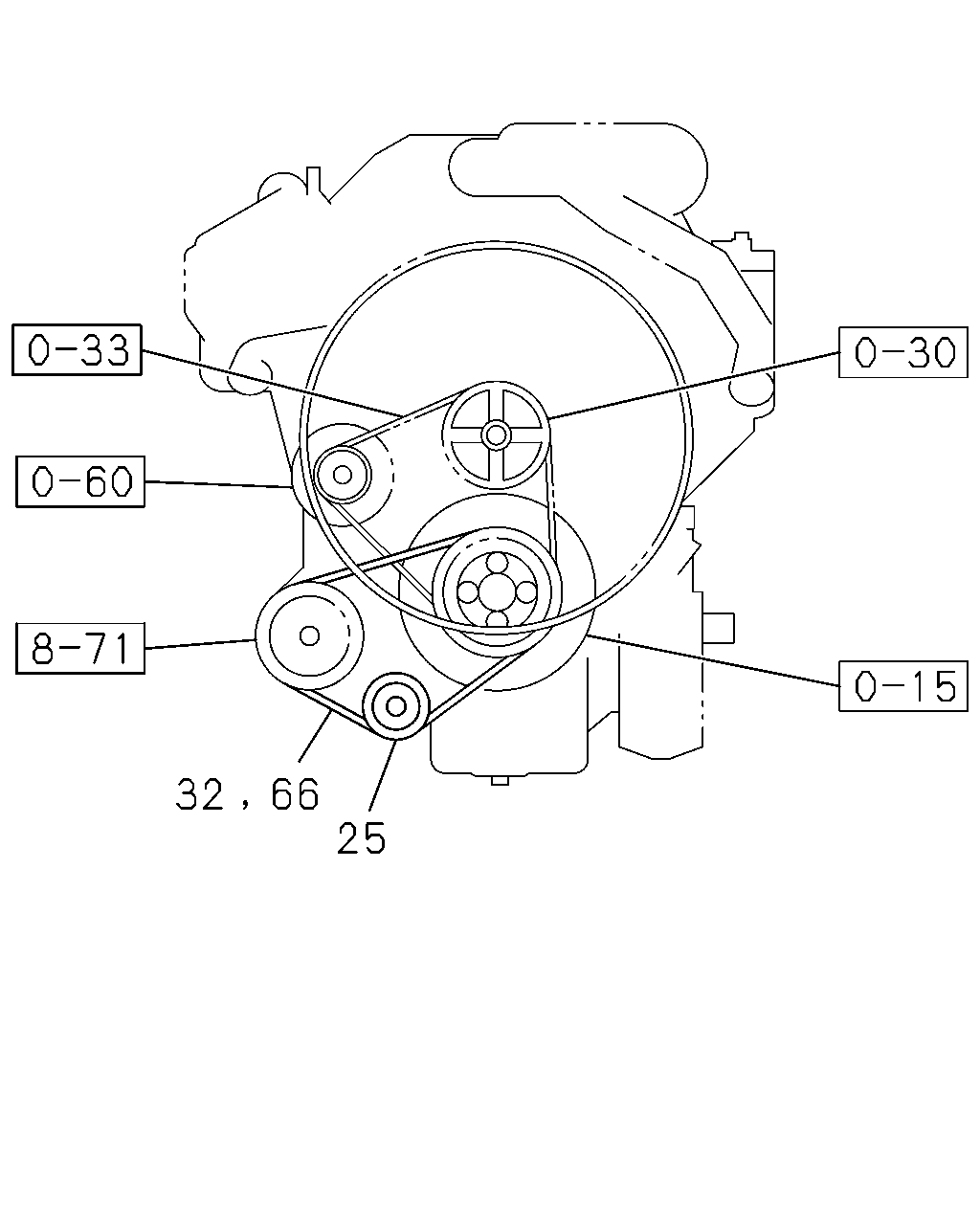

[850A] NO.2 (5 parça)

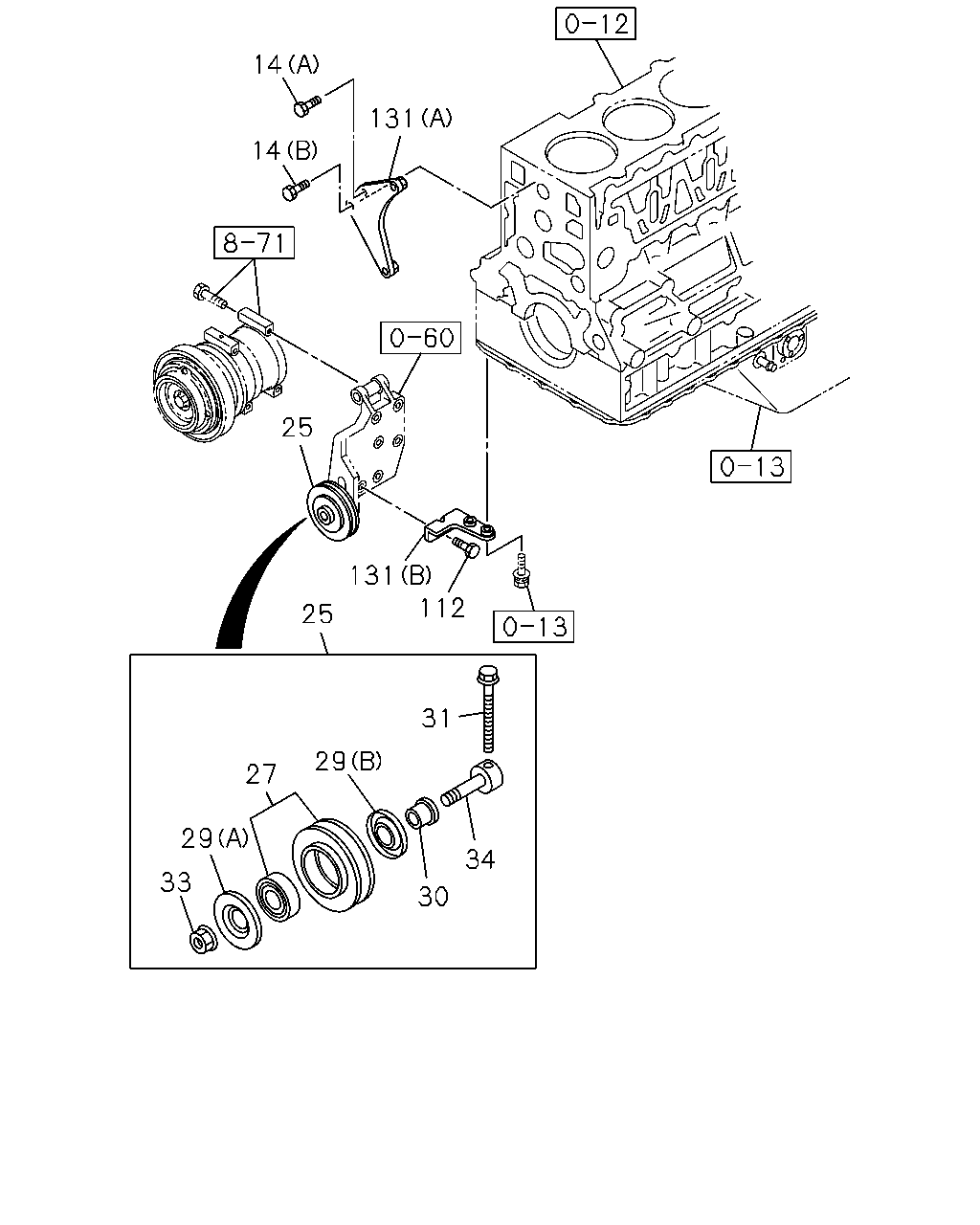

[850A] NO.1 (13 parça)
[850A] NO.3 (3 parça)
▶
32
66
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
PULLEY ASM; IDLER,CMPR
8-97605-079-0
01
1
1402-
32
BELT; A/C CMPR
BEST VALUE PARTS
1-87610-104-0
01
1
1403-
32
BELT; A/C CMPR
L=1114
8-97605-102-0
01
1
1403-
66
BELT; A/C CMPR
BEST VALUE PARTS
1-87610-104-0
01
1
1402-1402
66
BELT; A/C CMPR
L=1114
8-97605-102-0
01
1
1402-1402
14
14
131
25
25
112
131
31
29
27
29
33
30
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
BOLT; CMPR
(A) M10X35 FLANGE
0-28151-035-0
01
1
1402-
14
BOLT; CMPR
(B) M10X45 FLANGE THA
0-28151-045-0
01
1
1402-
25
PULLEY ASM; IDLER,CMPR
8-97605-079-0
01
1
1402-
27
PULLEY; IDLE,A/C
8-97605-323-0
01
1
1402-
29
COVER; DUST,IDLE PULLEY
(A)
8-97605-329-0
01
1
1402-
29
COVER; DUST,IDLE PULLEY
(B)
8-97605-330-0
01
1
1402-
30
COLLAR; IDLE PULLEY
8-97605-328-0
01
1
1402-
31
BOLT; ADJ,IDLE PULLEY
8-97605-325-0
01
1
1402-
33
NUT; IDLER PULLEY
8-97605-326-0
01
1
1402-
34
SHAFT; IDLE PULLEY
8-97605-327-0
01
1
1402-
112
BOLT; STAY
M8X16 FLANGE THA
0-28050-816-0
02
1
1402-
131
STAY; CMPR BRKT
(B)
8-94393-451-0
01
1
1402-
131
STAY; CMPR BRKT
(A)
8-98051-636-0
01
1
1402-
201
378
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
201
CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-94423-042-0
01
1
1402-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)
8-98041-428-0
01
1
1402-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98204-846-0
01
1
1402-
