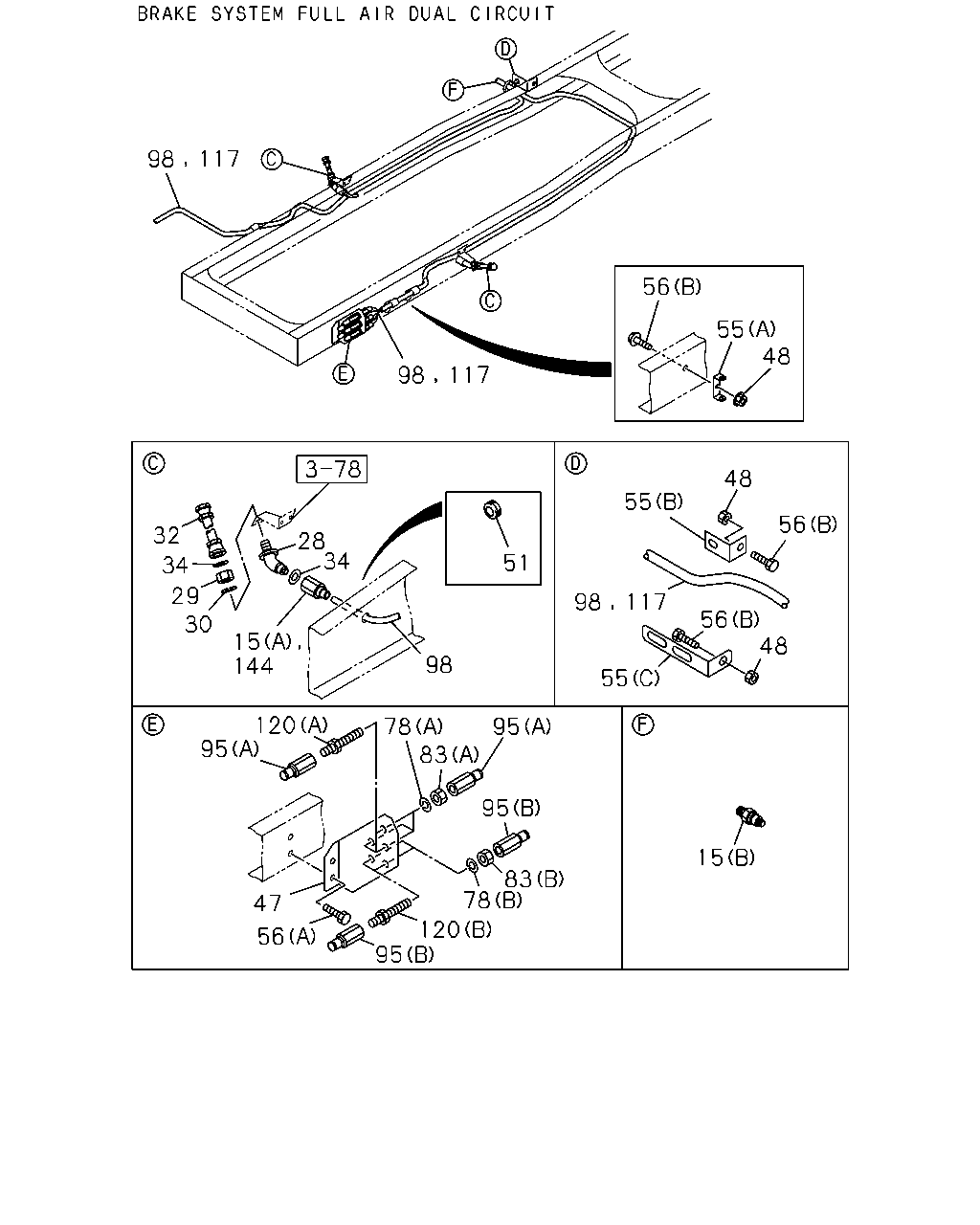

3-75 — BRAKE PIPING; AIR,FRONT (#13360) — 109 parça

15 55 98 48 56 117 56 48 55 48 55 56 117 98 117 98 34 28 98 51 144 15 30 29 34 32 95 78 83 95 83 78 120 95 47 56 95 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-	●	●
15	CONNECTOR; AIR PIPE MUFFLER TWIN VERTICAL<NBS> (B) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	0105-	●	●
28	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	1-09654-199-2	02	1	0105-	●	●
29	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	0105-0512	●	●
29	NUT; NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	0-91111-520-0	02	1	0601-	●	●
30	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	0105-0603	●	●
30	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	0-91510-520-0	02	1	0604-	●	●
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	0-07847-500-1	02	1	0105-	●	●
34	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	04	1	0105-	●	●
47	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-47477-601-2	01	1	0105-	●	●
47	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6>	1-47477-601-2	01	1	0105-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
51	GROMMET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-694-0	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-895-1	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (C) L=100 H=30	1-47477-645-2	01	1	0105-	●	●
56	BOLT; UNION BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28681-040-0	02	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=14.2	9-09150-514-0	03	1	0105-0603	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=14.2	0-91510-514-0	03	1	0604-	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=16.2	9-09150-516-0	02	1	0105-0603	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=16.2	0-91510-516-0	02	1	0604-	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) ID=14.2	0-91510-514-0	01	1	0604-	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) ID=16.2	9-09150-516-0	01	1	0105-0603	●	●
78	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) ID=16.2	0-91510-516-0	01	1	0604-	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-99111-414-0	03	1	0105-0512	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	0-91111-514-0	03	1	0601-	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16	9-99111-416-0	02	1	0105-0512	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16	0-91111-516-0	02	1	0601-	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) M14	9-99111-414-0	01	1	0105-0512	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) M14	0-91111-514-0	01	1	0601-	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) M16	9-99111-416-0	01	1	0105-0512	●	●
83	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) M16	0-91111-516-0	01	1	0601-	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	06	1	0105-	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	04	1	0105-	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0105-	●	●
95	ADAPTER; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14	9-09223-308-1	03	1	0105-	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 L=74	9-09233-310-1	02	1	0105-	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (A) M14	9-09223-308-1	01	1	0105-	●	●
120	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FULL TRACTOR TRUCK<RD6> (B) M16 L=74	9-09233-310-1	01	1	0105-	●	●
144	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-	●	●

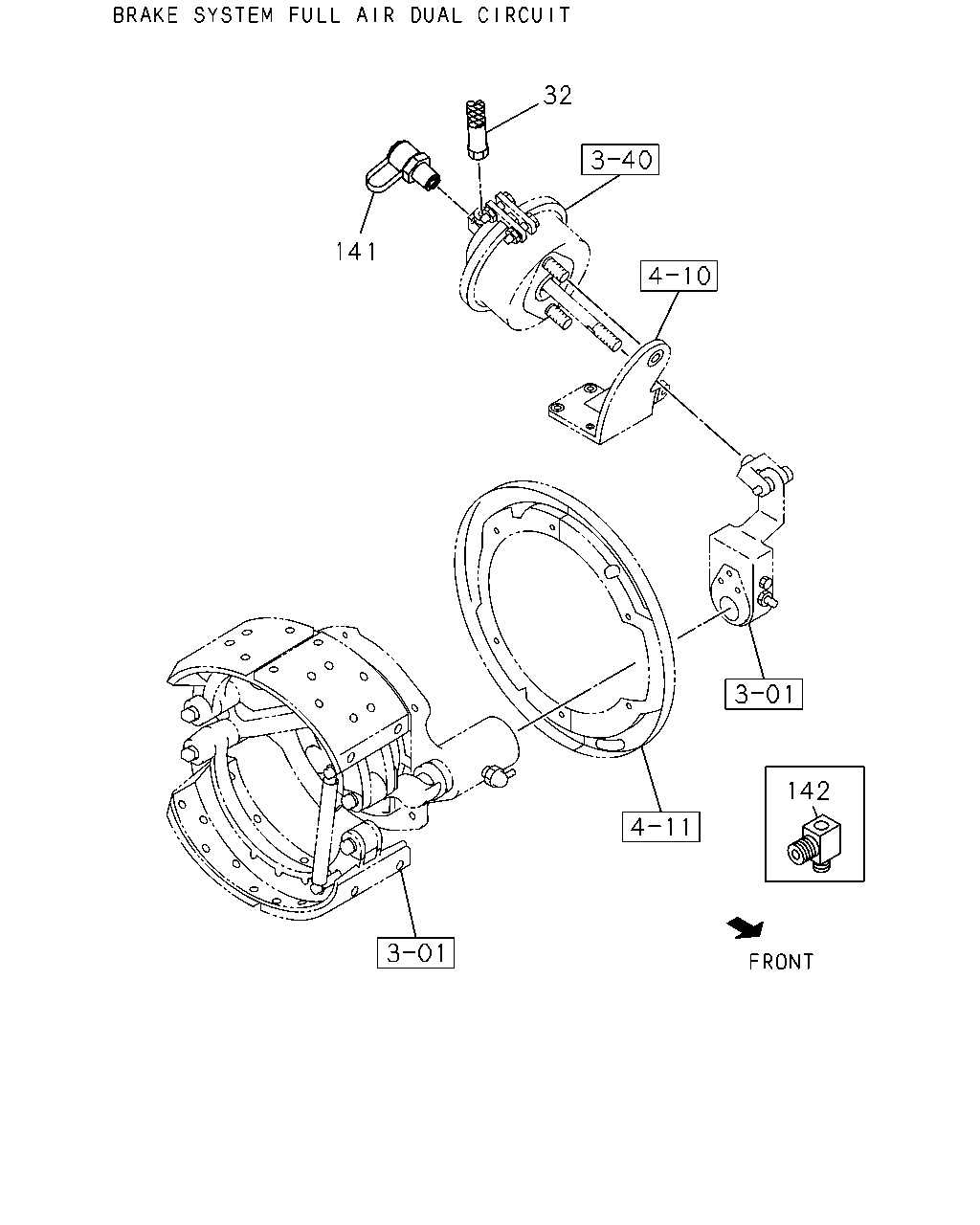

142 141 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	0-07847-500-1	02	1	0105-	●	●
141	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-	●	●
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE REGULATION ECE<TDV> EXC. RR TIRE 12.00-20<98X>	1-09660-838-0	01	1	0105-0204	●	●
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> EXC. RR TIRE 12.00-20<98X>	1-09660-838-0	01	1	0205-0305	●	●
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> EXC. RR TIRE 12.00-20<98X>	1-09661-592-0	01	1	0306-	●	●

98 117 117 98 117 98 15 48 56 117 98 55 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-	●	●
15	CONNECTOR; AIR PIPE MUFFLER TWIN VERTICAL<NBS> (B) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	0105-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 OD=19 L=50	1-09337-014-0	02	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47477-694-0	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-895-1	01	1	0105-	●	●
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (C) L=100 H=30	1-47477-645-2	01	1	0105-	●	●
56	BOLT; UNION BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28681-040-0	02	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512	●	●
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0105-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=25	1-87410-101-0	AR	1	0105-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-	●	●
