Isuzu WW
▶
TRUCKS
▶
FTR
▶
11576 - FTR CNG(THAILAND)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

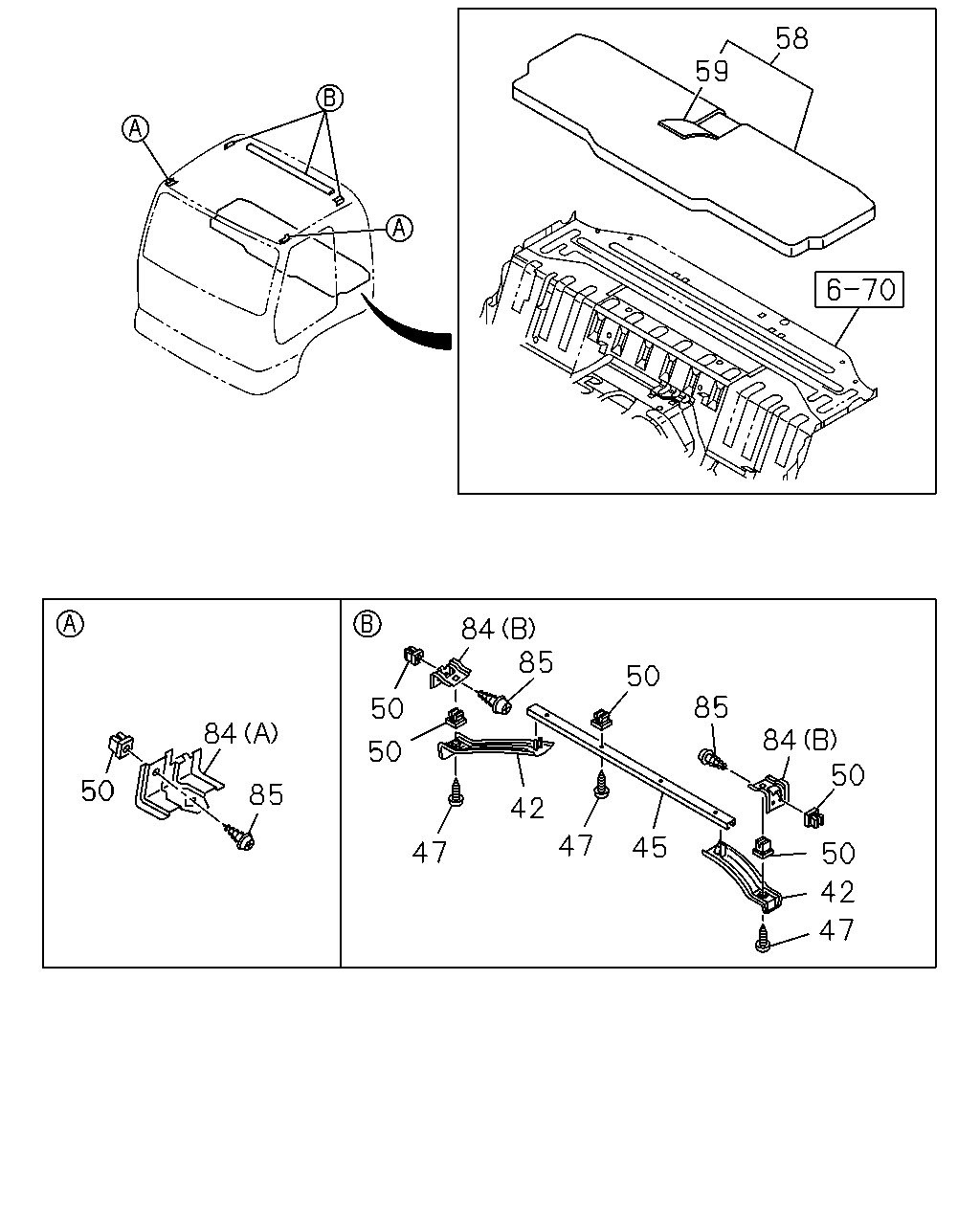

7-70 — SEPARATER AND BED
(#133589) — 12 parça
50
84
85
58
59
84
50
50
47
42
85
50
85
47
45
84
50
50
42
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1402-
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1402-
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
1402-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1402-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
12
1
1402-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
10
1
1406-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> THA
8-97924-780-0
01
1
1402-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> THA
8-97924-821-0
01
1
1402-
84
BRACKET; CURTAIN RAIL
(A)
8-98028-326-1
02
1
1402-1405
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
04
1
1402-
85
SCREW; BRKT
M5X20
5-09981-059-0
06
1
1402-1405
85
SCREW; BRKT
M5X20
5-09981-059-0
04
1
1406-
