Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#13358) — 164 parça

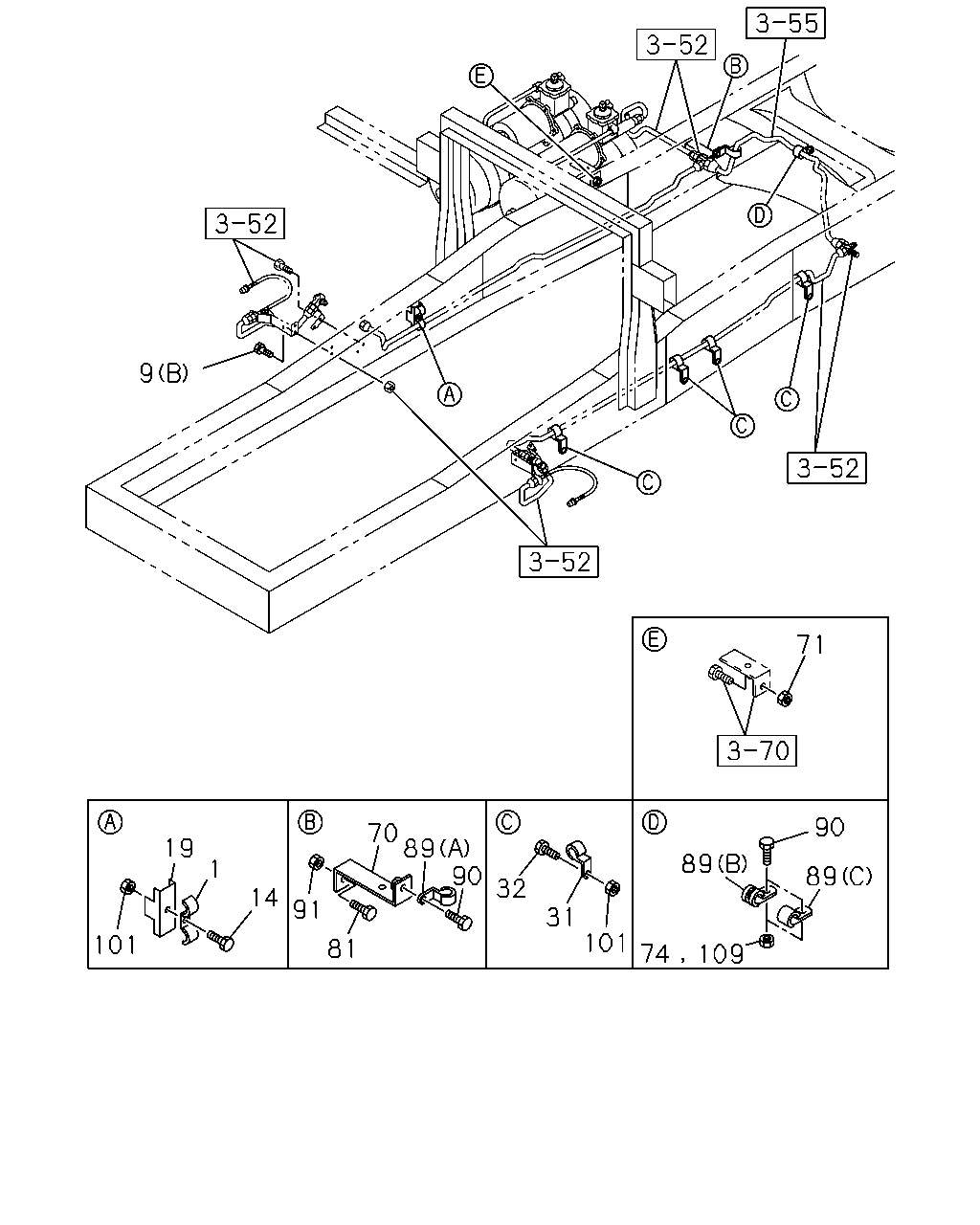

9 90 89 89 109 74 101 31 32 90 89 70 81 91 14 1 19 101 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; OIL PIPE TO BODY WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	0109-	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0105-	●	●
9	BOLT; BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0109	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X30 FLANGE	0-28680-830-0	02	1	0110-0512	●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
9	BOLT; BRKT WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0105-0108	●
9	BOLT; BRKT WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0105-0108		●
9	BOLT; BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28680-835-0	02	1	0109-0109	●
9	BOLT; BRKT WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0109-0109	●
9	BOLT; BRKT WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0109-0109		●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X35 FLANGE	0-28680-835-0	02	1	0110-0512	●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
14	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> M8X45 FLANGE	0-28080-845-0	02	1	0109-0512	●
14	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512	●	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●
19	BRACKET; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0>	1-47475-427-1	02	1	0109-	●
19	BRACKET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2>	1-47475-427-1	01	1	0105-	●	●
31	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	0105-	●	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8X30 FLANGE	0-28680-830-0	04	1	0105-0108	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8X30 FLANGE	0-28680-830-0	04	1	0105-0108		●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	04	1	0109-0109	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8X30 FLANGE	0-28680-830-0	04	1	0109-0109	●
32	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> M8X30 FLANGE	0-28680-830-0	04	1	0109-0109		●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	04	1	0110-0512	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
70	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2>	1-47477-088-1	02	1	0105-	●	●
71	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
71	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0105-0108	●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0109-0602	●	●
74	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0109-0602	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
74	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
81	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
81	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
89	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●
89	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) ID=9 L=28	9-09524-855-0	01	1	0105-	●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-0108	●	●
89	CLIP; OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-0108	●
89	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-0108		●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0109-	●	●
89	CLIP; OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0109-	●
89	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0109-	●
89	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0109-		●
89	CLIP; OIL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (C) ID=7 L=28	9-09524-655-0	01	1	0105-	●	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	03	1	0109-0512	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	0109-0512	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	0109-0512		●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0109	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0109		●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0110-0512	●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	0105-0108	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	0105-0108		●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	01	1	0109-0512	●
90	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
91	NUT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
91	NUT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0109-0602	●
101	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
109	NUT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0105-0108	●
109	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0105-0108		●
109	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	03	1	0109-0602	●
109	NUT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0109-0602	●
109	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0109-0602		●
109	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	03	1	0603-	●
109	NUT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	03	1	0603-	●
109	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	03	1	0603-		●

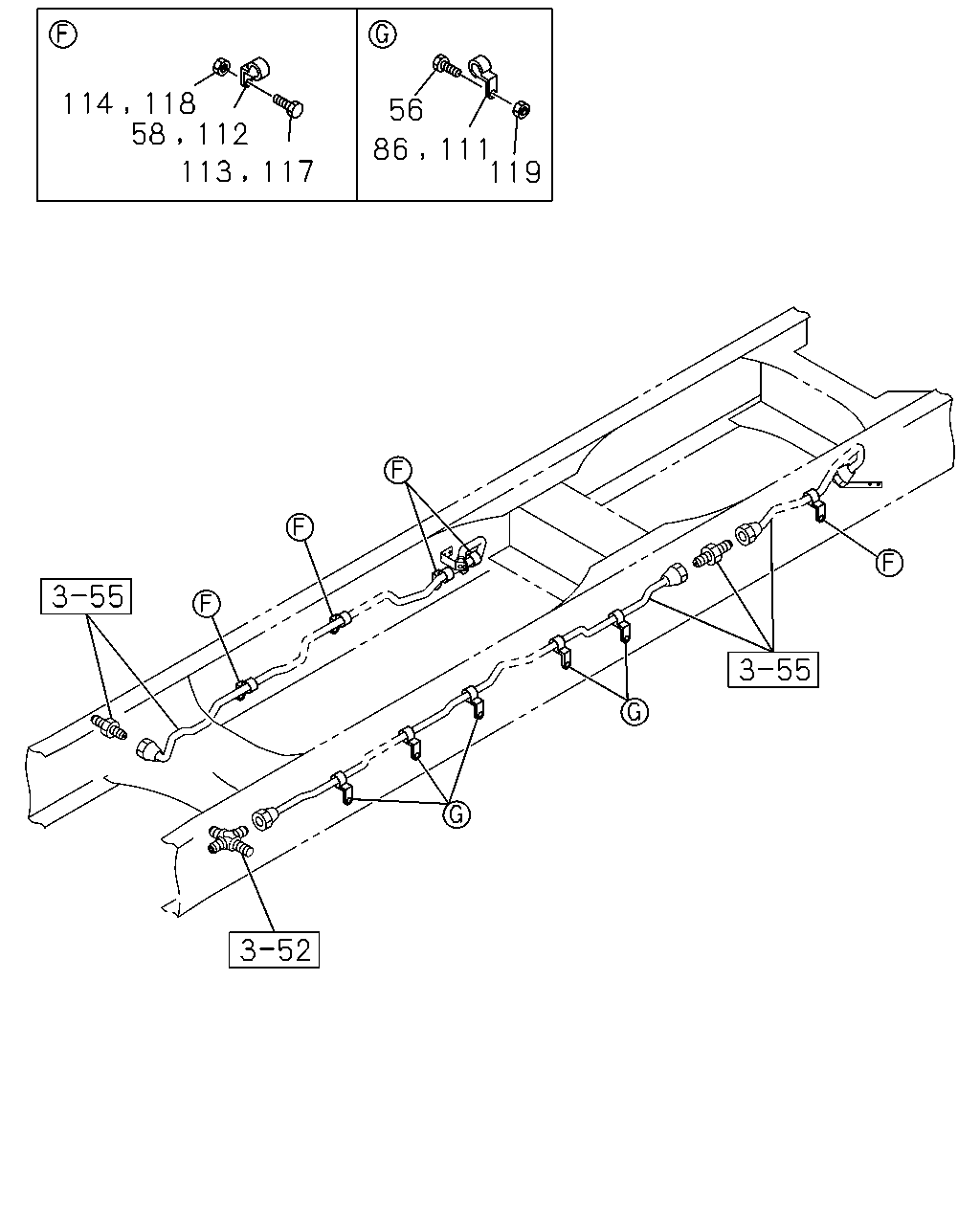

119 111 86 56 117 113 112 118 114 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	BOLT; CLIP WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	05	1	0105-0512	●
56	BOLT; CLIP WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	05	1	0105-0512		●
56	BOLT; CLIP WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	05	1	0601-	●
56	BOLT; CLIP WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	05	1	0601-		●
56	BOLT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	04	1	0105-0512		●
56	BOLT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
58	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ID=6 H=20 L=20	1-09700-603-0	04	1	0105-	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	0105-	●
58	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●
58	CLIP; OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	07	1	0105-	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	11	1	0105-		●
86	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	05	1	0105-	●
86	CLIP; OIL PIPE WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	05	1	0105-		●
86	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	0105-		●
111	CLIP; OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	0105-0108	●
111	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	0105-0108		●
111	CLIP; OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6 H=20 L=20	1-09700-603-0	03	1	0109-	●
111	CLIP; OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	0109-	●
111	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	0109-		●
112	CLIP; OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	02	1	0105-0107		●
112	CLIP; OIL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	03	1	0108-		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	0105-0107		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	0108-0512		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	03	1	0601-		●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0107		●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	0108-0602		●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	03	1	0603-		●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	04	1	0105-0512	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	04	1	0105-0512	●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	07	1	0105-0512	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	07	1	0105-0512		●
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	07	1	0601-	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	07	1	0601-		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X40 FLANGE	0-28680-840-0	04	1	0105-0512		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X40 FLANGE	0-28650-840-0	04	1	0601-		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	11	1	0105-0512		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	11	1	0601-		●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8 FLANGE	0-91180-108-0	04	1	0603-	●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	04	1	0603-	●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8 FLANGE	0-91180-108-0	01	1	0603-	●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	07	1	0105-0602	●
118	NUT; CLIP,OIL PIPE WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	07	1	0603-	●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	11	1	0105-0602		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	11	1	0603-		●
119	NUT; CLIP WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	0105-0602	●
119	NUT; CLIP WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	05	1	0105-0602		●
119	NUT; CLIP WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	05	1	0603-	●
119	NUT; CLIP WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	05	1	0603-		●
119	NUT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	0105-0602		●
119	NUT; CLIP WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	04	1	0603-		●

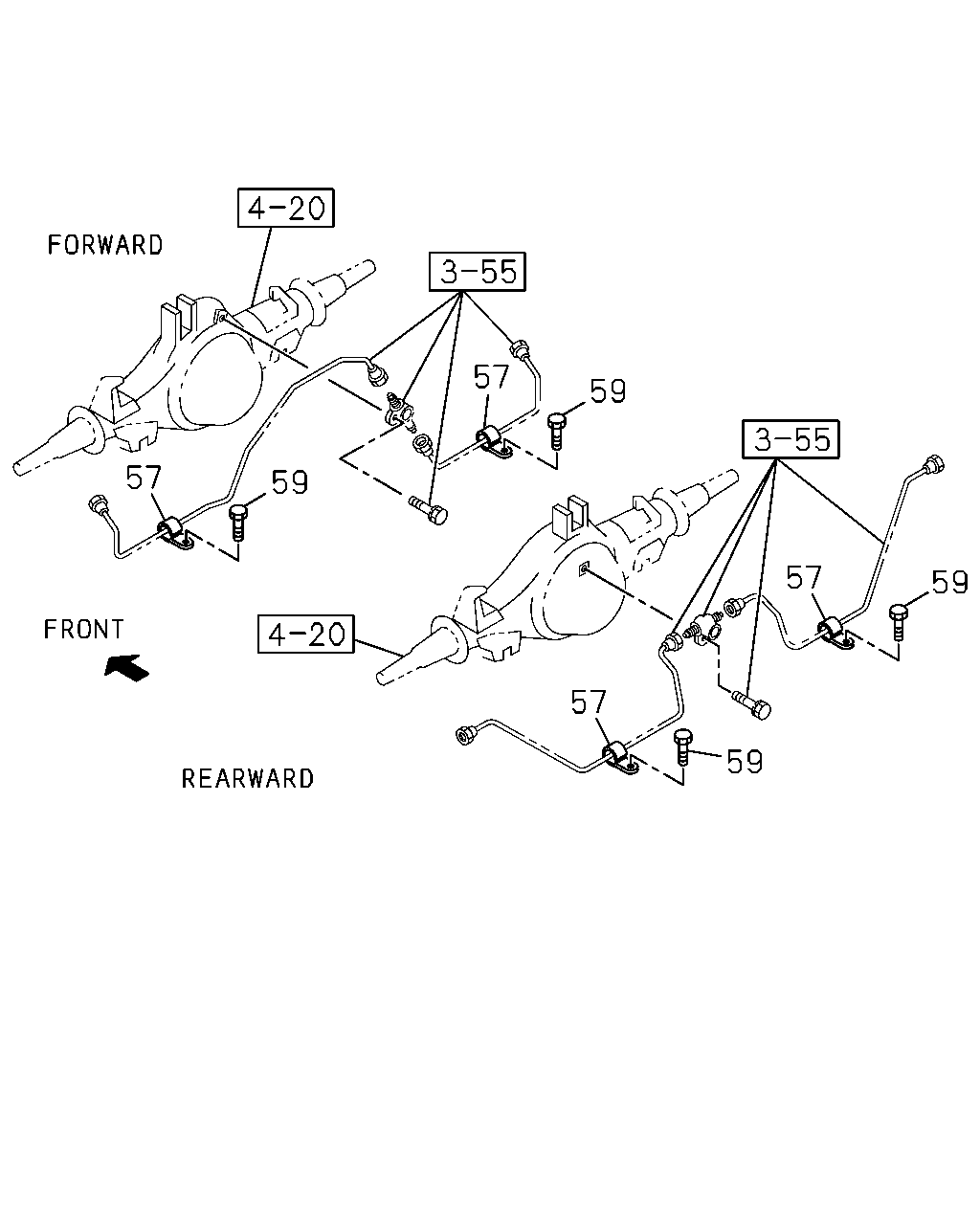

59 59 57 57 59 57 59 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	03	1	0105-	●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	0105-	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28080-810-0	03	1	0105-0512	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28050-810-0	03	1	0601-	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28080-810-0	04	1	0105-0512	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X10 FLANGE	0-28050-810-0	04	1	0601-	●	●

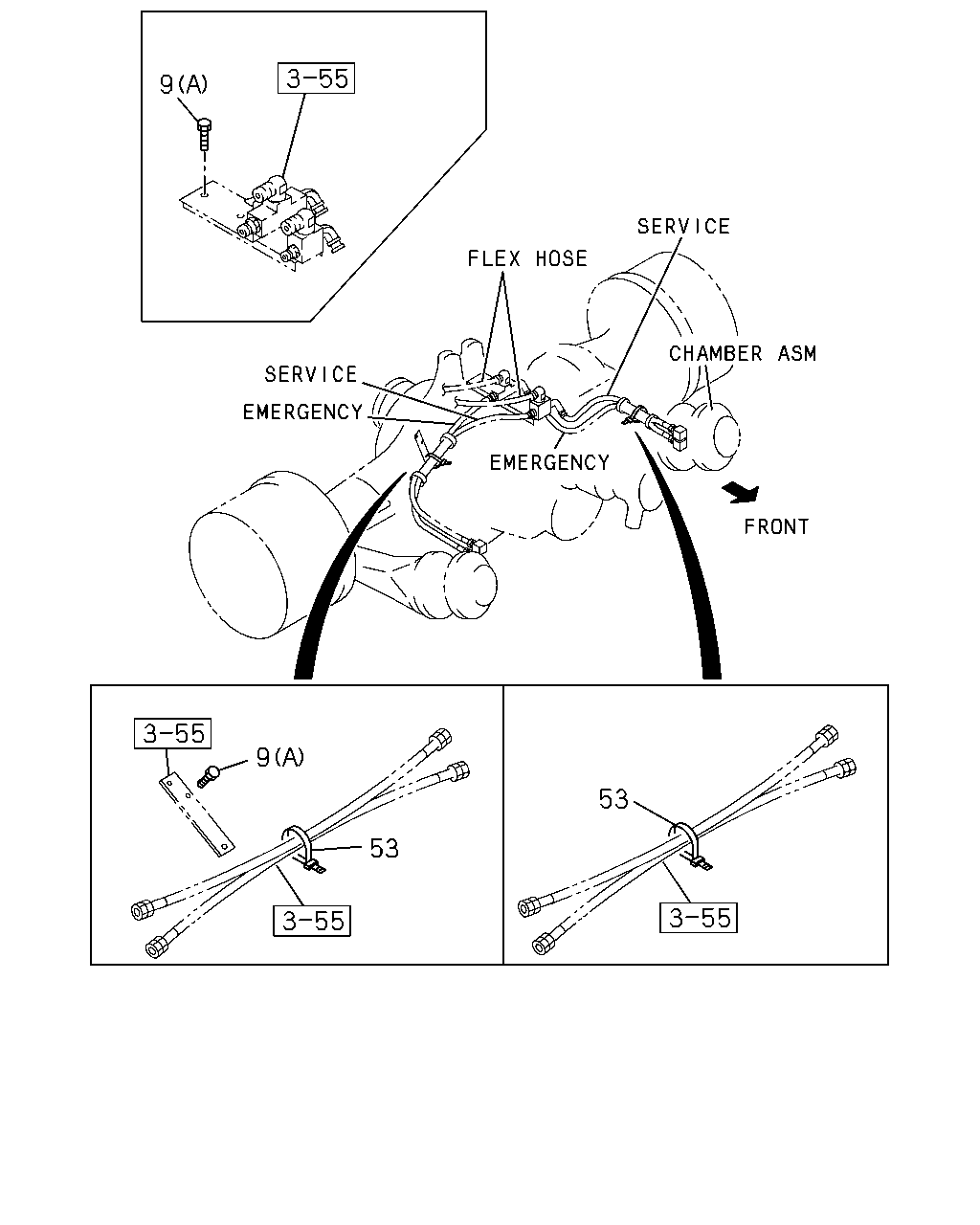

53 53 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	BOLT; BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0109	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X30 FLANGE	0-28680-830-0	02	1	0110-0512	●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
9	BOLT; BRKT WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0105-0108	●
9	BOLT; BRKT WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0105-0108		●
9	BOLT; BRKT WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (B) M8X35 FLANGE	0-28680-835-0	02	1	0109-0109	●
9	BOLT; BRKT WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0109-0109	●
9	BOLT; BRKT WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> (B) M8X35 FLANGE	0-28680-835-0	02	1	0109-0109		●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X35 FLANGE	0-28680-835-0	02	1	0110-0512	●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0512	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
53	CLIP; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> L=250	1-09707-126-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
