Isuzu WW
▶
TRUCKS
▶
FTR
▶
11576 - FTR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

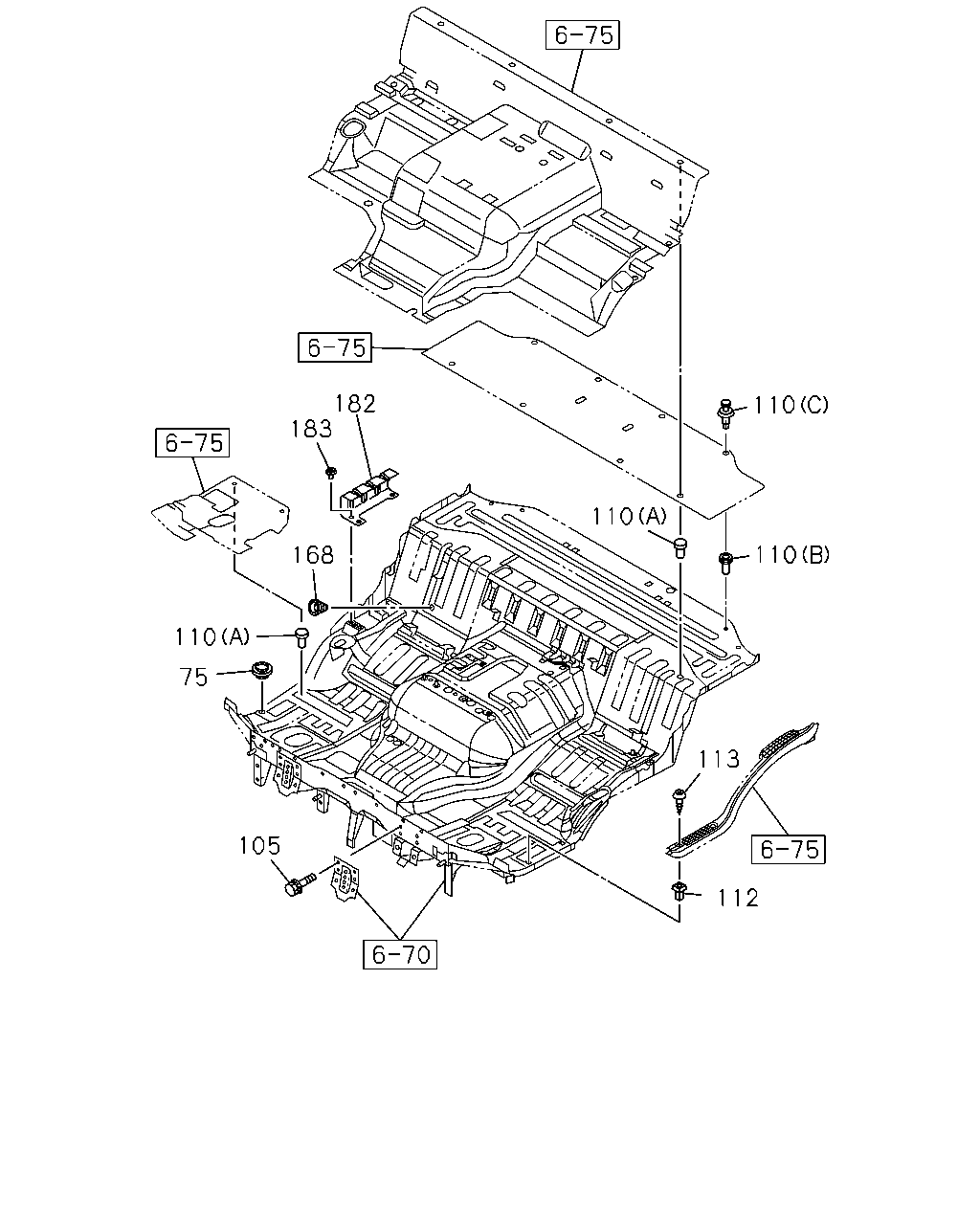

6-78 — FLOOR HOLE PLUG
(#133574) — 11 parça
112
113
110
110
110
182
183
168
110
75
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
75
PLUG; RUBBER,FLOOR
OD=23.5
1-09983-101-0
04
1
1402-
105
BOLT; FLOOR
M10X30 FLANGE THA
0-28661-030-0
16
1
1402-
110
FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
08
1
1402-
110
FASTENER; FLOOR MAT
(B)
8-97319-495-0
04
1
1402-
110
FASTENER; FLOOR MAT
(C) GRAY
8-97405-247-0
04
1
1402-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
1402-
113
SCREW; TRIM COVER
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1402-
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
1402-
182
REINFORCEMENT; SILL SIDE
8-98056-072-1
01
1
1402-
182
REINFORCEMENT; SILL SIDE
8-98056-071-1
01
1
1402-
183
SCREW; SILL SIDE
T40 M8X16.5 HEXALOBULAR
8-98066-813-0
06
1
1402-
