◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11576 - FTR CNG(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#133571) — 59 parça

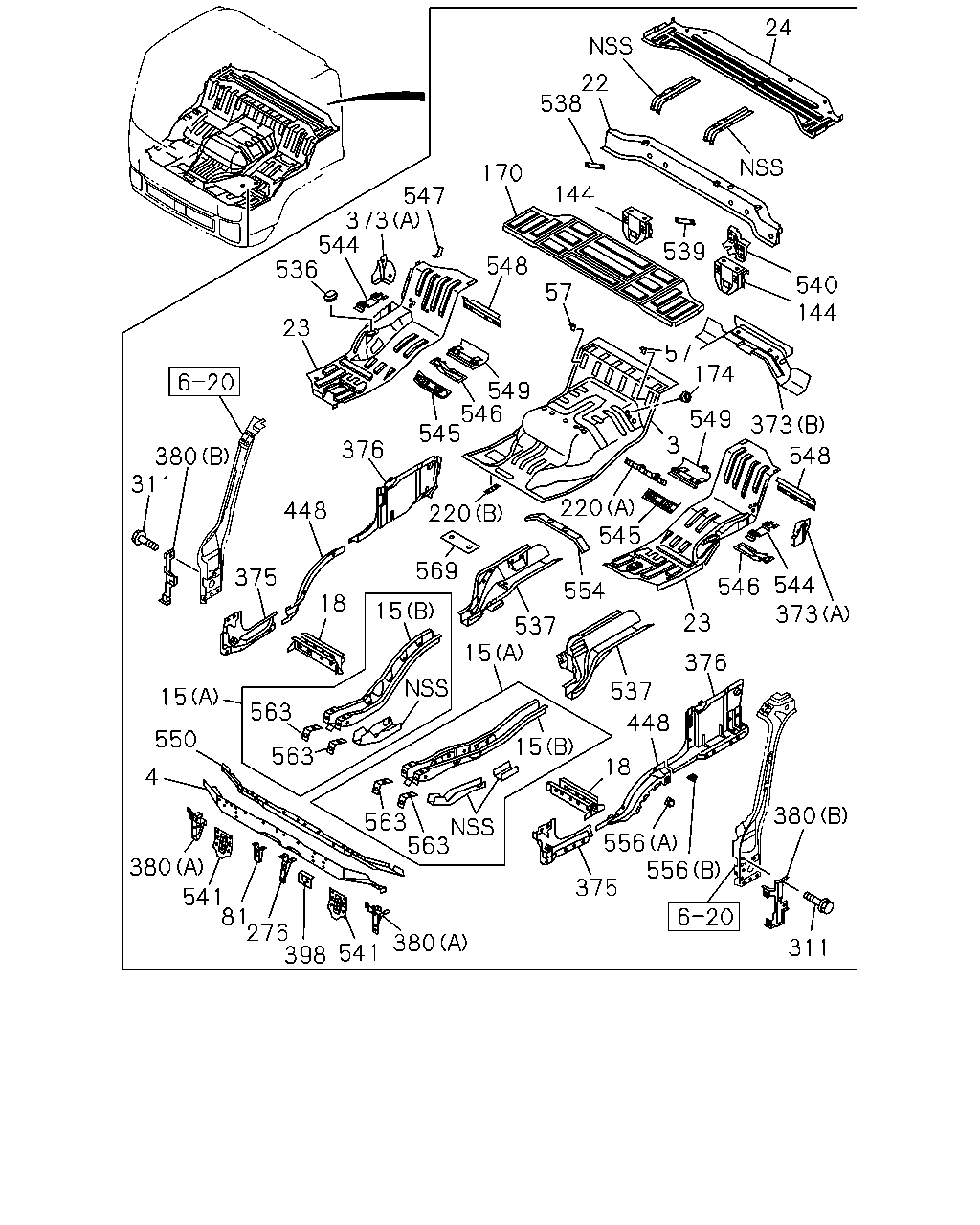

çizim 406954
311 556 375 18 556 380 541 398 276 81 541 380 4 15 550 563 563 563 15 448 537 380 376 546 373 23 554 537 15 15 563 18 569 220 376 448 375 311 380 545 545 546 549 57 548 547 373 544 536 23 170 538 22 24 539 57 144 174 549 3 220 548 373 144 540 544
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1402-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1402-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1402-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1402-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1402-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1402-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1402-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1402-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1402-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1402-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1402-
24 PANEL; BED PAN 8-97584-378-6 01 1 1402-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1402-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1402-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1402-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1402-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1402-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1402-
220 PATCH
(A) 		8-97588-840-4 01 1 1402-
220 PATCH
(B) 		8-97589-603-3 01 1 1402-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1402-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1402-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1402-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1402-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1402-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1402-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1402-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1402-
376 CLOSING; PILLAR,LWR 8-97589-556-4 01 1 1402-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1402-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1402-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1402-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1402-
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1402-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1402-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1402-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1402-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1402-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1402-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1402-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1402-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1402-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1402-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1402-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1402-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1402-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1402-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1402-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1402-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1402-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1402-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1402-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1402-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1402-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1402-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1402-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1402-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1402-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1402-
