Isuzu WW
▶
TRUCKS
▶
FTR
▶
11576 - FTR CNG(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

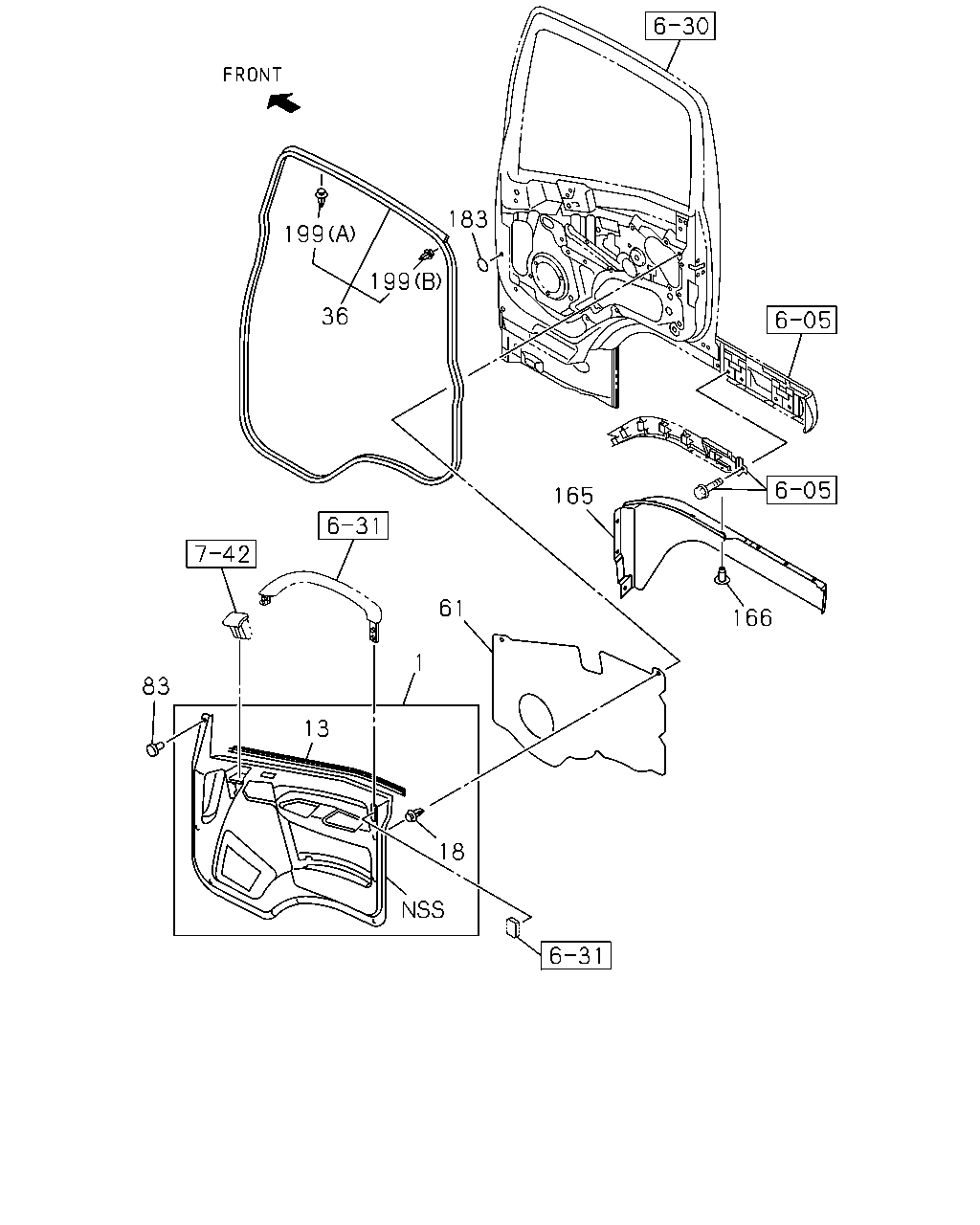

6-35 — FRONT DOOR TRIM
(#133566) — 16 parça
166
165
183
199
36
199
61
1
18
13
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
THA
8-97923-890-1
01
1
1402-
1
PAD; TRIM,FRT DOOR
THA
8-97923-889-1
01
1
1402-
13
SEAL; DOOR TRIM
THA
8-97923-892-0
01
1
1402-
13
SEAL; DOOR TRIM
THA
8-97923-891-0
01
1
1402-
18
CLIP; DOOR PAD
8-98004-025-0
14
1
1402-
36
SEAL; DOOR,MAIN,CAB SIDE
THA
8-97926-952-0
01
1
1402-
36
SEAL; DOOR,MAIN,CAB SIDE
THA
8-97926-951-0
01
1
1402-
61
SEAL; WATER,DOOR PAD
THA
8-97948-265-0
01
1
1402-
61
SEAL; WATER,DOOR PAD
THA
8-97948-264-0
01
1
1402-
83
CLIP; DOOR TRIM
GRAY
8-97405-308-0
02
1
1402-
165
LINER; DOOR LWR
8-98038-289-1
01
1
1402-
165
LINER; DOOR LWR
8-98038-288-1
01
1
1402-
166
PLUG; HOLE
D8X13.5
1-09987-248-1
09
1
1402-
183
SEAL; LOCATION HOLE
OD=25 BLACK THA
1-76798-019-0
02
1
1402-
199
CLIP; SEAL
(A) NATURAL THA
8-98062-270-0
80
1
1402-
199
CLIP; SEAL
(B) RED THA
8-98062-271-0
02
1
1402-
