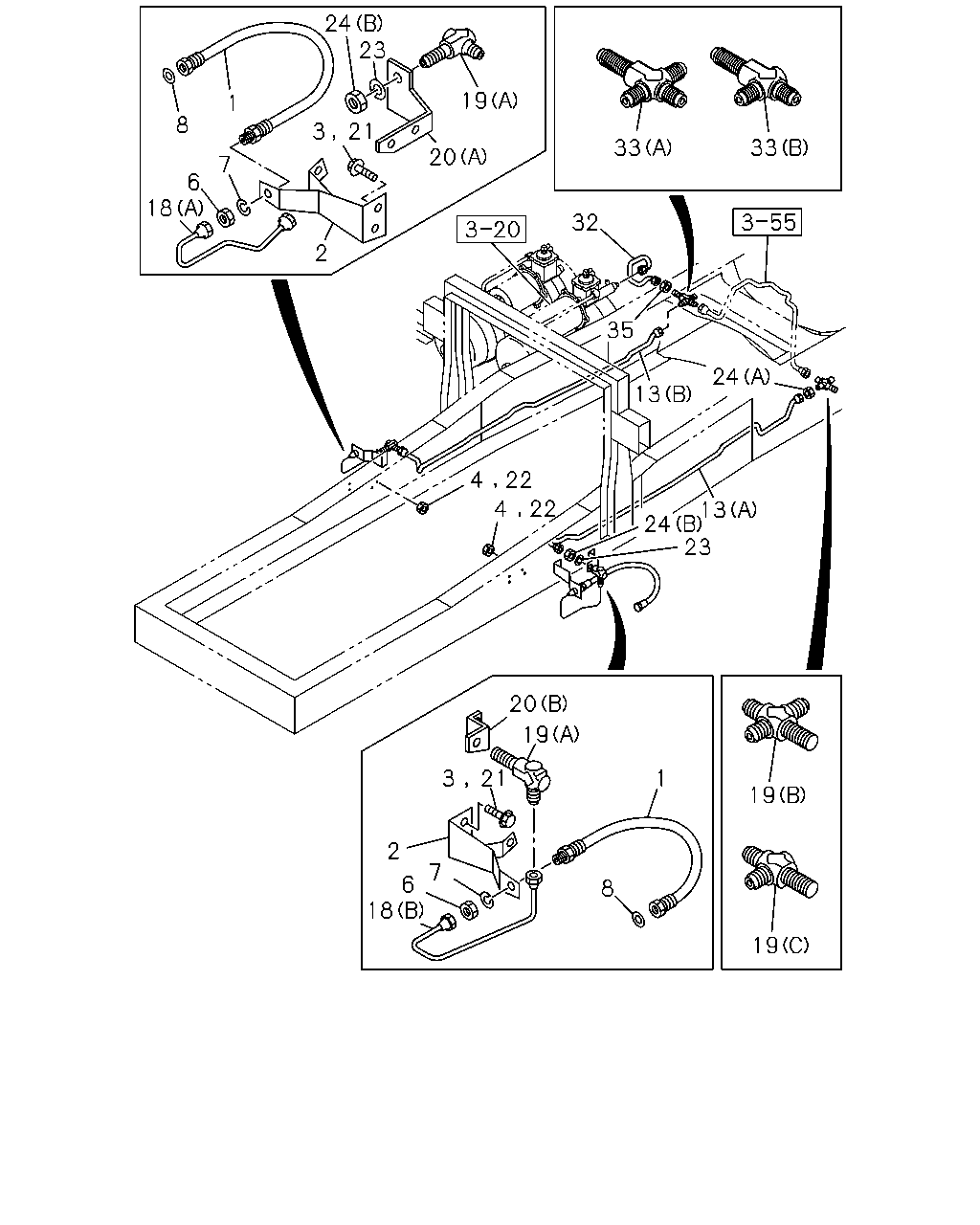

3-52 — BRAKE PIPING; OIL,FRONT (#13356) — 54 parça
çizim 24013
19 19 8 1 21 3 2 7 6 18 19 20 23 13 24 22 4 22 4 13 24 35 32 33 33 19 20 21 3 23 24 1 8 7 6 2 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=600 		1-09364-197-0 02 1 0105- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-343-1 01 1 0105- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-553-0 01 1 0105- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 04 1 0105-0512 ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
6 NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 02 1 0105- ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 02 1 0105-0603 ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		0-91510-512-0 02 1 0604- ● ●
8 GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17 		9-09920-472-0 02 1 0105- ● ●
13 PIPE; OIL,UNION TO UNION
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> (A) L=1719 SERVICED BY L=1820 		1-47426-358-0 01 1 0109- ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) L=1633 SERVICED BY L=1700 		1-47426-357-0 01 1 0110-0505 ● ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) L=1635 SERVICED BY L=1700 		1-47426-357-0 01 1 0506- ● ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (A) L=1719 SERVICED BY L=1820 		1-47426-358-0 01 1 0105-0105 ● ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) L=1724 SERVICED BY L=1820 		1-47426-358-0 01 1 0105- ● ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (B) L=1639 SERVICED BY L=1700 		1-47426-357-0 01 1 0105-0505 ● ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> W-SERIES ENG<1A2> (B) L=1641 SERVICED BY L=1700 		1-47426-357-0 01 1 0506- ● ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) L=1690 SERVICED BY L=1820 		1-47426-358-0 01 1 0105- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=437 		1-47425-854-0 01 1 0105- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=417 		1-47429-250-0 01 1 0105- ● ●
19 UNION; OIL PIPE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) 		1-09656-232-1 01 1 0105- ●
19 UNION; OIL PIPE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) M12 2WAY 		1-09654-059-2 01 1 0105-0108 ●
19 UNION; OIL PIPE
WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) M12 2WAY 		1-09654-059-2 01 1 0105-0108 ●
19 UNION; OIL PIPE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (C) M12 2WAY 		1-09654-059-2 01 1 0109- ●
19 UNION; OIL PIPE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) M12 2WAY 		1-09654-059-2 01 1 0109- ●
19 UNION; OIL PIPE
WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) M12 2WAY 		1-09654-059-2 01 1 0109- ●
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 ELBOW 		9-09225-206-1 02 1 0105- ● ●
20 BRACKET; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-47475-222-5 01 1 0105- ● ●
20 BRACKET; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-47476-168-1 01 1 0105- ● ●
21 BOLT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
21 BOLT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
22 NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ●
22 NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
23 WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 02 1 0105-0603 ● ●
23 WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		0-91510-512-0 02 1 0604- ● ●
24 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ●
24 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
24 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 		9-09840-280-0 02 1 0105- ● ●
32 PIPE; OIL,AIR MASTER TO UNION
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> L=398 		1-47429-243-0 01 1 0105-0108 ●
32 PIPE; OIL,AIR MASTER TO UNION
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=398 		1-47429-243-0 01 1 0109- ●
32 PIPE; OIL,AIR MASTER TO UNION
WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> L=404 		1-47429-242-0 01 1 0105-0108 ●
32 PIPE; OIL,AIR MASTER TO UNION
WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> L=404 		1-47429-242-0 01 1 0105-0108 ●
32 PIPE; OIL,AIR MASTER TO UNION
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> PE-SERIES ENG<1A0> L=404 		1-47429-242-0 01 1 0109- ●
32 PIPE; OIL,AIR MASTER TO UNION
WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> L=404 		1-47429-242-0 01 1 0109- ●
32 PIPE; OIL,AIR MASTER TO UNION
WHEEL BASE 5900MM(59W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01> L=404 		1-47429-242-0 01 1 0109- ●
33 UNION; OIL PIPE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) M12 & M14X2 3WAY 		1-09656-231-1 01 1 0105- ●
33 UNION; OIL PIPE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-09656-019-1 01 1 0105-0108 ●
33 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) 		1-09656-019-1 01 1 0105-0108 ●
33 UNION; OIL PIPE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) 		1-09656-019-1 01 1 0109- ●
33 UNION; OIL PIPE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-09656-019-1 01 1 0109- ●
33 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) 		1-09656-019-1 01 1 0109- ●
35 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 		9-99111-414-0 01 1 0105-0512 ● ●
35 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 		0-91111-514-0 01 1 0601- ● ●
