◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11576 - FTR CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#133552) — 62 parça

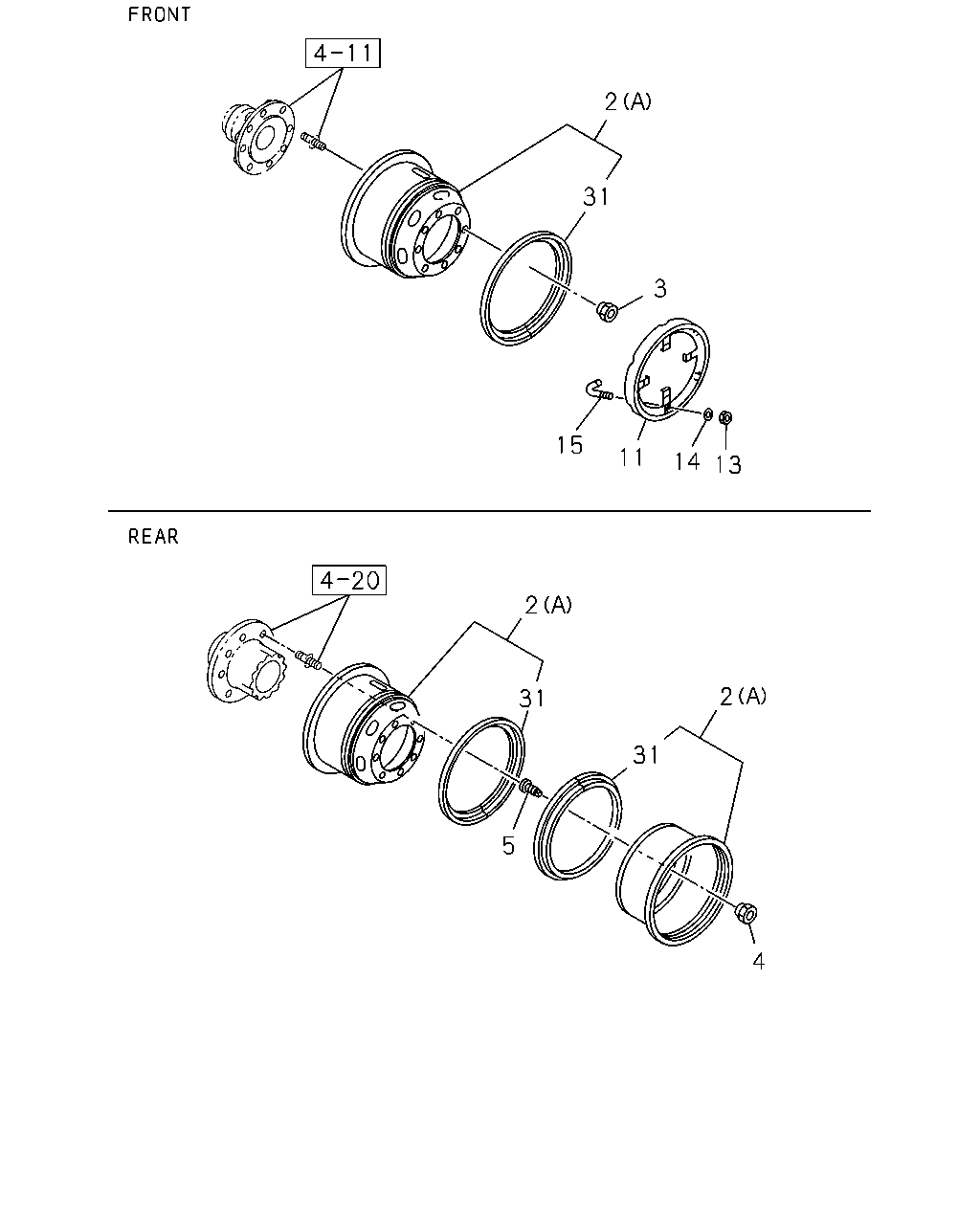

çizim 407840
4 5 31 31 2 2 15 3 11 13 14 31 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT THA 		8-98257-427-0 02 1 1402-1407
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT 		8-97520-624-0 02 1 1408-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR THA 		8-98257-427-0 04 1 1402-1407
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR 		8-97520-624-0 04 1 1408-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE THA 		8-98257-427-0 01 1 1402-1407
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE 		8-97520-624-0 01 1 1408-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE THA 		8-98257-428-0 01 1 1402-1407
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE 		8-97520-623-0 01 1 1408-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> (A) FRONT 		8-97520-630-0 02 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> (A) REAR 		8-97520-630-0 04 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE 		8-97520-630-0 01 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT 		8-97520-631-0 02 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR 		8-97520-631-0 04 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE 		8-97520-631-0 01 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT THA 		8-98257-428-0 02 1 1402-1407
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT 		8-97520-623-0 02 1 1408-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR THA 		8-98257-428-0 04 1 1402-1407
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR 		8-97520-623-0 04 1 1408-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD THA 		8-97916-064-0 08 1 1402-
3 NUT; WHEEL,FRT AXLE
M24 THA 		8-97916-063-0 08 1 1402-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD THA 		8-97916-121-0 08 1 1402-
4 NUT; WHEEL,RR AXLE
M30 THA 		8-97916-066-0 08 1 1402-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA 		8-97916-676-0 08 1 1402-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA 		8-97916-065-0 08 1 1402-
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> THA 		1-43139-028-0 02 1 1402-
13 NUT; STEP DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> M10 THA 		0-91110-510-0 06 1 1402-
14 WASHER; LK,STEP DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> ID=10.2 		0-91510-810-0 06 1 1402-
15 BOLT; STEP DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> L=44 THA 		9-43139-023-1 06 1 1402-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12<Q54> FRONT 		8-97520-653-0 02 1 1402-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12<Q54> REAR 		8-97520-653-0 04 1 1402-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL REAR<R46> SPARE 		8-97520-653-0 01 1 1402-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT 		8-97520-654-0 02 1 1402-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13<Q62> REAR 		8-97520-654-0 04 1 1402-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> SPARE 		8-97520-654-0 01 1 1402-

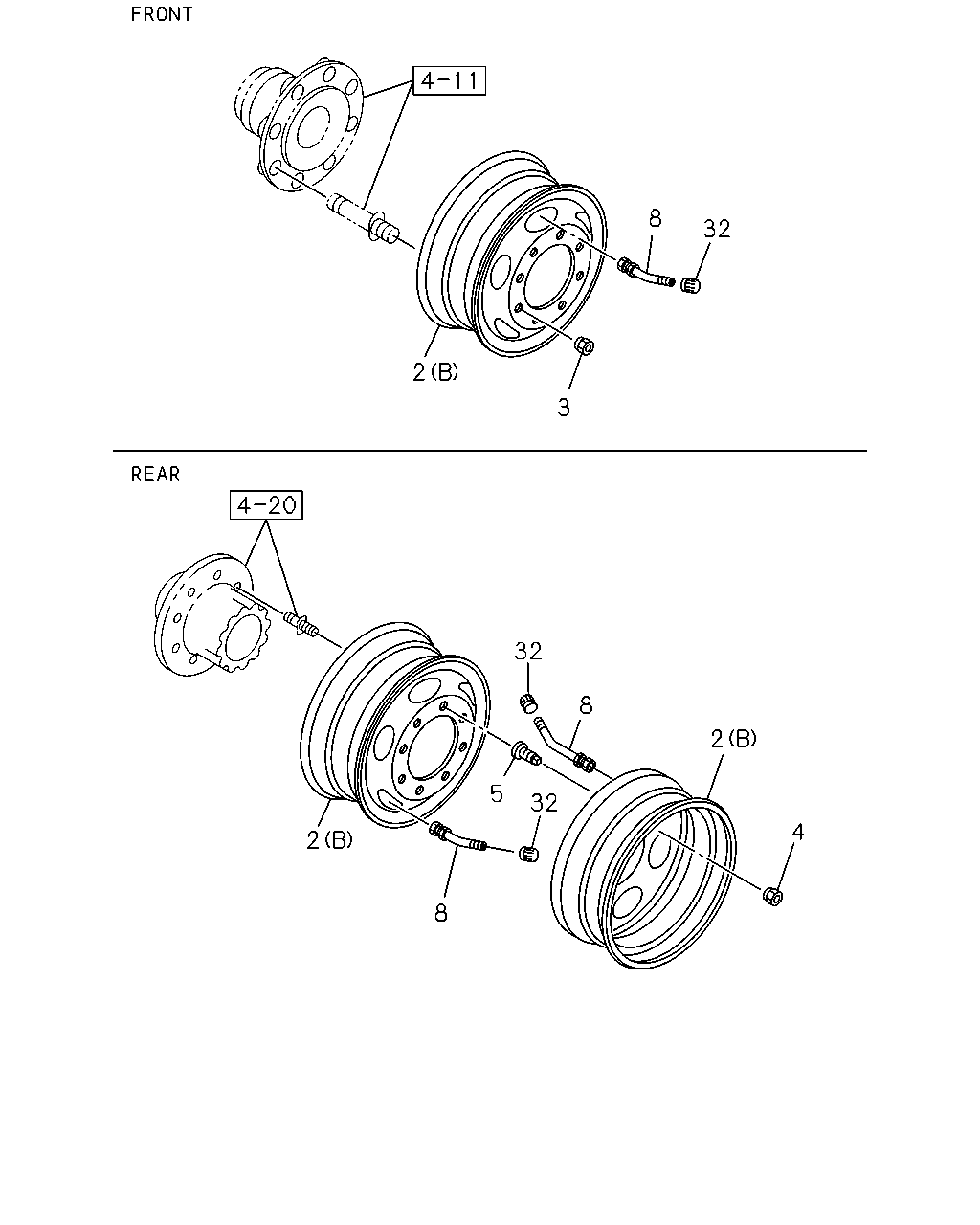

çizim 407899
8 2 5 32 32 2 8 4 2 3 8 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT THA 		8-98257-427-0 02 1 1402-1407
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT 		8-97520-624-0 02 1 1408-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR THA 		8-98257-427-0 04 1 1402-1407
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR 		8-97520-624-0 04 1 1408-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE THA 		8-98257-427-0 01 1 1402-1407
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE 		8-97520-624-0 01 1 1408-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE THA 		8-98257-428-0 01 1 1402-1407
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE 		8-97520-623-0 01 1 1408-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> (A) FRONT 		8-97520-630-0 02 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> (A) REAR 		8-97520-630-0 04 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE 		8-97520-630-0 01 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT 		8-97520-631-0 02 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR 		8-97520-631-0 04 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE 		8-97520-631-0 01 1 1402-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT THA 		8-98257-428-0 02 1 1402-1407
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT 		8-97520-623-0 02 1 1408-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR THA 		8-98257-428-0 04 1 1402-1407
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR 		8-97520-623-0 04 1 1408-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD THA 		8-97916-064-0 08 1 1402-
3 NUT; WHEEL,FRT AXLE
M24 THA 		8-97916-063-0 08 1 1402-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD THA 		8-97916-121-0 08 1 1402-
4 NUT; WHEEL,RR AXLE
M30 THA 		8-97916-066-0 08 1 1402-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA 		8-97916-676-0 08 1 1402-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA 		8-97916-065-0 08 1 1402-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT 		1-42370-020-3 02 1 1402-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR 		1-42370-020-3 04 1 1402-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE 		1-42370-020-3 01 1 1402-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> 		1-42374-001-0 07 1 1402-
