4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

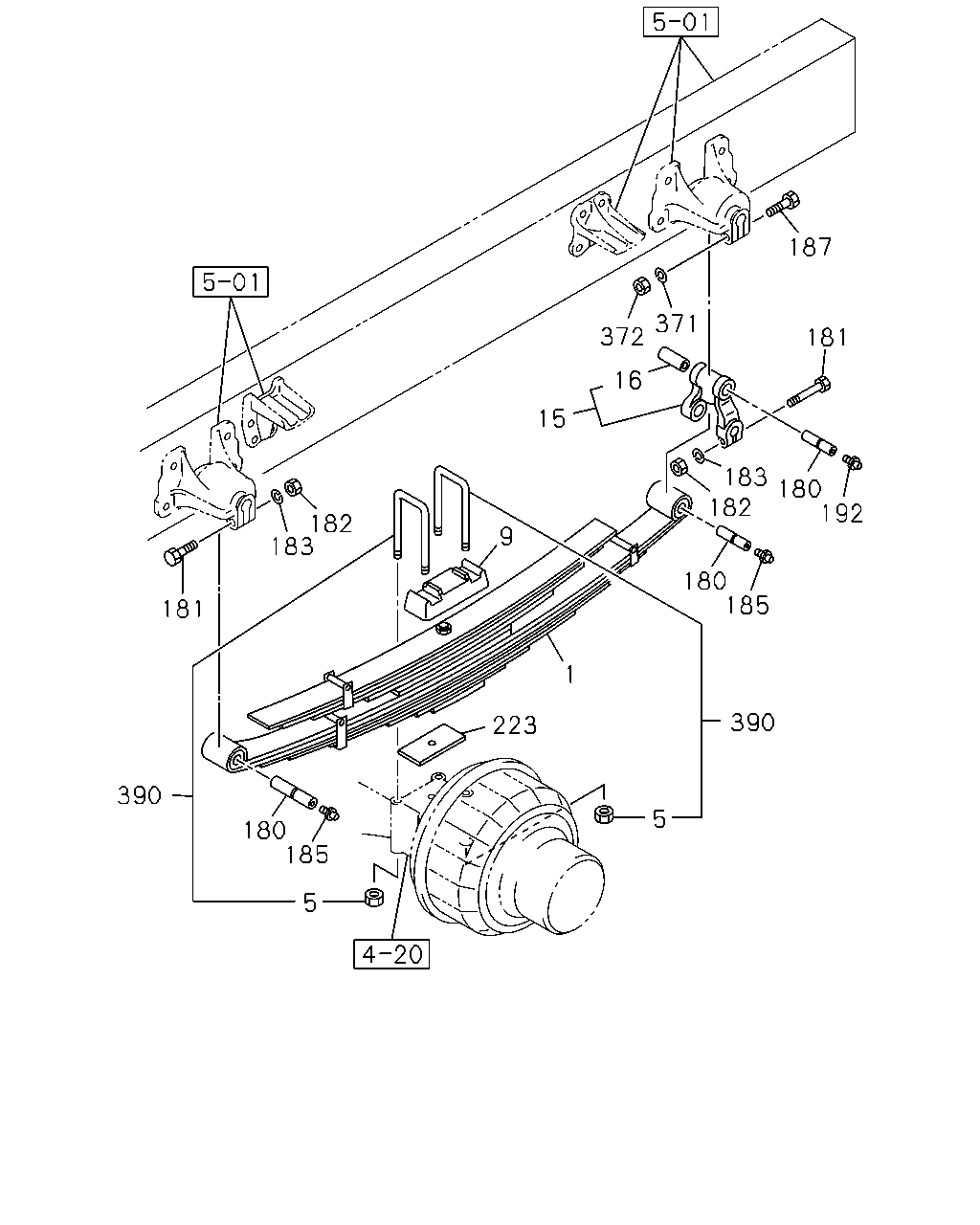

4-60 — REAR SUSPENSION
(#133550) — 20 parça
192
185
180
182
181
183
16
371
372
15
390
5
223
1
185
5
180
390
181
183
182
187
9
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA
8-97948-198-0
02
1
1402-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1402-
9
PAD; U BOLT,RR SPR
THA
8-97916-138-0
02
1
1402-
15
SHACKLE; RR SPR
1-51362-049-2
02
1
1402-
16
BUSHING; SHACKLE,RR SPR
8-98081-830-0
02
1
1402-
180
PIN; RR SPR
THA
8-97948-503-0
06
1
1402-1402
180
PIN; RR SPR
THA
8-97927-131-0
06
1
1403-
181
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
04
1
1402-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1402-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1402-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1402-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1402-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
187
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
02
1
1402-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
223
SPACER; U BOLT,RR SPR
1-51377-166-0
02
1
1402-
371
WASHER; LK,SHACKLE
ID=14.2
0-91510-514-0
02
1
1402-
372
NUT; SHACKLE
M14 THA
0-91110-514-0
02
1
1402-
390
U-BOLT SET; RR SPRING
L=455
1-87870-268-1
04
1
1402-
