Sayfa 3-45 - Isuzu EPC

3-45 — LOAD SENSING PROPORTIONING VALVE (#13354) — 124 parça

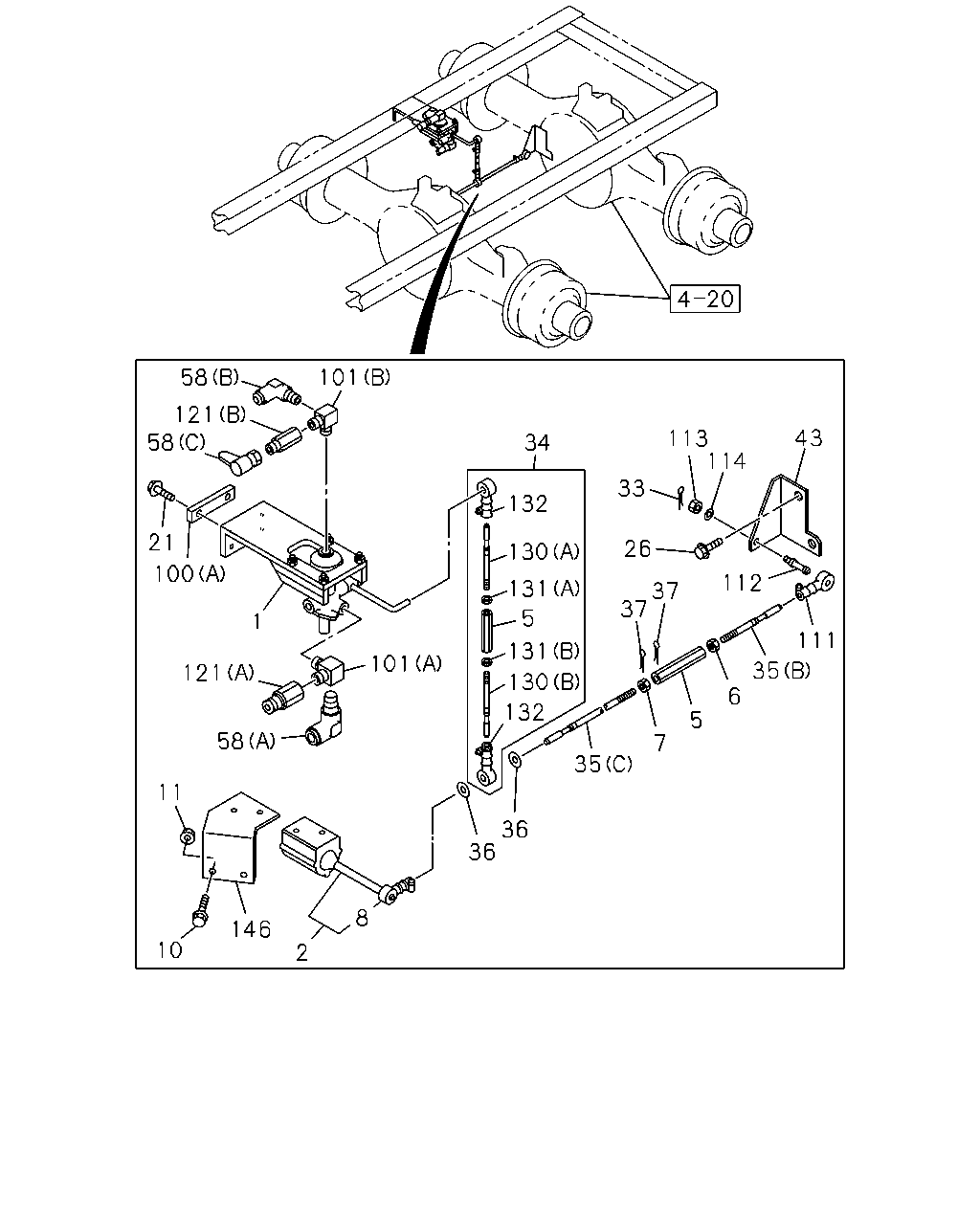

34 43 114 113 33 26 37 37 112 111 35 6 5 7 35 36 36 2 146 8 10 11 121 58 1 101 100 21 58 121 58 101 132 130 131 5 131 130 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	0105-	●	●
2	DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-016-0	01	1	0105-0407	●	●
2	DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-047-0	01	1	0408-	●	●
5	JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	0408-	●	●
5	JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	0408-	●	●
5	JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-091-0	01	1	0105-0407	●	●
5	JOINT LOAD SENSING PROPORTIONING VALVE<JR7> NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	02	1	0408-	●	●
6	NUT; LK,UPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09111-408-0	01	1	0408-0512	●	●
6	NUT; LK,UPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8	0-91111-508-0	01	1	0601-	●	●
7	NUT; LK,LWR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> LH THREAD	1-09409-002-0	01	1	0408-	●	●
8	ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	01	1	0105-	●	●
10	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8X25 FLANGE	0-28680-825-0	02	1	0408-0512	●	●
10	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
11	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91150-108-0	02	1	0408-0602	●	●
11	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28680-835-0	04	1	0105-0512	●	●
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28650-835-0	04	1	0601-	●	●
26	BOLT; DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8X12 FLANGE	0-28080-812-0	02	1	0105-0512	●	●
26	BOLT; DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
33	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	01	1	0105-	●	●
34	ROD; LEVER TO ROD,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-025-0	01	1	0105-	●	●
35	ROD; LINK,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-318-0	01	1	0408-	●	●
35	ROD; LINK,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09740-086-0	01	1	0105-0407	●	●
35	ROD; LINK,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-282-0	01	1	0408-	●	●
36	WASHER; PL,ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	0105-	●	●
37	PIN; SPLIT,ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	02	1	0105-	●	●
43	BRACKET; DAMPER TO AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-42129-185-0	01	1	0105-	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-	●	●
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-245-0	01	1	0105-	●	●
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-147-0	01	1	0105-	●	●
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-09656-557-1	01	1	0105-	●	●
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0105-	●	●
111	RUBBER; JOINT,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	01	1	0105-	●	●
112	PIN; JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-123-0	01	1	0105-	●	●
113	NUT; JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
113	NUT; JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
114	WASHER; PL,JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	0105-	●	●
121	ADAPTER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-	●	●
121	ADAPTER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	0105-	●	●
130	ROD; JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-282-0	01	1	0105-	●	●
130	ROD; JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-283-0	01	1	0105-	●	●
131	NUT; JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A) LH THREAD	1-09409-002-0	01	1	0105-	●	●
131	NUT; JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-48119-089-0	01	1	0105-	●	●
132	RUBBER ASM; CONN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	0408-0410	●	●
132	RUBBER ASM; CONN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	02	1	0105-0407	●	●
132	RUBBER ASM; CONN LOAD SENSING PROPORTIONING VALVE<JR7> NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	0408-0410	●	●
132	RUBBER ASM; CONN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	02	1	0411-	●	●
146	BRACKET; DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-42129-510-0	01	1	0408-	●	●

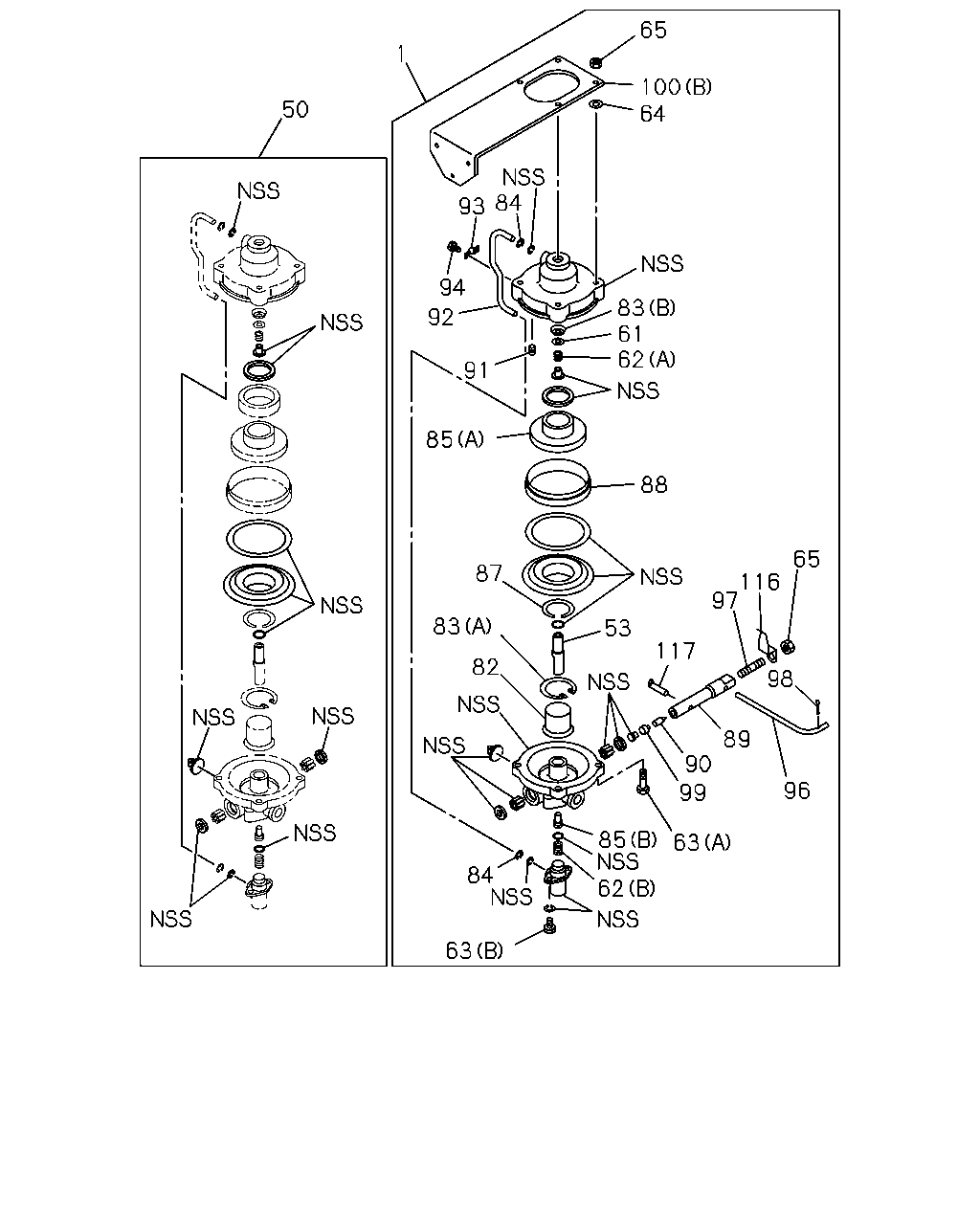

65 64 100 1 50 84 93 94 91 92 83 62 61 88 87 83 82 53 65 116 97 117 98 89 96 90 99 63 85 62 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	0105-	●	●
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-088-0	01	1	0105-	●	●
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-033-0	01	1	0105-	●	●
61	RETAINER; SPRING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-026-0	01	1	0105-	●	●
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-025-0	01	1	0105-	●	●
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-042-0	01	1	0105-	●	●
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-045-0	02	1	0105-	●	●
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-094-0	04	1	0105-	●	●
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-079-0	04	1	0105-	●	●
65	NUT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48199-320-0	05	1	0105-	●	●
82	GUIDE; PISTON,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-016-0	01	1	0105-	●	●
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-017-0	01	1	0105-	●	●
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-027-0	01	1	0105-	●	●
84	RETAINER; GASKET LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-021-0	02	1	0105-	●	●
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-47769-023-0	01	1	0105-	●	●
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-043-0	01	1	0105-	●	●
87	RETAINER; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-086-0	01	1	0105-	●	●
88	GUIDE; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-032-0	01	1	0105-	●	●
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-083-0	01	1	0105-	●	●
90	SCREW; CAM LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-039-0	01	1	0105-	●	●
91	FILTER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-047-0	01	1	0105-	●	●
92	PIPE; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-048-0	01	1	0105-	●	●
93	CLIP; PIPE LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-050-0	01	1	0105-	●	●
94	SCREW; CLIP LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-144-0	02	1	0105-	●	●
96	ARM; OPERATING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-143-0	01	1	0105-	●	●
97	BOLT; OPERATING ARM LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-081-0	01	1	0105-	●	●
98	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) OD=1.8 L=15	9-08112-015-0	01	1	0105-	●	●
99	CAP; SCREW LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-055-0	01	1	0105-	●	●
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-245-0	01	1	0105-	●	●
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-147-0	01	1	0105-	●	●
116	INDICATOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-078-0	01	1	0105-	●	●
117	CAM; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47769-038-0	01	1	0105-	●	●

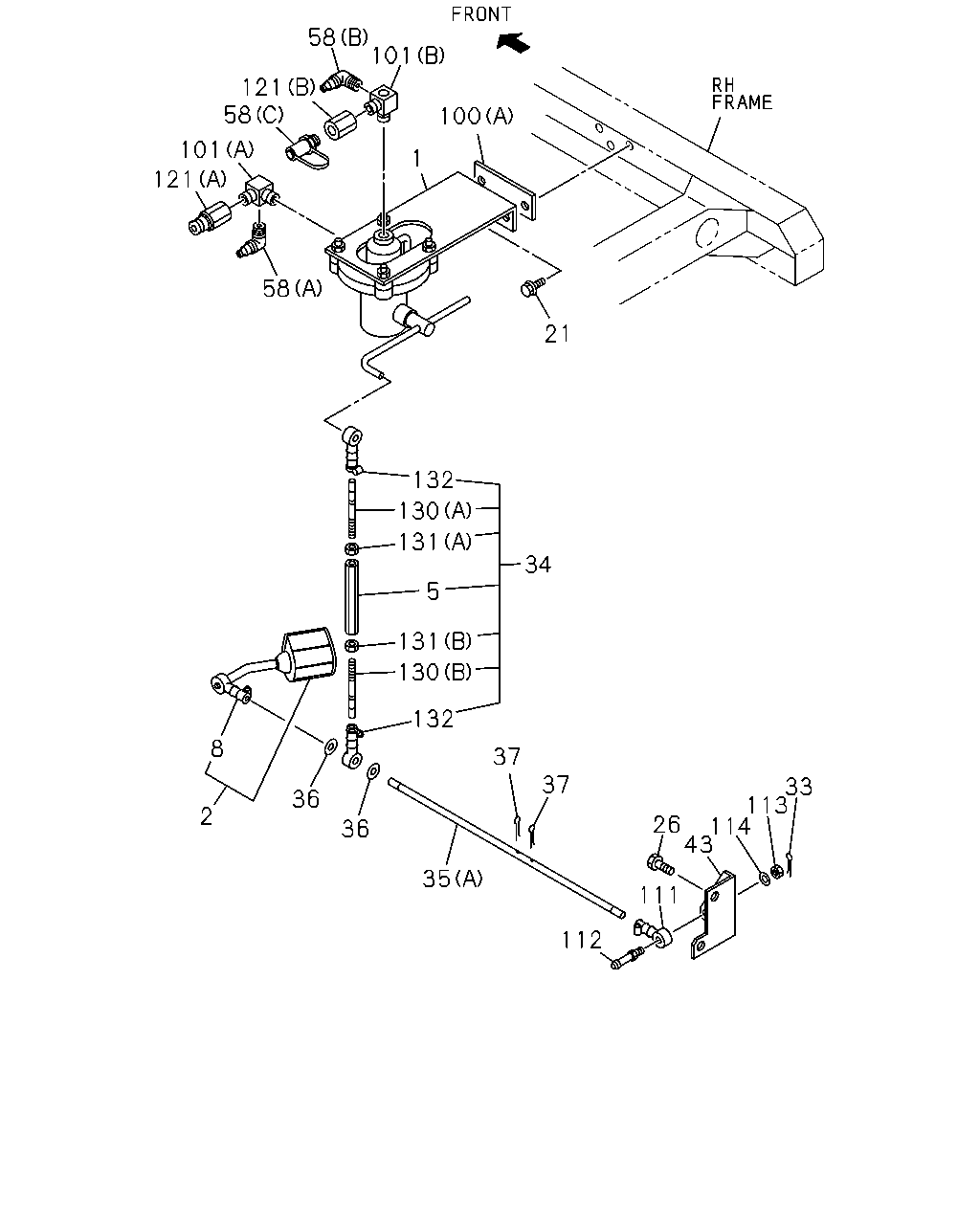

33 113 114 43 26 111 112 37 37 35 36 36 2 8 132 130 131 131 130 5 34 132 21 1 100 101 58 121 58 101 121 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47720-061-0	01	1	0105-	●	●
2	DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-016-0	01	1	0105-0407	●	●
2	DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-047-0	01	1	0408-	●	●
5	JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	0408-	●	●
5	JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	01	1	0408-	●	●
5	JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-091-0	01	1	0105-0407	●	●
5	JOINT LOAD SENSING PROPORTIONING VALVE<JR7> NEW ZEALAND EQUIPMENT(PK5)	1-09768-091-0	02	1	0408-	●	●
8	ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	01	1	0105-	●	●
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28680-835-0	04	1	0105-0512	●	●
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28650-835-0	04	1	0601-	●	●
26	BOLT; DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8X12 FLANGE	0-28080-812-0	02	1	0105-0512	●	●
26	BOLT; DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
33	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	01	1	0105-	●	●
34	ROD; LEVER TO ROD,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-025-0	01	1	0105-	●	●
35	ROD; LINK,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-318-0	01	1	0408-	●	●
35	ROD; LINK,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09740-086-0	01	1	0105-0407	●	●
35	ROD; LINK,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-282-0	01	1	0408-	●	●
36	WASHER; PL,ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	0105-	●	●
37	PIN; SPLIT,ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	02	1	0105-	●	●
43	BRACKET; DAMPER TO AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-42129-185-0	01	1	0105-	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-	●	●
58	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	0105-	●	●
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-42129-245-0	01	1	0105-	●	●
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-47769-147-0	01	1	0105-	●	●
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-09656-557-1	01	1	0105-	●	●
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0105-	●	●
111	RUBBER; JOINT,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	01	1	0105-	●	●
112	PIN; JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-123-0	01	1	0105-	●	●
113	NUT; JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
113	NUT; JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
114	WASHER; PL,JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	0105-	●	●
121	ADAPTER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-	●	●
121	ADAPTER LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	0105-	●	●
130	ROD; JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-282-0	01	1	0105-	●	●
130	ROD; JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-283-0	01	1	0105-	●	●
131	NUT; JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A) LH THREAD	1-09409-002-0	01	1	0105-	●	●
131	NUT; JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-48119-089-0	01	1	0105-	●	●
132	RUBBER ASM; CONN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	0408-0410	●	●
132	RUBBER ASM; CONN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	02	1	0105-0407	●	●
132	RUBBER ASM; CONN LOAD SENSING PROPORTIONING VALVE<JR7> NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	02	1	0408-0410	●	●
132	RUBBER ASM; CONN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	02	1	0411-	●	●
