Sayfa 3-41 - Isuzu EPC

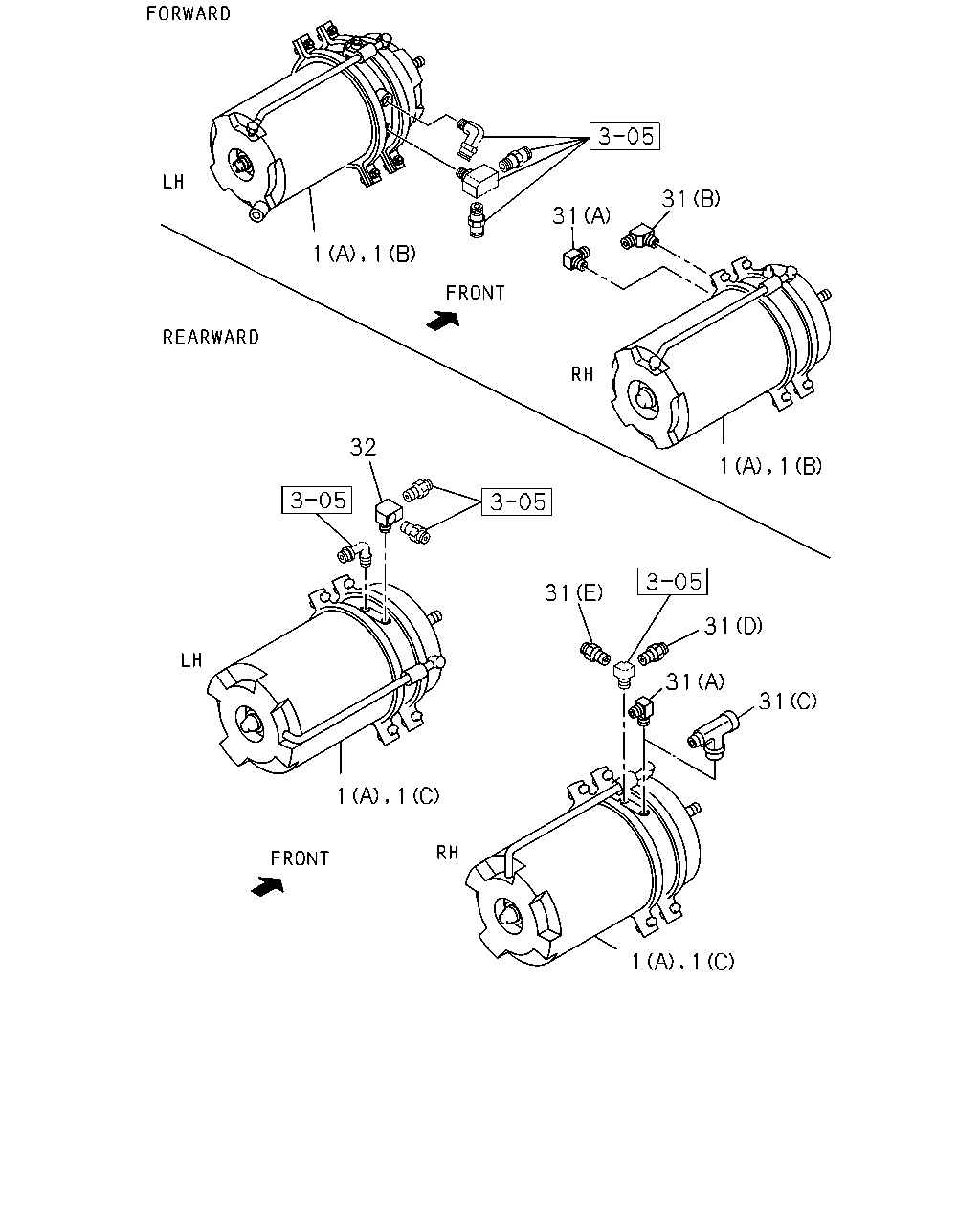

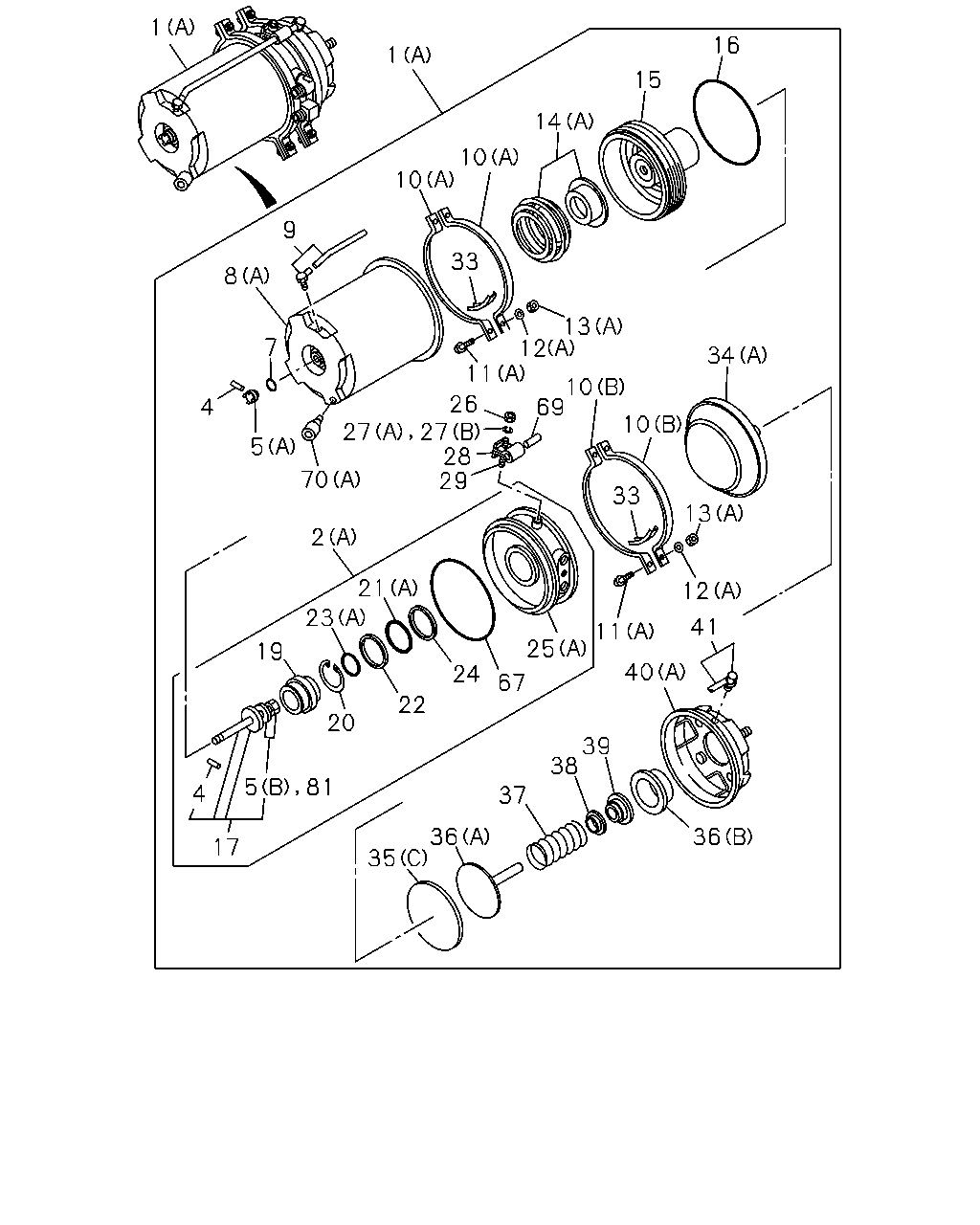

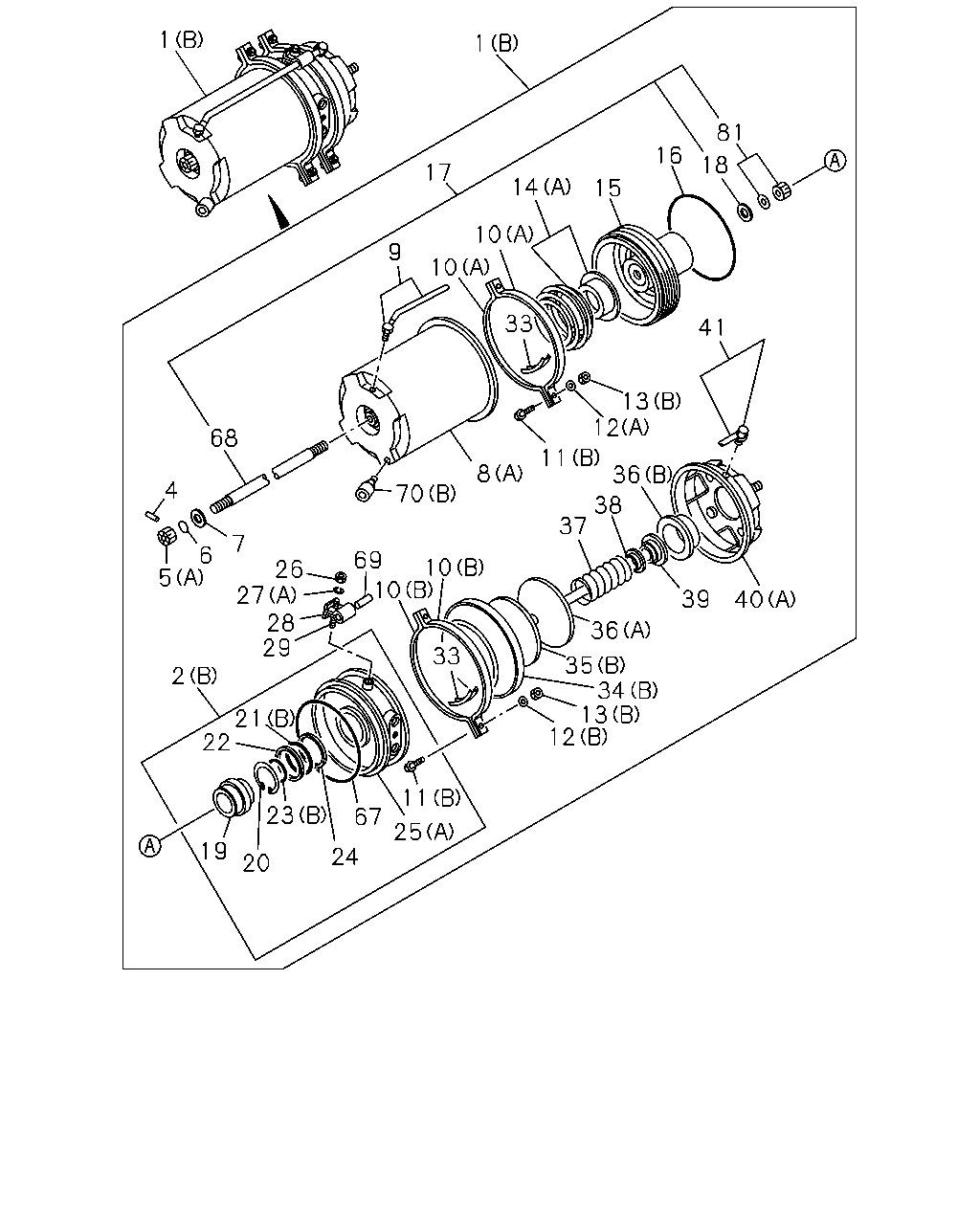

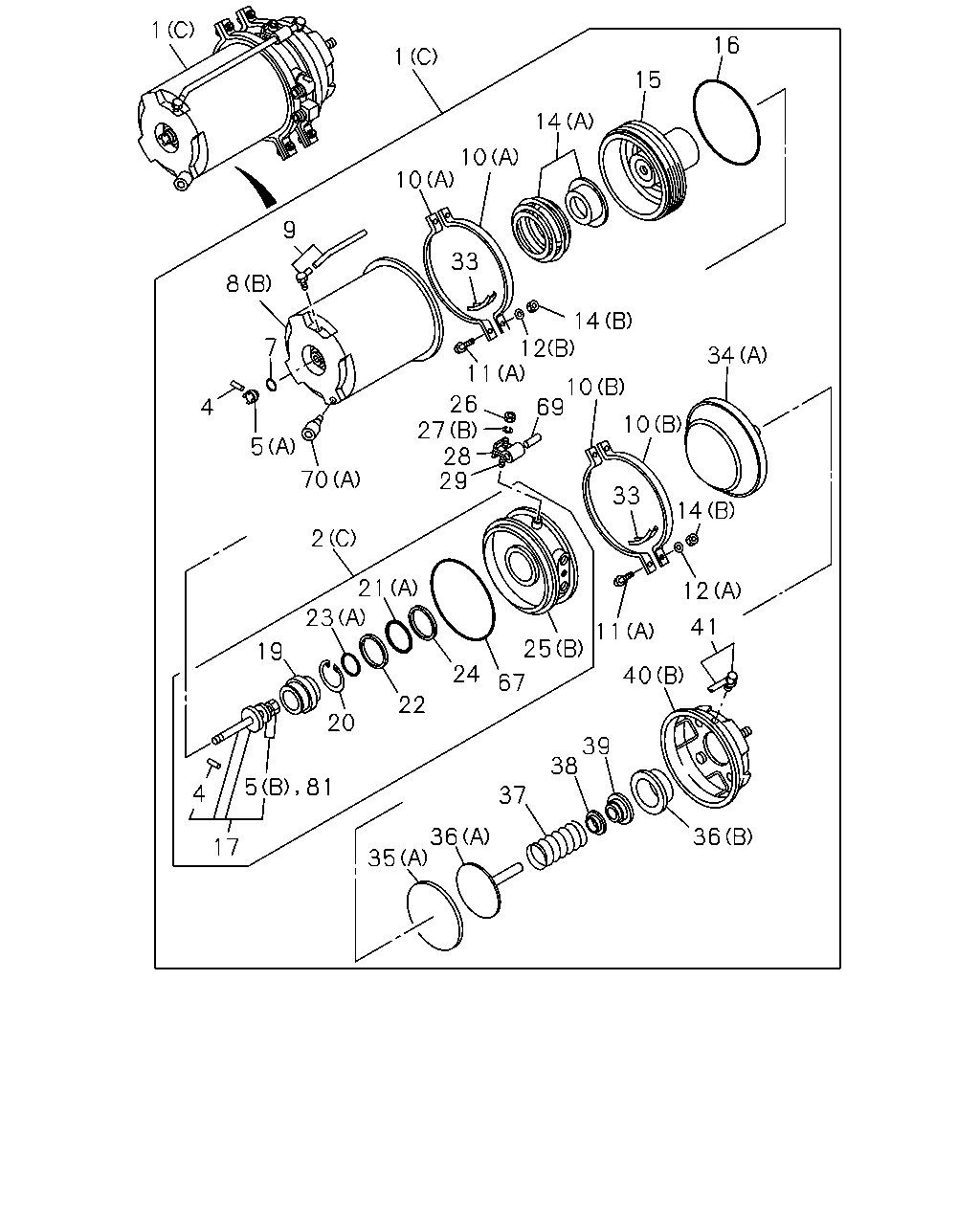

3-41 — REAR BRAKE POWER CHAMBER (#13353) — 536 parça

16 15 14 10 10 1 1 9 8 4 7 5 2 70 21 23 19 20 81 5 4 17 35 22 36 24 37 67 38 39 36 40 11 25 41 12 14 33 10 10 34 14 12 69 11 26 27 29 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD LH,REARWARD RH	1-48250-177-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD LH,REARWARD RH	1-48250-177-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD RH,REARWARD LH	1-48250-176-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD RH,REARWARD LH	1-48250-176-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD	1-48250-724-1	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD	1-48250-723-1	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-48250-249-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-48250-248-2	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48252-021-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48252-021-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48252-020-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48252-020-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-236-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-237-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-040-0	01	1	0105-0402	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-039-0	01	1	0105-0402	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-033-0	01	1	0403-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-031-0	01	1	0403-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	0105-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	0105-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	0105-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	0105-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0105-0109	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0105-0109	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-074-0	02	1	0110-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0110-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-09623-095-0	01	1	0403-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-055-0	01	1	0403-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0105-0402	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0105-0402	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0403-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-055-0	02	1	0403-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48251-043-0	02	1	0105-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-069-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-069-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-069-0	01	1	0110-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-069-0	01	1	0110-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-070-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-070-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-070-0	01	1	0110-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-070-0	01	1	0110-	●	●
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	0105-	●	●
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	0105-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-035-0	08	1	0105-0109	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-035-0	08	1	0105-0109	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-035-0	08	1	0110-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-035-0	08	1	0110-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-092-0	08	1	0105-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-046-0	08	1	0105-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-046-0	08	1	0105-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=10.2	9-09150-510-0	08	1	0105-0109	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=10.2	9-09150-510-0	08	1	0110-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-037-1	02	1	0105-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-037-1	02	1	0105-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	8-83315-080-0	04	1	0105-	●	●
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	0105-	●	●
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	0105-	●	●
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	0105-	●	●
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	0105-	●	●
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	0105-	●	●
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	0105-	●	●
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	0105-	●	●
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	0105-	●	●
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-060-0	02	1	0105-	●	●
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-060-0	02	1	0105-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-049-0	02	1	0105-0109	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-049-0	02	1	0105-0109	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-049-0	02	1	0110-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-049-0	02	1	0110-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-047-0	02	1	0105-	●	●
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	0105-	●	●
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	0105-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-047-0	02	1	0105-0109	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-047-0	02	1	0105-0109	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-047-0	02	1	0110-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-047-0	02	1	0110-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-049-0	02	1	0105-	●	●
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	0105-	●	●
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	0105-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-140-0	01	1	0105-0402	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-122-0	01	1	0403-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-138-0	01	1	0105-0402	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-116-0	01	1	0403-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-087-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-087-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-087-0	01	1	0110-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-087-0	01	1	0110-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-088-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-088-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-088-0	01	1	0110-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-088-0	01	1	0110-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M8	9-09111-508-0	04	1	0403-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0105-0402	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0105-0402	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0403-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-058-0	04	1	0403-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD	1-48259-057-0	02	1	0105-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD	1-48259-057-0	02	1	0105-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD ID=8.2	9-09150-508-0	02	1	0105-0109	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD ID=8.2	9-09150-508-0	02	1	0110-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	0105-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	0105-	●	●
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	0105-	●	●
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48259-044-0	04	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-044-0	04	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48250-044-0	04	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48250-044-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD	1-48252-011-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD	1-48252-011-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48252-057-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-48258-011-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C)	1-48253-011-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48253-011-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48253-063-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48253-035-0	01	1	0105-0402	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48253-029-0	01	1	0105-0402	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48253-029-0	02	1	0403-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-033-0	02	1	0105-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-033-0	02	1	0105-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-043-0	02	1	0105-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-043-0	02	1	0105-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	0105-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	0105-	●	●
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	0105-	●	●
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	0105-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	0105-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	0105-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-139-0	01	1	0105-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-119-0	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-137-0	01	1	0105-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-115-0	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-082-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-082-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-082-1	01	1	0110-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-082-1	01	1	0110-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-081-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-081-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-081-1	01	1	0110-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-081-1	01	1	0110-	●	●
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	0105-	●	●
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	0105-	●	●
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	0105-	●	●
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	0105-	●	●
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	0105-	●	●
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	0105-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-052-0	02	1	0105-0211	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	02	1	0105-0211	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	01	1	0212-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-89966-127-3	02	1	0105-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	01	1	0105-0211	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-052-0	02	1	0212-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	02	1	0212-	●	●
81	NUT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48259-074-0	02	1	0105-	●	●

1 1 17 14 15 16 18 81 10 10 9 41 33 13 12 11 37 38 36 8 70 68 4 7 6 5 26 27 2 28 29 69 10 10 33 21 22 11 25 67 24 23 20 19 40 39 36 35 34 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD LH,REARWARD RH	1-48250-177-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD LH,REARWARD RH	1-48250-177-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD RH,REARWARD LH	1-48250-176-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD RH,REARWARD LH	1-48250-176-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD	1-48250-724-1	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD	1-48250-723-1	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-48250-249-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-48250-248-2	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48252-021-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48252-021-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48252-020-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48252-020-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-236-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-237-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-040-0	01	1	0105-0402	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-039-0	01	1	0105-0402	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-033-0	01	1	0403-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-031-0	01	1	0403-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	0105-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	0105-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	0105-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	0105-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0105-0109	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0105-0109	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-074-0	02	1	0110-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0110-	●	●
6	GASKET; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	9-09920-268-0	02	1	0105-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-09623-095-0	01	1	0403-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-055-0	01	1	0403-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0105-0402	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0105-0402	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0403-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-055-0	02	1	0403-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48251-043-0	02	1	0105-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-069-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-069-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-069-0	01	1	0110-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-069-0	01	1	0110-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-070-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-070-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-070-0	01	1	0110-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-070-0	01	1	0110-	●	●
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	0105-	●	●
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	0105-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-035-0	08	1	0105-0109	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-035-0	08	1	0105-0109	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-035-0	08	1	0110-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-035-0	08	1	0110-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-092-0	08	1	0105-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-046-0	08	1	0105-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-046-0	08	1	0105-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=10.2	9-09150-510-0	08	1	0105-0109	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=10.2	9-09150-510-0	08	1	0110-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M10	9-09110-510-0	08	1	0105-0211	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	08	1	0105-0211	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	04	1	0212-0402	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	04	1	0403-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	9-83315-080-0	08	1	0105-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	04	1	0105-0211	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M10	9-09110-510-0	08	1	0212-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	08	1	0212-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-037-1	02	1	0105-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-037-1	02	1	0105-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	8-83315-080-0	04	1	0105-	●	●
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	0105-	●	●
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	0105-	●	●
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	0105-	●	●
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	0105-	●	●
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	0105-	●	●
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	0105-	●	●
18	WASHER; PISTON COVER,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48259-098-0	02	1	0105-	●	●
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	0105-	●	●
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	0105-	●	●
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-060-0	02	1	0105-	●	●
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-060-0	02	1	0105-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-049-0	02	1	0105-0109	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-049-0	02	1	0105-0109	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-049-0	02	1	0110-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-049-0	02	1	0110-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-047-0	02	1	0105-	●	●
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	0105-	●	●
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	0105-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-047-0	02	1	0105-0109	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-047-0	02	1	0105-0109	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-047-0	02	1	0110-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-047-0	02	1	0110-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-049-0	02	1	0105-	●	●
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	0105-	●	●
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	0105-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-140-0	01	1	0105-0402	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-122-0	01	1	0403-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-138-0	01	1	0105-0402	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-116-0	01	1	0403-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-087-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-087-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-087-0	01	1	0110-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-087-0	01	1	0110-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-088-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-088-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-088-0	01	1	0110-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-088-0	01	1	0110-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M8	9-09111-508-0	04	1	0403-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0105-0402	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0105-0402	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0403-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-058-0	04	1	0403-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD	1-48259-057-0	02	1	0105-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD	1-48259-057-0	02	1	0105-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD ID=8.2	9-09150-508-0	02	1	0105-0109	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD ID=8.2	9-09150-508-0	02	1	0110-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	0105-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	0105-	●	●
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	0105-	●	●
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48259-044-0	04	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-044-0	04	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48250-044-0	04	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48250-044-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD	1-48252-011-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD	1-48252-011-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48252-057-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-48258-011-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C)	1-48253-011-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48253-011-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48253-063-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48253-035-0	01	1	0105-0402	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48253-029-0	01	1	0105-0402	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48253-029-0	02	1	0403-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-033-0	02	1	0105-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-033-0	02	1	0105-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-043-0	02	1	0105-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-043-0	02	1	0105-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	0105-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	0105-	●	●
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	0105-	●	●
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	0105-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	0105-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	0105-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-139-0	01	1	0105-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-119-0	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-137-0	01	1	0105-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-115-0	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-082-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-082-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-082-1	01	1	0110-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-082-1	01	1	0110-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-081-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-081-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-081-1	01	1	0110-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-081-1	01	1	0110-	●	●
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	0105-	●	●
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	0105-	●	●
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	0105-	●	●
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	0105-	●	●
68	BOLT; PISTON COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48259-026-0	02	1	0105-	●	●
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	0105-	●	●
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	0105-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-052-0	02	1	0105-0211	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	02	1	0105-0211	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	01	1	0212-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-89966-127-3	02	1	0105-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	01	1	0105-0211	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-052-0	02	1	0212-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	02	1	0212-	●	●
81	NUT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48259-074-0	02	1	0105-	●	●

16 15 14 10 10 1 9 8 1 4 7 33 34 13 12 11 27 5 26 27 69 10 29 28 70 2 10 13 33 12 41 40 11 25 67 24 39 38 36 37 36 35 22 20 81 5 17 4 19 21 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD LH,REARWARD RH	1-48250-177-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD LH,REARWARD RH	1-48250-177-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD RH,REARWARD LH	1-48250-176-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD RH,REARWARD LH	1-48250-176-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD	1-48250-724-1	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD	1-48250-723-1	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-48250-249-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-48250-248-2	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48252-021-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48252-021-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48252-020-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48252-020-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-236-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-237-0	01	1	0105-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-040-0	01	1	0105-0402	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-039-0	01	1	0105-0402	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-033-0	01	1	0403-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48252-031-0	01	1	0403-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	0105-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	0105-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	0105-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	0105-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0105-0109	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0105-0109	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-074-0	02	1	0110-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0110-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-09623-095-0	01	1	0403-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD	1-48259-055-0	01	1	0403-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0105-0402	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0105-0402	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0403-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-055-0	02	1	0403-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48251-043-0	02	1	0105-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-069-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-069-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-069-0	01	1	0110-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-069-0	01	1	0110-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-070-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-070-0	01	1	0105-0109	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-070-0	01	1	0110-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-070-0	01	1	0110-	●	●
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	0105-	●	●
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	0105-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	0105-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-035-0	08	1	0105-0109	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-035-0	08	1	0105-0109	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-035-0	08	1	0110-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-035-0	08	1	0110-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-092-0	08	1	0105-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-046-0	08	1	0105-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-046-0	08	1	0105-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=10.2	9-09150-510-0	08	1	0105-0109	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B) ID=10.2	9-09150-510-0	08	1	0110-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M10	9-09110-510-0	08	1	0105-0211	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	08	1	0105-0211	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	04	1	0212-0402	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	04	1	0403-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	9-83315-080-0	08	1	0105-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	04	1	0105-0211	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) M10	9-09110-510-0	08	1	0212-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) M10	9-09110-510-0	08	1	0212-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-037-1	02	1	0105-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-037-1	02	1	0105-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	8-83315-080-0	04	1	0105-	●	●
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	0105-	●	●
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	0105-	●	●
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	0105-	●	●
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	0105-	●	●
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	0105-	●	●
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	0105-	●	●
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	0105-	●	●
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	0105-	●	●
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-060-0	02	1	0105-	●	●
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-060-0	02	1	0105-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-049-0	02	1	0105-0109	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-049-0	02	1	0105-0109	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-049-0	02	1	0110-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-049-0	02	1	0110-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-047-0	02	1	0105-	●	●
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	0105-	●	●
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	0105-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-047-0	02	1	0105-0109	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-047-0	02	1	0105-0109	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-047-0	02	1	0110-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-047-0	02	1	0110-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48259-049-0	02	1	0105-	●	●
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	0105-	●	●
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	0105-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-140-0	01	1	0105-0402	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-122-0	01	1	0403-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-138-0	01	1	0105-0402	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-116-0	01	1	0403-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-087-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-087-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-087-0	01	1	0110-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-087-0	01	1	0110-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-088-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-088-0	01	1	0105-0109	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-088-0	01	1	0110-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-088-0	01	1	0110-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REARWARD M8	9-09111-508-0	04	1	0403-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0105-0402	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0105-0402	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0403-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-058-0	04	1	0403-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD	1-48259-057-0	02	1	0105-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD	1-48259-057-0	02	1	0105-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD ID=8.2	9-09150-508-0	02	1	0105-0109	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B) REARWARD ID=8.2	9-09150-508-0	02	1	0110-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	0105-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	0105-	●	●
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	0105-	●	●
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48259-044-0	04	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48259-044-0	04	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48250-044-0	04	1	0105-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T>	1-48250-044-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD	1-48252-011-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD	1-48252-011-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48252-057-0	02	1	0105-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD	1-48258-011-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C)	1-48253-011-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (C)	1-48253-011-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-48253-063-0	02	1	0105-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48253-035-0	01	1	0105-0402	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48253-029-0	01	1	0105-0402	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48253-029-0	02	1	0403-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-033-0	02	1	0105-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-033-0	02	1	0105-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-043-0	02	1	0105-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-043-0	02	1	0105-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	0105-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	0105-	●	●
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	0105-	●	●
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	0105-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	0105-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	0105-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-139-0	01	1	0105-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-119-0	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-137-0	01	1	0105-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (B)	1-48259-115-0	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-082-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-082-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-082-1	01	1	0110-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-082-1	01	1	0110-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-081-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-081-1	01	1	0105-0109	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-081-1	01	1	0110-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-081-1	01	1	0110-	●	●
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	0105-	●	●
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	0105-	●	●
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	0105-	●	●
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	0105-	●	●
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	0105-	●	●
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	0105-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-052-0	02	1	0105-0211	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	02	1	0105-0211	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	01	1	0212-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B)	1-89966-127-3	02	1	0105-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	01	1	0105-0211	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A)	1-48259-052-0	02	1	0212-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A)	1-48259-052-0	02	1	0212-	●	●
81	NUT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>	1-48259-074-0	02	1	0105-	●	●

31 31 31 31 1 1 31 31 1 1 32 1 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD LH,REARWARD RH	1-48250-177-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD LH,REARWARD RH	1-48250-177-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) FORWARD RH,REARWARD LH	1-48250-176-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) FORWARD RH,REARWARD LH	1-48250-176-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD	1-48250-724-1	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD	1-48250-723-1	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-48250-249-2	01	1	0105-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>,POWER CHAMBER BRAKE UPPERWARD<C1T> (C) REARWARD	1-48250-248-2	01	1	0105-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) FORWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0105-0109	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) FORWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0105-0109	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) FORWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0110-0211	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (B) FORWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0110-0211	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> (B) FORWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0110-0211	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0105-0106	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0105-0106	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0107-0211	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0107-0211	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0107-0211	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV) (A) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0212-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0212-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) REARWARD DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	0105-0106	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION ECE<TDV> (E) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0107-0109	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0107-0109	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV) (E) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0110-0211	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	0110-0211	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (D) REARWARD DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	0105-0204	●	●
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (D) REARWARD DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	0205-	●	●
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) REARWARD DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	0205-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD<C1T> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0105-0211	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0212-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> (E) REARWARD M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0105-0204		●
31	CONNECTOR POWER CHAMBER BRAKE UPPERWARD<C1T> TAIL PIPE SINGLE HORIZONTAL<NC2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) REARWARD M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0205-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT260<C2B> POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) FORWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0212-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> (A) REARWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0212-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (A) REARWARD DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0212-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) FORWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0212-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> TAIL PIPE SINGLE HORIZONTAL<NC2> (E) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0212-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD<C1T> (E) REARWARD DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0212-	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-09660-697-1	01	1	0105-0204	●	●
32	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT210<C2A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV>	1-09660-697-1	01	1	0205-	●	●
32	CONNECTOR; SPR CHAMBER POWER CHAMBER BRAKE UPPERWARD<C1T> REAR AXLE RT260<C2B> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-697-1	01	1	0205-	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD<C1T> NEW ZEALAND EQUIPMENT(PK5) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	0105-0211	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE RT210<C2A> POWER CHAMBER BRAKE UPPERWARD<C1T> BRAKE REGULATION ECE<TDV> DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	0212-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
