Isuzu WW
▶
TRUCKS
▶
FTR
▶
11576 - FTR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

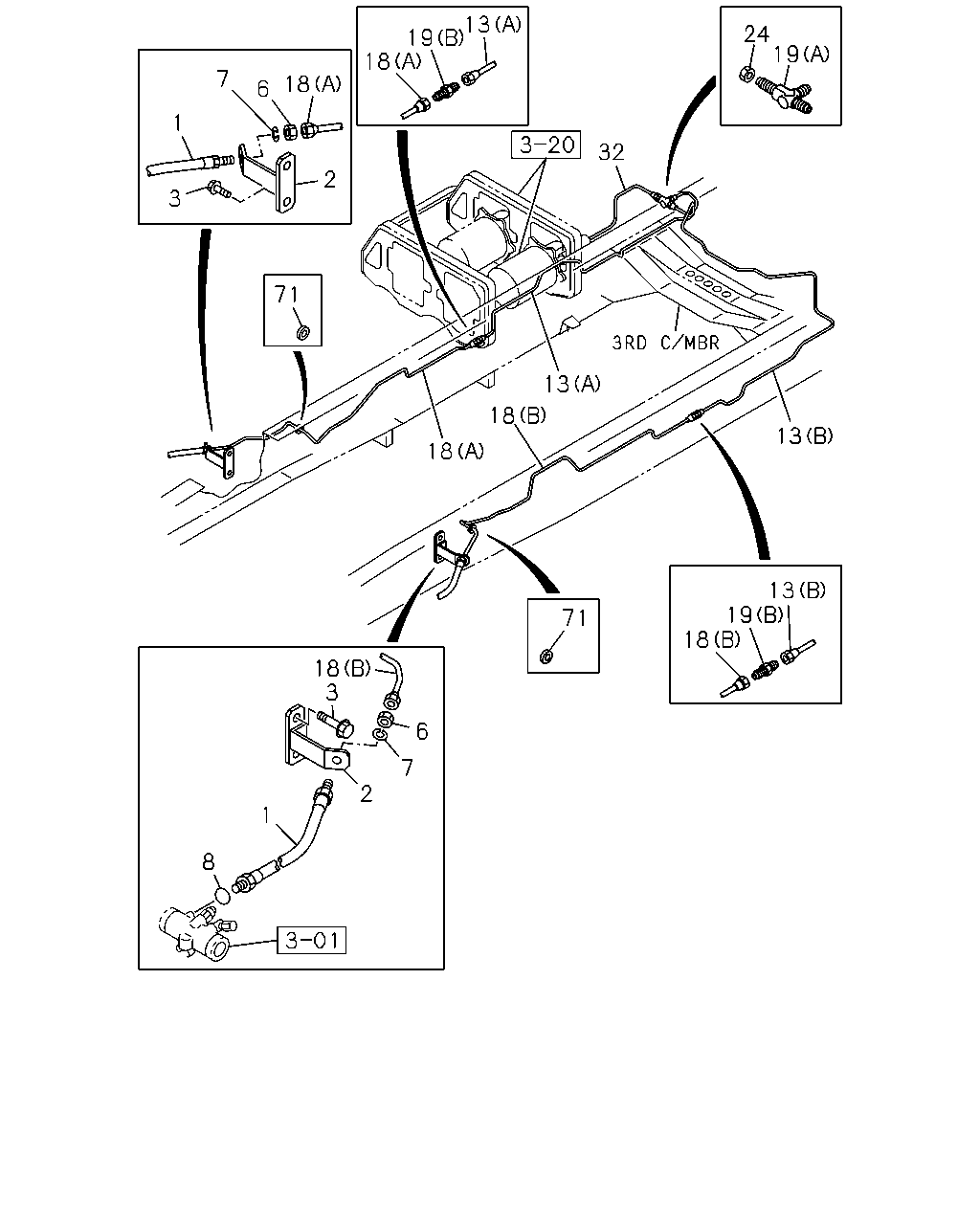

3-52 — BRAKE PIPING; OIL,FRONT
(#133528) — 15 parça
3
1
7
6
18
2
18
19
13
71
32
24
19
18
18
13
13
71
18
3
1
8
6
7
2
18
19
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=610
0-05212-610-0
02
1
1402-
2
BRACKET; FLEX HOSE,FRT BRK
8-98177-524-0
02
1
1402-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE THA
0-28650-825-0
04
1
1402-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
1402-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
0-91510-512-0
02
1
1402-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
1402-
13
PIPE; OIL,UNION TO UNION
(B) L=1439 SERVICED BY L=1500
1-47428-735-0
01
1
1402-
13
PIPE; OIL,UNION TO UNION
(A) L=1208 SERVICED BY L=1250
1-47428-733-0
01
1
1402-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1889 SERVICED BY L=2000
1-47428-739-0
01
1
1402-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1230 SERVICED BY L=1250
1-47428-733-0
01
1
1402-
19
UNION; OIL PIPE
(B) M12 L=40
0-92113-006-0
02
1
1402-
19
UNION; OIL PIPE
(A) M12 3WAY
0-92138-906-0
01
1
1402-
24
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
1402-
32
PIPE; OIL,AIR MASTER TO UNION
L=368 THA
8-98222-352-0
01
1
1402-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1402-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
