2-26 — MANUAL TRANSMISSION GEAR (#133510) — 109 parça

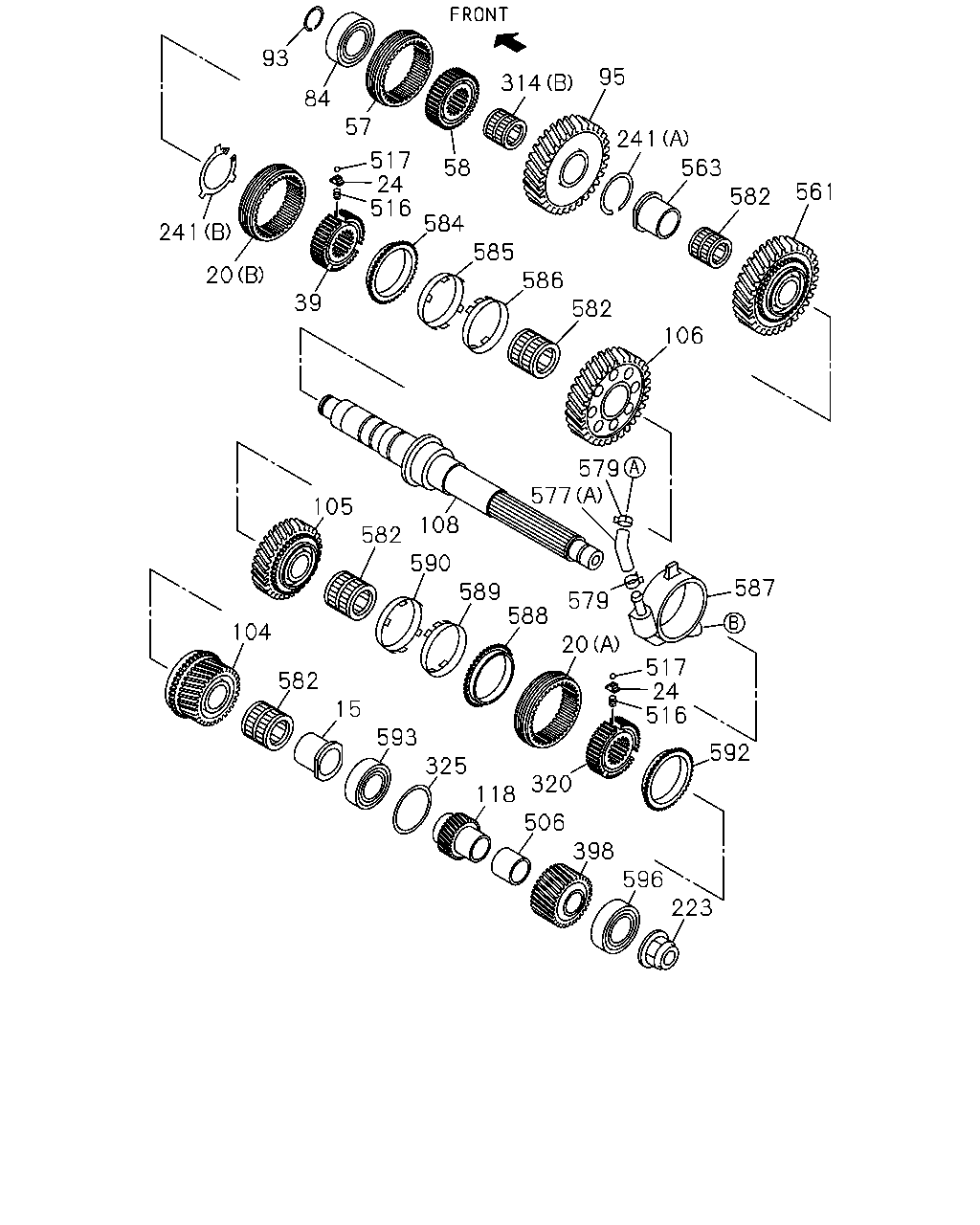

çizim 406726
93 84 57 517 24 516 584 58 314 95 241 563 582 561 106 582 586 585 241 20 39 105 582 108 590 589 588 577 579 579 20 517 24 516 592 587 223 596 398 506 320 118 325 593 15 582 104
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1402-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1402-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1402-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1402-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1402-1501
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1502-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1402-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1402-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-0 01 1 1402-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1402-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1402-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1402-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1402-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1402-
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1402-1501
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1502-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1402-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1402-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1402-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1402-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1402-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1402-
320 HUB; CLU,4TH & 3RD 8-98075-733-0 01 1 1402-1501
320 HUB; CLU,4TH & 3RD 8-98303-649-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1402-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1402-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1402-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1402-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1402-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1402-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1402-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1402-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1402-
579 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 07 1 1402-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1402-
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1402-
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1402-
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1402-
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1402-1501
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1502-
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1402-
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1402-
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1402-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1402-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1402-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1402-

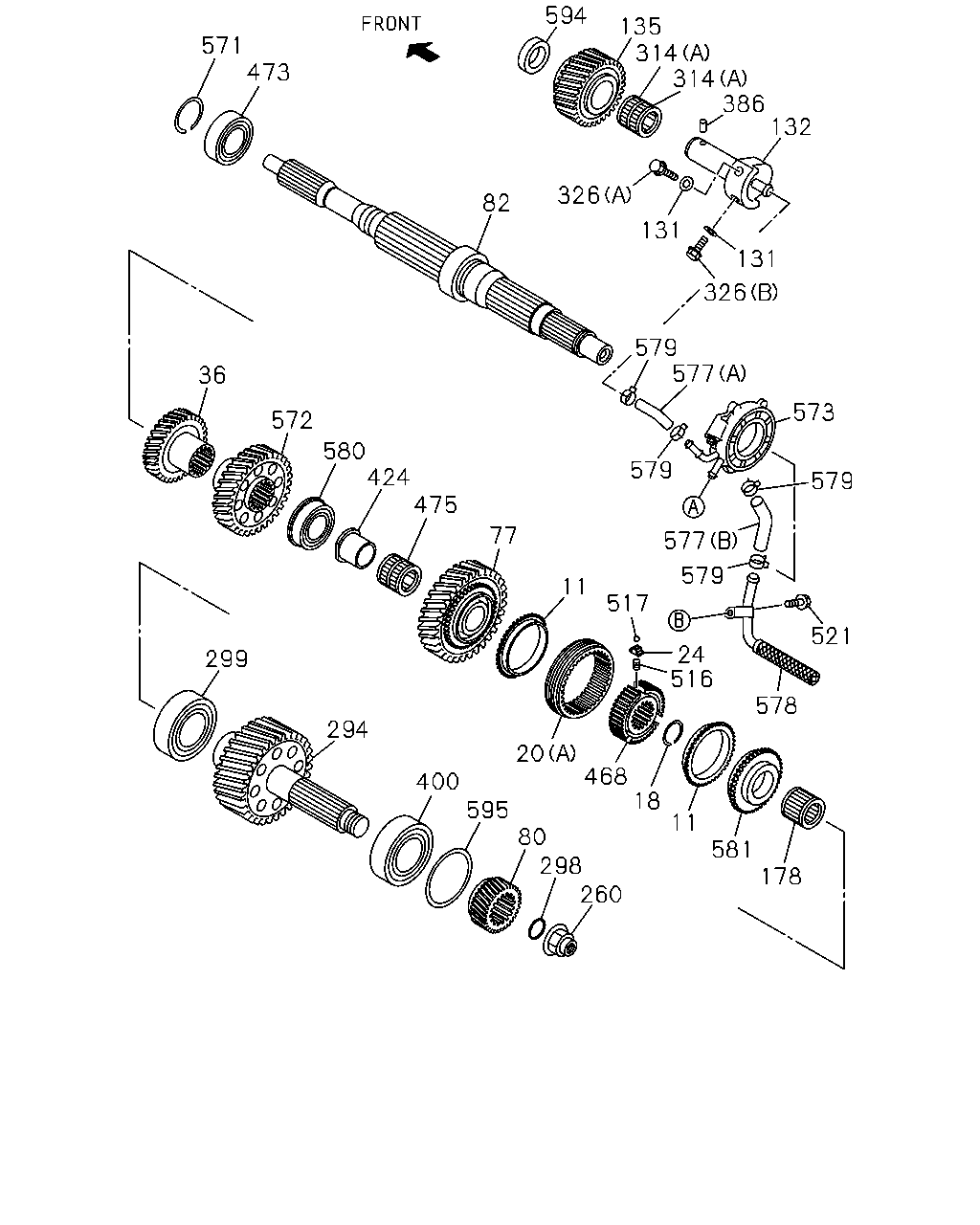

çizim 406923
132 386 314 314 135 594 82 326 131 326 131 579 473 571 36 572 580 424 77 475 11 579 577 573 579 577 517 24 579 521 578 516 178 581 11 18 468 20 260 298 80 595 400 294 299
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1402-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1402-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1402-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1402-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1402-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1402-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1402-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1402-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1402-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1402-
132 SHAFT; REV 8-98009-372-0 01 1 1402-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1402-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1402-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1402-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1402-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1402-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1402-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1402-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1402-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1402-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1402-
386 PIN; REV SHAFT 9-08150-408-0 01 1 1402-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1402-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1402-
468 HUB; CLU,5TH & 6TH 8-98075-734-0 01 1 1402-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1402-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1402-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1402-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1402-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1402-
521 BOLT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1402-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1402-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1402-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1402-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1402-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1402-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1402-
579 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 07 1 1402-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1402-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1402-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1402-
