◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11576 - FTR CNG(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#133505) — 52 parça

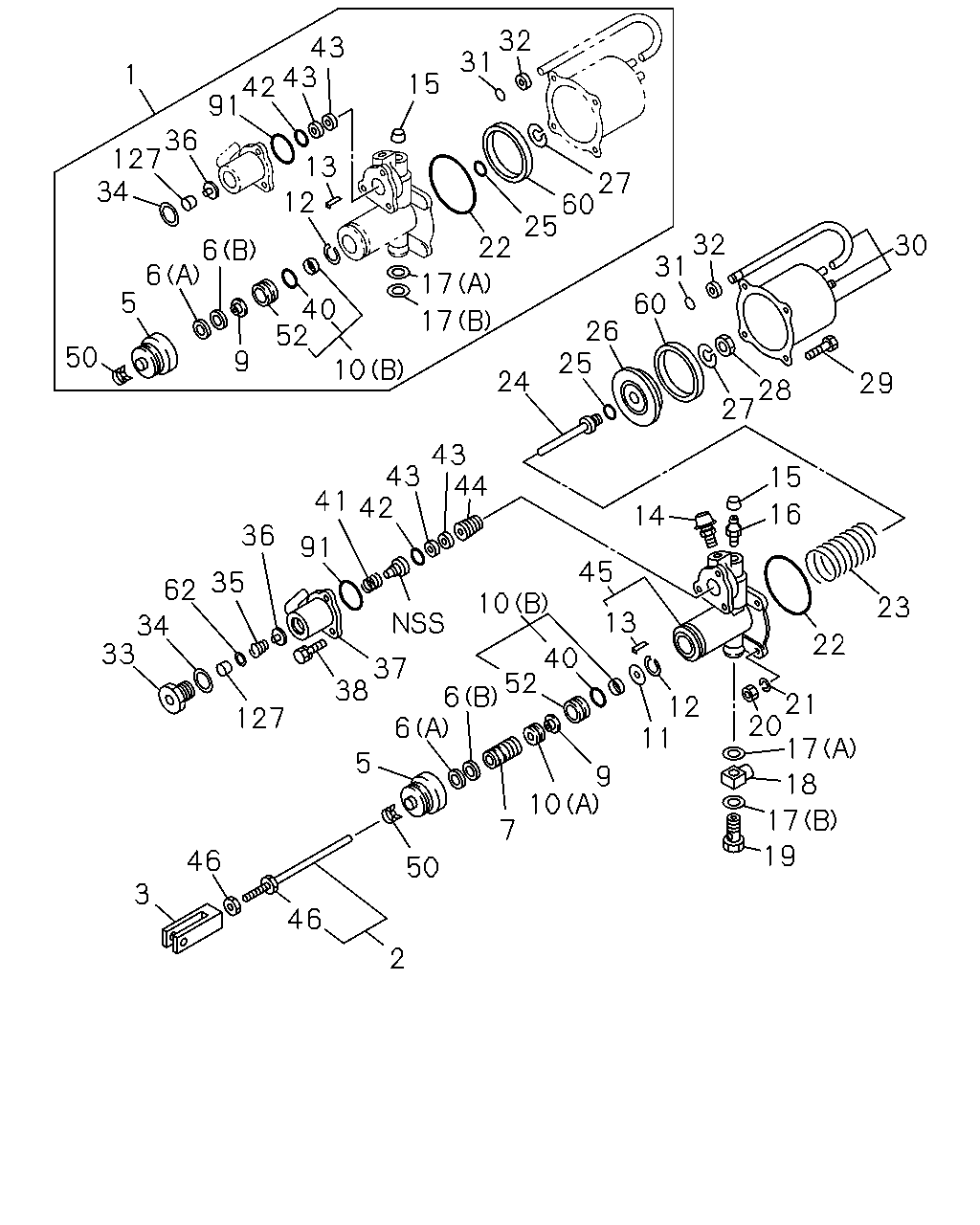

çizim 407368
30 29 15 14 16 23 22 21 20 17 18 17 19 9 10 7 11 12 13 45 10 6 52 6 5 127 2 50 46 46 3 33 62 34 36 41 91 38 42 37 43 43 44 24 25 26 60 31 32 28 27 27 60 25 22 17 17 10 52 40 9 6 6 12 13 15 31 32 43 43 42 91 36 1 127 34 5 50 35 40
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-603-0 01 1 1402-
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1402-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1402-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1402-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 1402-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 1402-
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1402-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1402-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1402-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1402-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1402-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1402-
13 PIN; SPR 1-31829-109-0 01 1 1402-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1402-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1402-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1402-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1402-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1402-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1402-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1402-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1402-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1402-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1402-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1402-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1402-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1402-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1402-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1402-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1402-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1402-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1402-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1402-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1402-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1402-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1402-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1402-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1402-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-147-0 01 1 1402-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1402-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1402-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1402-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1402-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1402-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1402-
45 PLATE; END,CLU BOOSTER 1-31811-143-0 01 1 1402-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1402-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1402-
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 1402-1412
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1402-
62 RETAINER; POPPET 1-31829-489-0 01 1 1402-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1402-
127 FILTER; POPPET 1-31829-495-0 01 1 1402-
