Isuzu WW
▶
TRUCKS
▶
FTR
▶
11576 - FTR CNG(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

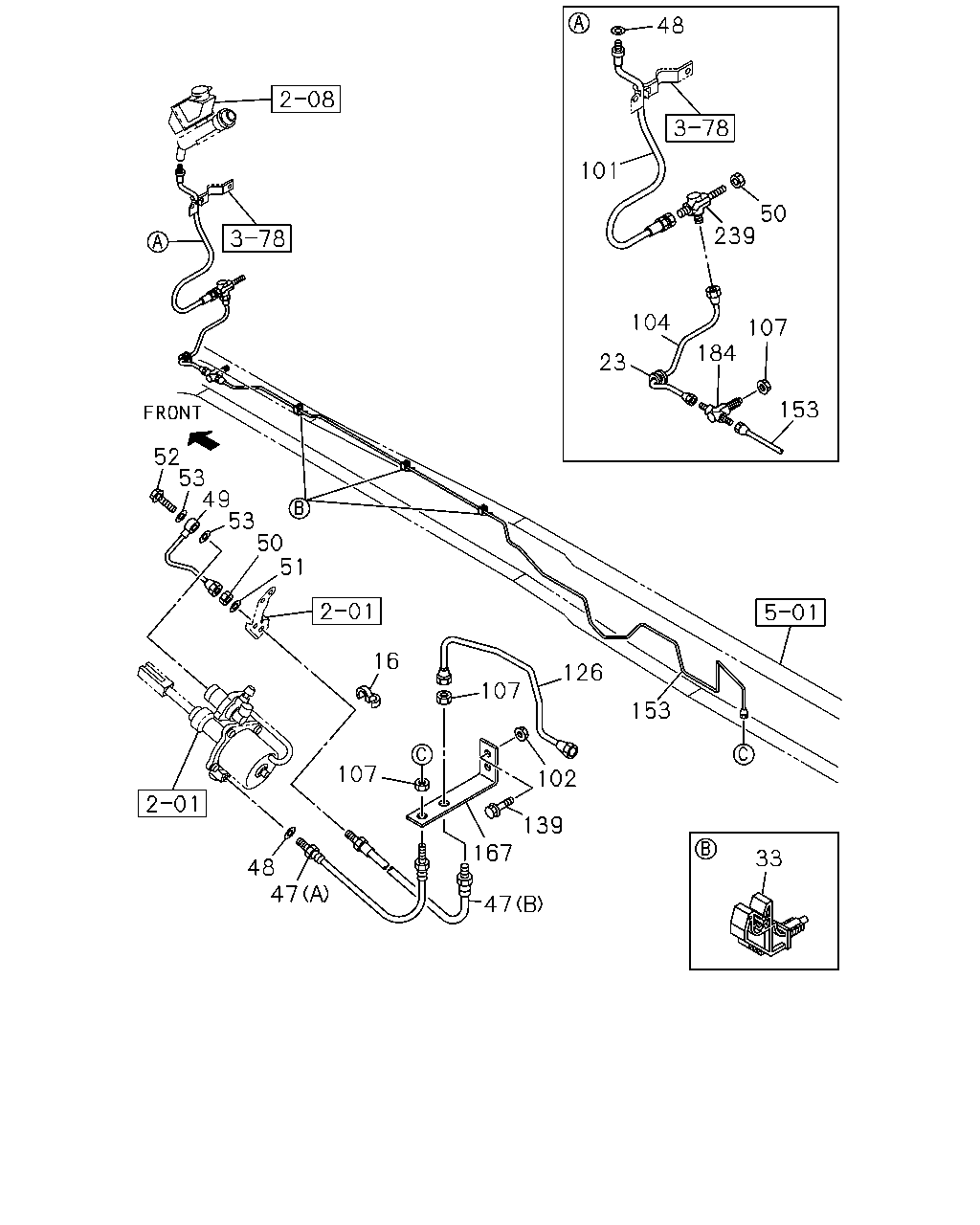

2-05 — CLUTCH PIPING
(#133504) — 22 parça
33
153
126
107
102
139
167
47
16
107
47
48
51
50
53
49
53
52
101
48
50
239
104
107
153
184
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
1402-
23
GROMMET; CLU PIPE
ID=15 OD=20 T=17.5
1-09332-130-0
01
1
1402-
33
CLIP; OIL PIPE
ID=6.35
1-09701-247-1
03
1
1402-
47
HOSE; FLEX,CLU CONT
(B) L=500
1-09363-720-0
01
1
1402-
47
HOSE; FLEX,CLU CONT
(A) L=500
1-09364-267-0
01
1
1402-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA
9-09571-410-0
02
1
1402-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 THA
8-97948-221-0
01
1
1402-
50
NUT; UNION
M12
0-91111-512-0
01
1
1402-
50
NUT; UNION
M12
0-91111-512-0
01
1
1402-
51
WASHER; LK
ID=12.2
0-91510-512-0
01
1
1402-
52
BOLT; EYE,AIR PIPE
M14X27 FLANGE
1-09675-086-0
01
1
1402-
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
8-98251-345-0
02
1
1402-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440
8-98072-346-0
01
1
1402-
102
NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA
0-91180-108-0
02
1
1402-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=585 SERVICED BY L=600
1-47428-725-0
01
1
1402-
107
NUT; UNION,OIL PIPE
M12
9-09840-280-0
03
1
1402-
126
PIPE; AIR,UNION TO UNION
L=240
8-98222-353-0
01
1
1402-
139
BOLT; BRKT
M8X30 FLANGE THA
0-28650-830-0
02
1
1402-
153
PIPE ASM; CLU,UNION TO FLEX
L=2982 SERVICED BY L=3200
1-47428-745-0
01
1
1402-
167
BRACKET; UNION
8-98077-571-0
01
1
1402-
184
UNION; FLEX HOSE
M12 3WAY
1-09654-137-2
01
1
1402-
239
UNION; CLU HOSE
M12 2WAY
1-09654-059-2
01
1
1402-
