◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11576 - FTR CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#133499) — 100 parça
çizim 406589
126 36 84 12 506 506
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-97630-814-1 01 1 1402-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1402-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1402-
84 GASKET; EXH PIPE 1-22116-034-0 02 1 1402-
126 PIPE; EXH,RR
THA 		8-98217-351-0 01 1 1402-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1402-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1402-

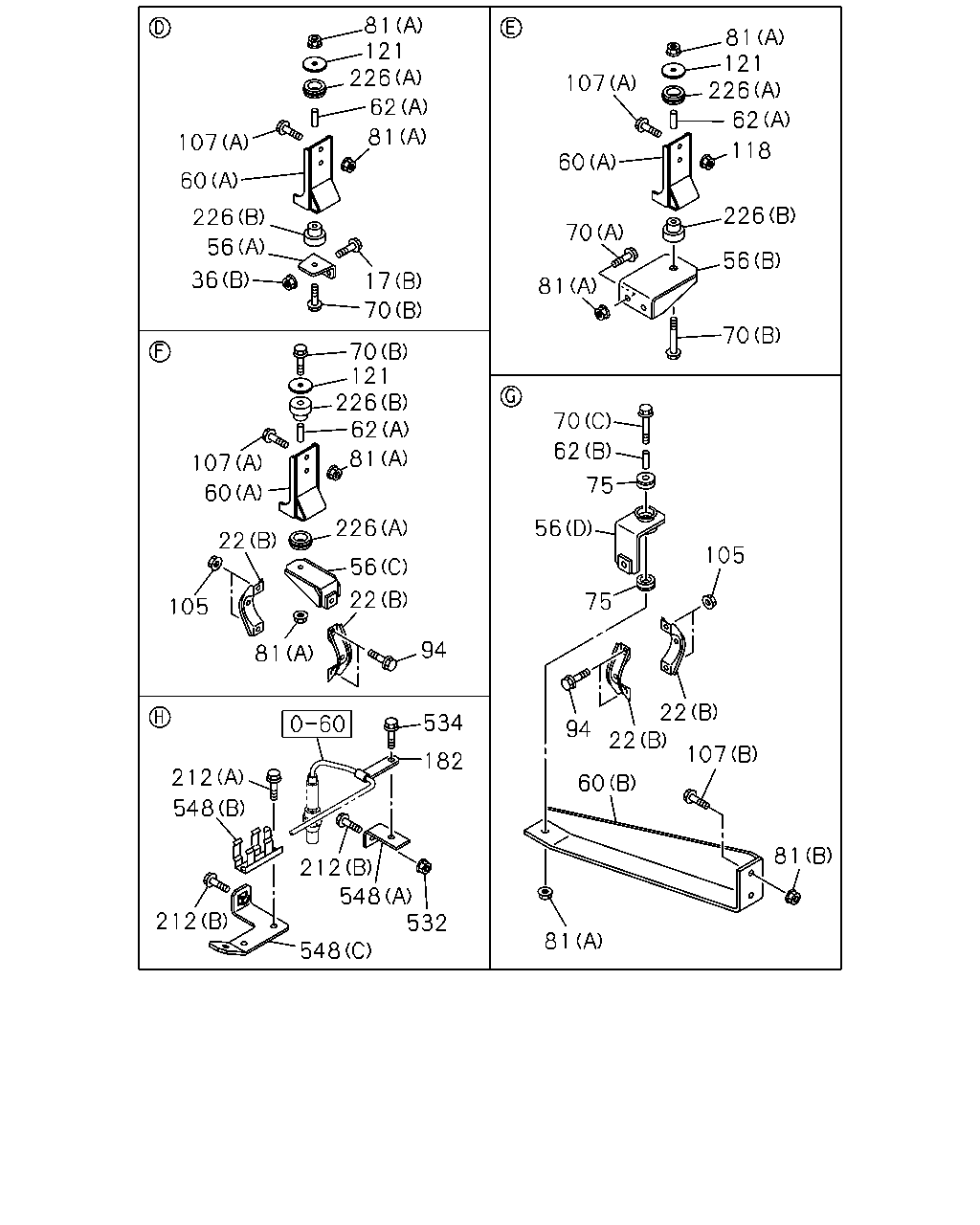

çizim 406608
81 121 226 62 81 107 60 226 56 36 17 70 70 121 226 62 81 226 56 22 81 94 105 22 60 107 534 182 532 548 212 548 212 548 212 81 81 107 60 94 22 22 105 75 56 75 62 70 70 56 226 81 70 60 107 118 62 226 121 81
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1402-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1402-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1402-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97925-383-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(A) THA 		8-98154-986-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(B) THA 		8-98154-987-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98217-355-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
(B) THA 		8-98200-861-1 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1402-
62 TUBE; DIST,BRKT
(B) L=25 		1-14234-083-0 01 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1402-
70 BOLT; BRKT
(C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1402-
70 BOLT; BRKT
(B) M10X70 FLANGE THA 		0-28051-070-0 01 1 1402-
70 BOLT; BRKT
(B) M10X70 FLANGE THA 		0-28051-070-0 02 1 1402-
70 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
75 RUBBER; SUPPORT,BRKT
OD=40 THA 		1-22159-094-0 02 1 1402-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 06 1 1402-
107 BOLT; BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1402-
182 CLIP; HARNESS
ID=7 L=50 		0-95234-685-0 01 1 1402-
212 BOLT; BRKT
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1402-
212 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1402-
226 RUBBER; CUSHION
(A) THA 		8-97948-226-0 01 1 1402-
226 RUBBER; CUSHION
(A) THA 		8-97948-226-0 02 1 1402-
226 RUBBER; CUSHION
(B) THA 		8-97948-227-0 01 1 1402-
226 RUBBER; CUSHION
(B) THA 		8-97948-227-0 02 1 1402-
532 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
534 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-
548 BRACKET; O2 SENSOR
(A) L=60 		1-47476-217-0 01 1 1402-
548 BRACKET; O2 SENSOR
(B) 		8-97262-725-0 01 1 1402-
548 BRACKET; O2 SENSOR
(C) THA 		8-98152-132-0 01 1 1402-

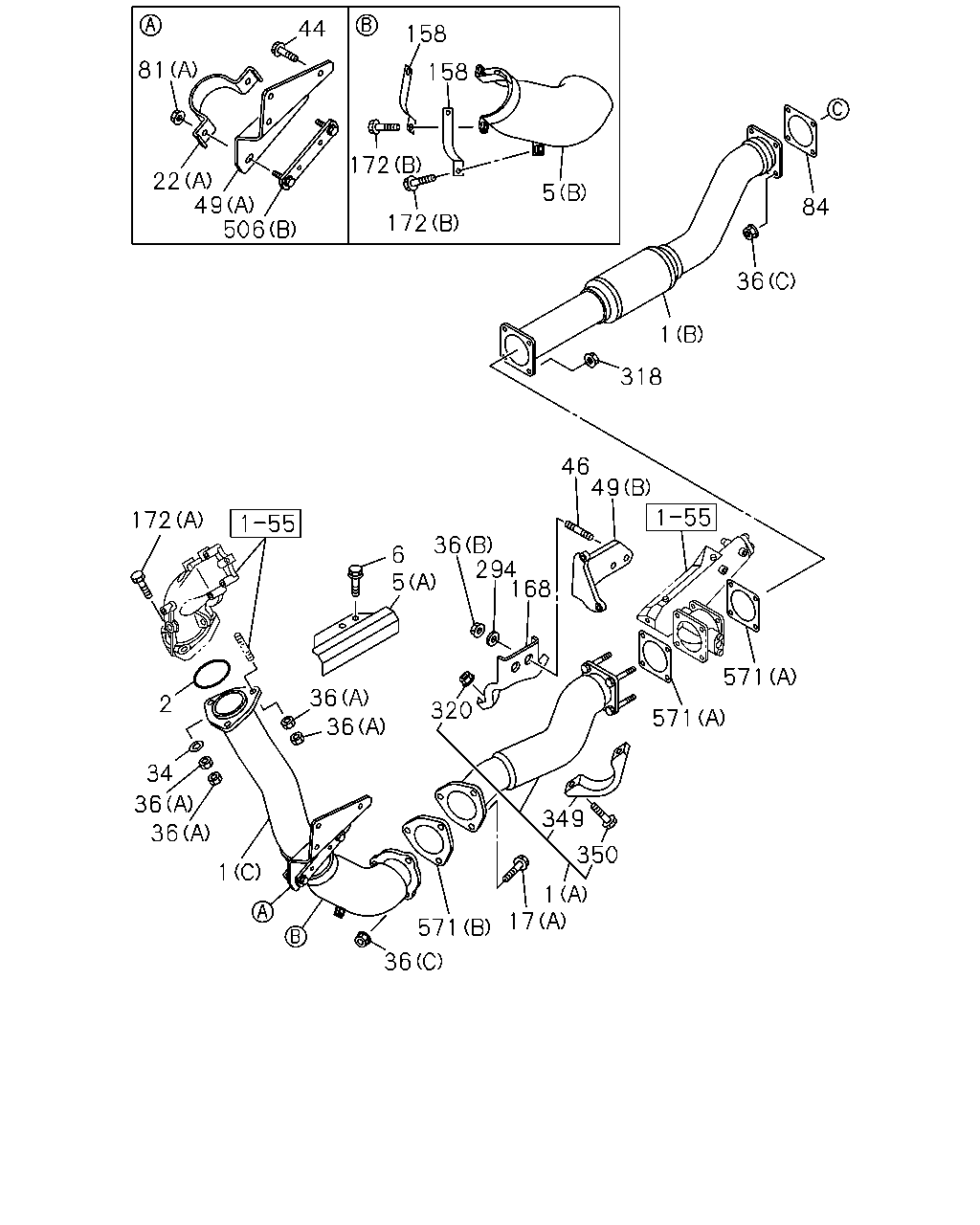

çizim 407121
81 22 49 506 172 172 158 158 5 318 1 36 84 46 49 571 571 349 350 1 17 571 36 1 36 36 34 2 172 44 6 5 36 294 168 36 36 320
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(A) THA 		8-97948-946-0 01 1 1402-
1 PIPE; EXH
(B) THA 		8-97629-977-2 01 1 1402-
1 PIPE; EXH
(C) THA 		8-98126-486-5 01 1 1402-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-22116-029-0 01 1 1402-
5 PROTECTOR; HEAT
(B) THA 		8-97630-122-2 01 1 1402-
5 PROTECTOR; HEAT
(A) 		8-98044-124-0 01 1 1402-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE THA 		0-28650-825-0 02 1 1402-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1402-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1402-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1402-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1402-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1402-
44 BOLT; BRKT
M10X20 FLANGE THA 		0-28751-020-0 03 1 1402-
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1402-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-97629-970-0 01 1 1402-
49 BRACKET; EXH PIPE TO TRANS
(B) THA 		8-97948-675-0 01 1 1402-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
84 GASKET; EXH PIPE 1-22116-034-0 02 1 1402-
158 BRACKET; HEAT PROTECTOR 8-97630-104-0 02 1 1402-
168 BRACKET; EXH PIPE,FRT
THA 		8-97948-945-0 01 1 1402-
172 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1402-
172 BOLT
(A) M12X65 		1-09000-386-0 02 1 1402-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1402-
318 NUT; EXH PIPE,FRT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-
320 NUT; CLAMP,EXH PIPE
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
349 CLAMP; EXH PIPE
THA 		8-97948-944-0 01 1 1402-
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE THA 		0-28651-030-0 02 1 1402-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1402-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1402-
571 GASKET
(A) 		1-22116-043-0 02 1 1402-
571 GASKET
(B) 		8-98043-481-0 01 1 1402-
