1-41 — FUEL PIPING; CHASSIS (#133498) — 313 parça

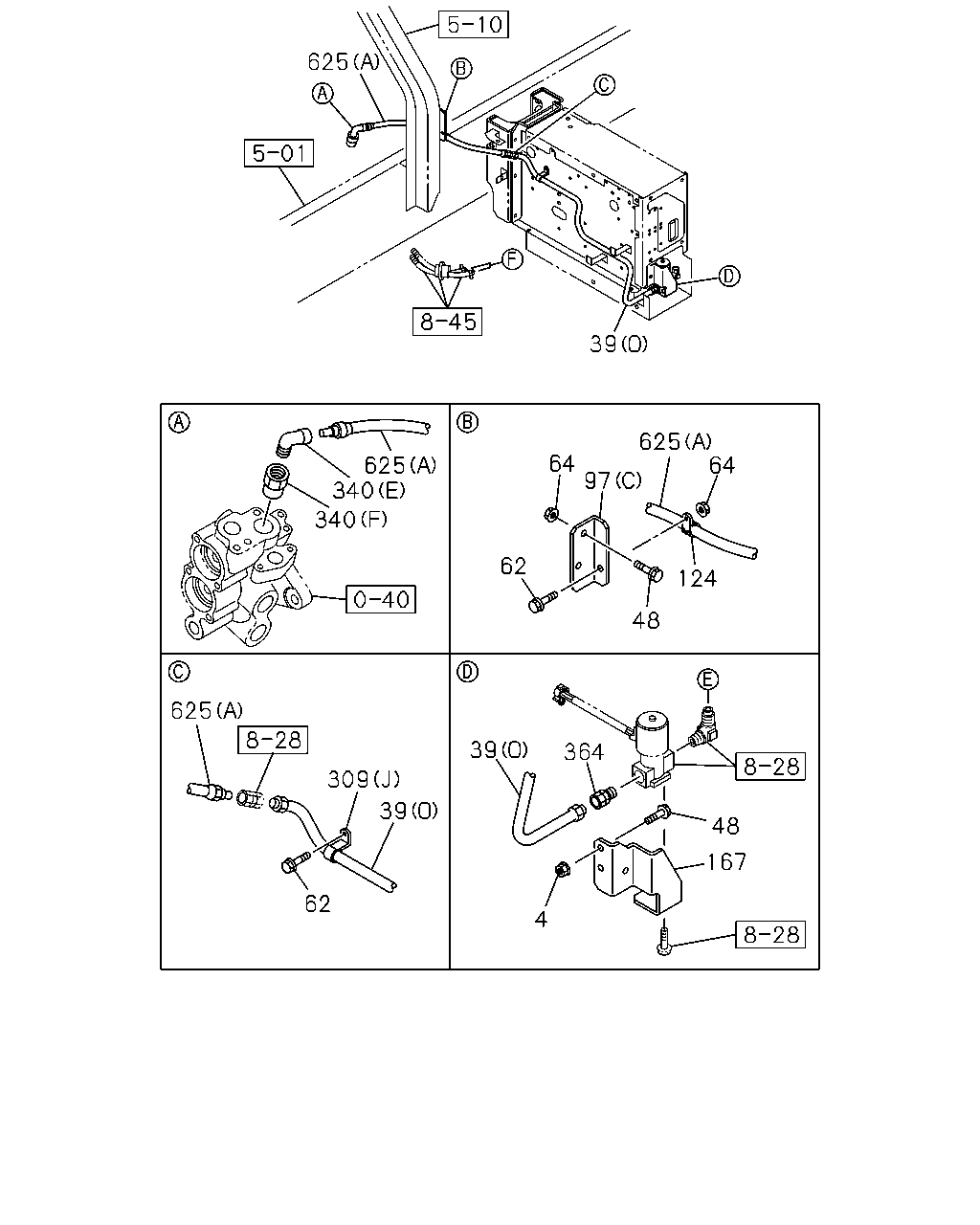

çizim 406026
625 625 340 340 625 309 39 62 64 62 48 97 625 124 48 167 4 39 364 39 64
BalonParca AdiParca NoAdetTipApplied Date
4 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1402-
39 PIPE; FUEL
(B) 		8-97630-769-1 01 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(D) 		8-97630-772-1 01 1 1402-
39 PIPE; FUEL
(E) 		8-97630-773-1 01 1 1402-
39 PIPE; FUEL
(F) 		8-97630-774-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
48 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 1402-
48 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 09 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 12 1 1402-
97 BRACKET; CLIP
(D) THA 		8-97637-008-0 01 1 1402-
97 BRACKET; CLIP
(B) THA 		8-98141-102-0 01 1 1402-
97 BRACKET; CLIP
(C) 		8-98163-161-0 01 1 1402-
97 BRACKET; CLIP
(A) 		8-98174-069-0 04 1 1402-
124 CLIP; HOSE
ID=18 L=28 		1-09701-067-0 01 1 1402-
167 BRACKET
THA 		8-98163-159-0 01 1 1402-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1402-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1402-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1402-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 04 1 1402-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1402-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1402-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 06 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 01 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 02 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
364 CONNECTOR; MANIFOLD TO FILTER 8-98152-137-0 01 1 1402-
625 HOSE; FUEL,CNG
(B) L=290 SERVICED BY L=3000 		0-03559-300-0 02 1 1402-
625 HOSE; FUEL,CNG
(A) 		8-98163-155-0 01 1 1402-

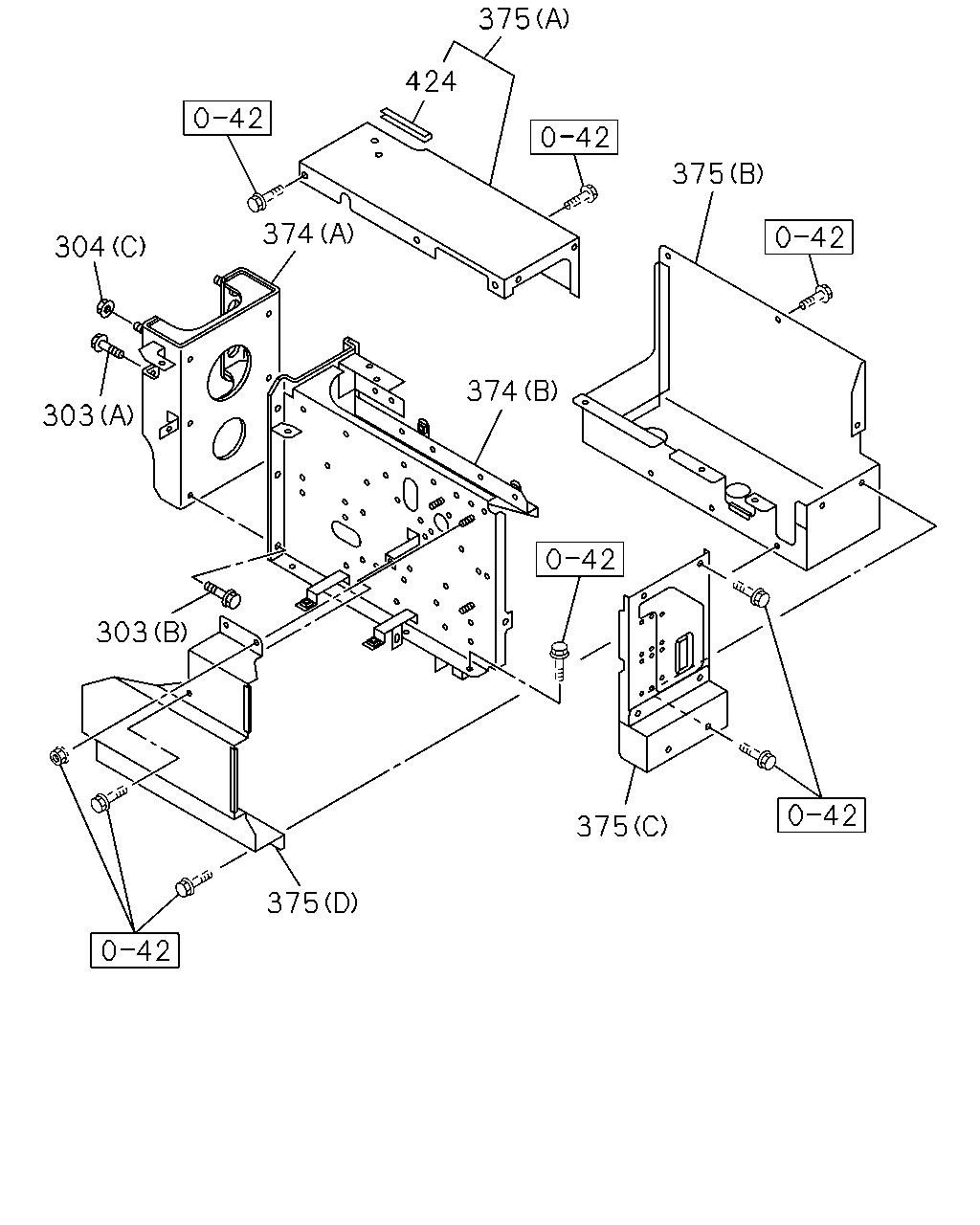

çizim 406450
374 304 303 303 375 375 374 375 375 424
BalonParca AdiParca NoAdetTipApplied Date
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
303 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28660-825-0 03 1 1402-
303 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28661-030-0 06 1 1402-
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28661-235-0 04 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 04 1 1402-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1402-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1402-
374 BRACKET; REGULATOR
(A) THA 		8-97948-486-0 01 1 1402-
374 BRACKET; REGULATOR
(C) 		8-98200-241-0 01 1 1402-
374 BRACKET; REGULATOR
(B) THA 		8-98239-083-1 01 1 1402-
375 COVER; REGULATOR
(A) THA 		8-98127-791-1 01 1 1402-
375 COVER; REGULATOR
(C) THA 		8-98163-407-1 01 1 1402-
375 COVER; REGULATOR
(D) THA 		8-98239-085-0 01 1 1402-
375 COVER; REGULATOR
(B) THA 		8-98239-107-0 01 1 1402-
424 FINISHER
L=120 THA 		1-73948-004-0 02 1 1402-

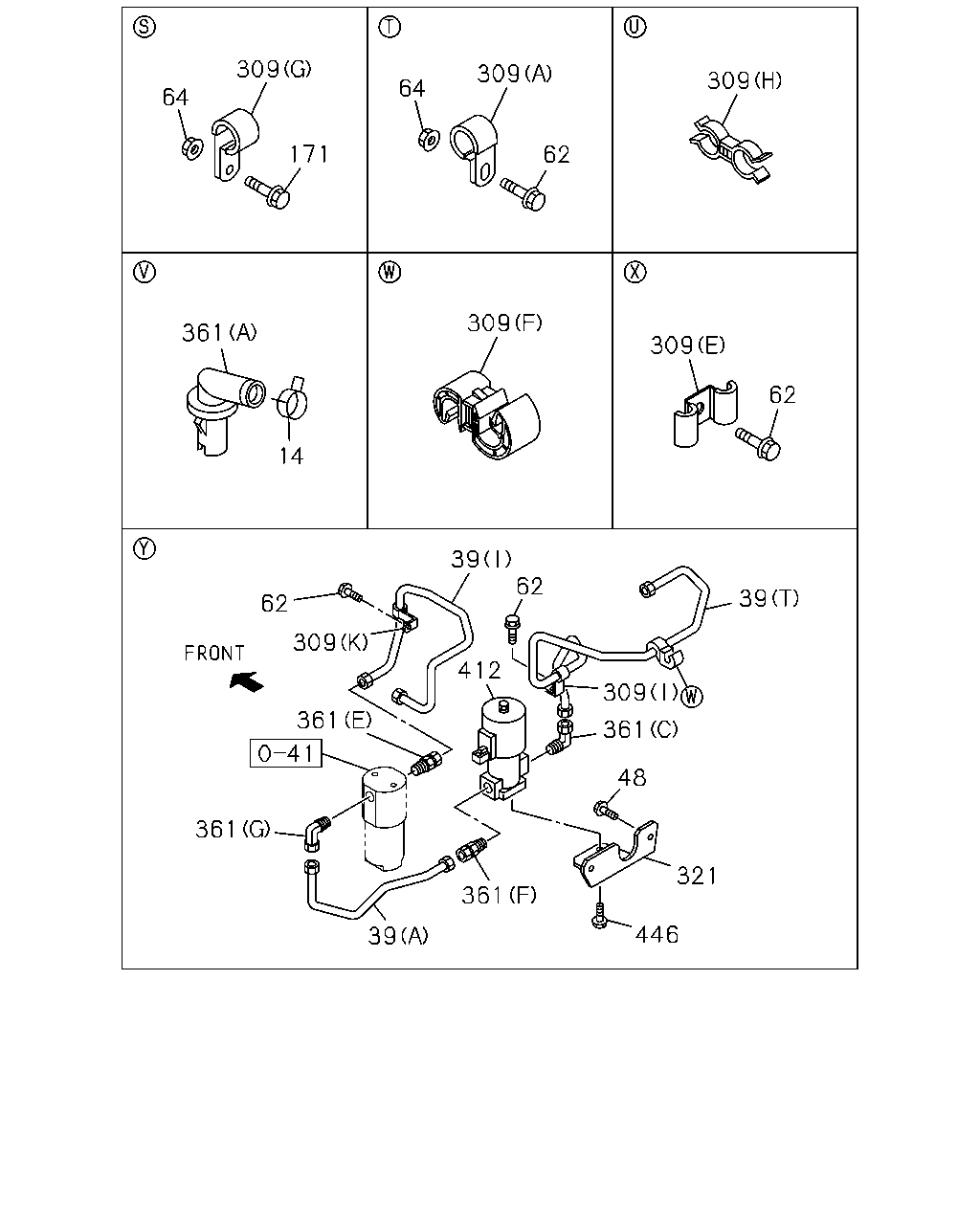

çizim 406461
309 64 171 64 309 62 309 361 14 309 309 62 39 309 361 48 321 446 361 39 412 62 39 62 309 361 361
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
ID=13.8 		8-97306-552-0 04 1 1402-
39 PIPE; FUEL
(B) 		8-97630-769-1 01 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(D) 		8-97630-772-1 01 1 1402-
39 PIPE; FUEL
(E) 		8-97630-773-1 01 1 1402-
39 PIPE; FUEL
(F) 		8-97630-774-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
48 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 1402-
48 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 09 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 12 1 1402-
171 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1402-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1402-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1402-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 04 1 1402-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1402-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1402-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 06 1 1402-
321 BRACKET; VLV
THA 		8-98239-023-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1402-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 05 1 1402-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 03 1 1402-
361 CONNECTOR; FUEL TANK
(E) 		8-98050-040-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 02 1 1402-
361 CONNECTOR; FUEL TANK
(F) 		8-98238-227-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(G) 		8-98238-507-0 01 1 1402-
412 VALVE; MAG 8-98237-584-0 01 1 1402-
446 BOLT; CUT VALVE
M8X16 THA 		8-98056-122-0 02 1 1402-

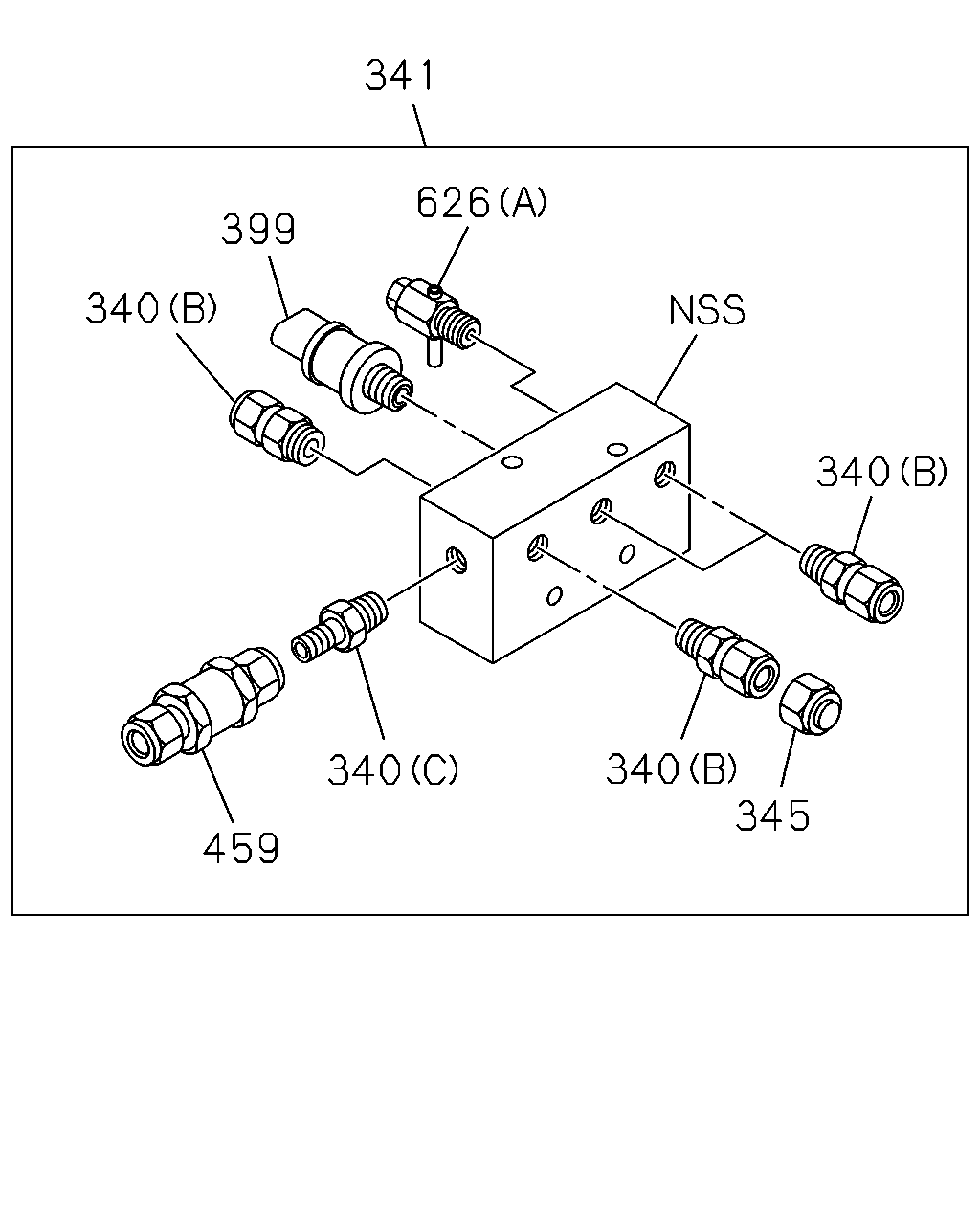

çizim 406491
341 399 340 626 340 340 345 340 459
BalonParca AdiParca NoAdetTipApplied Date
340 CONNECTOR; CNG
(A) 		8-97630-779-0 01 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 02 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
341 MANIFOLD; CNG 8-97630-820-1 01 1 1402-
345 PLUG 8-98050-045-0 01 1 1402-
399 SENSOR; VENT PRESS 8-98108-286-0 01 1 1402-
459 VALVE; CHECK 8-98120-763-0 01 1 1402-
626 VALVE; FUEL RECIRCULATION
(A) 		8-97630-824-0 01 1 1402-
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-825-0 01 1 1402-

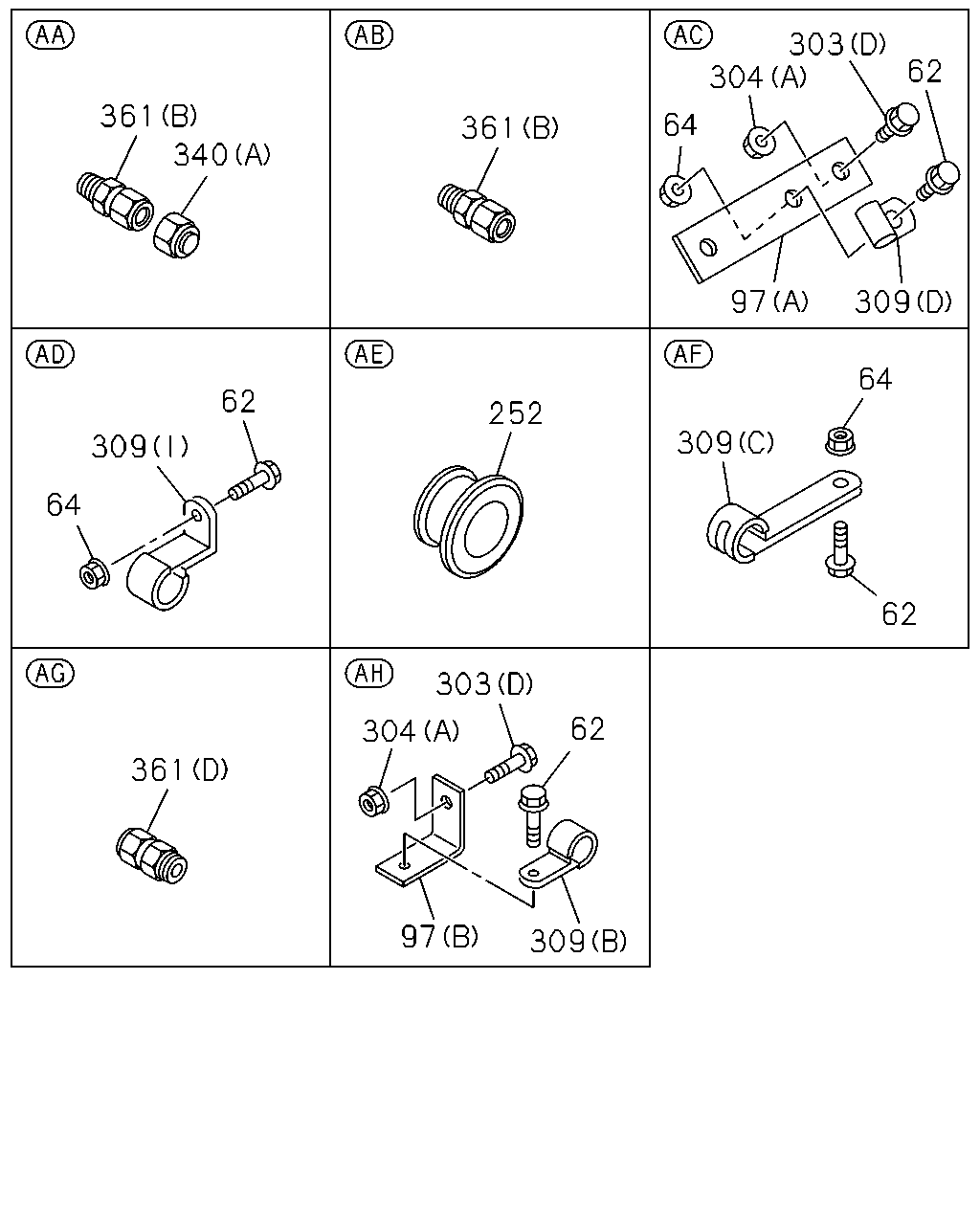

çizim 406533
361 340 361 62 303 304 64 97 309 64 309 62 252 62 309 64 361 303 62 304 97 309
BalonParca AdiParca NoAdetTipApplied Date
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 09 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 12 1 1402-
97 BRACKET; CLIP
(D) THA 		8-97637-008-0 01 1 1402-
97 BRACKET; CLIP
(B) THA 		8-98141-102-0 01 1 1402-
97 BRACKET; CLIP
(C) 		8-98163-161-0 01 1 1402-
97 BRACKET; CLIP
(A) 		8-98174-069-0 04 1 1402-
252 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1402-
252 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
303 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28660-825-0 03 1 1402-
303 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28661-030-0 06 1 1402-
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28661-235-0 04 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 04 1 1402-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1402-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1402-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1402-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1402-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1402-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 04 1 1402-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1402-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1402-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 06 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 01 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 02 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1402-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 05 1 1402-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 03 1 1402-
361 CONNECTOR; FUEL TANK
(E) 		8-98050-040-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 02 1 1402-
361 CONNECTOR; FUEL TANK
(F) 		8-98238-227-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(G) 		8-98238-507-0 01 1 1402-

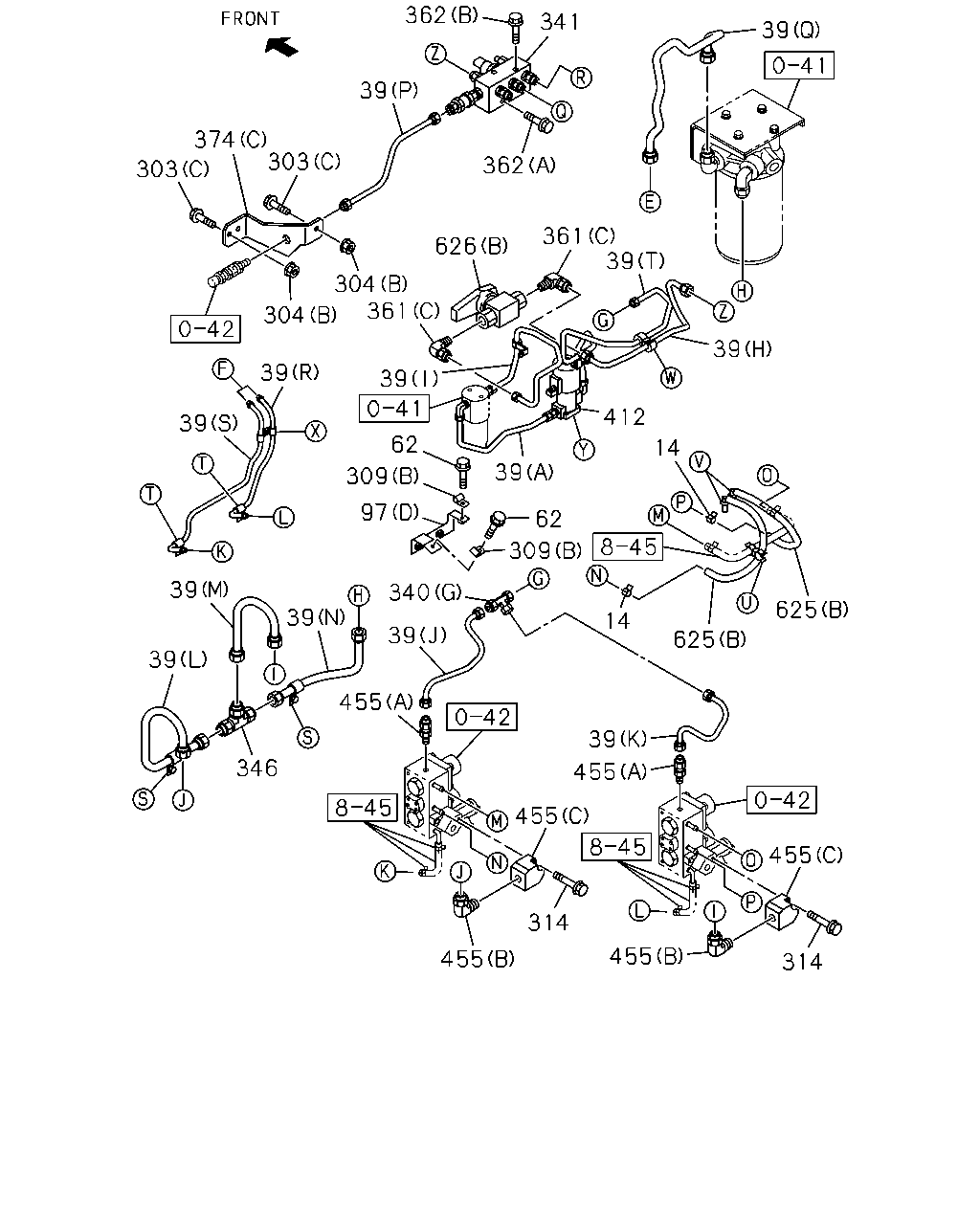

çizim 406768
362 341 39 362 303 374 303 304 304 361 39 39 39 39 39 39 346 455 39 340 97 309 62 626 361 39 39 412 39 62 309 14 625 625 14 39 455 455 314 455 455 314 455 39
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
ID=13.8 		8-97306-552-0 04 1 1402-
39 PIPE; FUEL
(B) 		8-97630-769-1 01 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(D) 		8-97630-772-1 01 1 1402-
39 PIPE; FUEL
(E) 		8-97630-773-1 01 1 1402-
39 PIPE; FUEL
(F) 		8-97630-774-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 09 1 1402-
97 BRACKET; CLIP
(D) THA 		8-97637-008-0 01 1 1402-
97 BRACKET; CLIP
(B) THA 		8-98141-102-0 01 1 1402-
97 BRACKET; CLIP
(C) 		8-98163-161-0 01 1 1402-
97 BRACKET; CLIP
(A) 		8-98174-069-0 04 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
303 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28660-825-0 03 1 1402-
303 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28661-030-0 06 1 1402-
303 BOLT; BRKT
(A) M12X35 FLANGE THA 		0-28661-235-0 04 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 04 1 1402-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1402-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1402-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1402-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1402-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1402-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 04 1 1402-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1402-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1402-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 06 1 1402-
314 BOLT; FLANGE
M6X60 FLANGE 		0-28050-660-0 02 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 01 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 02 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
341 MANIFOLD; CNG 8-97630-820-1 01 1 1402-
346 CONNECTOR; 3WAY,CNG 8-97630-849-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1402-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 05 1 1402-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 03 1 1402-
361 CONNECTOR; FUEL TANK
(E) 		8-98050-040-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 02 1 1402-
361 CONNECTOR; FUEL TANK
(F) 		8-98238-227-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(G) 		8-98238-507-0 01 1 1402-
362 BOLT; MANIFOLD
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 1402-
362 BOLT; MANIFOLD
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1402-
374 BRACKET; REGULATOR
(A) THA 		8-97948-486-0 01 1 1402-
374 BRACKET; REGULATOR
(C) 		8-98200-241-0 01 1 1402-
374 BRACKET; REGULATOR
(B) THA 		8-98239-083-1 01 1 1402-
412 VALVE; MAG 8-98237-584-0 01 1 1402-
455 CONNECTOR; REGULATOR
(A) 		8-97630-843-0 02 1 1402-
455 CONNECTOR; REGULATOR
(B) M16 ELBOW 		8-97630-844-0 02 1 1402-
455 CONNECTOR; REGULATOR
(C) 		8-98127-020-1 02 1 1402-
625 HOSE; FUEL,CNG
(B) L=290 SERVICED BY L=3000 		0-03559-300-0 02 1 1402-
625 HOSE; FUEL,CNG
(A) 		8-98163-155-0 01 1 1402-
626 VALVE; FUEL RECIRCULATION
(A) 		8-97630-824-0 01 1 1402-
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-825-0 01 1 1402-

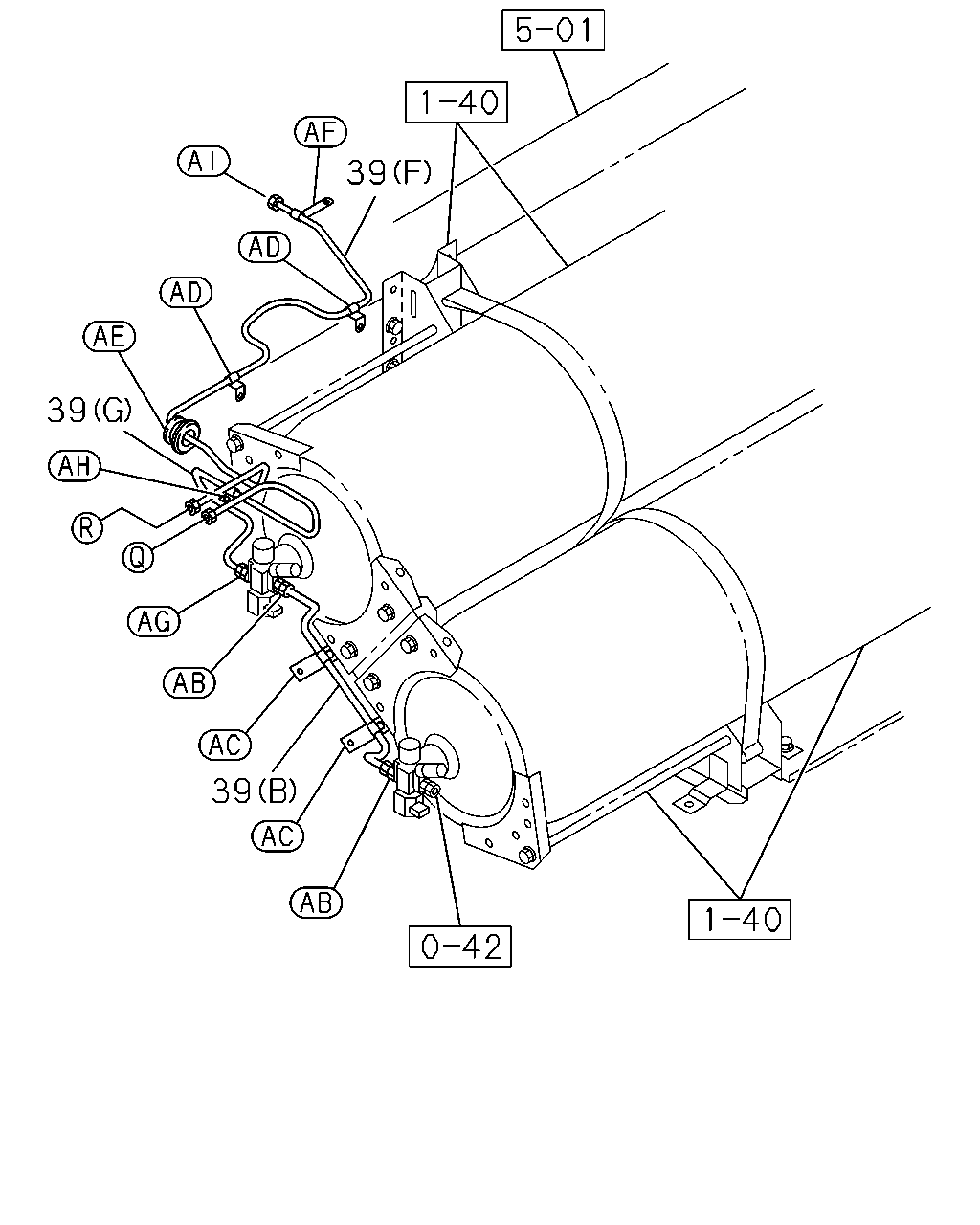

çizim 407017
39 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(B) 		8-97630-769-1 01 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(D) 		8-97630-772-1 01 1 1402-
39 PIPE; FUEL
(E) 		8-97630-773-1 01 1 1402-
39 PIPE; FUEL
(F) 		8-97630-774-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-

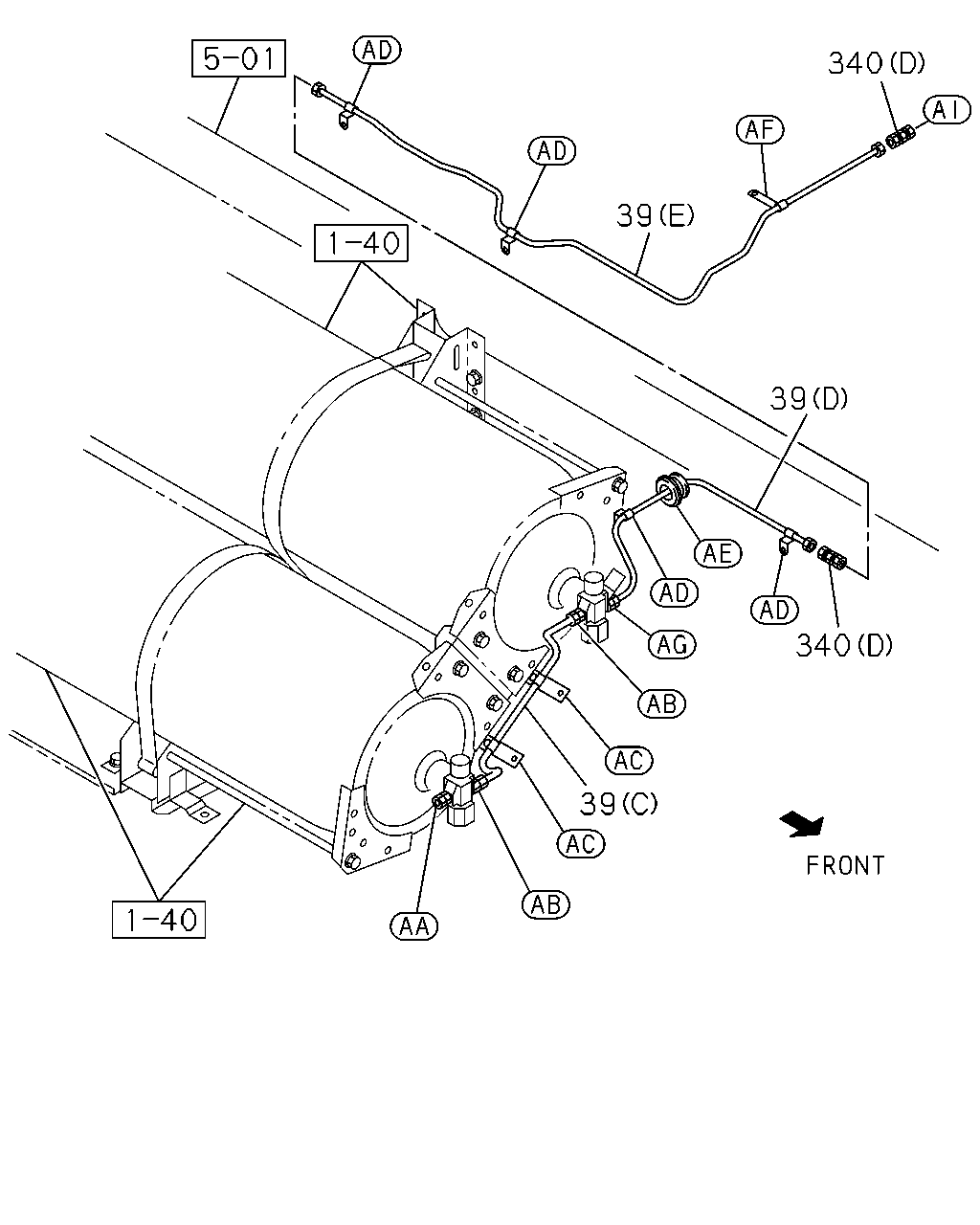

çizim 407140
340 39 340 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(B) 		8-97630-769-1 01 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(D) 		8-97630-772-1 01 1 1402-
39 PIPE; FUEL
(E) 		8-97630-773-1 01 1 1402-
39 PIPE; FUEL
(F) 		8-97630-774-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 01 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 02 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
