◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11576 - FTR CNG(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#133488) — 48 parça

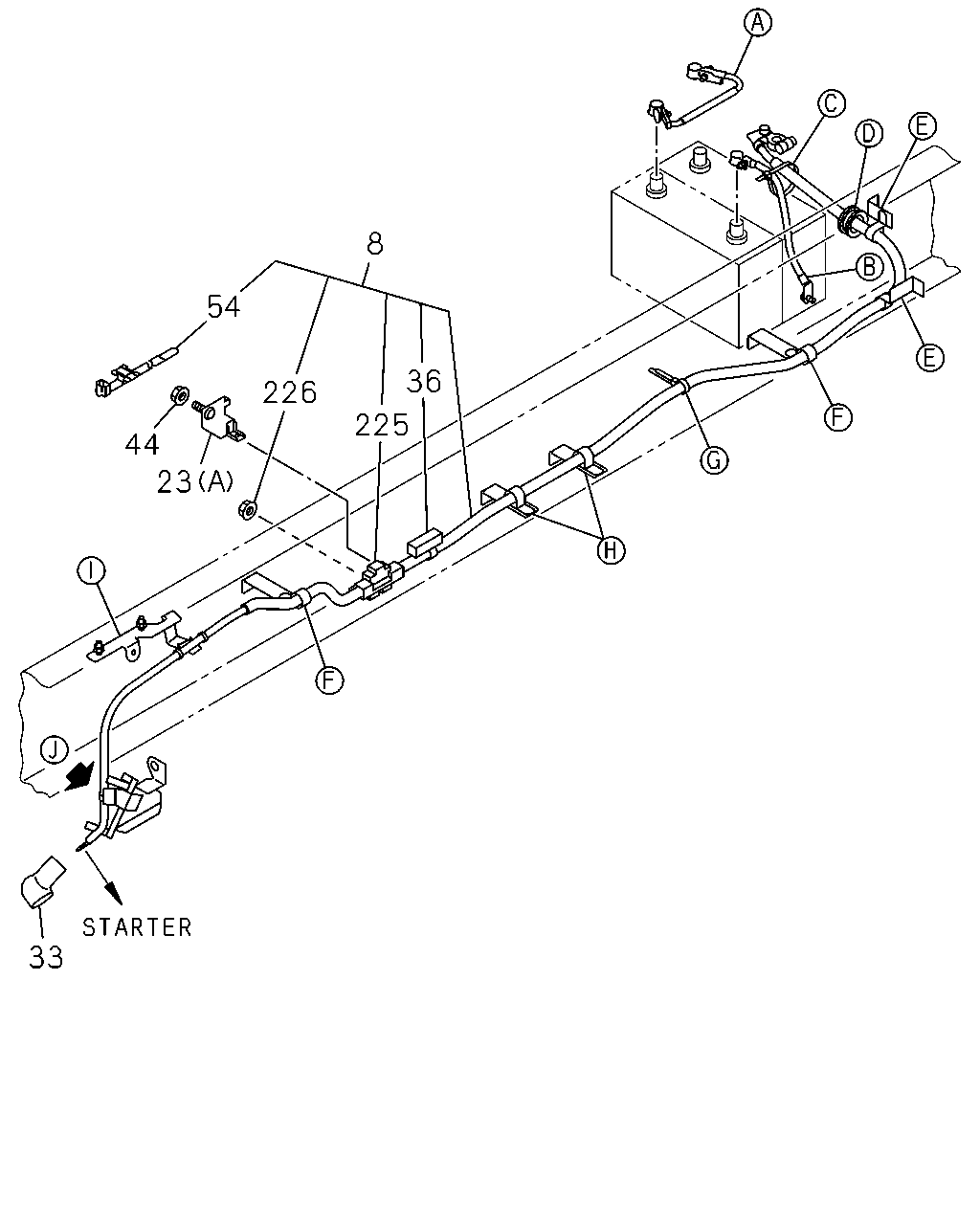

çizim 406353
33 44 226 23 54 8 225 36
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
THA 		8-97924-525-2 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=55 		1-47475-304-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=55 		1-47475-304-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98201-024-0 01 1 1402-
33 CAP; INSULATOR 1-82699-431-0 01 1 1402-
36 FUSIBLE LINK; BATTERY
THA 		8-97615-498-1 01 1 1402-
44 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1402-
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 1402-
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 1402-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1402-

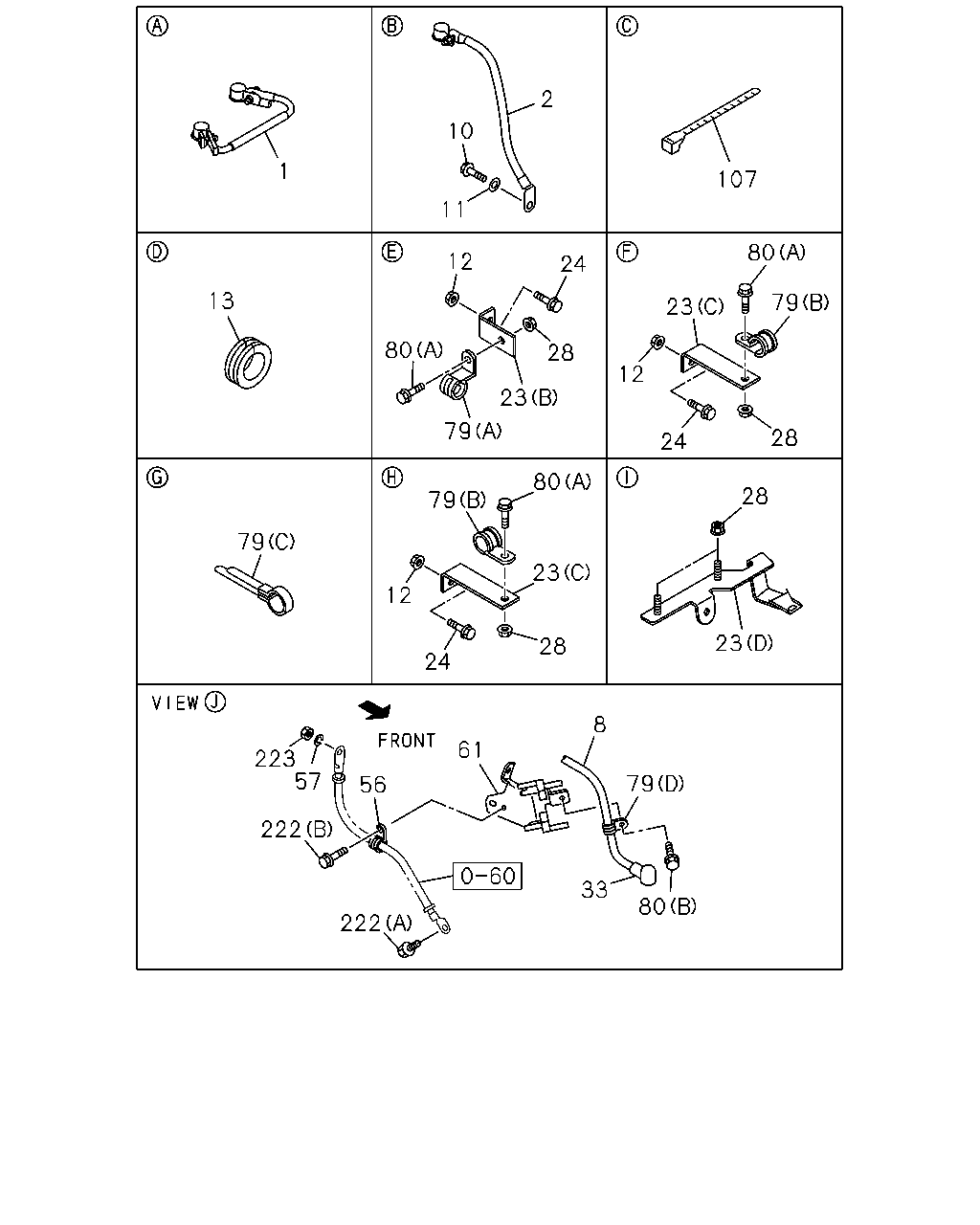

çizim 407340
80 33 79 8 61 56 222 222 57 223 23 28 28 24 12 23 79 80 107 2 10 11 12 24 28 23 79 80 80 79 23 28 24 12 79 13 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 1402-
2 CABLE; BATTERY
L=305 THA 		8-97924-521-1 01 1 1402-
8 CABLE; BATTERY,STARTER
THA 		8-97924-525-2 01 1 1402-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1402-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1402-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1402-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=55 		1-47475-304-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=55 		1-47475-304-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1402-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98201-024-0 01 1 1402-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE THA 		0-28650-830-0 05 1 1402-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 02 1 1402-
28 NUT; BRKT TO FRAME
M8 FLANGE THA 		0-91180-108-0 05 1 1402-
33 CAP; INSULATOR 1-82699-431-0 01 1 1402-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1402-1402
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1402-1402
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1402-1402
79 CLIP; BATTERY CABLE
(A) ID=19 L=24 H=21 		1-09700-109-1 01 1 1402-
79 CLIP; BATTERY CABLE
(A) ID=19 L=24 H=21 		1-09700-109-1 01 1 1402-
79 CLIP; BATTERY CABLE
(C) ID=20 L=70 		1-09700-485-0 01 1 1402-
79 CLIP; BATTERY CABLE
(D) ID=16 L=28 		1-09700-872-0 01 1 1402-
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 04 1 1402-
80 BOLT; BATTERY CABLE CLIP
(B) M8X16 FLANGE THA 		0-28050-816-0 01 1 1402-
80 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
80 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 05 1 1402-
107 CLIP; BAND
L=140 THA 		8-97920-656-0 01 1 1402-
222 BOLT; EARTH CABLE
(B) M8X16 FLANGE THA 		0-28050-816-0 01 1 1402-
222 BOLT; EARTH CABLE
(A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1402-
223 NUT; EARTH CABLE
M10 FLANGE THA 		0-91180-210-0 01 1 1402-
