Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#13346) — 387 parça

241 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X30 FLANGE	0-28080-830-0	04	1	0105-0512	●
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X30 FLANGE	0-28050-830-0	04	1	0601-	●
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	04	1	0105-0512		●
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28050-820-0	04	1	0601-		●
241	BOLT; SET,CONT VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0105-0512	●	●
241	BOLT; SET,CONT VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0601-	●	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●

39 55 39 46 1 217 32 216 215 216 24 24 39 208 207 136 209 78 77 81 62 36 63 82 67 74 46 80 55 46 46 46 83 71 124 176 176 129 128 81 80 43 55 46 71 79 82 82 82 82 79 130 80 73 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

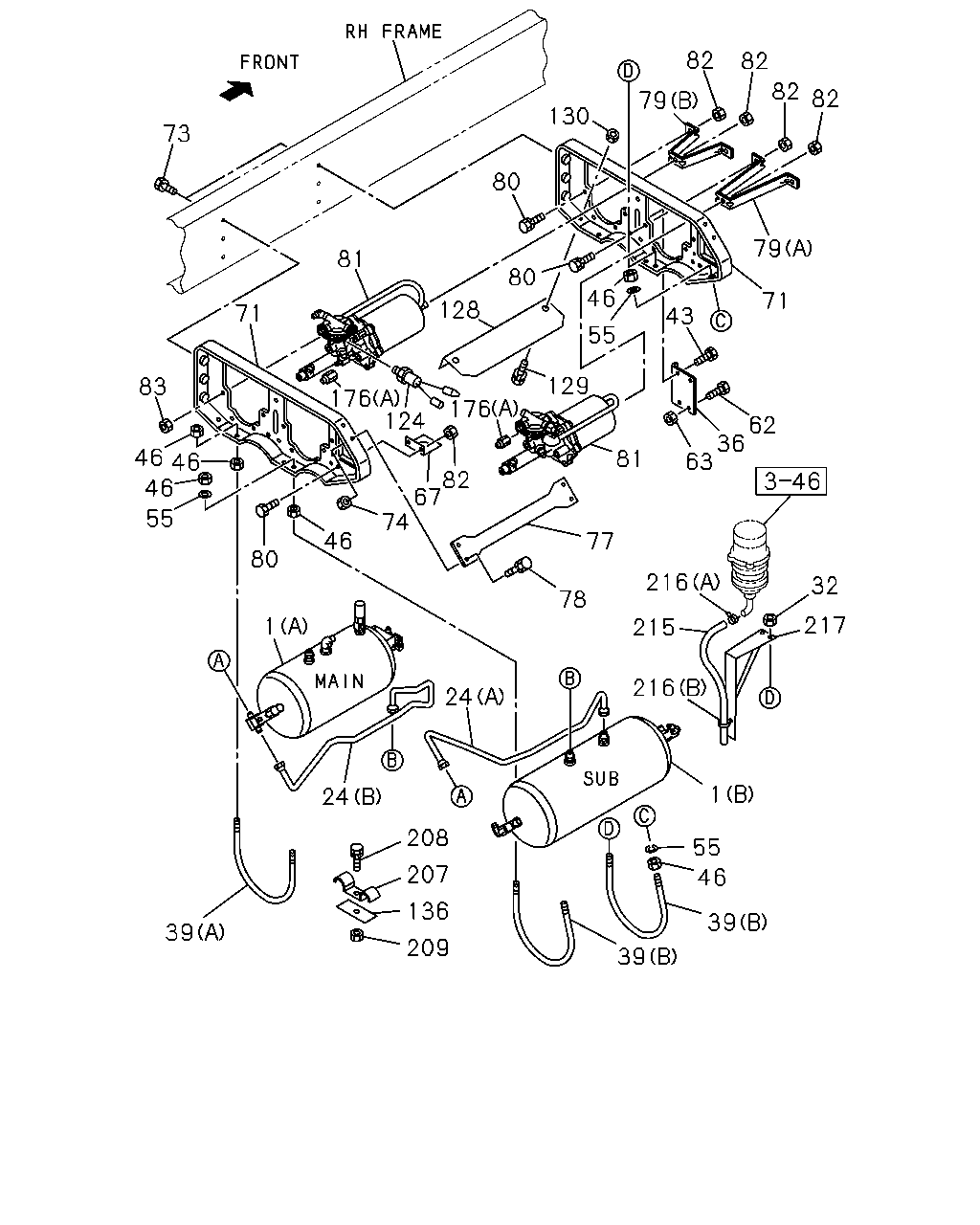

1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-48371-334-0	01	1	0312-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	0105-0311	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C)	1-48370-221-0	01	1	0312-	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) L=987	1-47496-254-0	01	1	0105-0108	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=987	1-47496-254-0	01	1	0109-	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) L=1110	1-47496-255-0	01	1	0105-0108	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1110	1-47496-255-0	01	1	0109-	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-522-0	01	1	0105-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-301-0	01	1	0105-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-302-0	02	1	0105-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	0105-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	12	1	0105-0512	●	●
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	12	1	0601-	●	●
55	WASHER; PL,U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	06	1	0105-	●	●
62	BOLT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
62	BOLT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
63	NUT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
63	NUT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	0105-	●	●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-711-0	01	1	0105-	●	●
71	BRACKET; AIR MASTER,TANDEM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-327-0	02	1	0105-	●	●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X50 FLANGE	0-28081-250-0	06	1	0105-0512	●	●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X50 FLANGE	0-28051-250-0	06	1	0601-	●	●
74	NUT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	04	1	0105-0602	●	●
74	NUT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-293-1	01	1	0105-	●	●
78	BOLT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	0105-0512	●	●
78	BOLT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) H=133	1-53318-216-0	01	1	0105-	●	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) H=203	1-53318-217-0	01	1	0105-	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	06	1	0105-0512	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	06	1	0601-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) SECONDARY	1-47800-464-3	01	1	0105-0508	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) PRIMARY	1-47800-466-3	01	1	0105-0508	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50) PRIMARY	1-47800-428-2	01	1	0105-0508	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-428-2	01	1	0509-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50) SECONDARY	1-47800-429-2	01	1	0105-0508	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-429-2	01	1	0509-	●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	06	1	0105-0602	●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	10	1	0105-0602	●	●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	10	1	0603-	●	●
124	SWITCH; AIR PRESSURE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50)	1-82410-154-0	01	1	0105-0508	●	●
128	PROTECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53319-018-0	01	1	0105-	●	●
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
130	NUT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
130	NUT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> L=50	1-47475-299-2	01	1	0105-0108	●	●
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	0109-	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0105-	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0105-0508	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
207	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	0105-0108	●	●
207	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	0109-	●	●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X20 FLANGE	0-28680-820-0	01	1	0105-0108	●	●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	0109-0512	●	●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0108	●	●
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0109-0602	●	●
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0105-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0105-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (B) ID=25 L=55	9-09917-573-0	01	1	0105-	●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-682-1	01	1	0105-	●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=95	1-82699-085-0	01	1	0105-	●	●

9 10 3 13 5 2 3 8 5 10 5 6 13 7 176 20 176 23 35 5 11 8 199 13 13 5 3 3 5 9 10 10 5 1 10 166 7 6 7 6 7 6 22 261 13 3 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

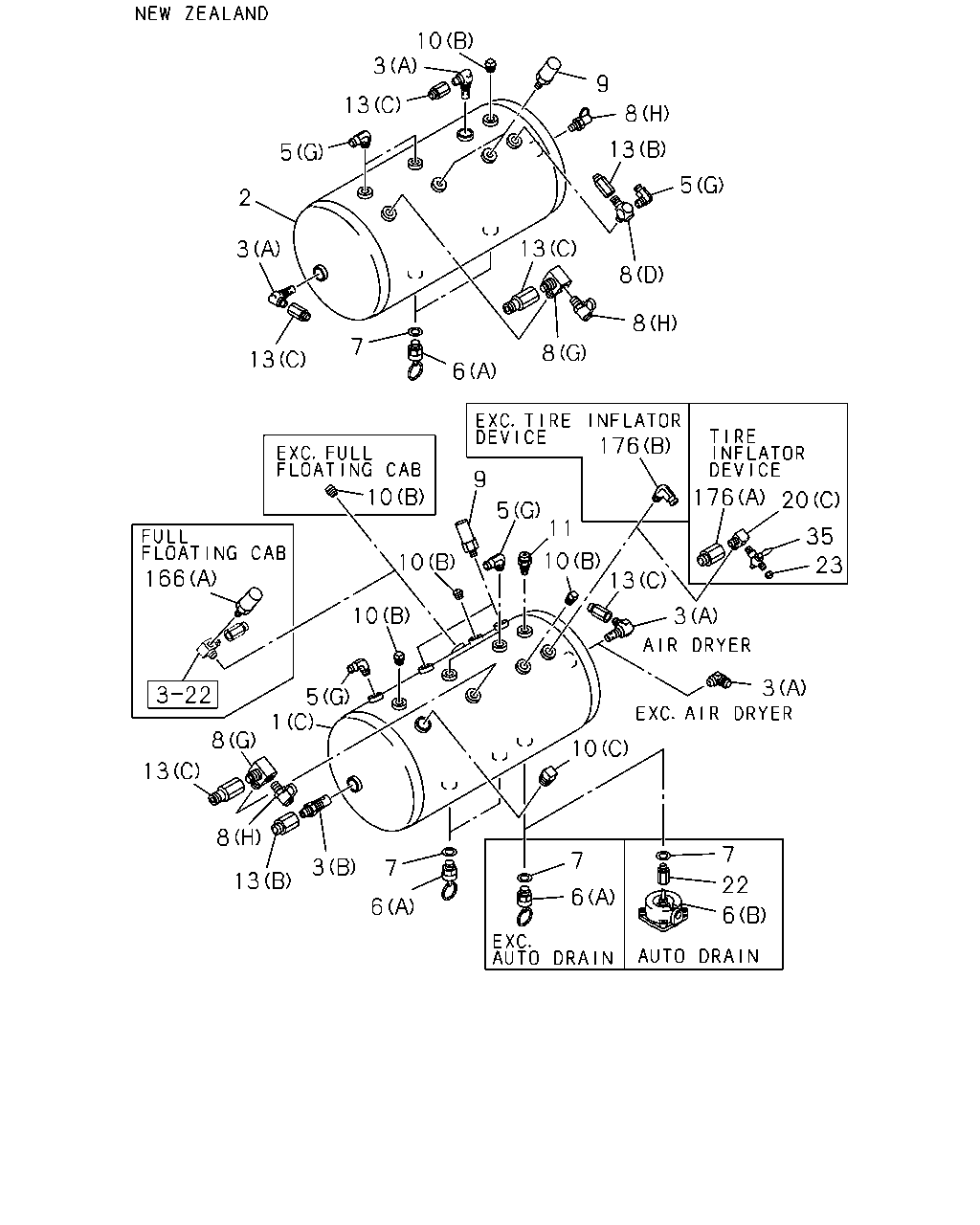

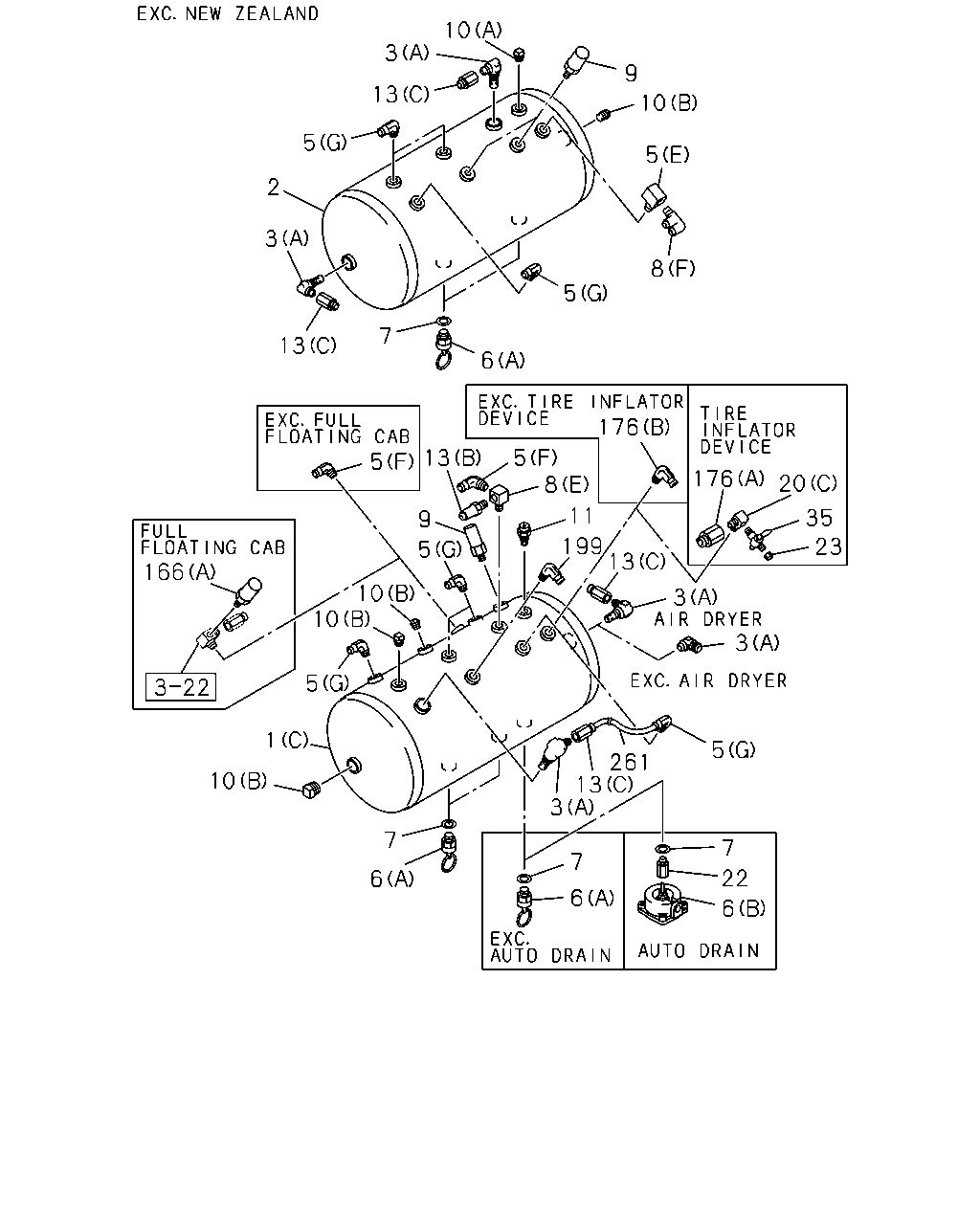

1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-48371-334-0	01	1	0312-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	0105-0311	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C)	1-48370-221-0	01	1	0312-	●	●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-353-0	01	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SUB TANK	1-48410-182-3	02	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-182-3	01	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (D)	1-09656-548-1	02	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09656-548-1	01	1	0109-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0109-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (D)	1-09656-548-1	01	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0109-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) PT3/8 ELBOW	1-09660-696-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48312-015-0	04	1	0312-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	02	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48312-015-0	04	1	0105-0311	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48312-015-0	03	1	0312-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	01	1	0105-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	04	1	0312-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	02	1	0105-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-0108	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0109-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	04	1	0105-0311	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0312-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09660-091-3	02	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	0105-0108	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0105-0108	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0109-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-0404	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (D) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0105-0404	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0405-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (G) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	03	1	0105-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-1	04	1	0105-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-1	03	1	0105-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4	9-99204-513-0	01	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4	9-99204-513-0	01	1	0109-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4	9-99204-513-0	02	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT1/4	9-99204-513-0	02	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT1/4	9-99204-513-0	02	1	0109-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/4	9-09204-526-0	01	1	0105-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) PT3/8	9-09204-517-0	04	1	0105-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) PT3/8	9-09204-517-0	01	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	0109-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) PT3/8	9-09204-517-0	03	1	0105-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0105-0108	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-0108	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0109-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) (A) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0105-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-	●	●
22	ADAPTER; AUTO DRAIN VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78>	1-48319-031-0	01	1	0105-	●	●
23	CAP; COCK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-	●	●
35	COCK; AIR,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) 530KPA	1-48340-054-1	02	1	0105-0108	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-1	01	1	0109-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) 530KPA	1-48340-054-1	01	1	0105-0108	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (A) 650KPA	1-48340-059-1	01	1	0105-	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0105-	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0105-0508	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
199	CONNECTOR; AIR PIPE,AIR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),FULL FLOATING CAB(W16) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0105-0212	●	●
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0301-	●	●

10 3 13 5 2 3 13 7 6 8 13 8 8 5 13 8 9 176 20 176 23 35 10 166 9 5 11 10 10 10 13 3 5 1 8 13 8 13 3 7 6 7 6 10 7 22 6

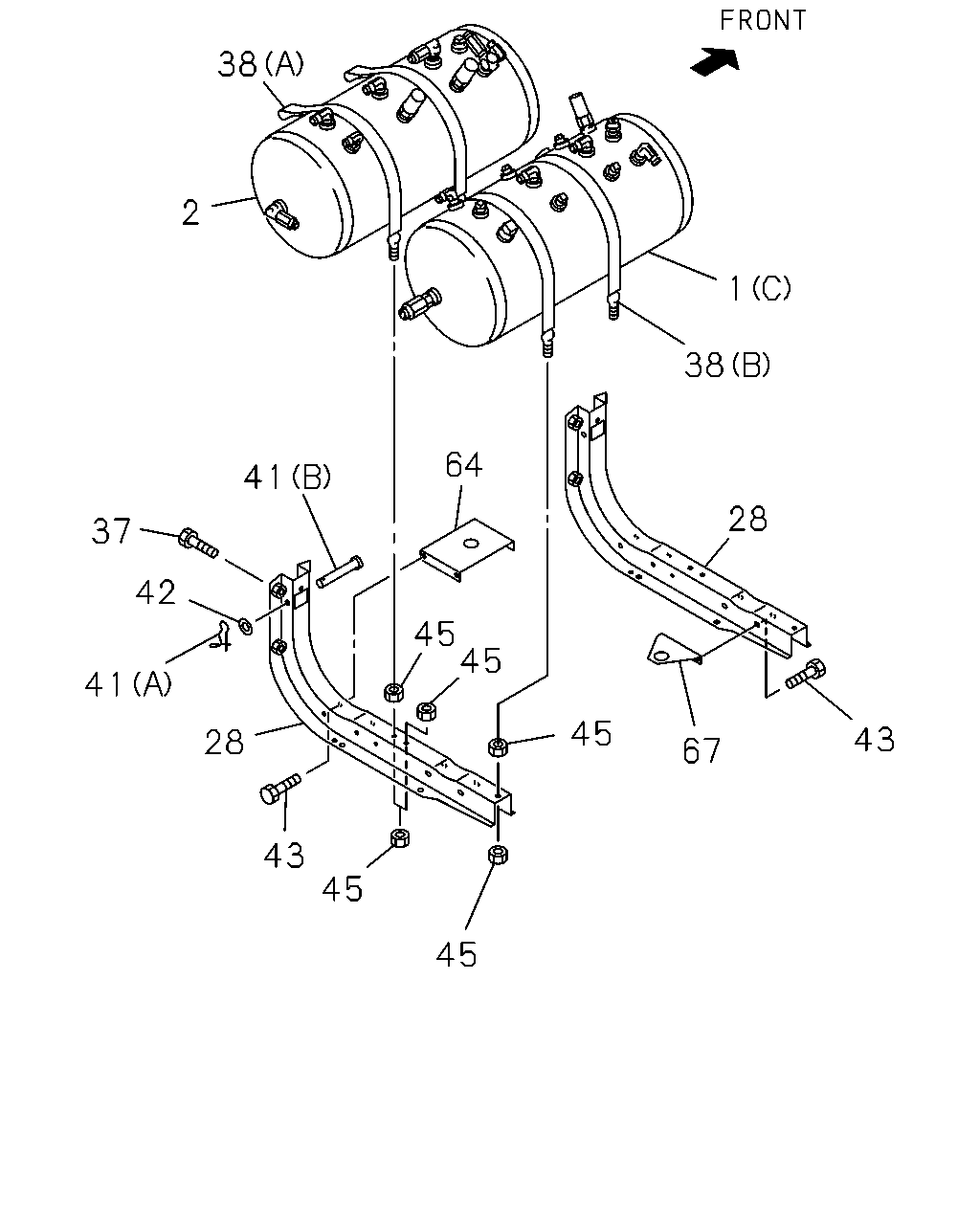

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-48371-334-0	01	1	0312-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	0105-0311	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C)	1-48370-221-0	01	1	0312-	●	●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-353-0	01	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SUB TANK	1-48410-182-3	02	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-182-3	01	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (D)	1-09656-548-1	02	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09656-548-1	01	1	0109-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0109-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (D)	1-09656-548-1	01	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0109-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) PT3/8 ELBOW	1-09660-696-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48312-015-0	04	1	0312-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	02	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48312-015-0	04	1	0105-0311	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48312-015-0	03	1	0312-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	01	1	0105-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	04	1	0312-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	02	1	0105-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-0108	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0109-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	04	1	0105-0311	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0312-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09660-091-3	02	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	0105-0108	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0105-0108	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0109-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-0404	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (D) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0105-0404	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0405-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (G) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	03	1	0105-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-1	04	1	0105-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-1	03	1	0105-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4	9-99204-513-0	01	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4	9-99204-513-0	01	1	0109-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4	9-99204-513-0	02	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT1/4	9-99204-513-0	02	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT1/4	9-99204-513-0	02	1	0109-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/4	9-09204-526-0	01	1	0105-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) PT3/8	9-09204-517-0	04	1	0105-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) PT3/8	9-09204-517-0	01	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	0109-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) PT3/8	9-09204-517-0	03	1	0105-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0105-0108	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-0108	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0109-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) (A) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0105-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-	●	●
22	ADAPTER; AUTO DRAIN VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78>	1-48319-031-0	01	1	0105-	●	●
23	CAP; COCK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-	●	●
35	COCK; AIR,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) 530KPA	1-48340-054-1	02	1	0105-0108	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-1	01	1	0109-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) 530KPA	1-48340-054-1	01	1	0105-0108	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (A) 650KPA	1-48340-059-1	01	1	0105-	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0105-	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0105-0508	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●

20 166 20 8 284 11 1 175 174 5 5 8 7 6 166 8 5 10 3 3 10 5 5 7 6 1 8 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-48371-334-0	01	1	0312-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	0105-0311	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C)	1-48370-221-0	01	1	0312-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SUB TANK	1-48410-182-3	02	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-182-3	01	1	0105-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (D)	1-09656-548-1	02	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09656-548-1	01	1	0109-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0109-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (D)	1-09656-548-1	01	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-0108	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0109-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) PT3/8 ELBOW	1-09660-696-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0105-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (G) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48312-015-0	04	1	0312-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	02	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48312-015-0	04	1	0105-0311	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48312-015-0	03	1	0312-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	01	1	0105-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	04	1	0312-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	02	1	0105-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-0108	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0109-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	04	1	0105-0311	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0312-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09660-091-3	02	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	0105-0108	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0105-0108	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0109-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-0404	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (D) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0105-0404	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0405-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (G) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	0105-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-0	03	1	0105-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4	9-99204-513-0	01	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4	9-99204-513-0	01	1	0109-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4	9-99204-513-0	02	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT1/4	9-99204-513-0	02	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) PT1/4	9-99204-513-0	02	1	0109-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/4	9-09204-526-0	01	1	0105-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) PT3/8	9-09204-517-0	04	1	0105-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) PT3/8	9-09204-517-0	01	1	0105-0108	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	0109-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) PT3/8	9-09204-517-0	03	1	0105-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0105-0108	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0105-0108	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0109-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0105-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) (A) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0105-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (B) 530KPA	1-48340-054-1	02	1	0105-0108	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-1	01	1	0109-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) 530KPA	1-48340-054-1	01	1	0105-0108	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (A) 650KPA	1-48340-059-1	01	1	0105-	●	●
174	COCK; AIR,INFLATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-	●	●
175	CAP; AIR COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-	●	●
284	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0105-	●	●

217 218 32 215 216 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0105-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0105-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (B) ID=25 L=55	9-09917-573-0	01	1	0105-	●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-682-1	01	1	0105-	●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=95	1-82699-085-0	01	1	0105-	●	●
218	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
218	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●

38 2 38 1 64 41 37 41 42 45 45 28 43 67 45 45 45 43 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-48371-334-0	01	1	0312-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	0105-	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	0105-0311	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C)	1-48370-221-0	01	1	0312-	●	●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-353-0	01	1	0105-	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	0105-	●	●
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	0105-0512	●	●
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=565	1-48317-108-2	02	1	0105-	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=775	1-48317-109-2	02	1	0105-	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09987-142-0	02	1	0105-	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=10 L=60	9-08224-060-0	02	1	0105-	●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	0105-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	0105-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	12	1	0105-0512	●	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	12	1	0601-	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-607-0	01	1	0105-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	0105-	●	●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-711-0	01	1	0105-	●	●

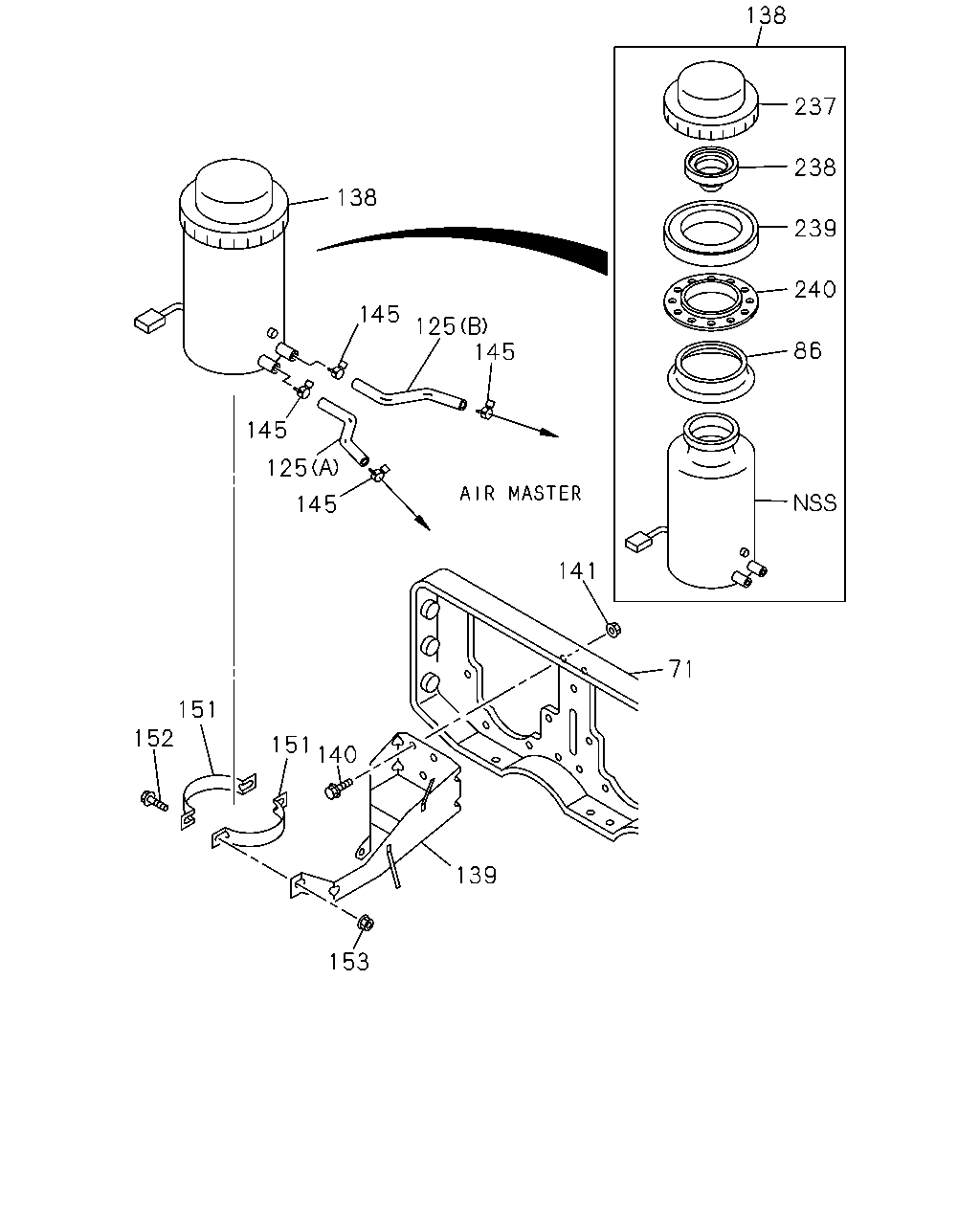

138 237 238 239 240 86 71 141 145 125 145 138 145 125 145 139 153 140 151 151 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	BRACKET; AIR MASTER,TANDEM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-327-0	02	1	0105-	●	●
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	0105-	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=140	1-47469-051-1	01	1	0105-	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=190	1-47469-052-2	01	1	0105-	●	●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-184-0	01	1	0105-0206	●	●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	0207-	●	●
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-114-3	01	1	0105-	●	●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	03	1	0105-0512	●	●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	03	1	0601-	●	●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	03	1	0105-0602	●	●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	0105-	●	●
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-113-0	02	1	0105-	●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	0105-	●	●
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	0105-	●	●
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	0105-	●	●
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
