Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#13345) — 128 parça

97 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
97	GROMMET; PARKING BRK CABLE SPRING BRAKE(SU9)	1-09983-078-0	01	1	0105-0206	●	●
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09983-078-0	01	1	0207-	●	●
343	SEAL PARKING BRAKE VALVE LEVER TYPE<W48> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK	1-76798-019-0	01	1	0105-	●	●
343	SEAL EXC. DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK	1-76798-019-0	01	1	0105-	●	●
343	SEAL SPRING BRAKE(SU9) OD=25 BLACK	1-76798-019-0	02	1	0105-	●	●

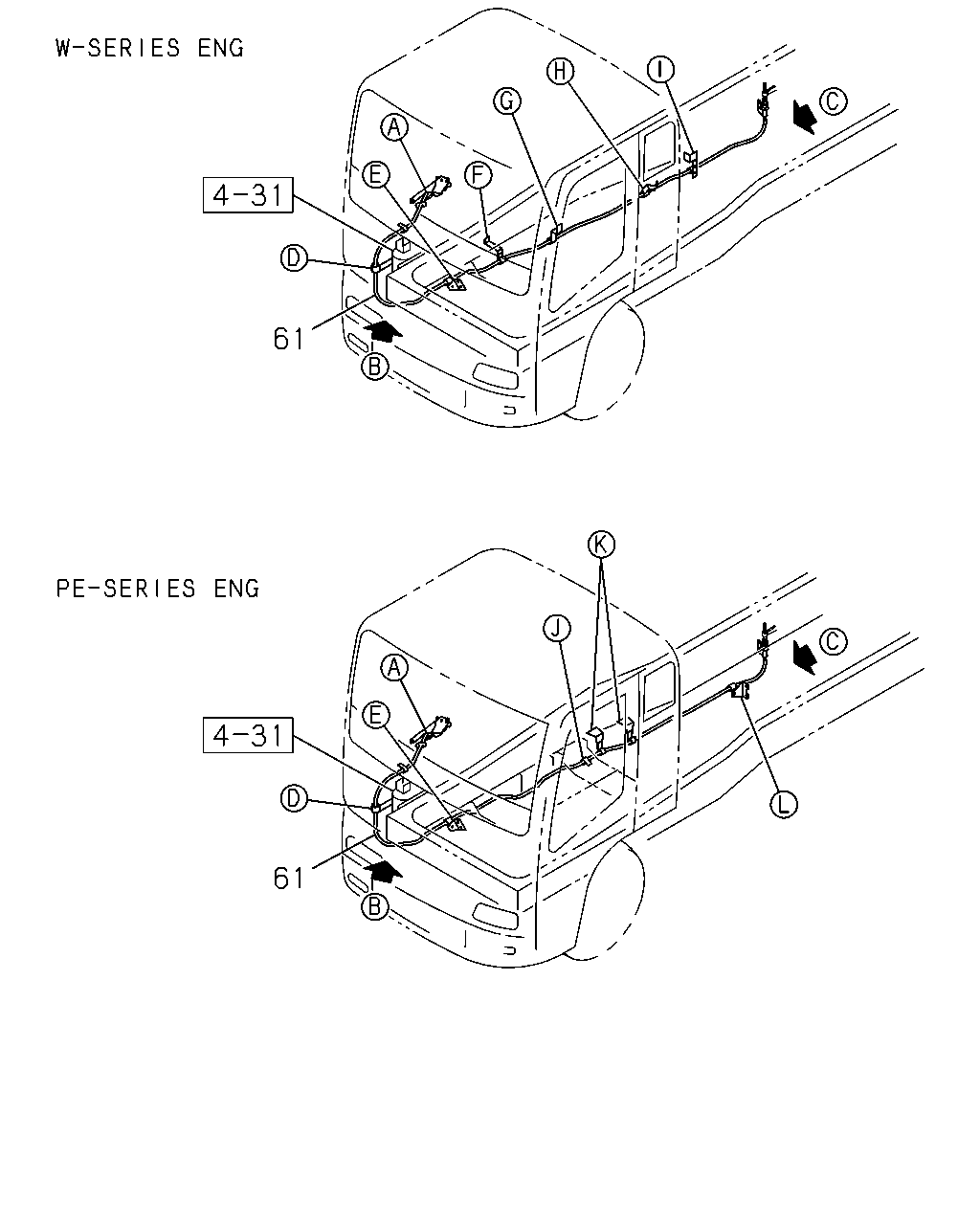

61 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=4782	1-79996-196-5	01	1	0109-0508	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> L=4782	1-79996-196-5	01	1	0509-	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> ,CAB UP +110MM<TGG> L=5032	1-79996-194-3	01	1	0105-0508	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=5032	1-79996-194-3	01	1	0509-	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=5116	1-79996-200-3	01	1	0105-0508	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50),CAB UP +110MM<TGG> L=5102	1-79996-513-0	01	1	0105-0508	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> MJD7 M/T<X9J> EXC. CAB UP +110MM<TGG> L=5102	1-79996-513-0	01	1	0509-	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> MJD7 M/T<X9J> EXC. CAB UP +110MM<TGG> L=5186	1-79996-586-0	01	1	0105-0508	●	●

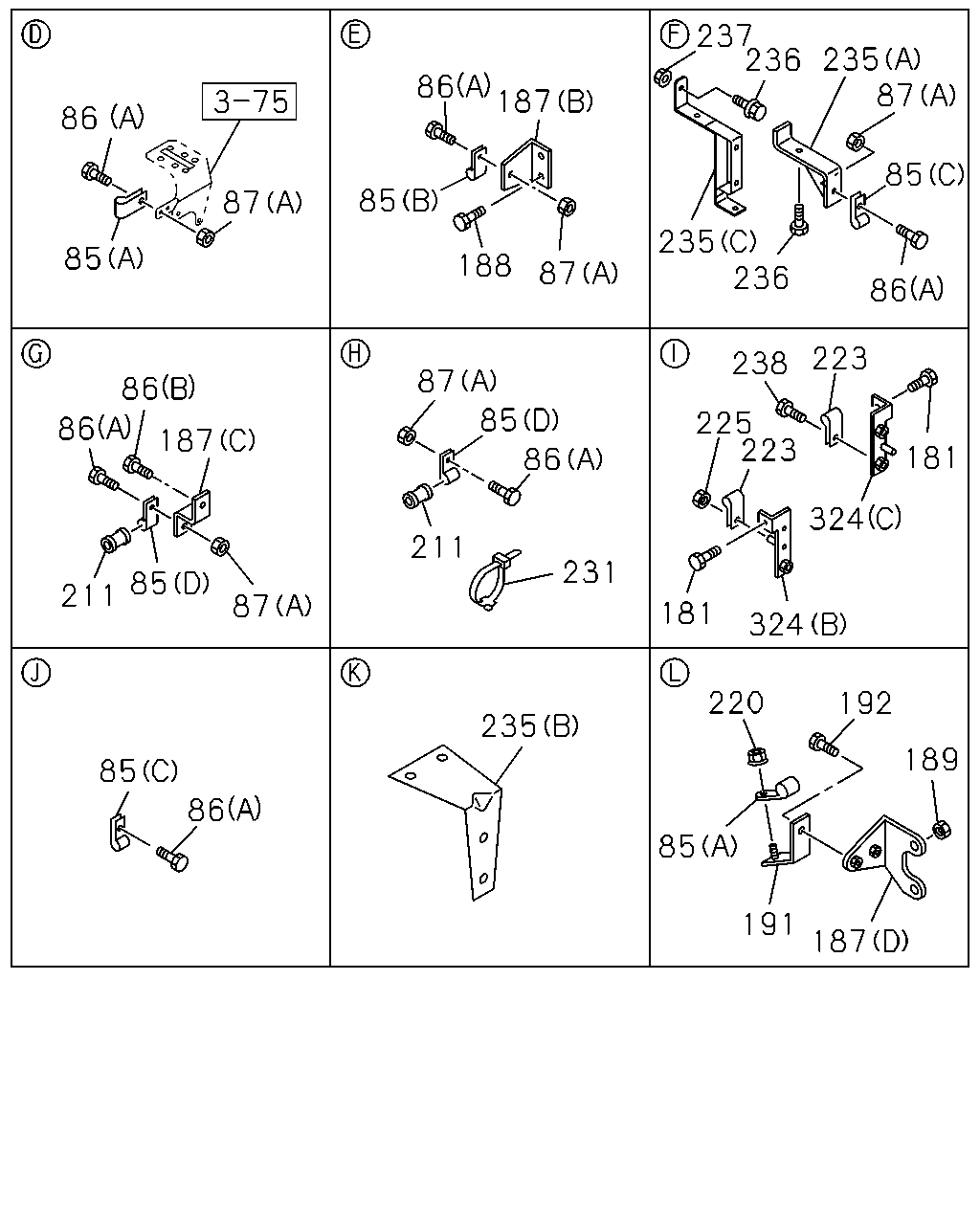

235 236 237 87 85 86 236 235 86 188 85 187 87 87 85 86 86 86 187 87 85 211 231 211 86 85 87 238 223 225 223 181 324 181 324 85 86 235 220 192 85 191 187 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09700-057-1	01	1	0105-0108	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (A) ID=14	1-09700-057-1	01	1	0109-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09700-057-1	01	1	0109-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14.5 L=20	1-09701-012-0	01	1	0105-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14.5 L=28	1-09701-013-0	01	1	0105-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (D) ID=31 L=30	1-09700-969-0	02	1	0105-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) M10X20 FLANGE	0-28781-020-0	01	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B) M10X20 FLANGE	0-28751-020-0	01	1	0601-	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (B)	1-46259-007-0	01	1	0506-0508	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0505	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91150-108-0	02	1	0506-0602	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0505	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0505	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91150-108-0	01	1	0506-0508	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0506-0508	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0509-0602	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28680-820-0	01	1	0109-0512	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8X25 FLANGE	0-28680-825-0	01	1	0105-0108	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0109-0512	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (D)	1-46147-116-1	01	1	0110-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (D)	1-46147-118-1	01	1	0110-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-503-0	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C)	1-46147-264-0	01	1	0105-	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-223-0	01	1	0105-	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
189	NUT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M10 FLANGE	0-91150-210-0	02	1	0109-0602	●	●
189	NUT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
191	STAY; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0>	1-46147-233-0	01	1	0109-	●	●
192	BOLT; STAY FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	01	1	0109-0512	●	●
192	BOLT; STAY FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
211	SLEEVE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> ID=13 L=32	1-09337-029-0	02	1	0105-	●	●
220	NUT; CLIP,PARKING CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0109-0602	●	●
220	NUT; CLIP,PARKING CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
223	CLIP; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> W-SERIES ENG<1A2> ID=14.5 L=28	1-09701-013-0	01	1	0105-	●	●
225	NUT; CABLE CLIP W-SERIES ENG<1A2> EXC. MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
225	NUT; CABLE CLIP W-SERIES ENG<1A2> EXC. MJD7 M/T<X9J> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
231	CLIP; BAND,BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> L=150	1-09707-145-1	01	1	0105-	●	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> (B)	1-46147-183-0	02	1	0109-	●	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C)	1-47477-180-1	01	1	0109-0206	●	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-46147-169-1	01	1	0105-	●	●
236	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	06	1	0109-0512	●	●
236	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	06	1	0601-	●	●
236	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X35 FLANGE	0-28680-835-0	01	1	0105-0512	●	●
236	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
237	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	06	1	0109-0602	●	●
237	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	01	1	0109-0512	●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C)	1-82699-510-2	01	1	0109-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> (B)	1-82699-831-0	01	1	0105-	●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-140-1	01	1	0105-	●	●

61 102 101 247 246 87 87 98 61 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=4782	1-79996-196-5	01	1	0109-0508	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> L=4782	1-79996-196-5	01	1	0509-	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> ,CAB UP +110MM<TGG> L=5032	1-79996-194-3	01	1	0105-0508	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=5032	1-79996-194-3	01	1	0509-	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=5116	1-79996-200-3	01	1	0105-0508	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50),CAB UP +110MM<TGG> L=5102	1-79996-513-0	01	1	0105-0508	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> MJD7 M/T<X9J> EXC. CAB UP +110MM<TGG> L=5102	1-79996-513-0	01	1	0509-	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> MJD7 M/T<X9J> EXC. CAB UP +110MM<TGG> L=5186	1-79996-586-0	01	1	0105-0508	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (B)	1-46259-007-0	01	1	0506-0508	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0505	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91150-108-0	02	1	0506-0602	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0505	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0505	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91150-108-0	01	1	0506-0508	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0506-0508	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0509-0602	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
98	BOLT; RR COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
98	BOLT; RR COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
99	NUT; CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
99	NUT; CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
101	NUT; CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46259-007-0	01	1	0105-	●	●
102	NUT; LK,CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	0105-0512	●	●
102	NUT; LK,CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	01	1	0601-	●	●
246	SENSOR; BRK LOCK POWER BRAKE LOCK SYSTEM(J50)	1-46360-101-2	01	1	0105-0508	●	●
247	WASHER; PL POWER BRAKE LOCK SYSTEM(J50) ID=8.4	9-09160-508-0	01	1	0105-0505	●	●

61 23 28 52 52 73 51 90 241 4 187 61 46 61 45 90 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-79996-566-0	01	1	0105-	●	●
23	SWITCH; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-82440-100-0	01	1	0105-	●	●
28	BOLT; HAND BRK LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-	●	●
45	BOLT; CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR<PJ8> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0105-	●	●
46	CLIP; FRT CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR<PJ8> ID=13 L=20	9-09525-235-0	01	1	0105-	●	●
51	PIN; JOINT,RELAY LEVER PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09987-243-1	01	1	0105-	●	●
52	WASHER; CURVED RELAY LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> ID=19	8-94206-429-1	02	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=4782	1-79996-196-5	01	1	0109-0508	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> L=4782	1-79996-196-5	01	1	0509-	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> ,CAB UP +110MM<TGG> L=5032	1-79996-194-3	01	1	0105-0508	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=5032	1-79996-194-3	01	1	0509-	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=5116	1-79996-200-3	01	1	0105-0508	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50),CAB UP +110MM<TGG> L=5102	1-79996-513-0	01	1	0105-0508	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> MJD7 M/T<X9J> EXC. CAB UP +110MM<TGG> L=5102	1-79996-513-0	01	1	0509-	●	●
61	CABLE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> MJD7 M/T<X9J> EXC. CAB UP +110MM<TGG> L=5186	1-79996-586-0	01	1	0105-0508	●	●
73	WASHER; PL,CABLE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=17	9-09160-516-0	01	1	0105-	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (D)	1-46147-116-1	01	1	0110-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (D)	1-46147-118-1	01	1	0110-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-503-0	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C)	1-46147-264-0	01	1	0105-	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-223-0	01	1	0105-	●	●
241	NUT; BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
241	NUT; BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C)	1-82699-510-2	01	1	0109-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> (B)	1-82699-831-0	01	1	0105-	●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-140-1	01	1	0105-	●	●
